This 2023 Sennebogen 855R-HD with K21 boom configuration and Green Hybrid energy recovery is a Certified Pre-Owned Sennebogen — backed by a 12-Month / Remainder of 2,000-hours Hydraulic and Structural and warranty — and at just 800 operating hours, it is essentially new. This E-Series crawler machine will be available in June and is accepting inquiries and deposits now.

The K21 configuration delivers 68.8′ of total reach via a 12.1m straight compact boom and 9.5m curved grab handling stick with special materials handling kinematics — purpose-built for massive scrap piles, port terminals, and mill yard environments where reach, stability, and throughput are the operating mandate.

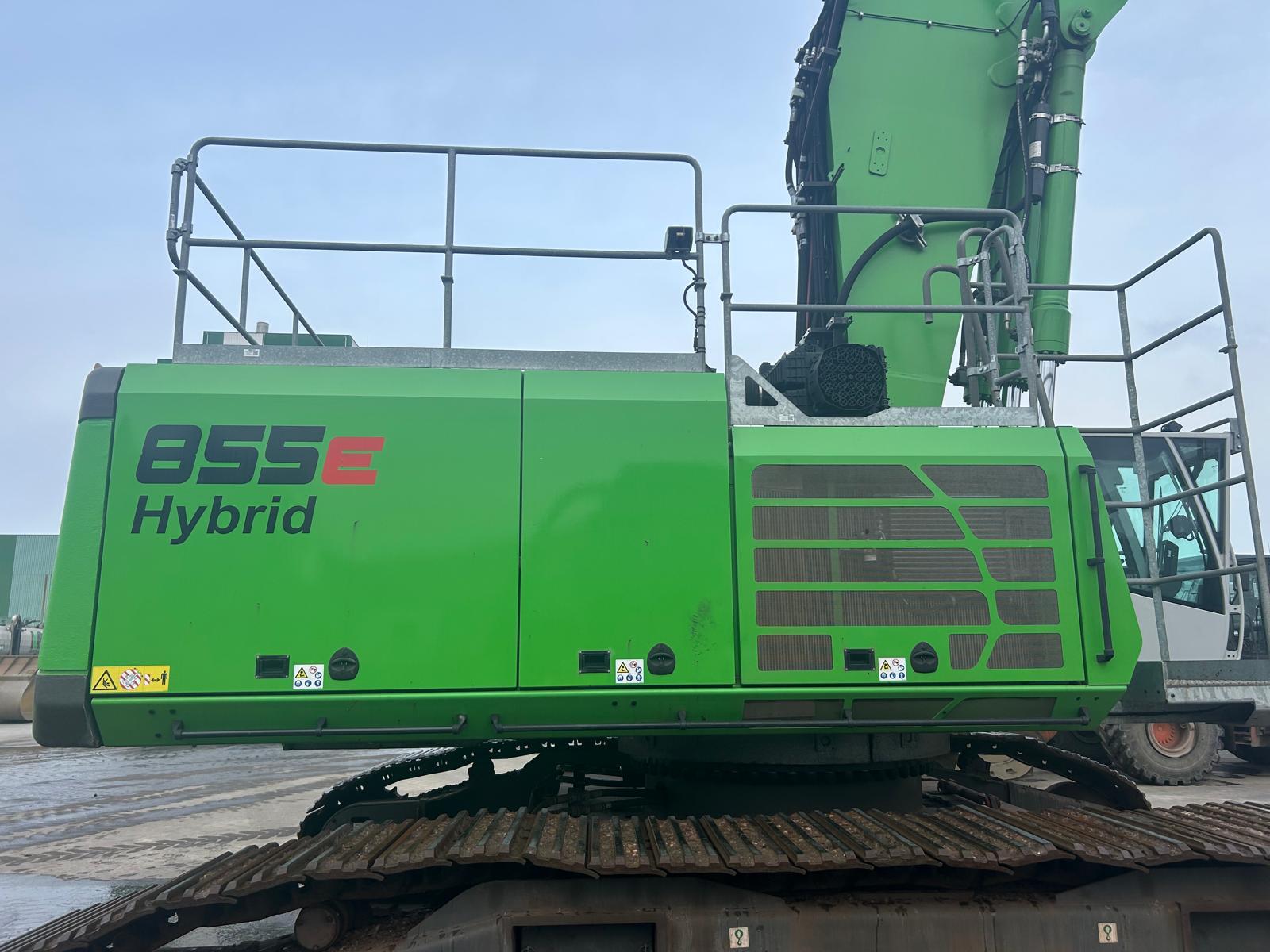

The 855R-HD is equipped with the Sennebogen Green Hybrid energy recovery system, recovering energy during boom lowering to reduce fuel consumption by up to 30% — a significant operating cost advantage over a standard machine at this production level, and a meaningful differentiator for operations focused on efficiency and long-term cost management.

Power comes from a Cummins L9 C310 producing 314 HP at 2,100 RPM, Tier 4 Final compliant, with an automatic idle speed stop and Eco-mode for additional fuel savings during lower-intensity cycles.

The reinforced R-HD crawler undercarriage provides a wide footprint and exceptional stability on uneven or unpaved surfaces — making this machine the right choice for high-production environments where a wheeled undercarriage would compromise stability or surface performance.

The maXCab Industry E300/260 elevates hydraulically to 3.0m and extends 2.6m out, with bulletproof front and skylight glass, SENCON diagnostics, SENtrack telematics, air suspension seat with lumbar support, and automatic A/C — giving operators the visibility and comfort needed for long, high-cycle production shifts.

Available June 2026 — inquiries and deposits accepted now.

Key Specs & Features:

Year: 2023
Hours: 800
Serial #: 855.5.1167
Boom Config: K21 — 68.8′ (21m) Total Reach
Engine: Cummins L9 C310 | 314 HP (231 kW) | Tier 4 Final
Operating Weight: 180,000 lbs
Undercarriage: R-HD Crawler | Reinforced Wide Footprint
Energy Recovery: Green Hybrid — Up to 30% Fuel Savings
Cab: maXCab Industry E300/260 | 3.0m Elevation | 2.6m Extension | Bulletproof Glass | SENCON | SENtrack
Availability: June 2026
Applications: Port Terminals, Scrap Processing, Mill Yards, Industrial Sorting, Shredder Feeding

Original Factory Specs

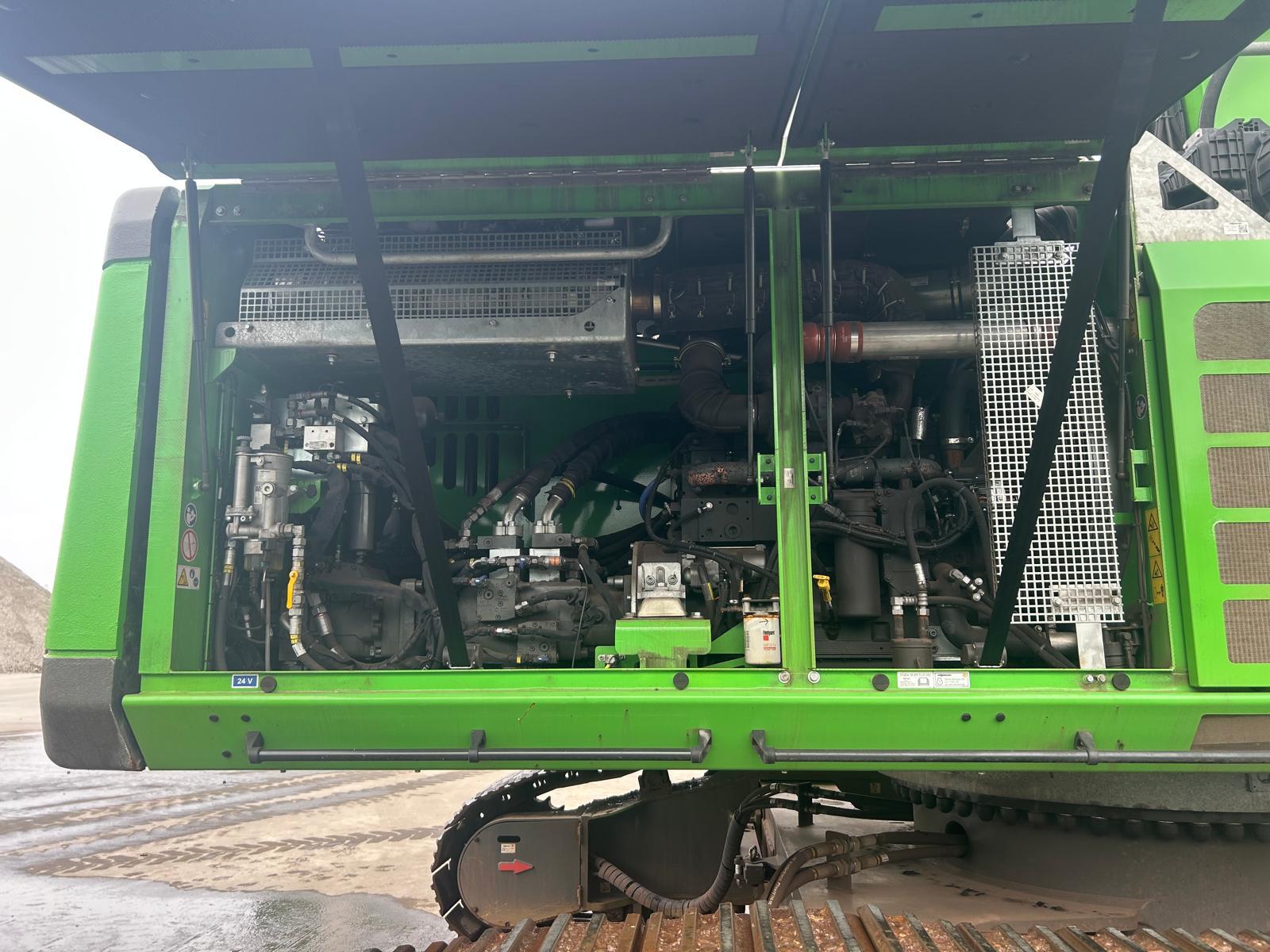

Engine
CUMMINS Engine L9 314hp / 2,100rpm; Tier 4 final
Water cooled, including electrically heated water separator with fuel prefilter 24V and pre-cleaner for air filter
Diesel particulate filter (DPF)
Automatic idle speed stop for diesel engine
Eco-mode for diesel engine

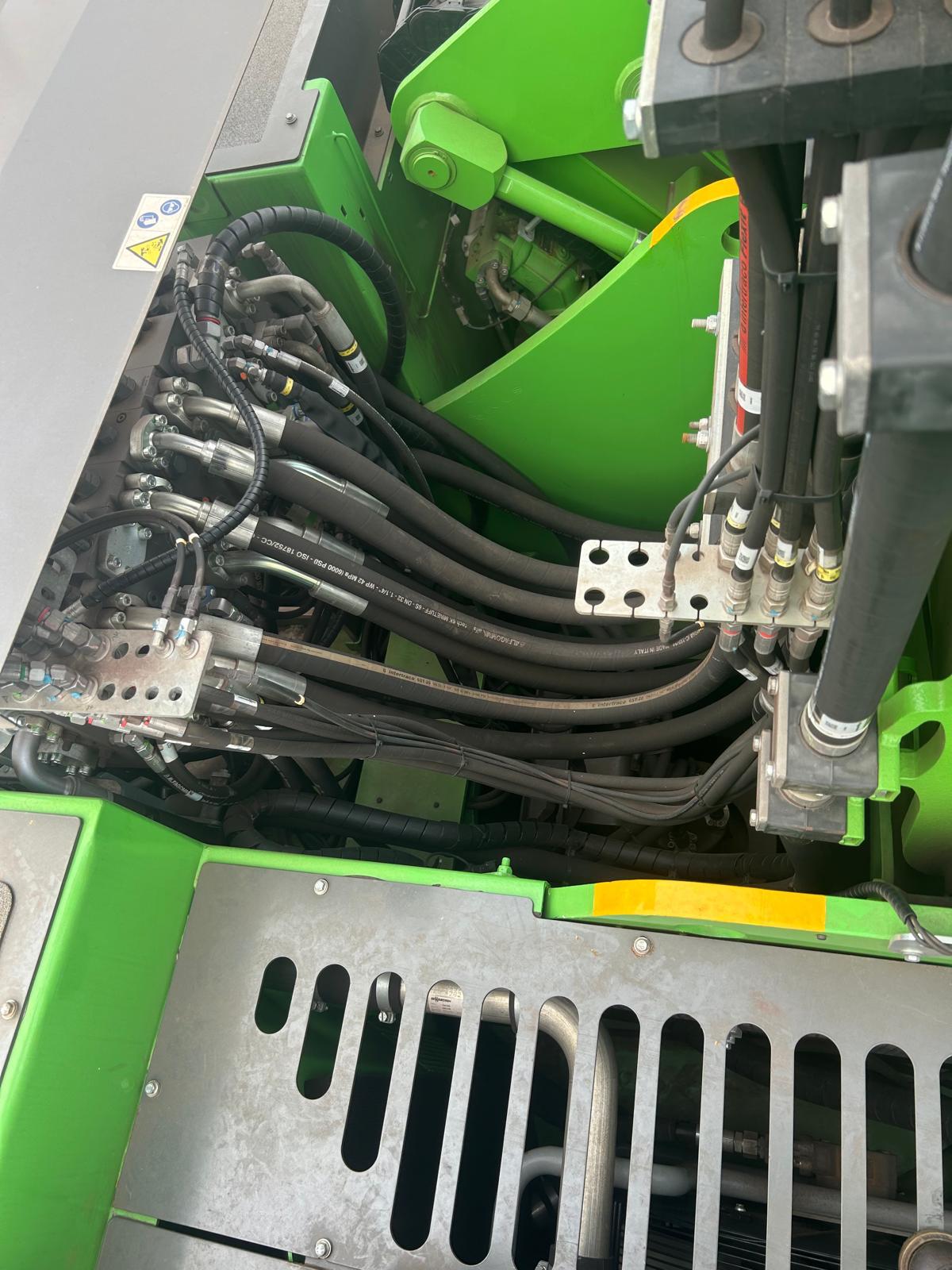

Hydraulic System
Standard lubricants for operation range between -20°C and +40°C, for diesel machines
Hydraulic oil Shell Tellus S2 VA 46
SENNEBOGEN Hydro-Clean: Hydraulic micro filter system with water absorption contamination indicator

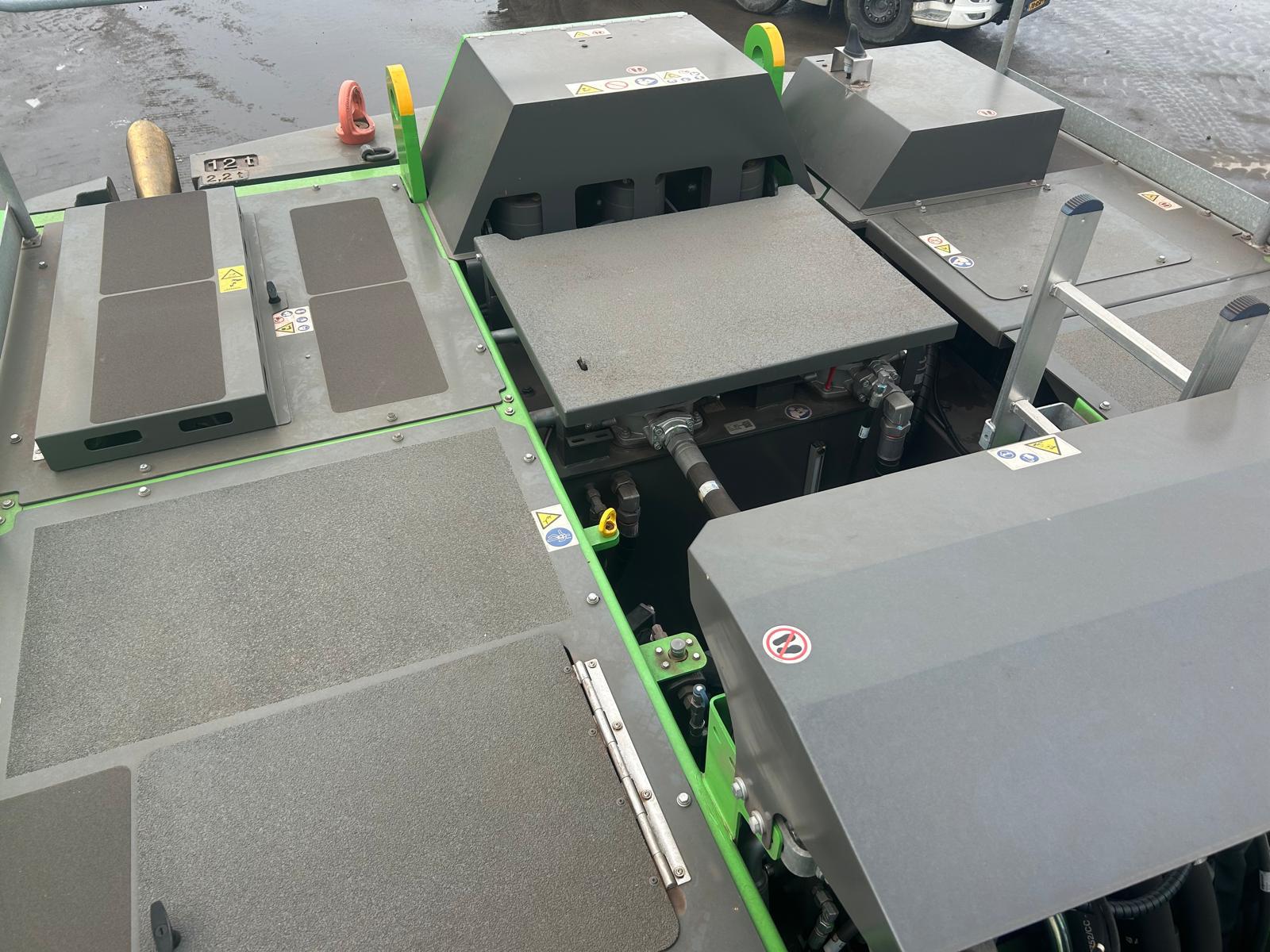

Upper Carriage & Swing System

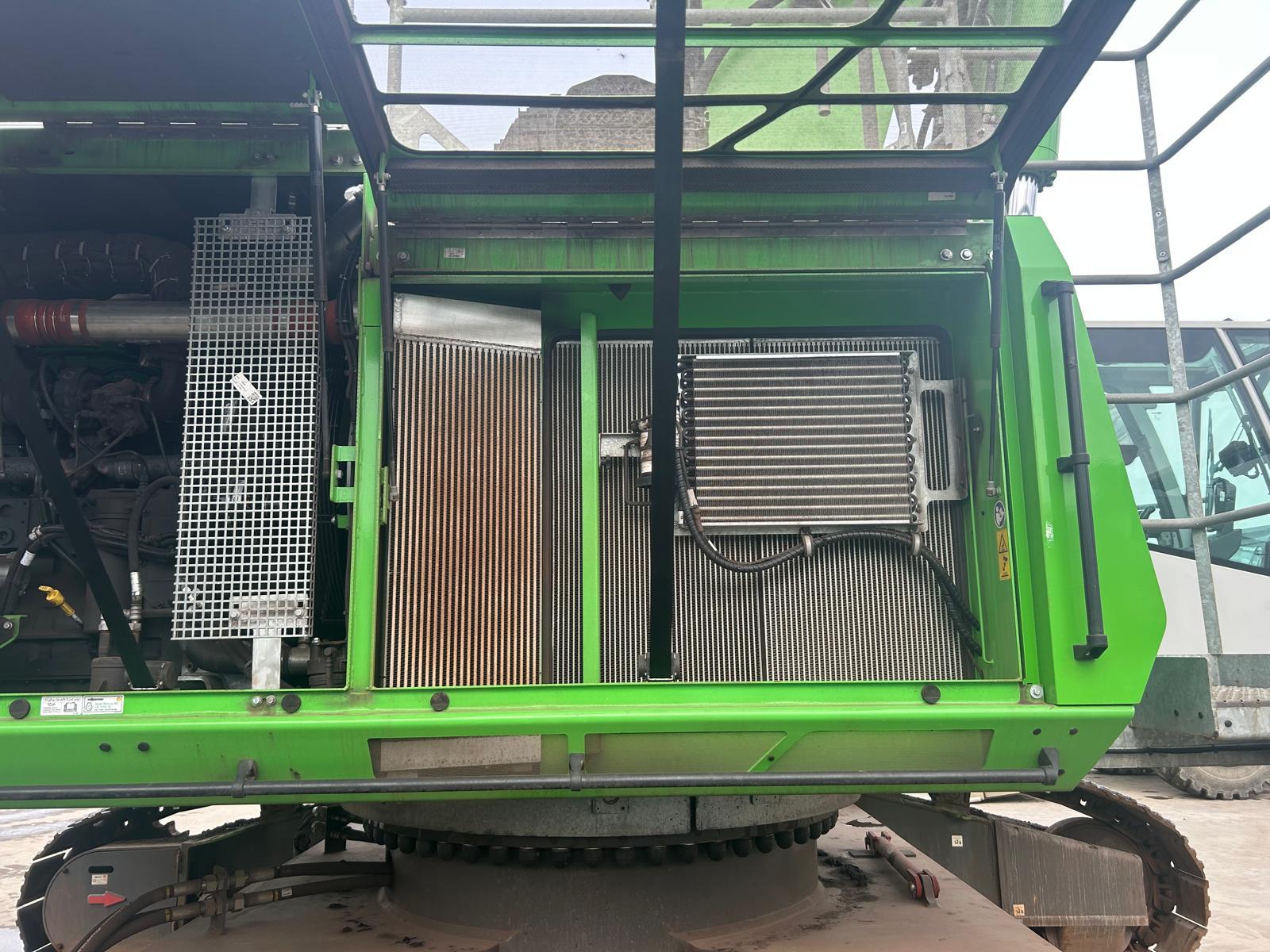

Counter rotation of ventilator for cleaning the cooler
Automatic central lubrication for equipment

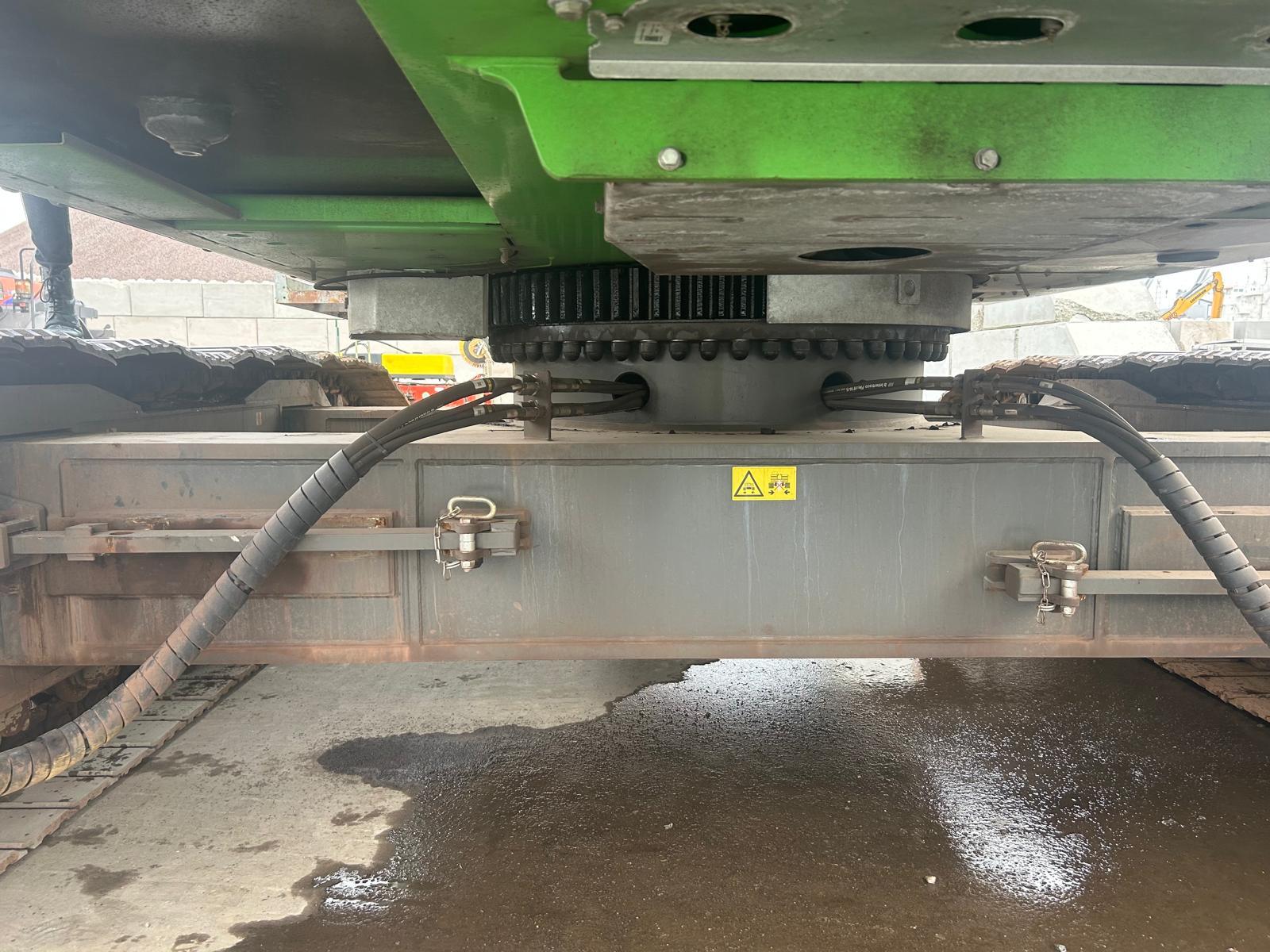

Pinion lubrication for slewing ring
Lighting system 2
1 headlight mounted on the upper-carriage right side in front, 2 rear
lights. LED headlight with magnetic fixing support and 5m of cable for
flexible connection in maintenance area
Camera system – base package with 2 cameras
includes 1 color monitor 7”, monitor with 4-way split, up to 4 cameras
expandable, 2 cameras with 115° field viewing angle for rear view
camera right side of the machine

Operator’s Cab “maXCab”
SENNEBOGEN MAXCAB industry with sliding door
SENCON diagnostic system
SENtrack telematics system including data connection
Sliding window and undivided, straight windscreen in bullet proof glass
Roof extended to front, roof window in bullet proof glass
Wiper/washer system for front window
Lower front window with wiper/washer system
Wiper for skylight
Sun protection for skylight
Sun protection for front windscreen
Radio with USB port, MP3 and Bluetooth
2 lights integrated in the front of the roof
Automatic air condition with fresh air and circulation air filters.

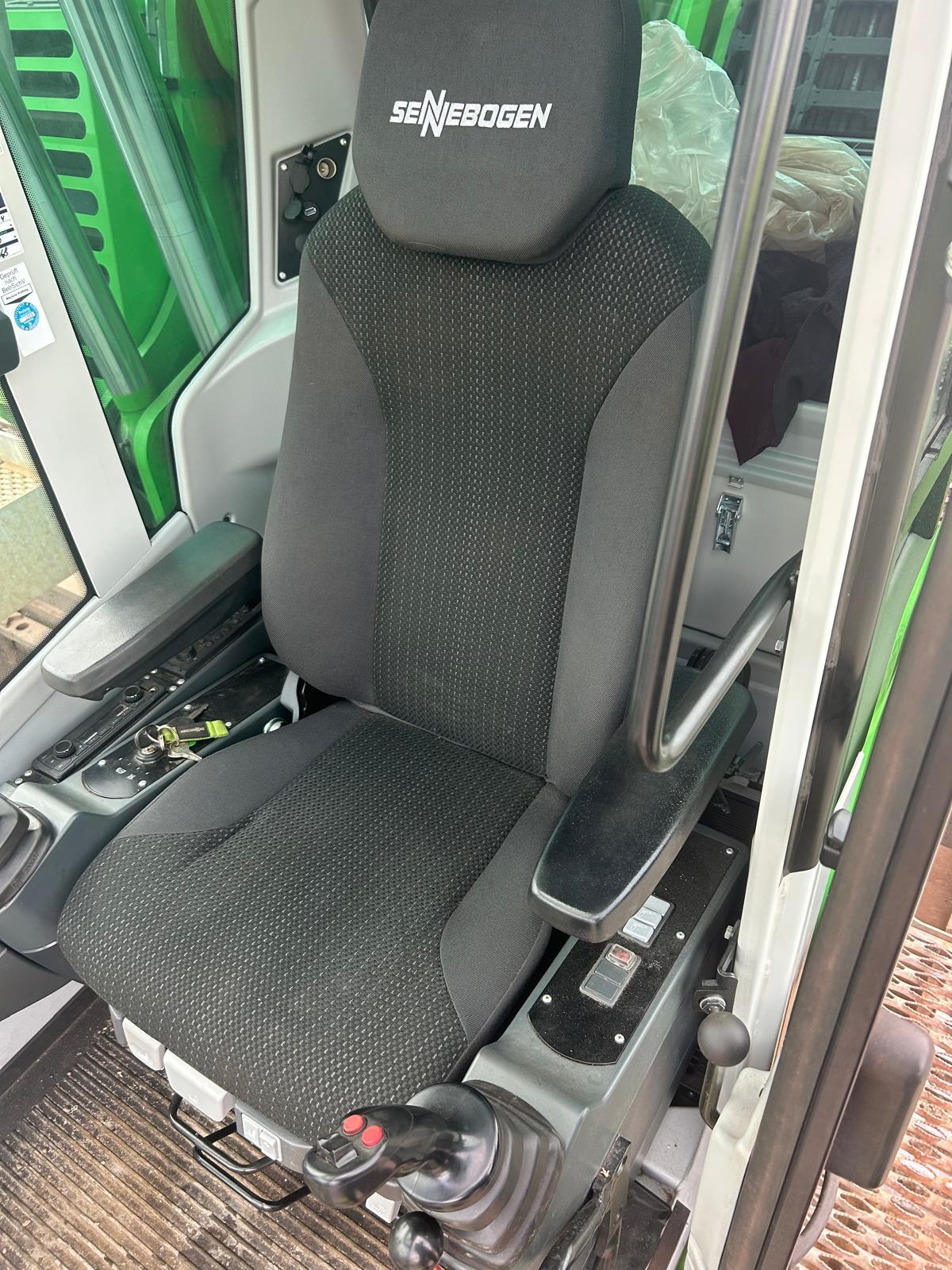

Air suspended operator’s seat with lumbar support, seat heating and headrest for driver´s seat
Multi-functional armrest for driver’s seat. Ergonomically adjustable armrest
Height-adjustable, swiveling sidewise, angle-adjustable, armrest slidable instead of standard armrest
2 inch seat belt – standard
Hand fire extinguisher, type PD6 (1 piece)
Grated step on side of cab with hand rail (bolted), only for MAXCAB
Hand rail at the upper structure, tiltable for transportation, diesel engine
SENNEBOGEN control & diagnostic system SENCON

Working Equipment
Standard materials handling boom type K21 – Reach 68.8′
Compact boom 12.1m straight and grab handling stick 9.5m curved with special materials handling kinematics

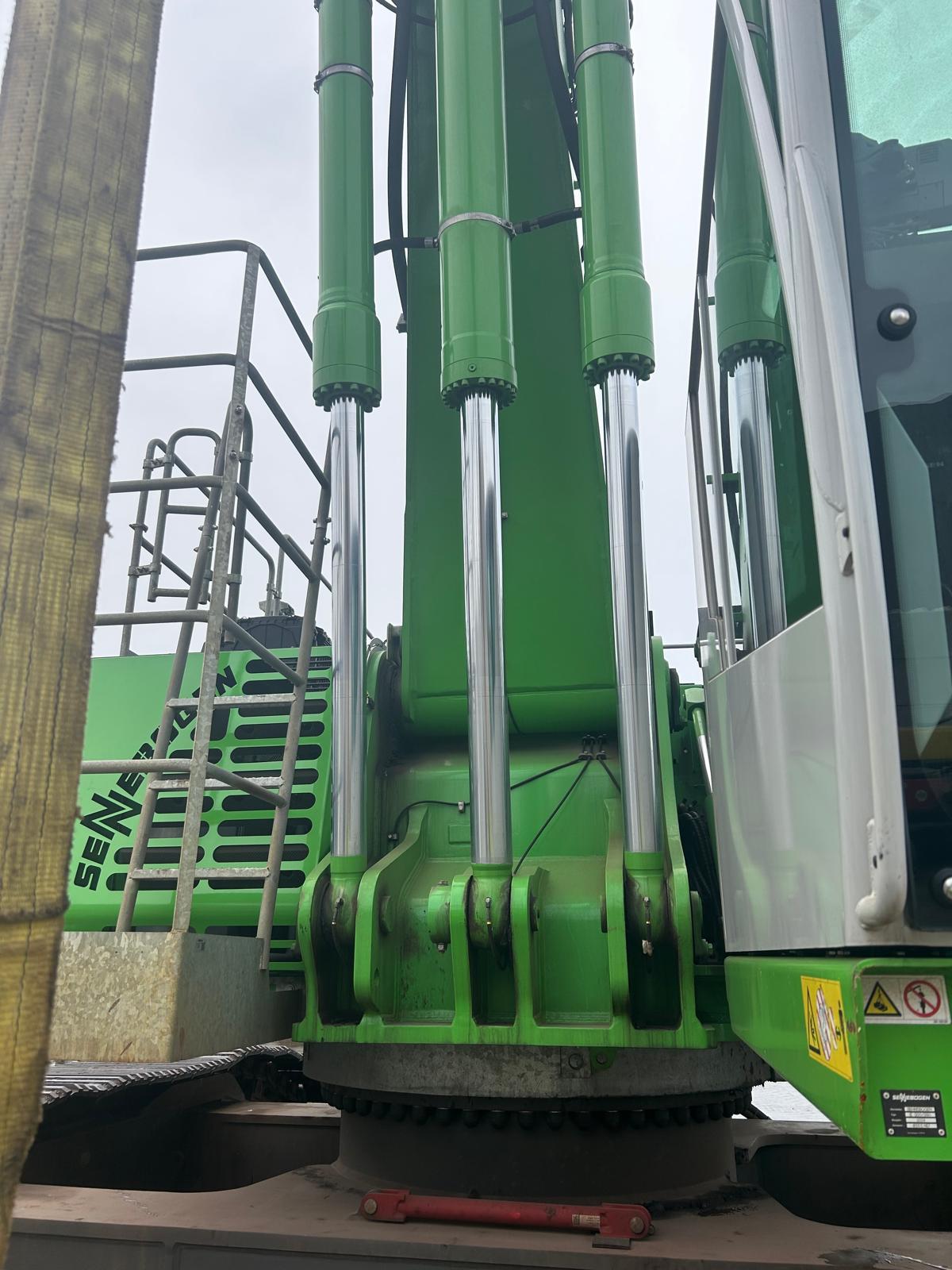

Boom and stick cylinders featuring end position damping,
Safety check valves for boom and stick cylinder.
End position shut off for boom up/down and stick in/out function
Quick change couplers (bolted type) with counter piece for grab open/close and grab rotating
Boom damping system 855E – reduces boom swinging and absorbs energy
Floating position for equipment – by boom cylinder

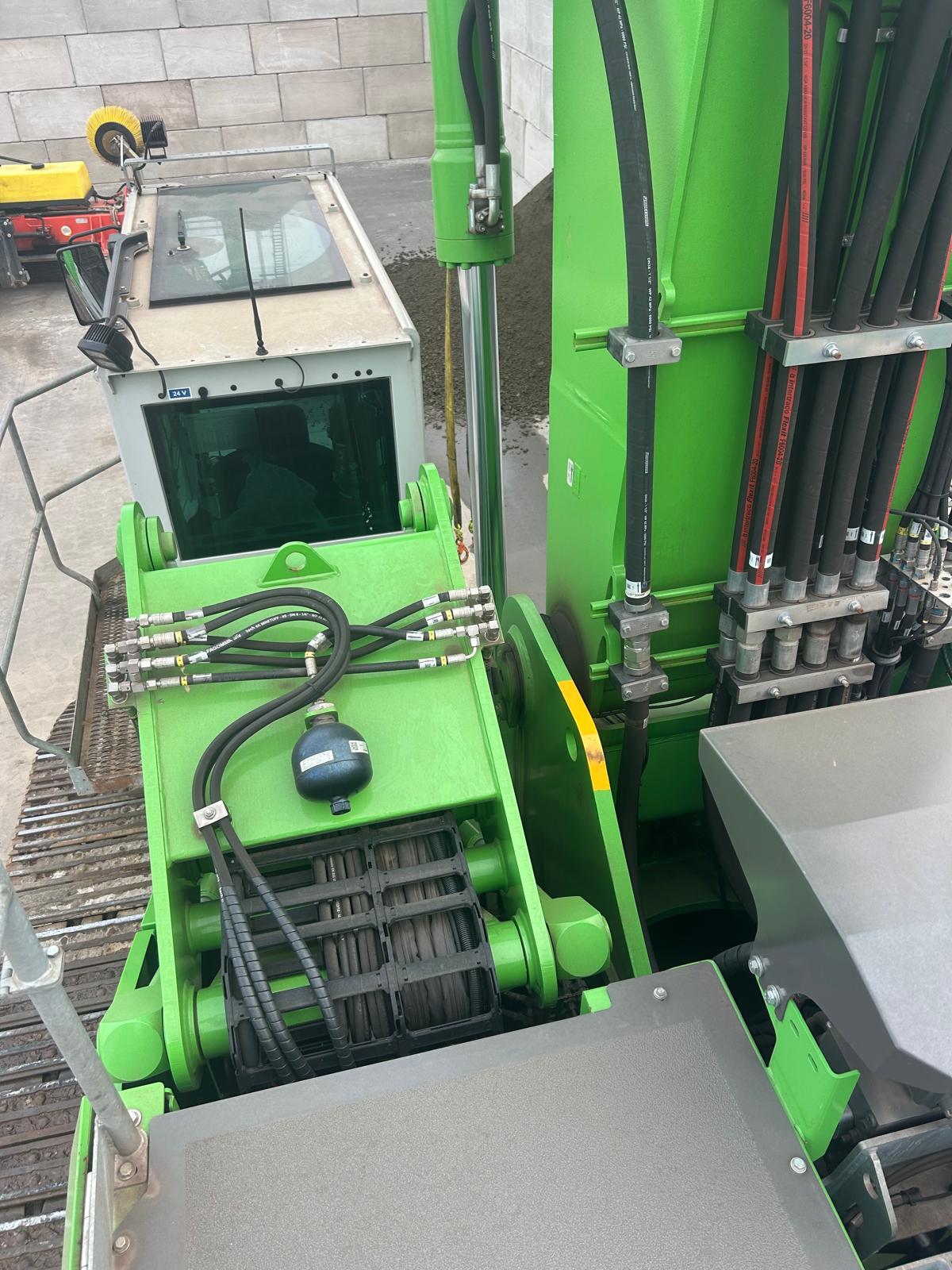

SENNEBOGEN Green Hybrid energy recovery system
Camera system – add-on camera (1 piece), variable positioning via magnetic base
Mounting position:
1 LED headlight mounted on the cab roof heading backwards
2 LED headlights mounted on the stick: 1 pc on left side, 1 pc on right side
1 LED headlight mounted on the compact boom down side
1 LED headlight mounted on the compact boom upper side
1 LED headlight mounted on the cab roof heading forwards

Undercarriage
Crawler undercarriage type R83/450, gauge 4.5m, crawler B7
B7 track (64 track shoes) with 800mm triple-bar track shoes, canted for R73/420, R83/450
Warning and Safety signs according to ISO standard
(International Organization for Standardization)
Joystick-steering instead of drive pedals for crawler machines
Two-stage track motors for higher travel speed, B7 crawlers

Magnet System: Not installed, contact us for a Retrofit quote
