SENNEBOGEN
- Used
- 2023
- 800
- 180,000 Lbs
- K21 - 69'
- Engine L9 - C310, 231kW/ 2,100rpm, Tier 4 Final
- 855.5.1167
- MaXCab Industry E300/260; Hydraulically adjustable 3.0m Up & 2.6m Out
- Request a Price
DESCRIPTION
2023 Sennebogen 855R-HD | E-Series Crawler Material Handler
Now available: a low-hour 2023 Sennebogen 855R-HD designed for high-capacity material handling where stability and traction are paramount. With only 800 operating hours, this E-Series machine delivers near-new performance and the latest “Green Efficiency” technology. The HD crawler undercarriage provides a wide footprint, making it the ideal choice for massive scrap piles, port terminals, and mill yards.
Technical Specs & Performance:
Boom Configuration: K21 Equipment (approx. 69 ft / 21m reach) for superior vertical and horizontal coverage.
Undercarriage: Reinforced R-HD Crawler tracks for exceptional stability on uneven or unpaved surfaces.
Energy Recovery: Equipped with the Sennebogen Green Hybrid system—recovering energy during boom lowering to reduce fuel consumption by up to 30%.
DETAILED SPECS
Original Factory Specs
Engine
CUMMINS Engine L9 314hp / 2,100rpm; Tier 4 final
Water cooled, including electrically heated water separator with fuel prefilter 24V and pre-cleaner for air filter
Diesel particulate filter (DPF)
Automatic idle speed stop for diesel engine
Eco-mode for diesel engine
Hydraulic System
Standard lubricants for operation range between -20°C and +40°C, for diesel machines
Hydraulic oil Shell Tellus S2 VA 46
SENNEBOGEN Hydro-Clean: Hydraulic micro filter system with water absorption contamination indicator
Upper Carriage & Swing System
Counter rotation of ventilator for cleaning the cooler
Automatic central lubrication for equipment
Pinion lubrication for slewing ring
Lighting system 2
1 headlight mounted on the upper-carriage right side in front, 2 rear
lights. LED headlight with magnetic fixing support and 5m of cable for
flexible connection in maintenance area
Camera system – base package with 2 cameras
includes 1 color monitor 7”, monitor with 4-way split, up to 4 cameras
expandable, 2 cameras with 115° field viewing angle for rear view
camera right side of the machine
Operator’s Cab “maXCab”
SENNEBOGEN MAXCAB industry with sliding door
SENCON diagnostic system
SENtrack telematics system including data connection
Sliding window and undivided, straight windscreen in bullet proof glass
Roof extended to front, roof window in bullet proof glass
Wiper/washer system for front window
Lower front window with wiper/washer system
Wiper for skylight
Sun protection for skylight
Sun protection for front windscreen
Radio with USB port, MP3 and Bluetooth
2 lights integrated in the front of the roof
Automatic air condition with fresh air and circulation air filters.
Air suspended operator’s seat with lumbar support, seat heating and headrest for driver´s seat
Multi-functional armrest for driver’s seat. Ergonomically adjustable armrest
Height-adjustable, swiveling sidewise, angle-adjustable, armrest slidable instead of standard armrest
2 inch seat belt – standard
Hand fire extinguisher, type PD6 (1 piece)
Grated step on side of cab with hand rail (bolted), only for MAXCAB
Hand rail at the upper structure, tiltable for transportation, diesel engine
SENNEBOGEN control & diagnostic system SENCON
Working Equipment

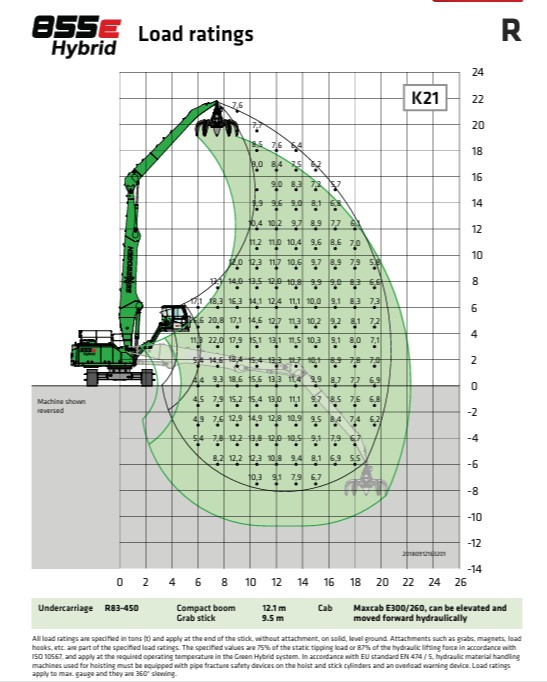

Standard materials handling boom type K21 – Reach 68.8′
Compact boom 12.1m straight and grab handling stick 9.5m curved with special materials handling kinematics
Boom and stick cylinders featuring end position damping,
Safety check valves for boom and stick cylinder.
End position shut off for boom up/down and stick in/out function
Quick change couplers (bolted type) with counter piece for grab open/close and grab rotating
Boom damping system 855E – reduces boom swinging and absorbs energy
Floating position for equipment – by boom cylinder
SENNEBOGEN Green Hybrid energy recovery system
Camera system – add-on camera (1 piece), variable positioning via magnetic base
Mounting position:
1 LED headlight mounted on the cab roof heading backwards
2 LED headlights mounted on the stick: 1 pc on left side, 1 pc on right side
1 LED headlight mounted on the compact boom down side
1 LED headlight mounted on the compact boom upper side
1 LED headlight mounted on the cab roof heading forwards
Undercarriage
Crawler undercarriage type R83/450, gauge 4.5m, crawler B7
B7 track (64 track shoes) with 800mm triple-bar track shoes, canted for R73/420, R83/450
Warning and Safety signs according to ISO standard
(International Organization for Standardization)
Joystick-steering instead of drive pedals for crawler machines
Two-stage track motors for higher travel speed, B7 crawlers
Magnet System: Not installed, contact us for a Retrofit quote
