SENNEBOGEN
- Used
- 2023
- 900
- 180,000 Lbs
- K19 - 62.3'
- Engine L9 - C310, 231kW/ 2,100rpm, Tier 4 Final
- 855.5.1137
- MaXCab Industry E300/260; Hydraulically adjustable 3.0m Up & 2.6m Out
- Request a Price
DESCRIPTION
2023 Sennebogen 855R-HD K19 – 900 Hours | 2.5 yd³ 5-Tine Grapple
This 2023 Sennebogen 855R-HD K19 crawler material handler is a low-hour, heavy-duty solution built for demanding scrap, steel mill, and high-production recycling operations. With just 900 original hours, this unit delivers near-new performance and exceptional value.
The K19 boom configuration provides extended reach and strong lift capacity, while the HD (Heavy Duty) undercarriage ensures stability and durability in rugged yard conditions. Equipped with a 2.5 cubic yard 5-tine grapple, this machine is ready for efficient scrap loading, railcar work, and bulk material handling.
Key Highlights:
Only 900 original hours
K19 boom configuration
Heavy-Duty (HD) crawler undercarriage
2.5 yd³ 5-tine grapple included
Excellent reach and lifting performance
Ideal for scrap yards, steel mills, and port operations
If you’re looking for a late-model, low-hour heavy-duty material handler built for high-volume production, this 855R-HD K19 is job-site ready.
Contact us today for pricing and availability.
DETAILED SPECS
Original Factory Specs
Engine
CUMMINS L9 314hp @ 2,100rpm; Tier 4 final
Water cooled, including electrically heated water separator with fuel prefilter 24V and pre-cleaner for air filter
Diesel particulate filter (DPF)
Automatic idle speed stop for diesel engine
Eco-mode for diesel engine
Hydraulic System
Standard lubricants for operation range between -20°C and +40°C, for diesel machines
Hydraulic oil Shell Tellus S2 VA 46
SENNEBOGEN Hydro-Clean: Hydraulic micro filter system with water absorption contamination indicator
Upper Carriage & Swing System
Additional counterweight 1.5t, only with crawler undercarriage and stationary (855E)
Hand rail at the upper structure, tiltable for transportation, diesel engine
Counter rotation of ventilator for cleaning the cooler
Automatic central lubrication for equipment
Pinion lubrication for slewing ring
1 headlight mounted on the upper-carriage right side in front
2 rear lights
Camera system – base package with 2 cameras
1 color monitor 7”, monitor with 4-way split, up to 4 cameras
expandable, 2 cameras with 115° field viewing angle for rear view
Camera right side of the machine
Operator’s Cab “maXCab”
SENNEBOGEN MAXCAB industry with sliding door, roof extended to front
Front and roof window in bullet proof glass
Wiper/washer system for front window
Lower front window with wiper/washer system
Wiper for skylight
Sun protection for skylight
Sun protection for front windscreen
Front & Top window protection guards (installed prior to shipping)
SENCON diagnostic system
SENtrack telematics system including data connection
Radio with USB port, MP3 and Bluetooth
1 LED headlight mounted on the cab roof heading backwards
Automatic air condition with fresh air and circulation air filters.
Air suspended operator’s seat with lumbar support, seat heating and headrest for driver´s seat
Multi-functional armrest for driver’s seat. Ergonomically adjustable armrest
Height-adjustable, swiveling sidewise, angle-adjustable, armrest slidable instead of standard armrest
2 inch seat belt – standard
Hand fire extinguisher, type PD6 (1 piece)
Grated step on side of cab with hand rail (bolted), only for MAXCAB
Cab Catwalk (installed prior to shipping)
SENNEBOGEN control & diagnostic system SENCON
Working Equipment

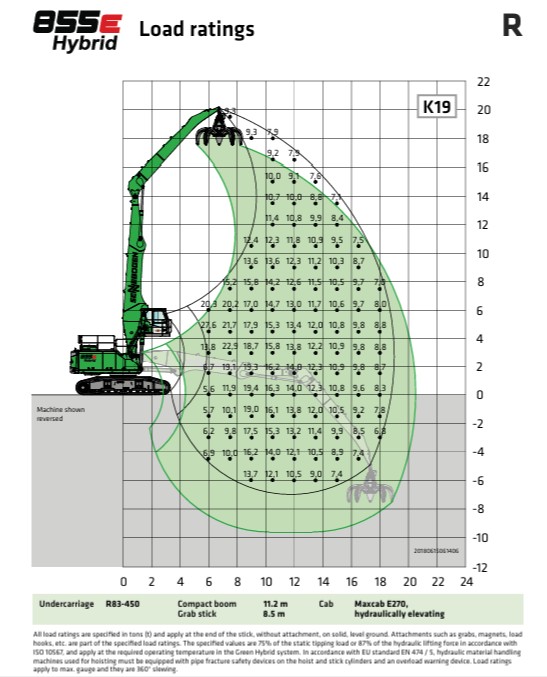

Standard materials handling boom type K19 – Reach 62.3′
Compact boom 12.1m straight and grab handling stick 9.5m curved with special materials handling kinematics
Boom and stick cylinders featuring end position damping,
Safety check valves for boom and stick cylinder.
End position shut off for boom up/down and stick in/out function
Quick change couplers (bolted type) with counter piece for grab open/close and grab rotating
Boom damping system 855E – reduces boom swinging and absorbs energy
Floating position for equipment – by boom cylinder
SENNEBOGEN Green Hybrid energy recovery system
2 LED headlights mounted on the stick: 1 pc on left side, 1 pc on right side
1 LED headlight mounted on the compact boom down side
1 LED headlight mounted on the compact boom upper side
1 LED headlight mounted on the cab roof heading forwards
Undercarriage
Crawler undercarriage type R83/450, gauge 4.5m, crawler B7
B7 track (64 track shoes) with 800mm triple-bar track shoes, canted for R73/420, R83/450
Drive pedals (only crawler machines)
Two-stage track motors for higher travel speed, B7 crawlers
Magnet System: N/A

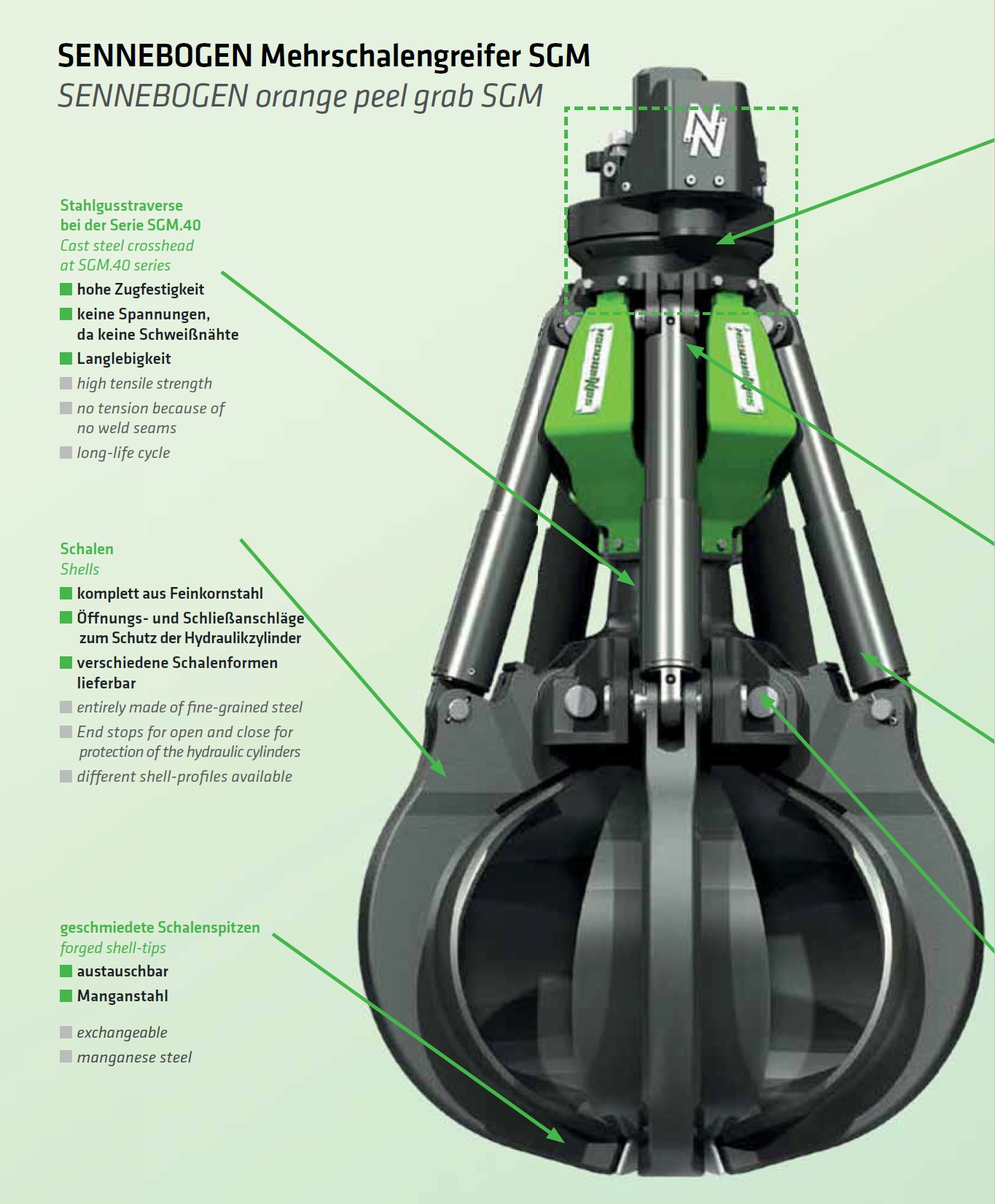

Attachment: SGM-2500.50-G SENNEBOGEN orange peel grab, 5-arms, closed
