SENNEBOGEN
- Used
- 2024
- 907
- 100,000 lbs.
- K16 - 52'6"
- CUMMINS L9, 224kW/ 305hp @ 2,000rpm, Tier 4 final
- 835.0.3342
- Eye level up to 19′
- Request a Price
DESCRIPTION

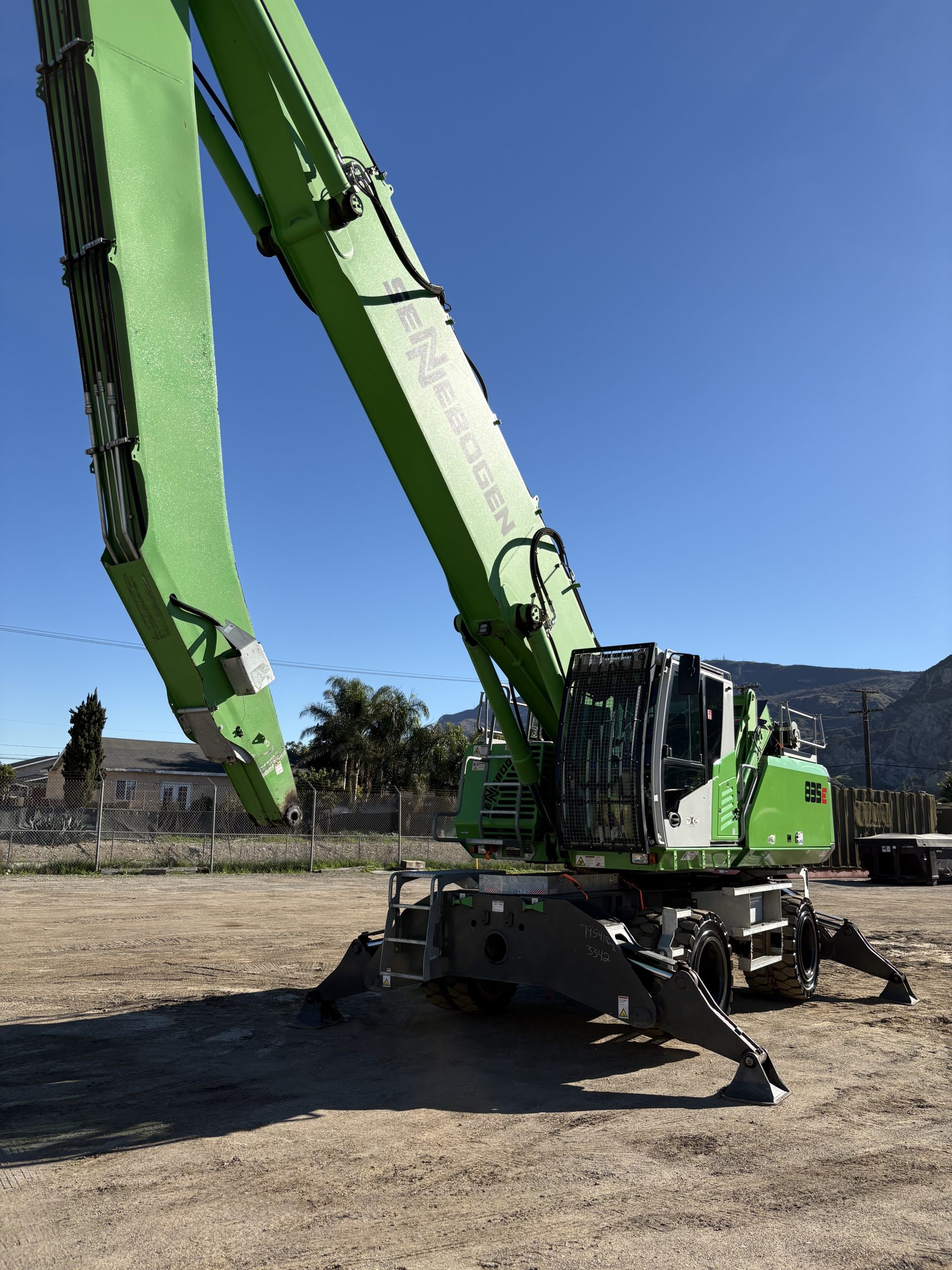

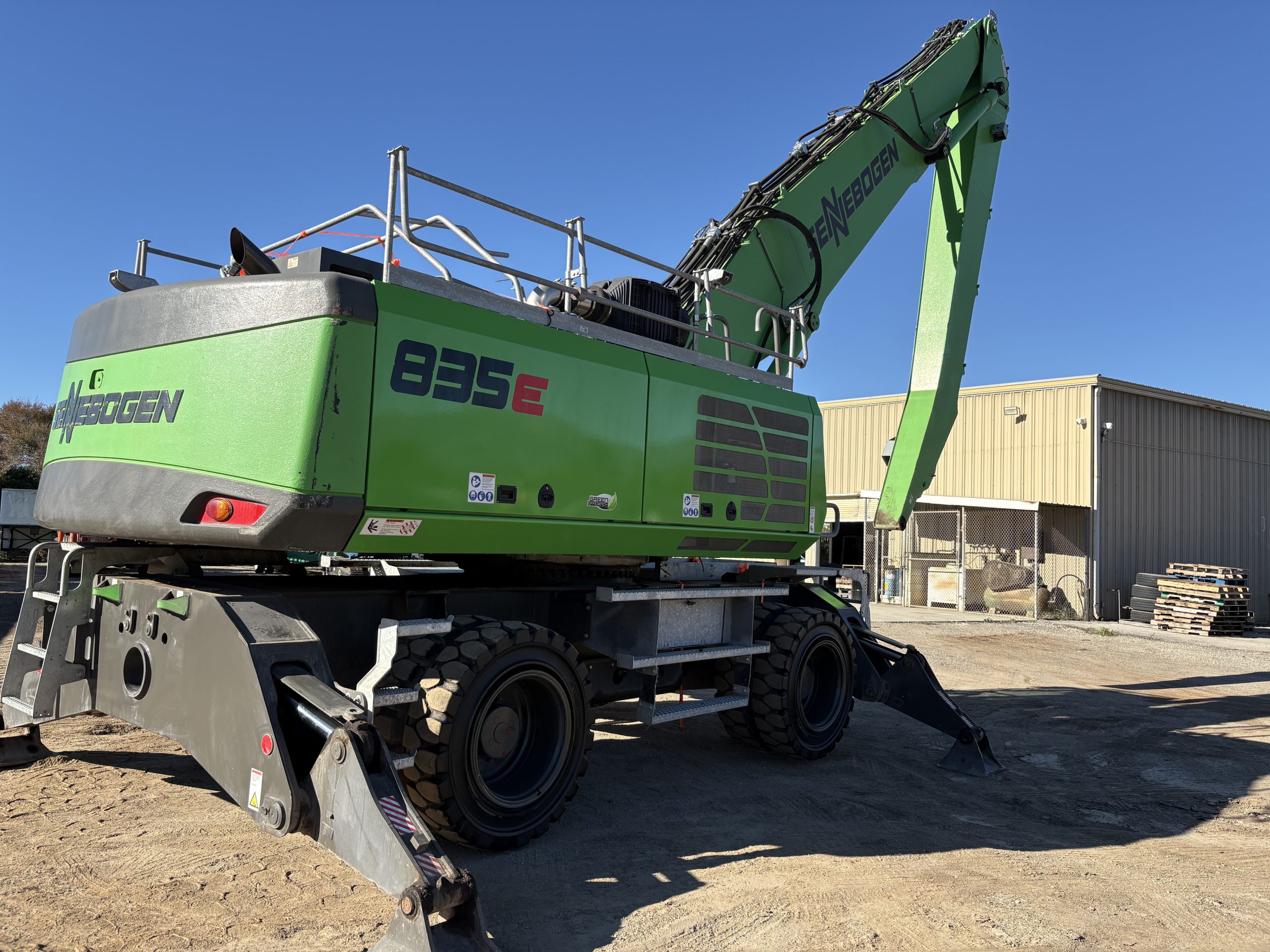

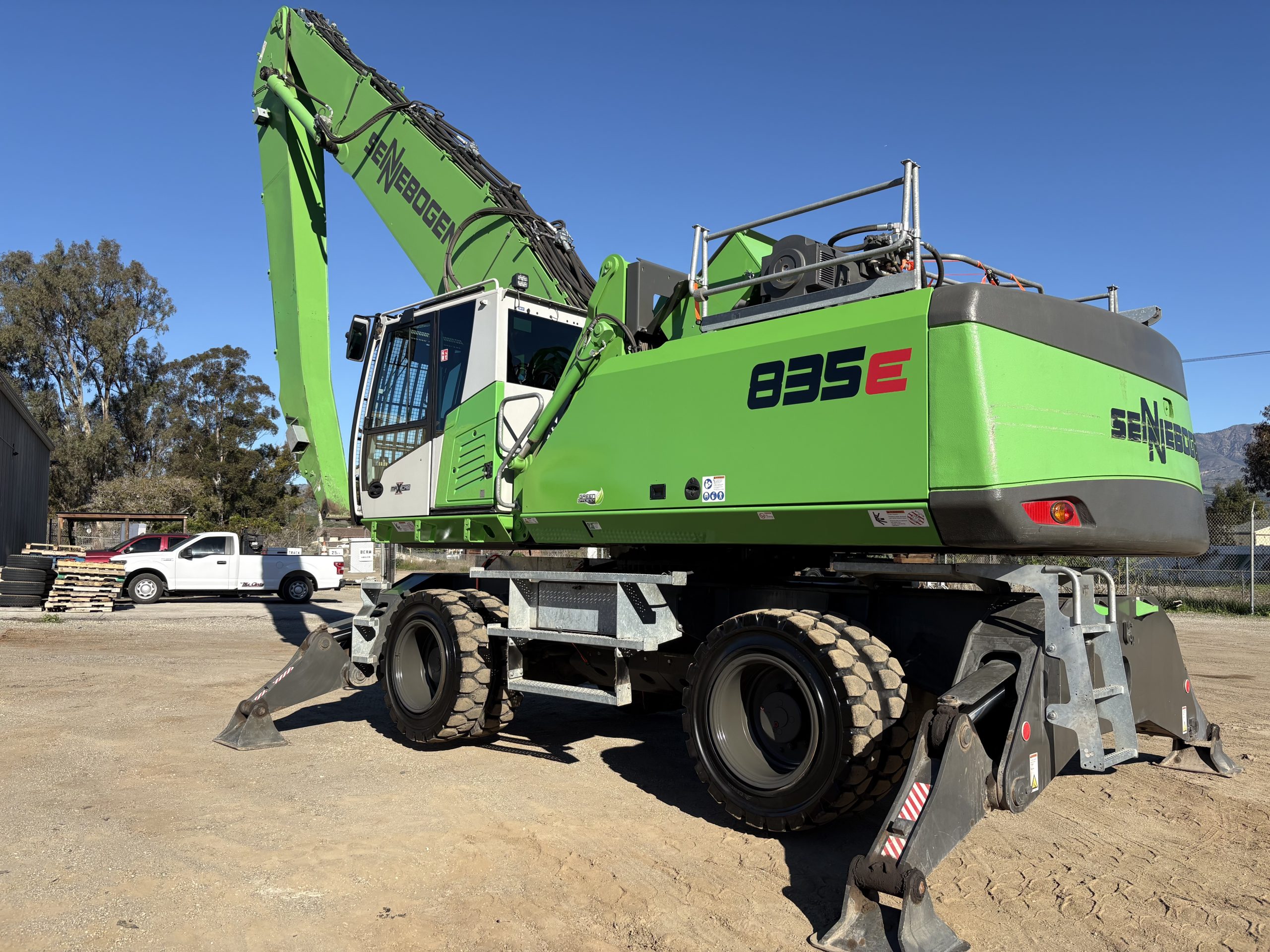

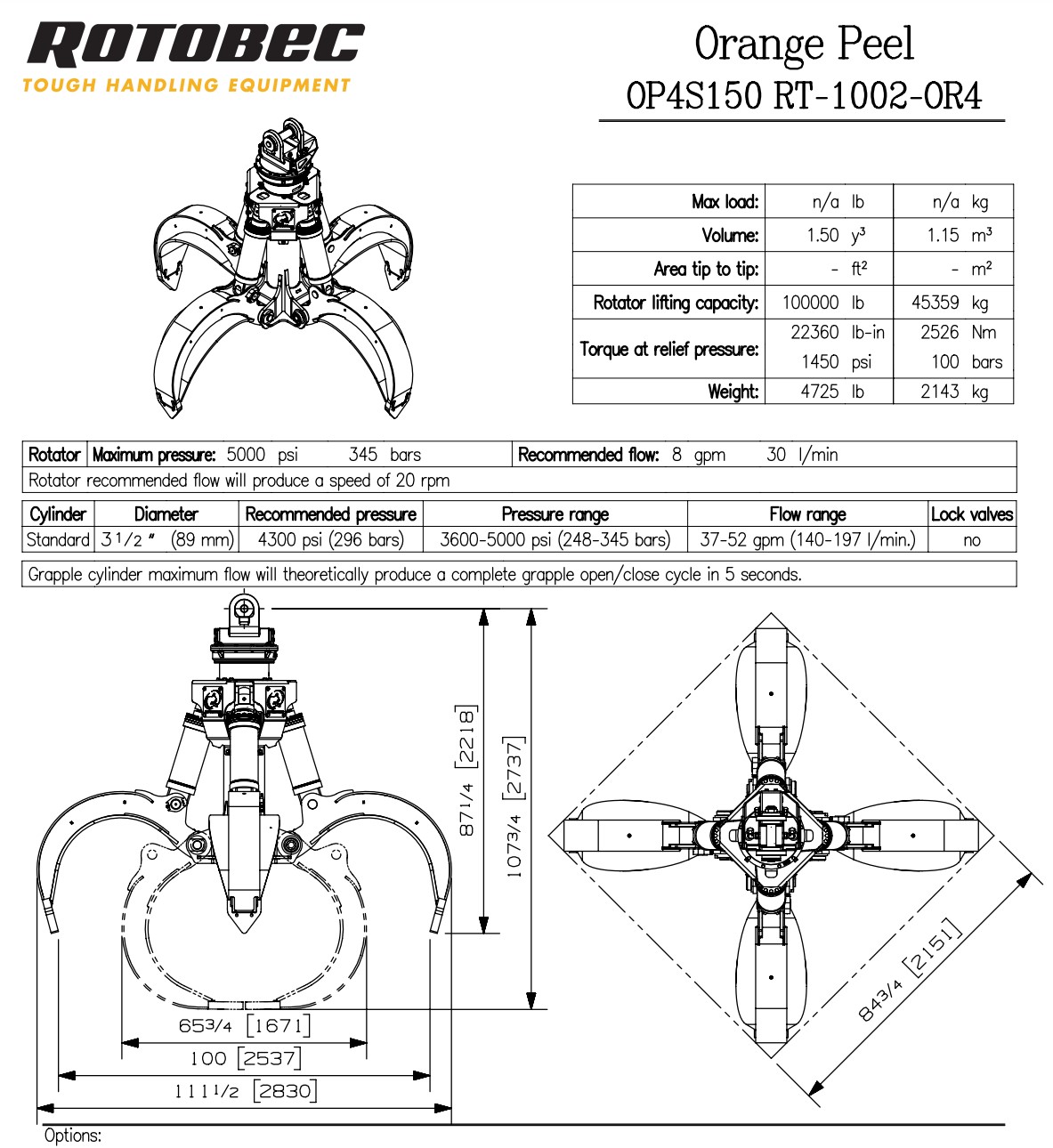

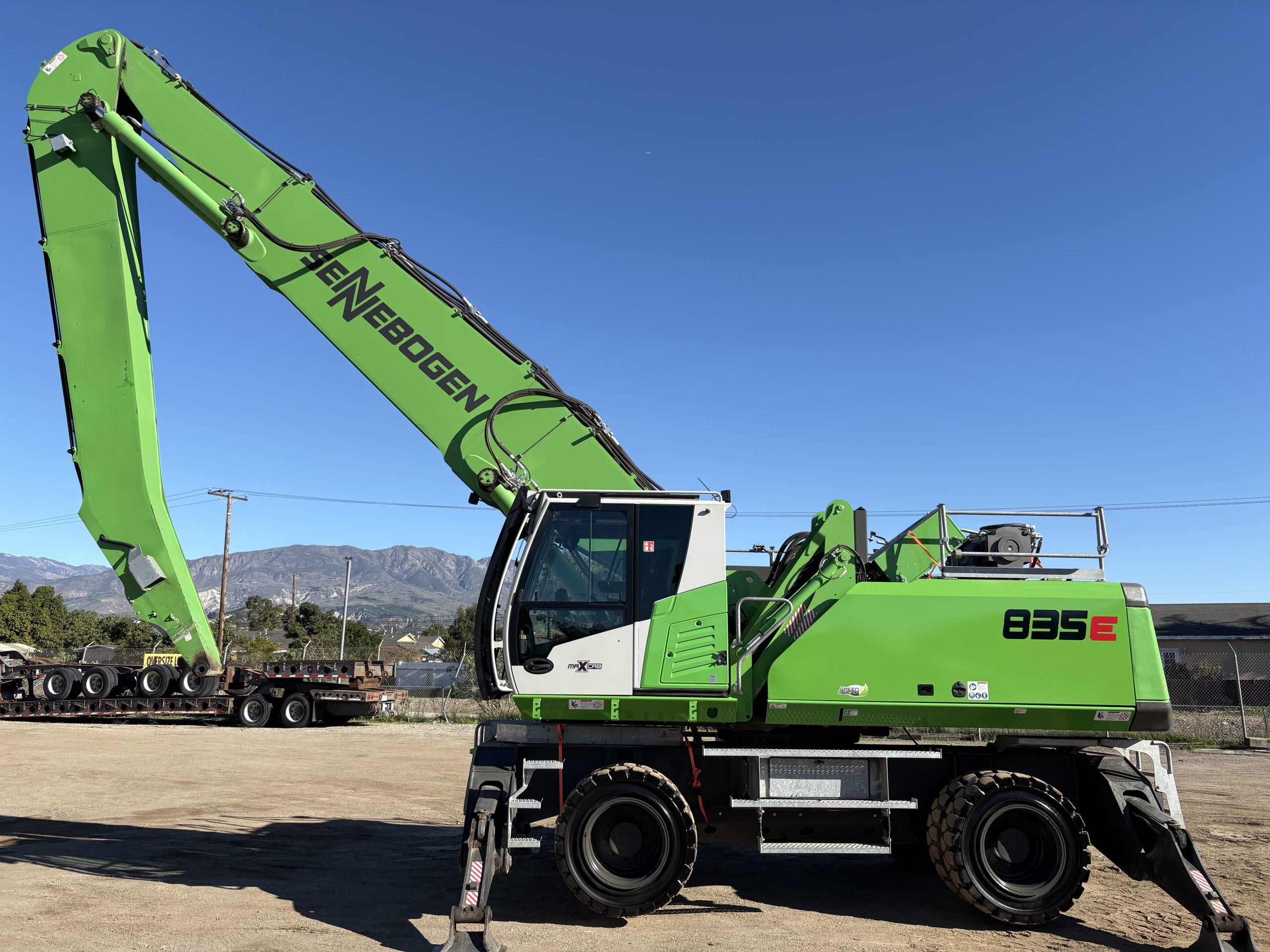

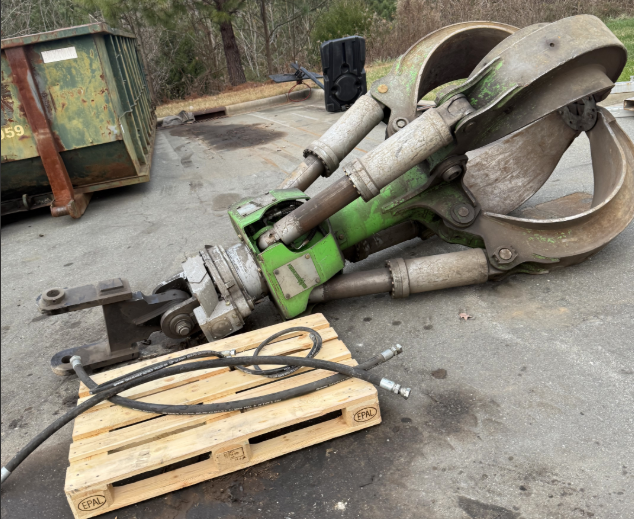

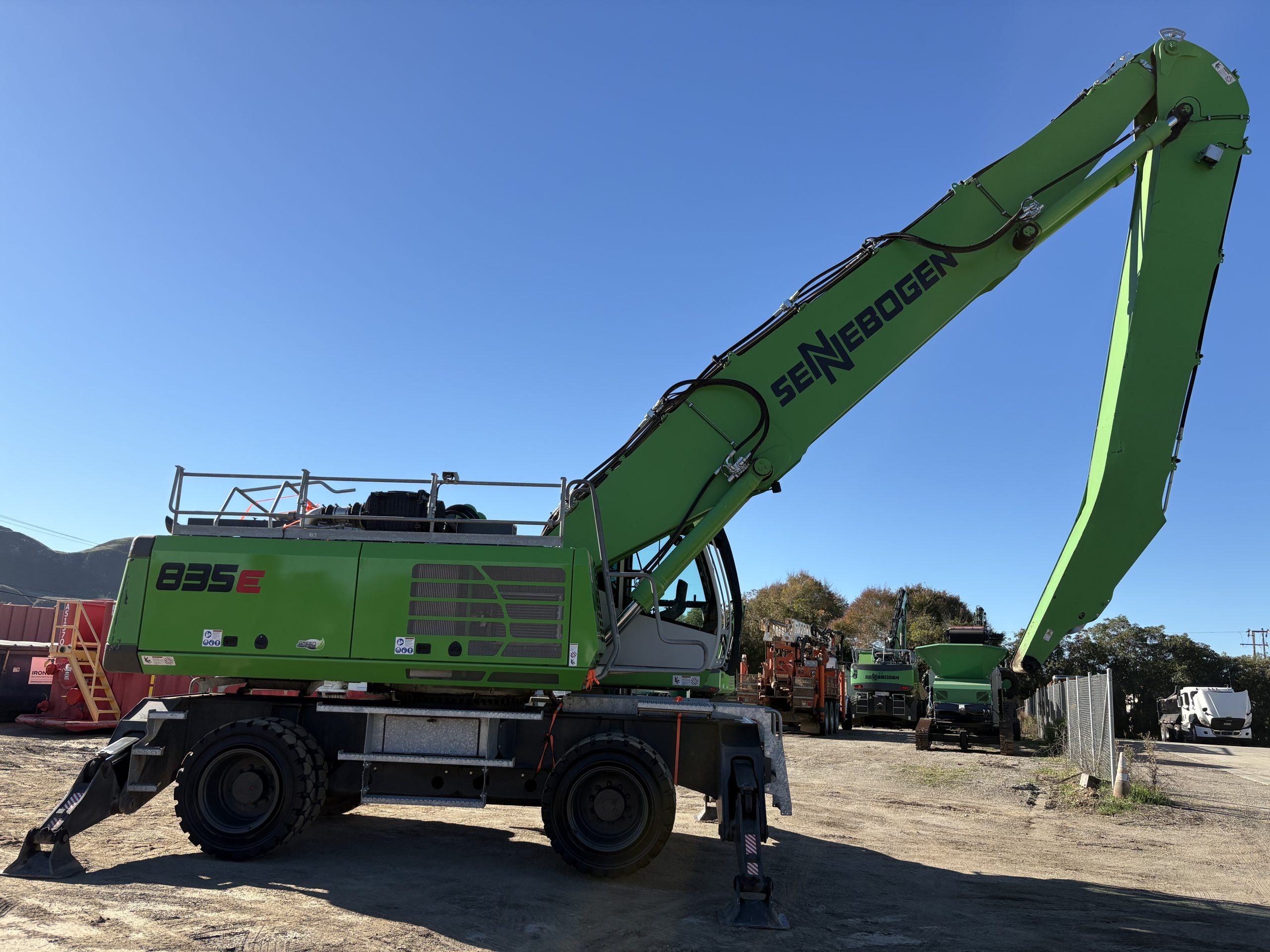

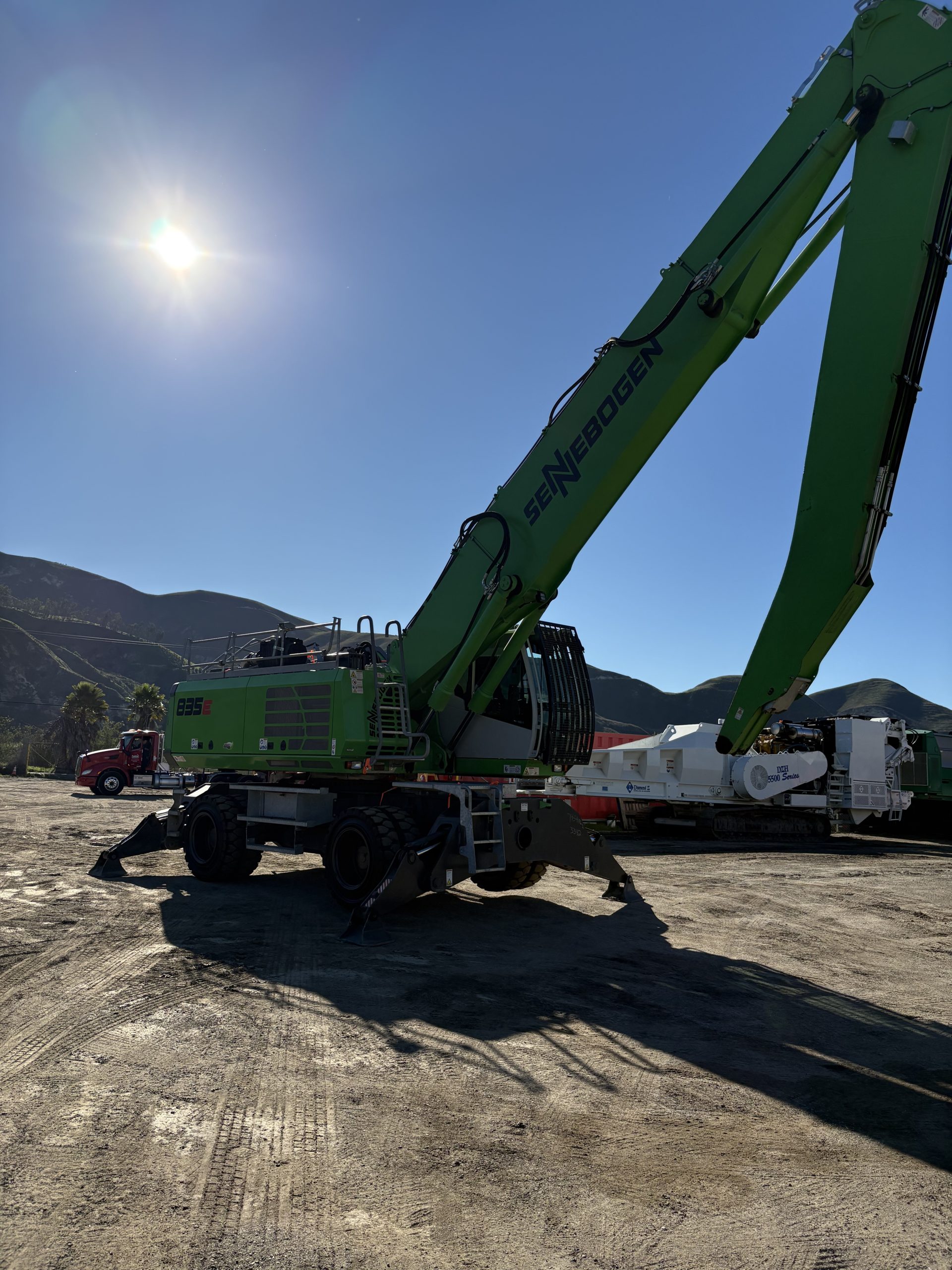

Used Sennebogen 835M K16 material handler with just 907 hours. Designed for demanding scrap, recycling, and industrial applications, the 835M offers outstanding reach, fast cycle times, and fuel-efficient performance. Fully inspected and job-ready — available now for quick delivery. We can also include a +/- 3,000Hr. 1.5cy Sennebogen 4-Tine grapple as well.
Key Features & Specs
Hours: 907 (Lightly used!)
Configuration: K16 — optimal balance of reach & lifting power
Tier-4 Final engine for reduced emissions and fuel efficiency
Purpose-built material handler upper carriage
Strong lifting performance for scrap, C&D, and bulk materials
Excellent visibility and comfort with elevated cab system
Robust Sennebogen build — well-maintained and field-ready
Why This Machine
Hard to find a 835M with under 1,000 hours
Faster loading cycles = increased throughput
Lower operating costs with efficient hydraulics and powertrain
Supported by nationwide parts & service
📞 Available now — contact us for pricing & transport options.
DETAILED SPECS
Engine
Cummins L9 diesel engine (6 cylinder) with direct injection, water cooled (TIER 4f emission)
Engine output 305 HP (224 kW) @ 2,000 rpm
Turbo intercooler direct driven
Water cooler hydraulically driven, reversible
Automatic idle-stop control and eco-mode for diesel engine
Hydraulic System
Computer free, state-of-the-art load-sensing with flow-on-demand control

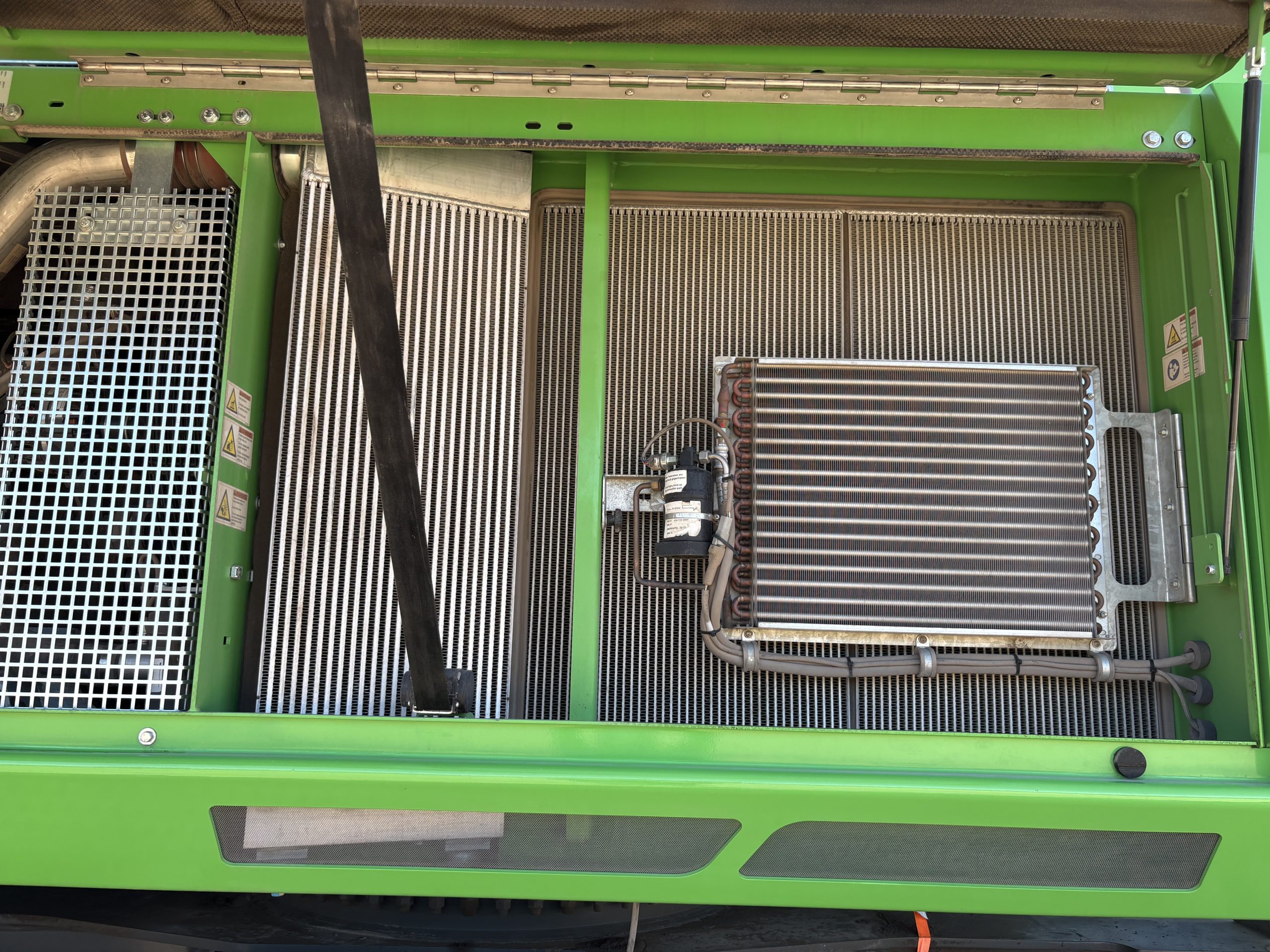

Hydraulic cooler hydraulically driven reversible
Hydro-Clean filtration system with water absorption and contamination indicator

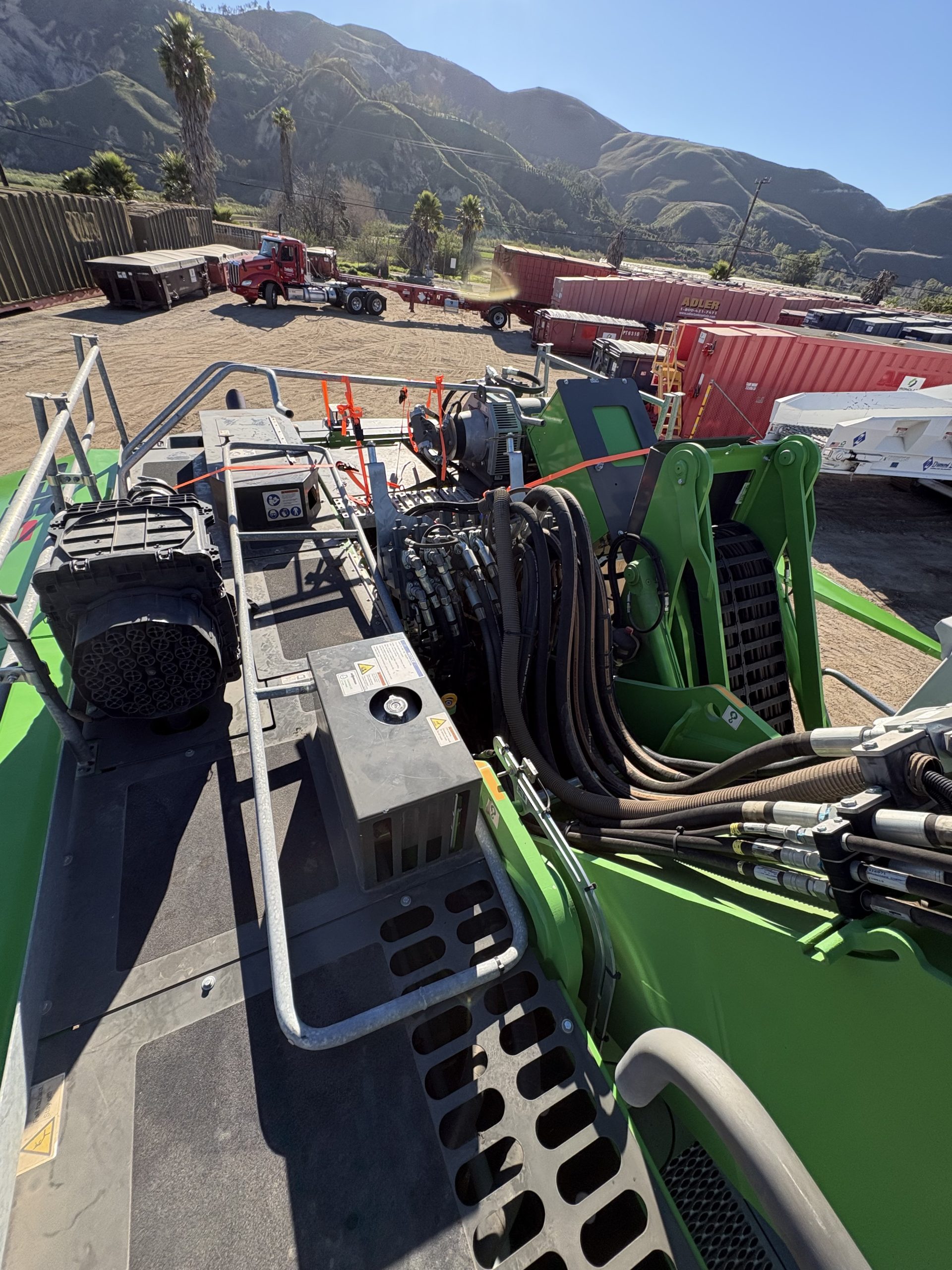

Upper Carriage & Swing System
Torsion free, precisely machined upper carriage frame
High torque axial piston swing motor
Large dimensioned, external teeth swing bearing with removable protection cover
Automatic central lubrication system for upper carriage
Manual pinion lubrication system for swing bearing
Handrail on top of upper carriage
Fire extinguisher set (1x cab, 1x storage compartment) – brackets installed, extinguisher shipped separate to dealer
Light Package consisting of: 2x halogen in cab roof, 2x in frame
Operator’s Cab “maXCab”
Hydraulic elevating cab system “E270″ (elevation: 8’8”)
Catwalk with handrail beside cab
“maXCab” with sliding door and door window as sliding window, sunshade, floor mat
Skylight of bullet proof glass
Windshield of bullet proof glass (fixed / no tilt out)
Front & top cab protection guard
Automatic climate control with AC, heater and defroster
AM/FM radio with MP3/Bluetooth

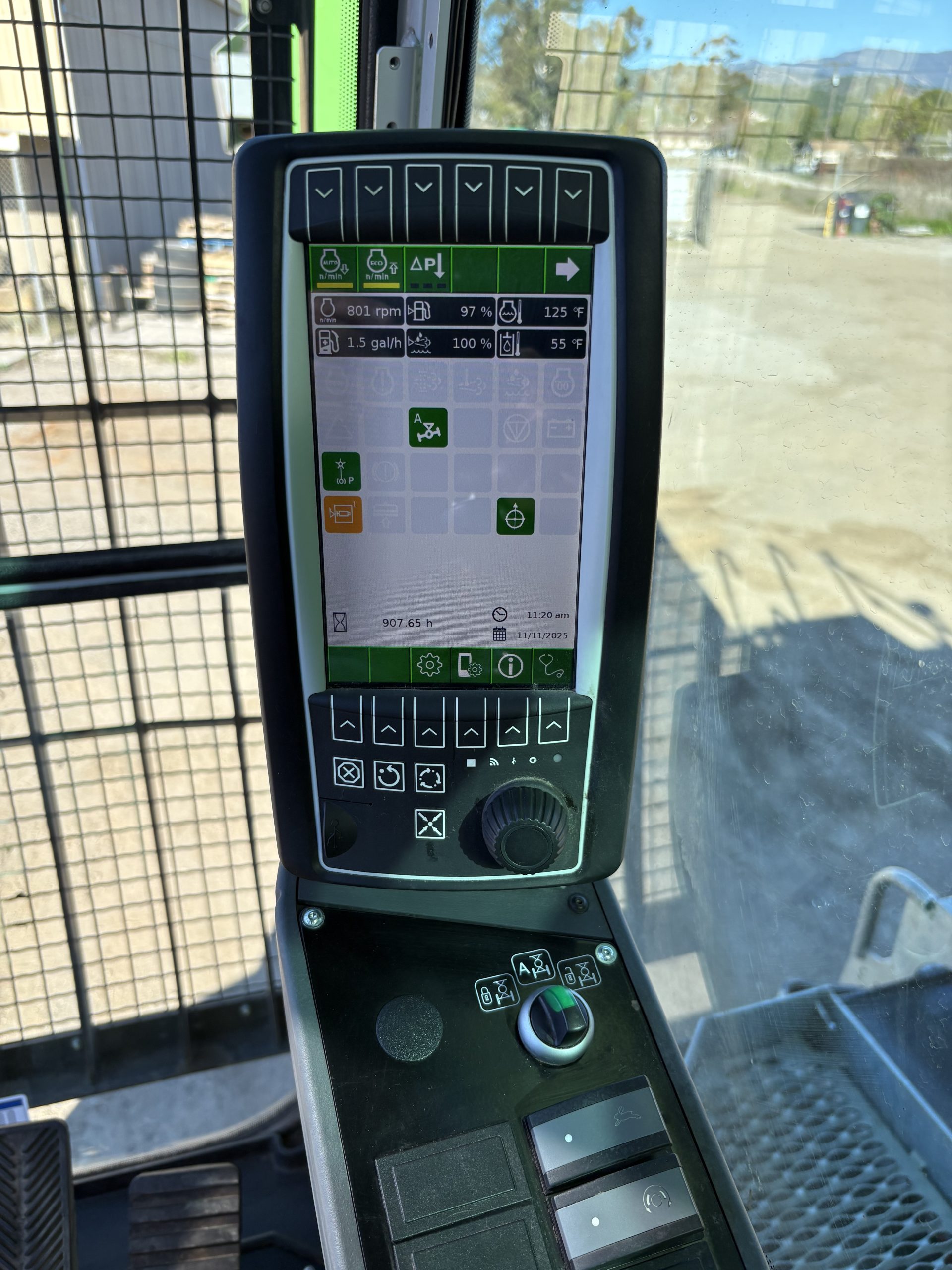

SENCON visual and acoustic diagnostic system for monitoring all essential machine functions

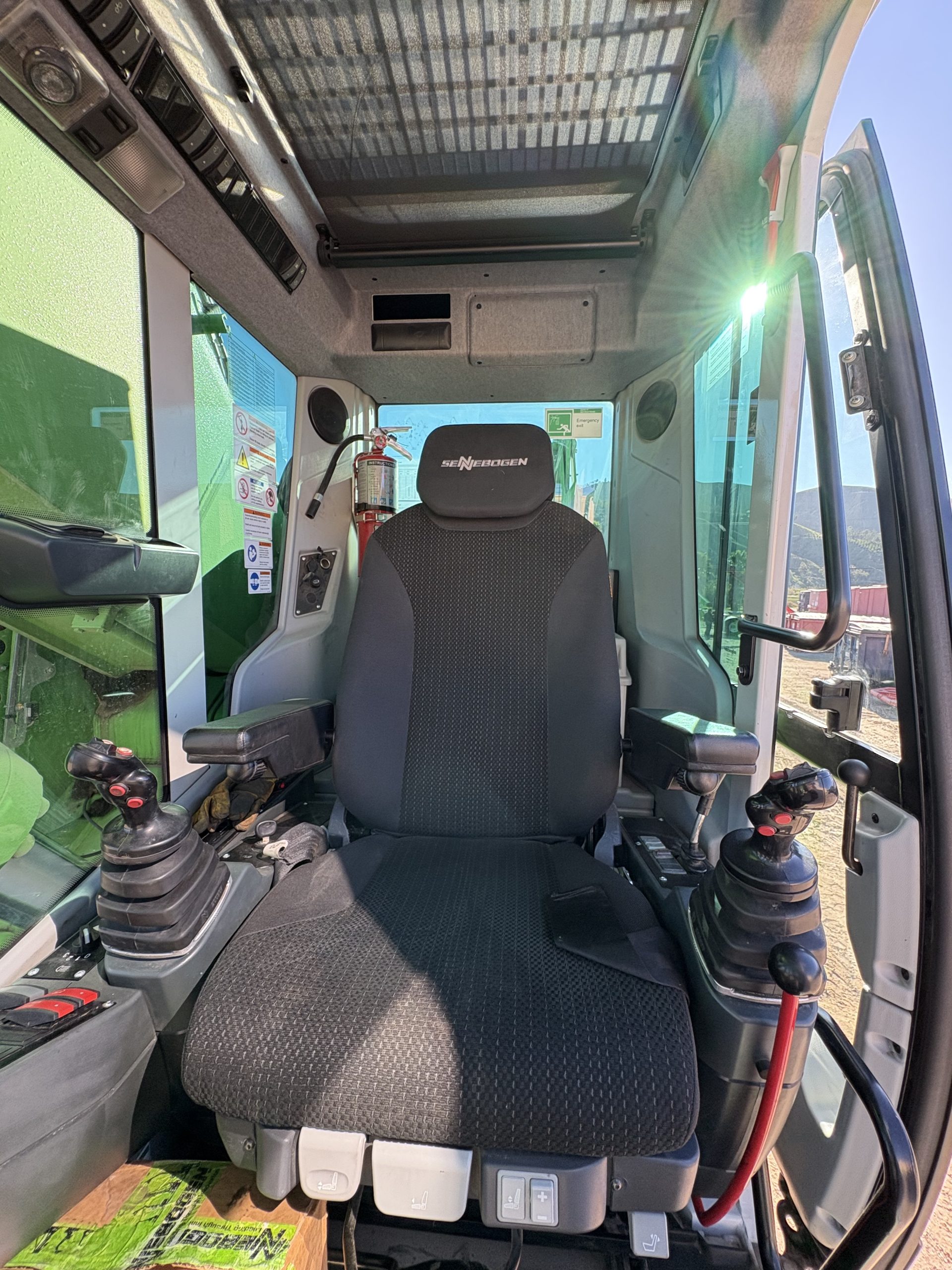

Air suspended and adjustable operator’s seat incl. armrests, seat heater, headrest, seat belt

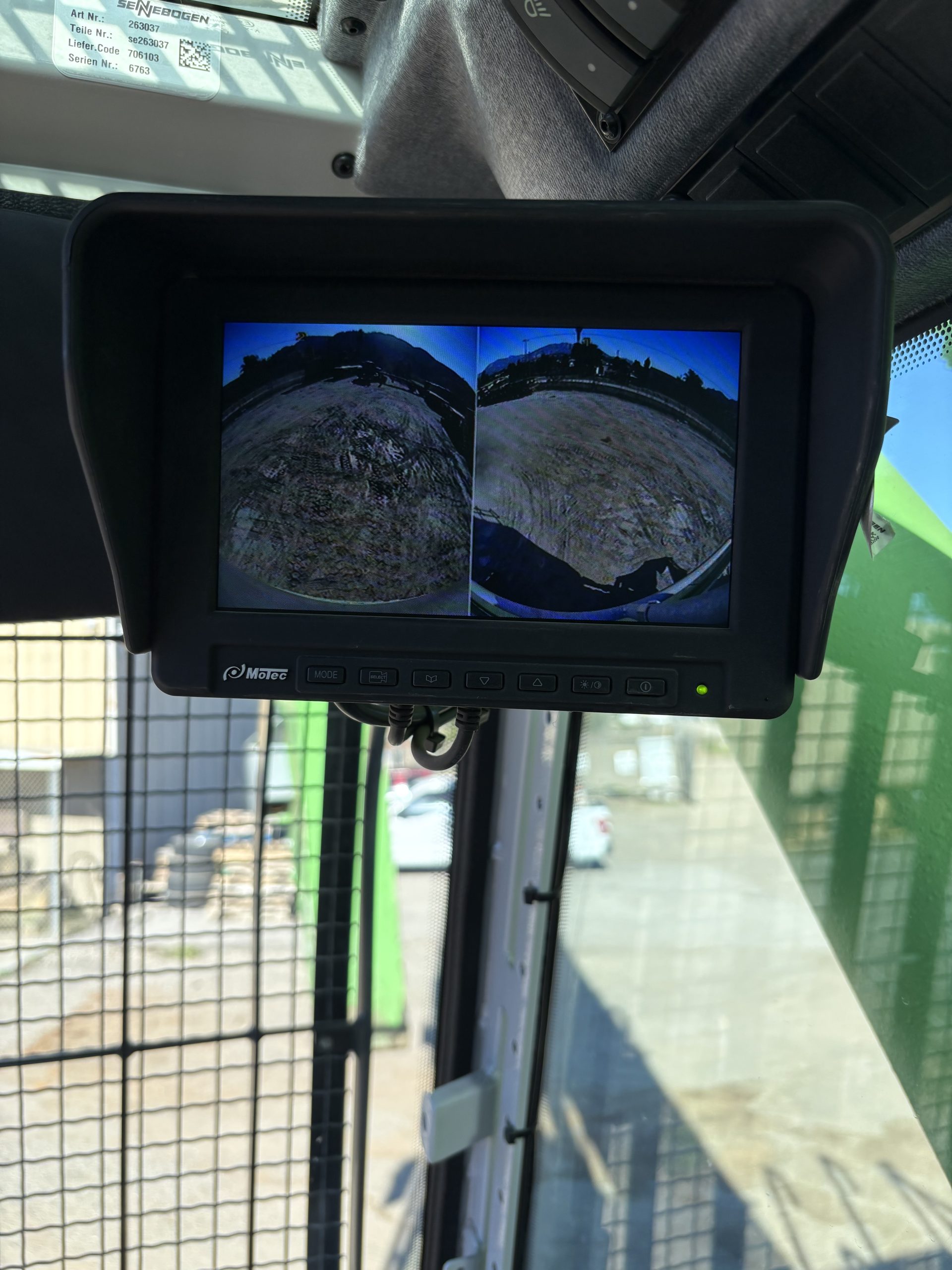

Camera system with display in cab (1x to front, 1x to right side)
LED light package on cab, rear
Strobe light mounted on cab
Operator’s & Maintenance manual incl. hydraulic & electric schematics (1x print / 1x digital)
Spare Parts catalogue (1x print / 1x digital)
Working Equipment

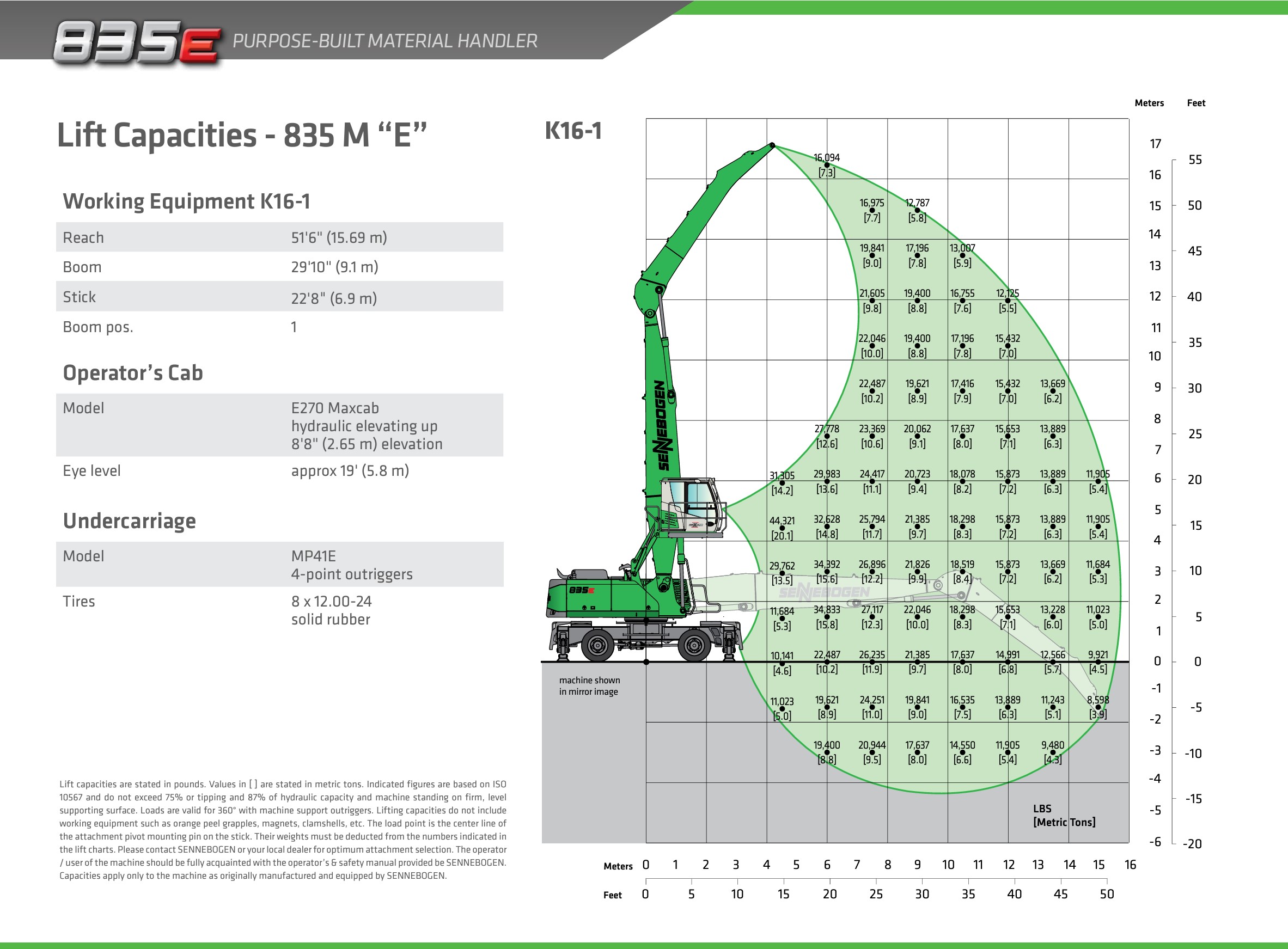

K16 – reach 52’6″, purpose-built material handling working equipment
Straight material handling boom, with end stop monitoring system and limit switches
Straight material handling stick, with end stop monitoring system and limit switches
Boom & Stick cylinders equipped with safety check valves and end position dumping
Light Package consisting of: 1x at boom, 2x at stick
Attachment open/close and rotate hydraulic circuits and lines installed up to the end of the stick (ball valves)
Under Carriage

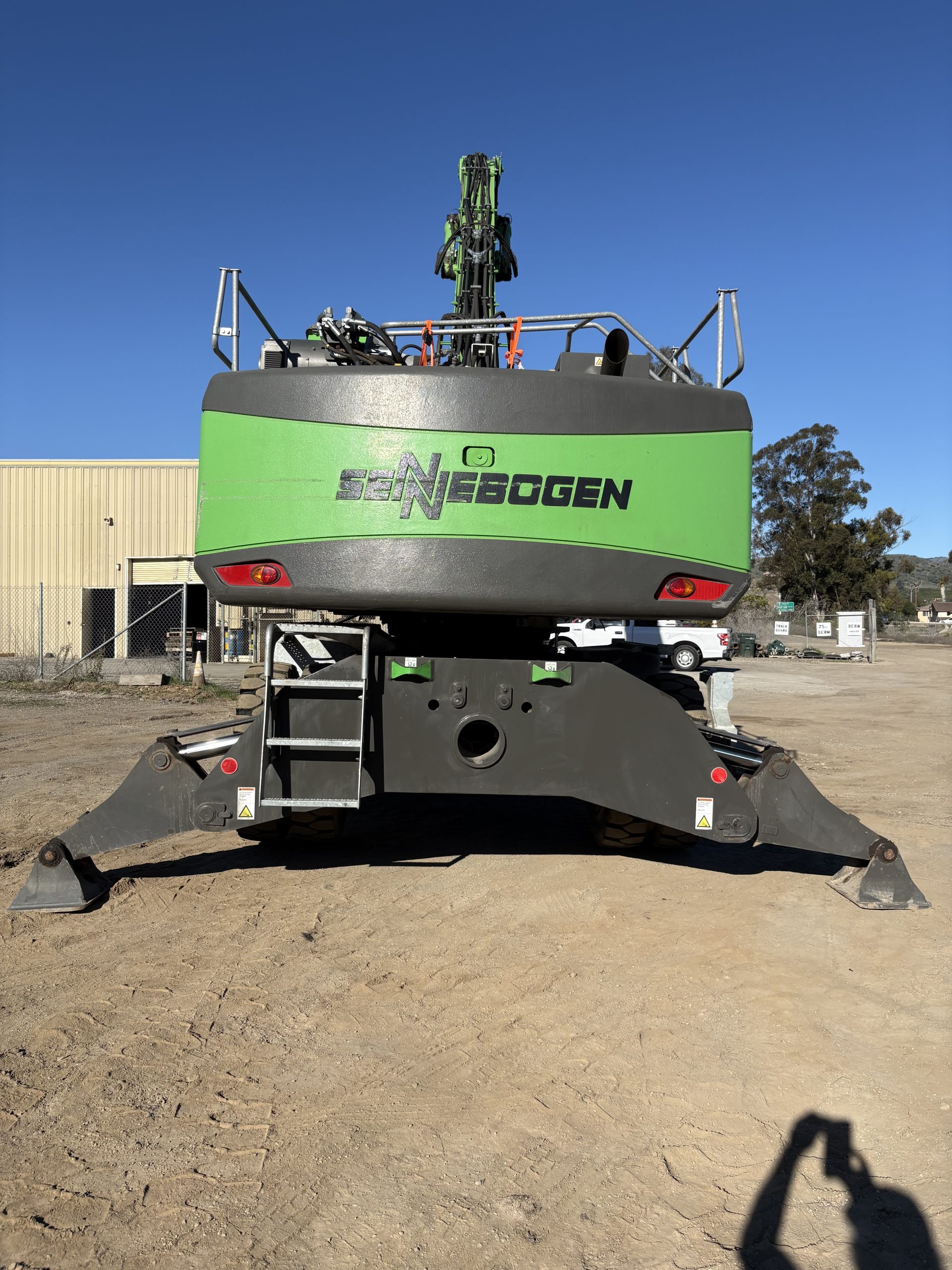

Rubber tired under carriage MP41E with 4-point outriggers
Automatic unlock of oscillating axle if upper carriage in longitudinal direction to under carriage
Solid rubber tires 12.00-24 (8 units) inclusive intermediate protection ring
Steering via joy stick, front wheel steering
All wheel drive via variable hydraulic motor with 2-stage shift gear
Protection guard for under carriage to protect gear box, hydraulic motor and drive shafts
2-circuit servo brake system with additional safety brake
Centralized lubrication points (front & rear) for lubrication of under carriage components
Audible travel alarm while driving machine (forward & backward)
Tool box w/ basic tools, stick pin, grease gun, wheel chock, green & gray touch up paint located in under carriage tool box
Magnet System

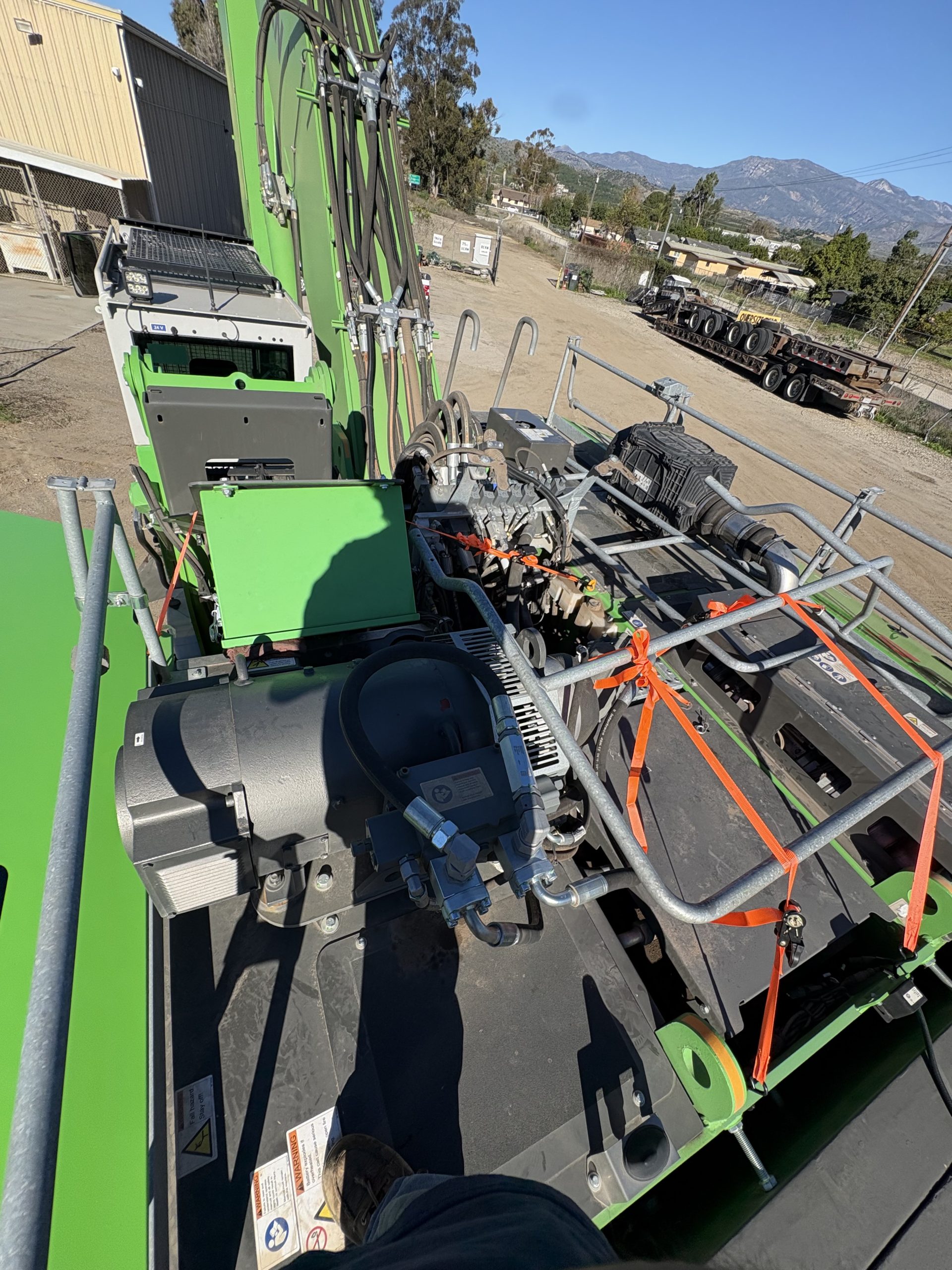

25 kW Baldor generator, hydraulic driven with Hubbell controller
Magnet suspension link
Plug in front of stick to hook up magnet, magnet connection cable in under carriage tool box
