SENNEBOGEN
- Certified Used
- 22
- 90,000 Lbs
- K17 - 55'9"
- CUMMINS Engine B6.7, 129 kW / 2,200, Tier 4 Final
- 830.0.3622
- Eye level up to 19′
- Sold
DESCRIPTION
This Certified Used Sennebogen comes with our standard 12-Month / 2,000 Warranty.

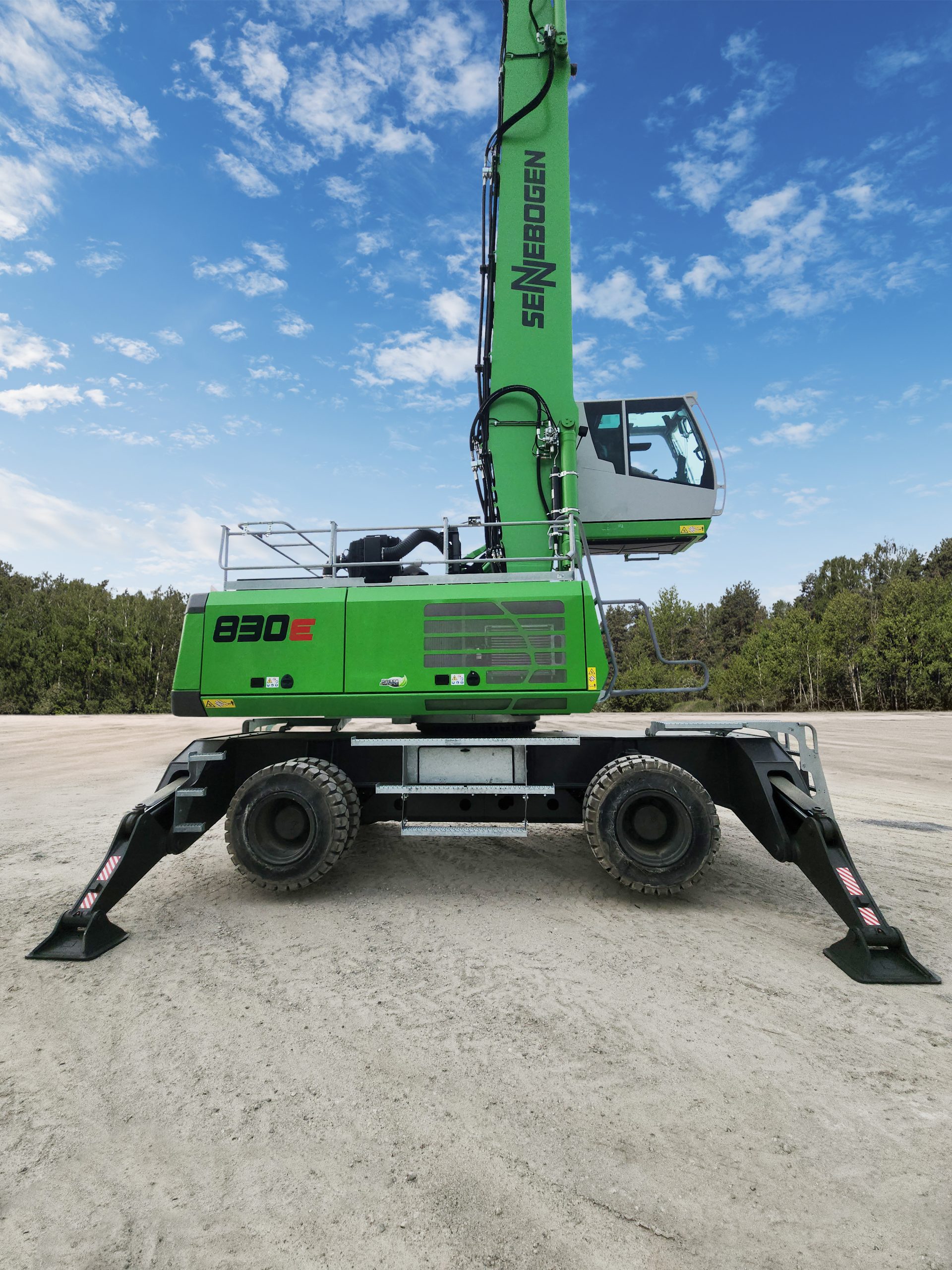

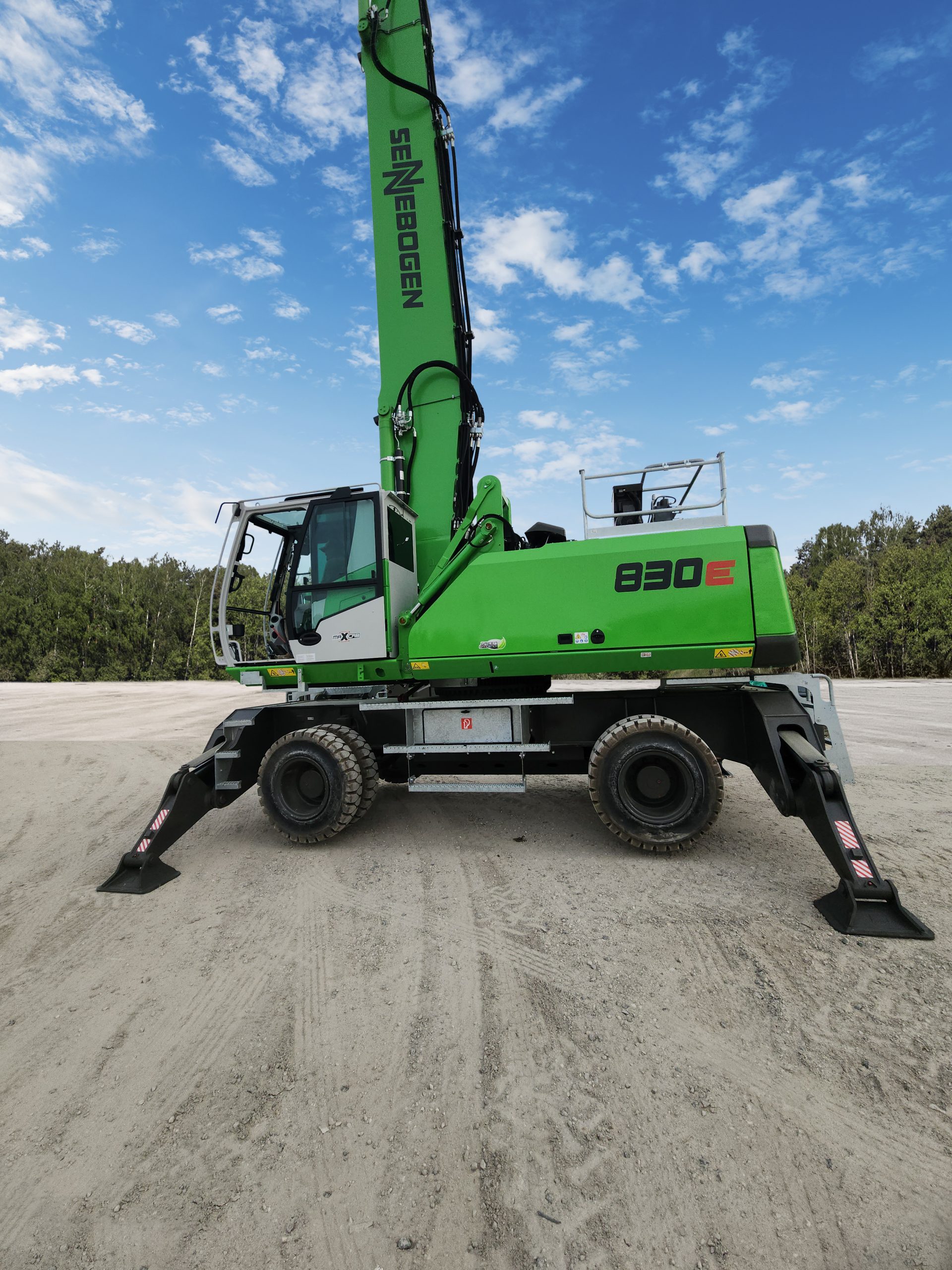

This Sennebogen 830 wheeled material handler has the Heavy Duty MP41 under carriage a K17 stick/boom with a reach of 55’9″ and was purpose-built for scrap metal recycling applications. From ferrous to non-ferrous metals, this used 830 excels in handling a diverse range of scrap recycling materials.
When you purchase a used material handler from Sennebogen North America you are fully supported by the Factory with $55 million in parts inventory in North Carolina, 24/7 on-call Parts ordering, and even Free Training for your Service Techs at the Factory. You are also supported by the industry’s largest Dealer and Authorized Service Provider Network. You can check out all the Service options in your area HERE
This machine is located in South Carolina. Contact us for a machine and freight quote.
DETAILED SPECS
Standard Machine Configuration

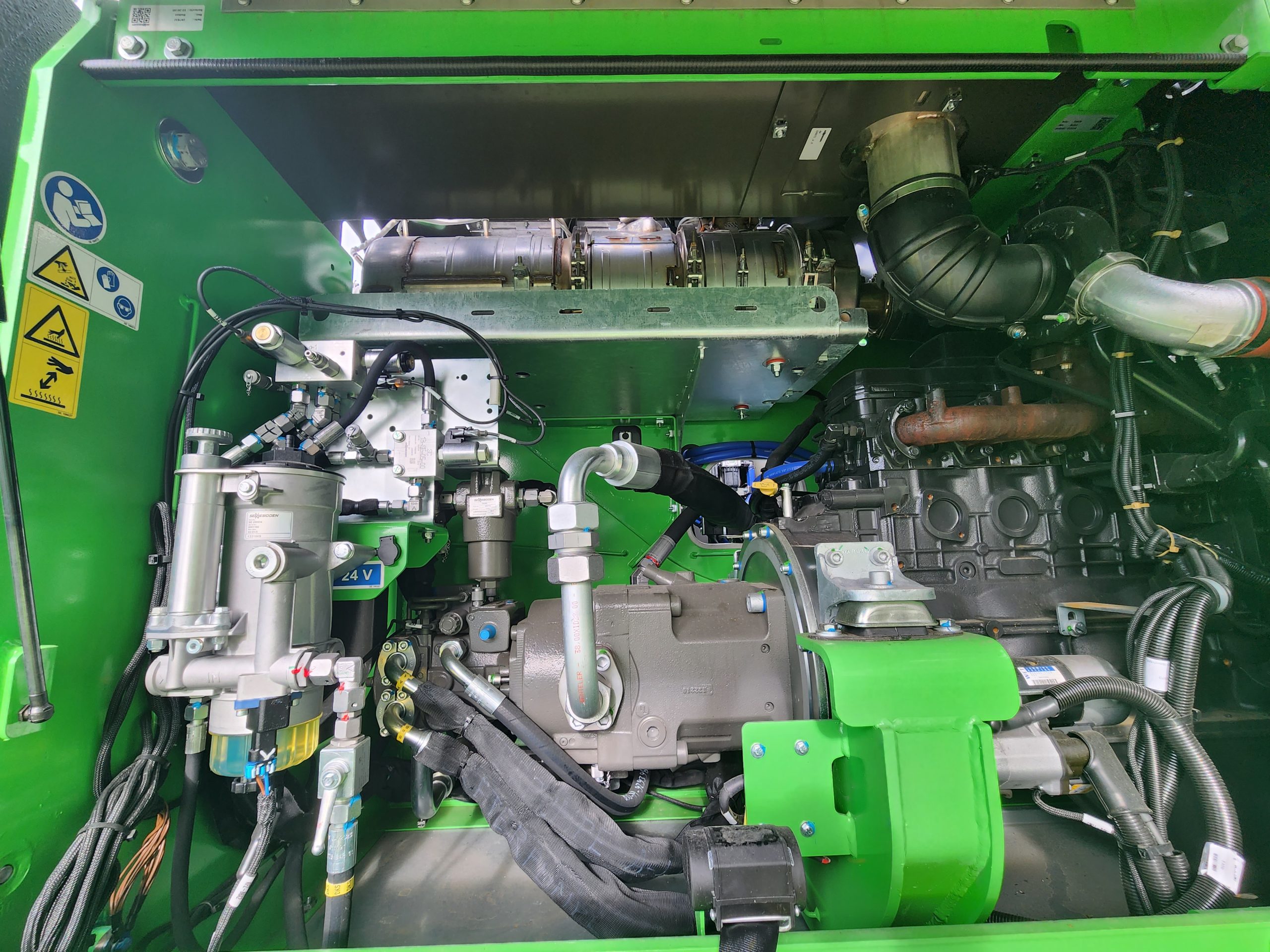

Engine
Cummins QSB 6.7 diesel engine (6 cylinder) with direct injection, water cooled (TIER 4f emission)
Engine output 230 HP (168 kW) @ 2,000 rpm
Turbo intercooler direct driven

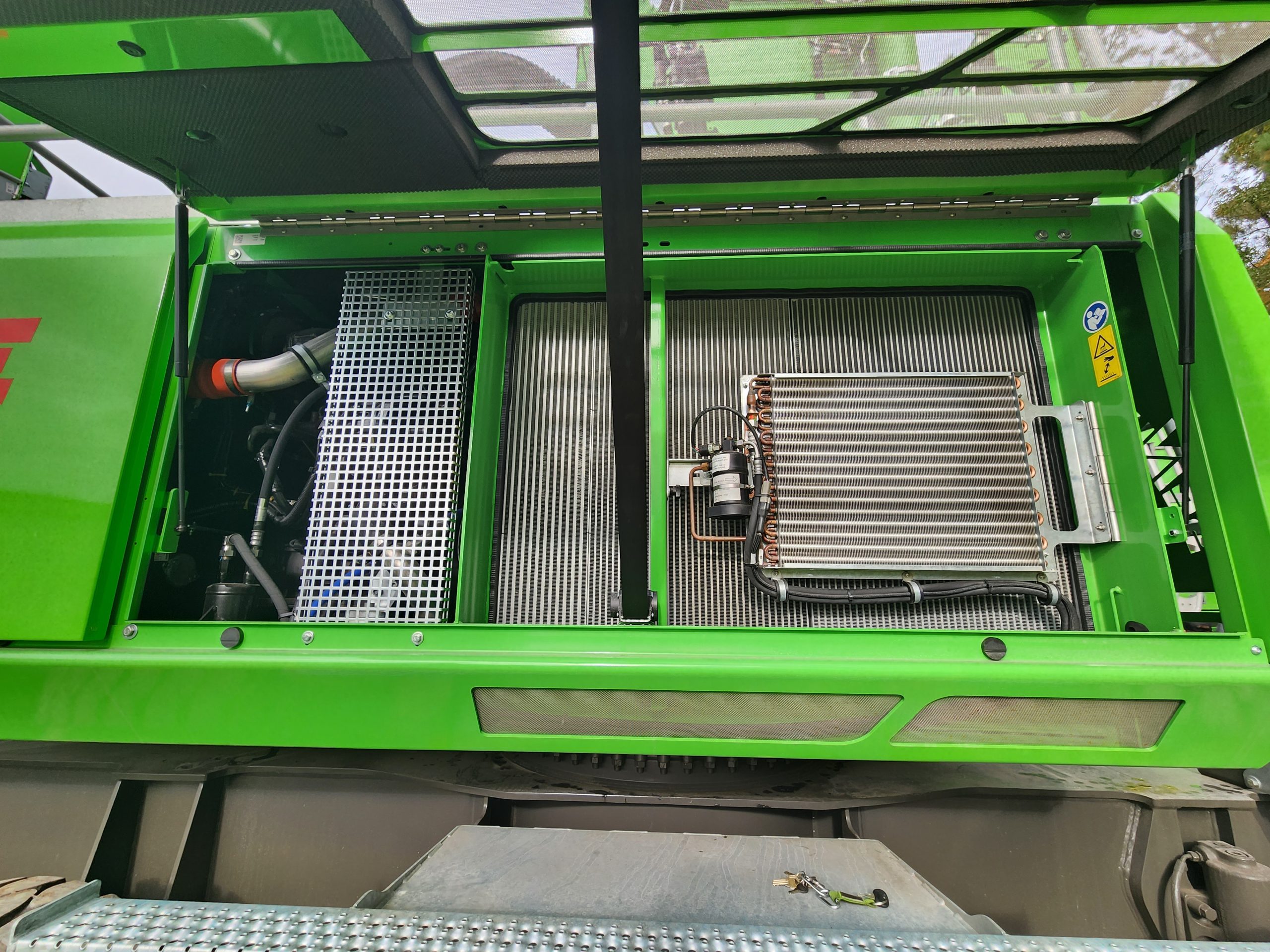

Water cooler hydraulically driven, reversible
Automatic idle-stop control and eco-mode for diesel engine
Hydraulic System

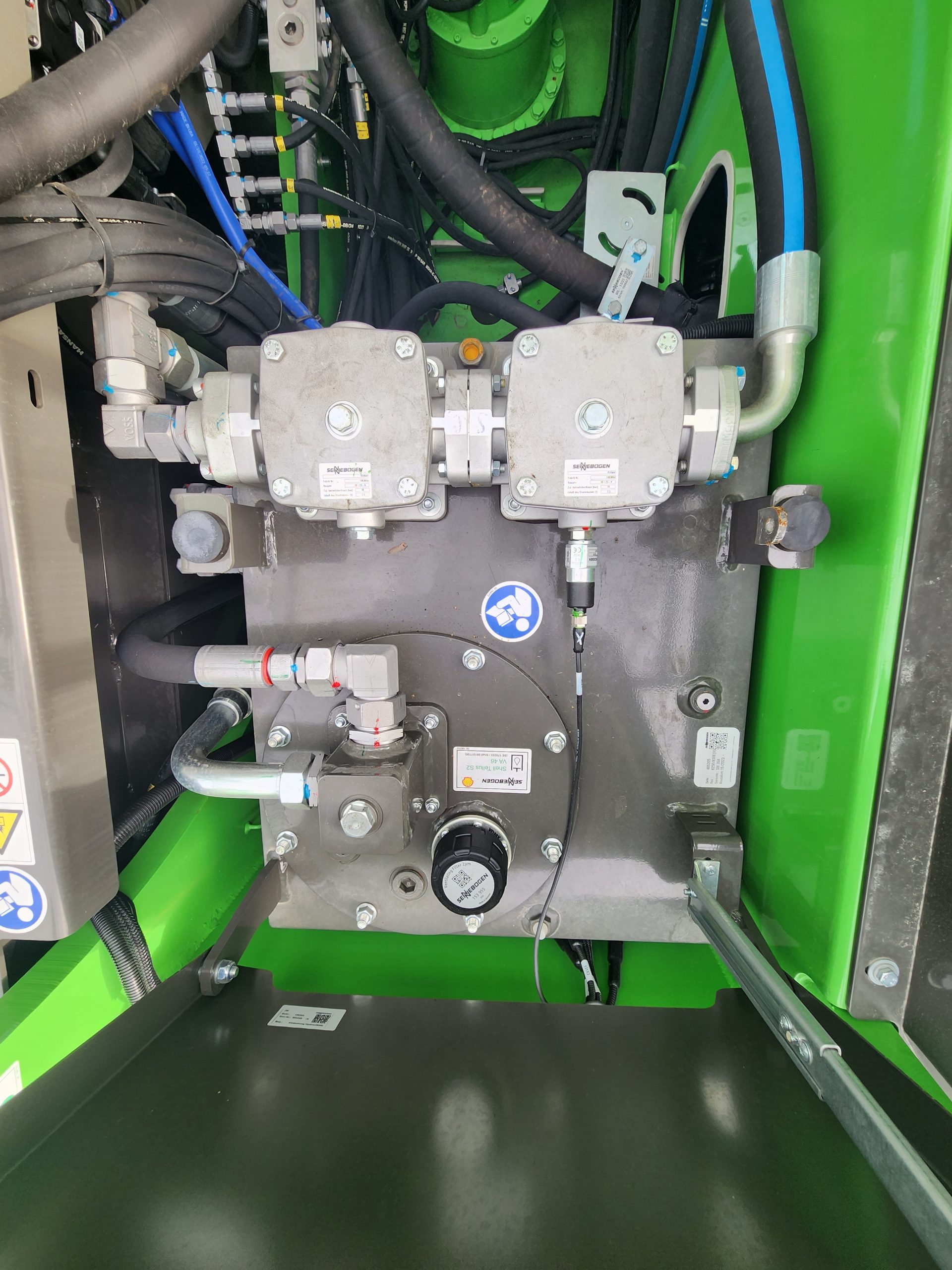

Computer free, state-of-the-art load-sensing with flow-on-demand control
Hydraulic cooler hydraulically driven, reversible
Hydro-Clean filtration system with water absorption and contamination indicator

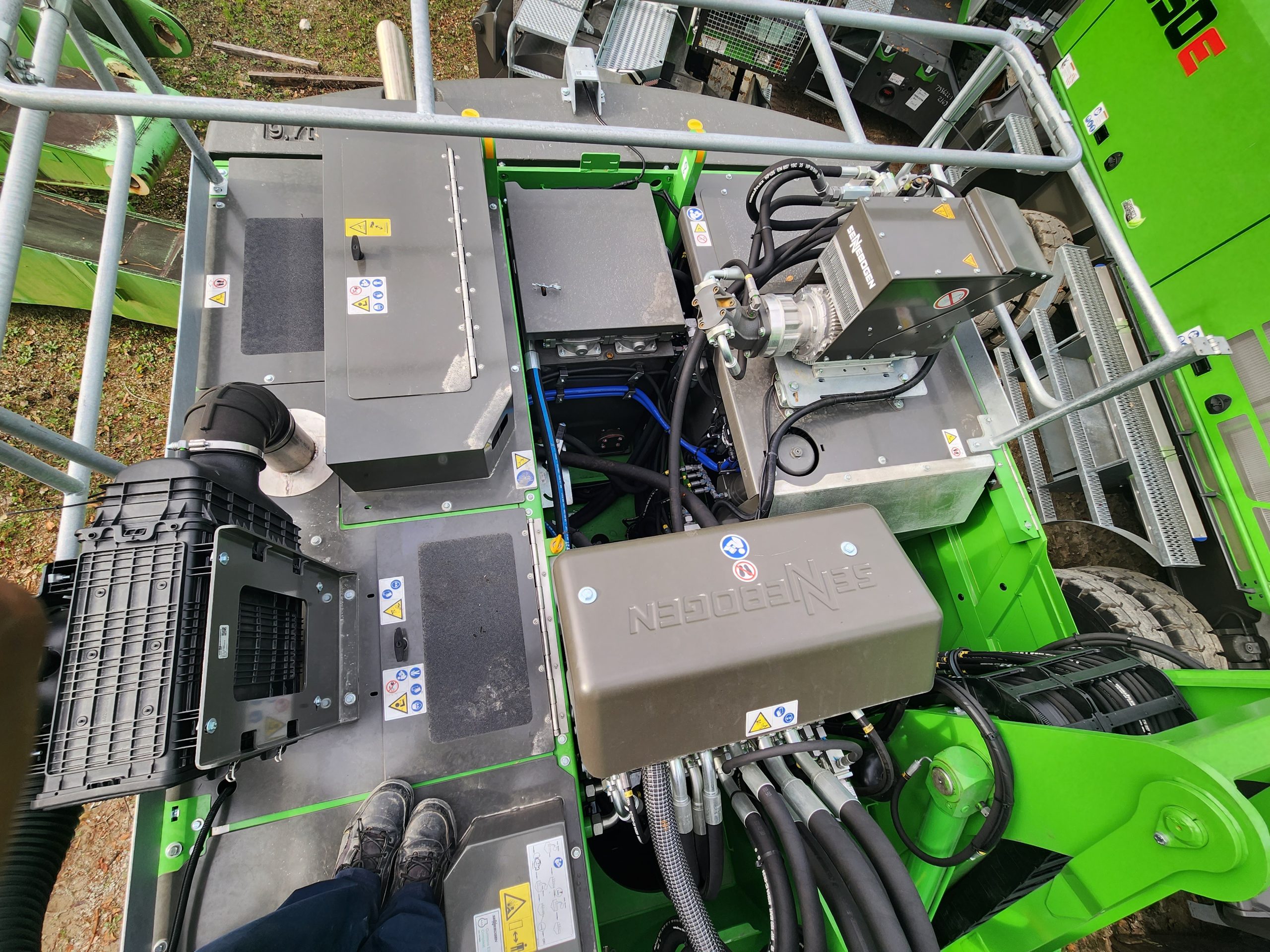

Upper Carriage & Swing System
Additional 0.75t counterweight
Torsion free, precisely machined upper carriage frame
High torque axial piston swing motor
Large dimensioned, external teeth swing bearing with removable protection cover

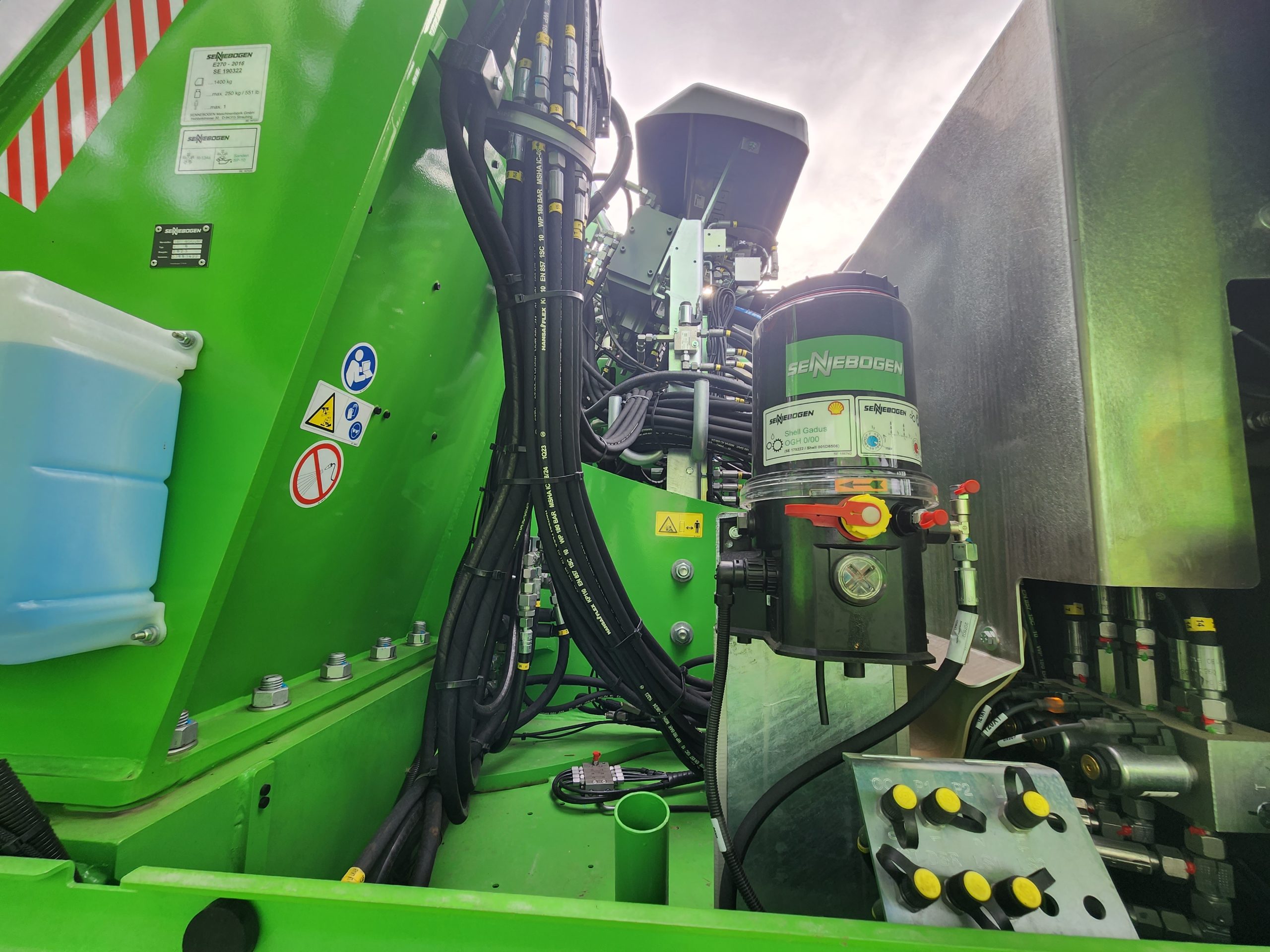

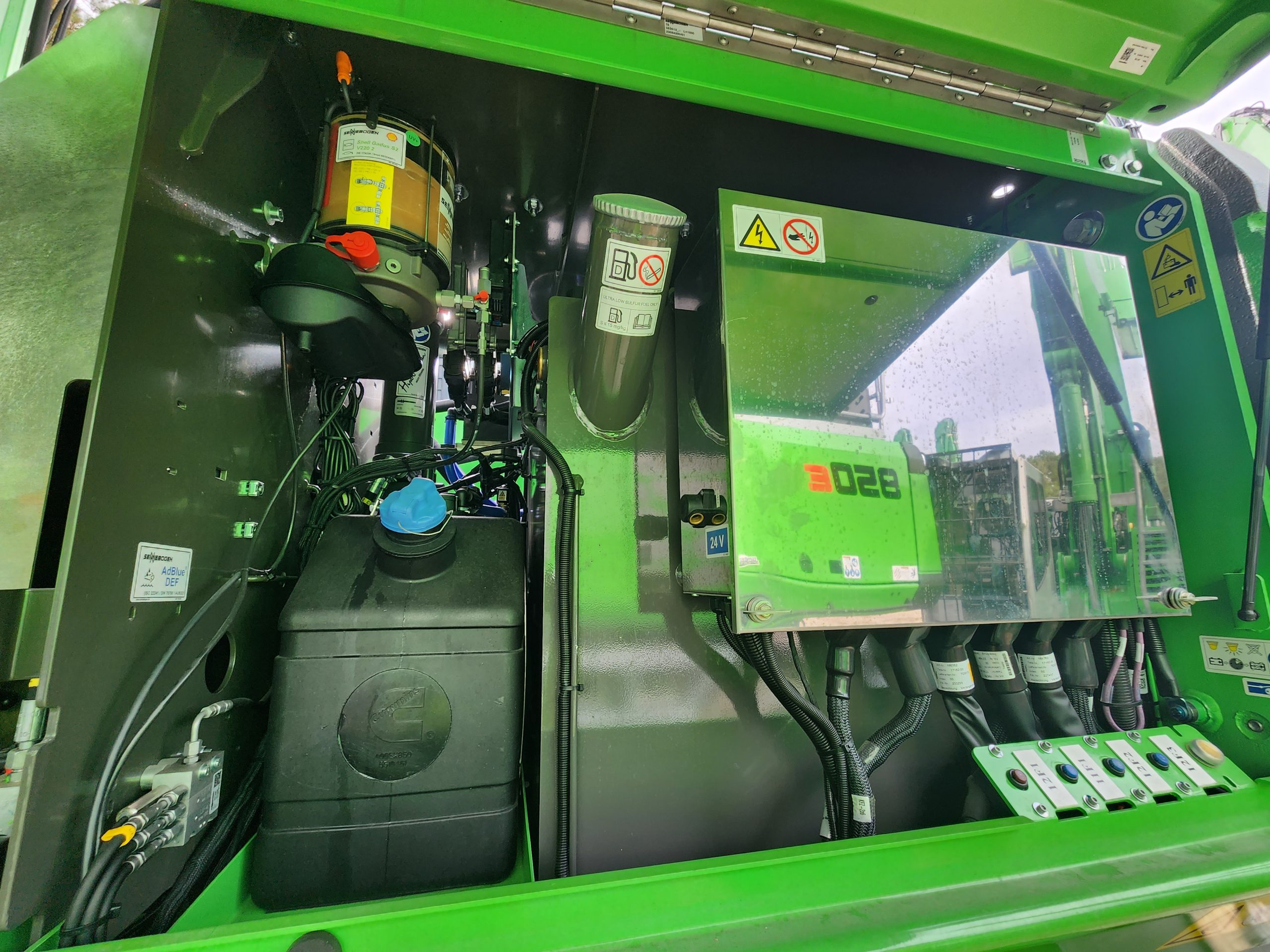

Automatic central lubrication system for upper carriage and swing bearing
Manual pinion lubrication system for swing bearing
Handrail on top of upper carriage (installed prior to shipping)
Fire extinguisher set (1x cab, 1x storage compartment) – brackets installed, extinguisher shipped separate to dealer
Light Package consisting of: 2x halogen in cab roof, 2x in frame
Operator’s Cab “maXCab”

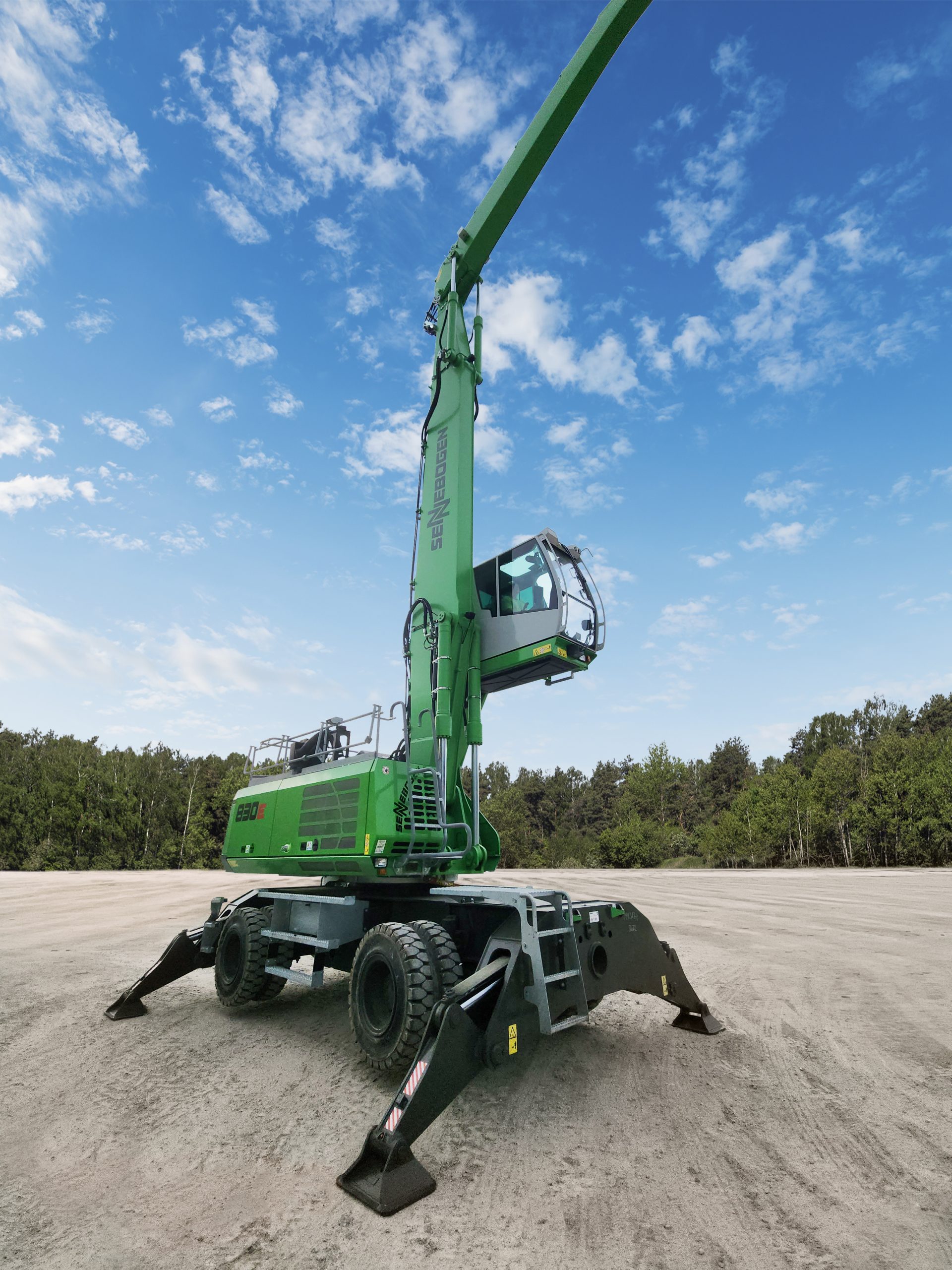

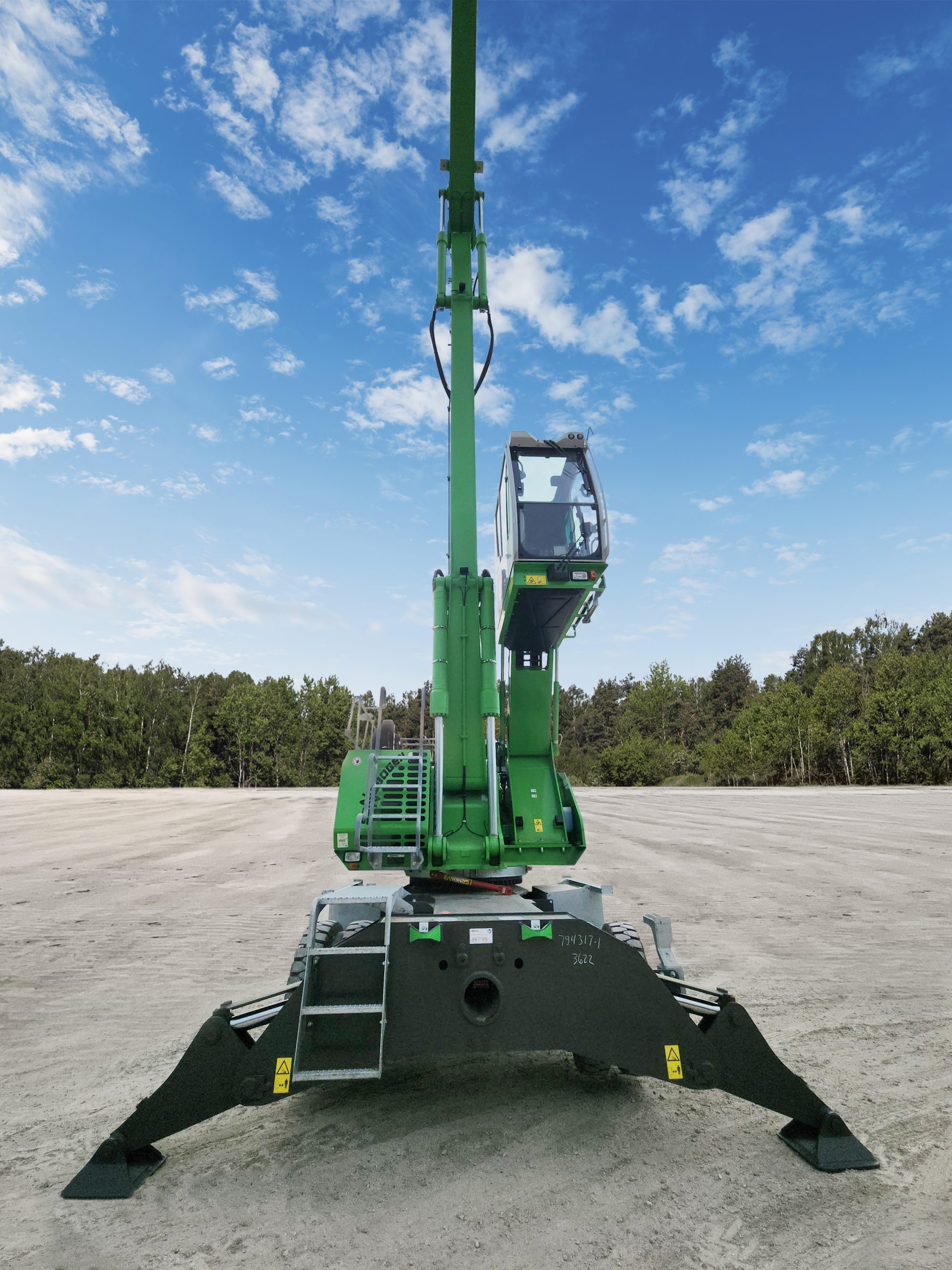

Hydraulic elevating cab system “E270″ (elevation: 8’8”)
Catwalk with handrail beside cab (will be installed on-site)
“maXCab” with sliding door and door window as sliding window, sunshade, floor mat
Skylight protection guard (installed prior to shipping)
Windshield protection guard (installed prior to shipping)
Automatic climate control with AC, heater and defroster
AM/FM radio with MP3/Bluetooth

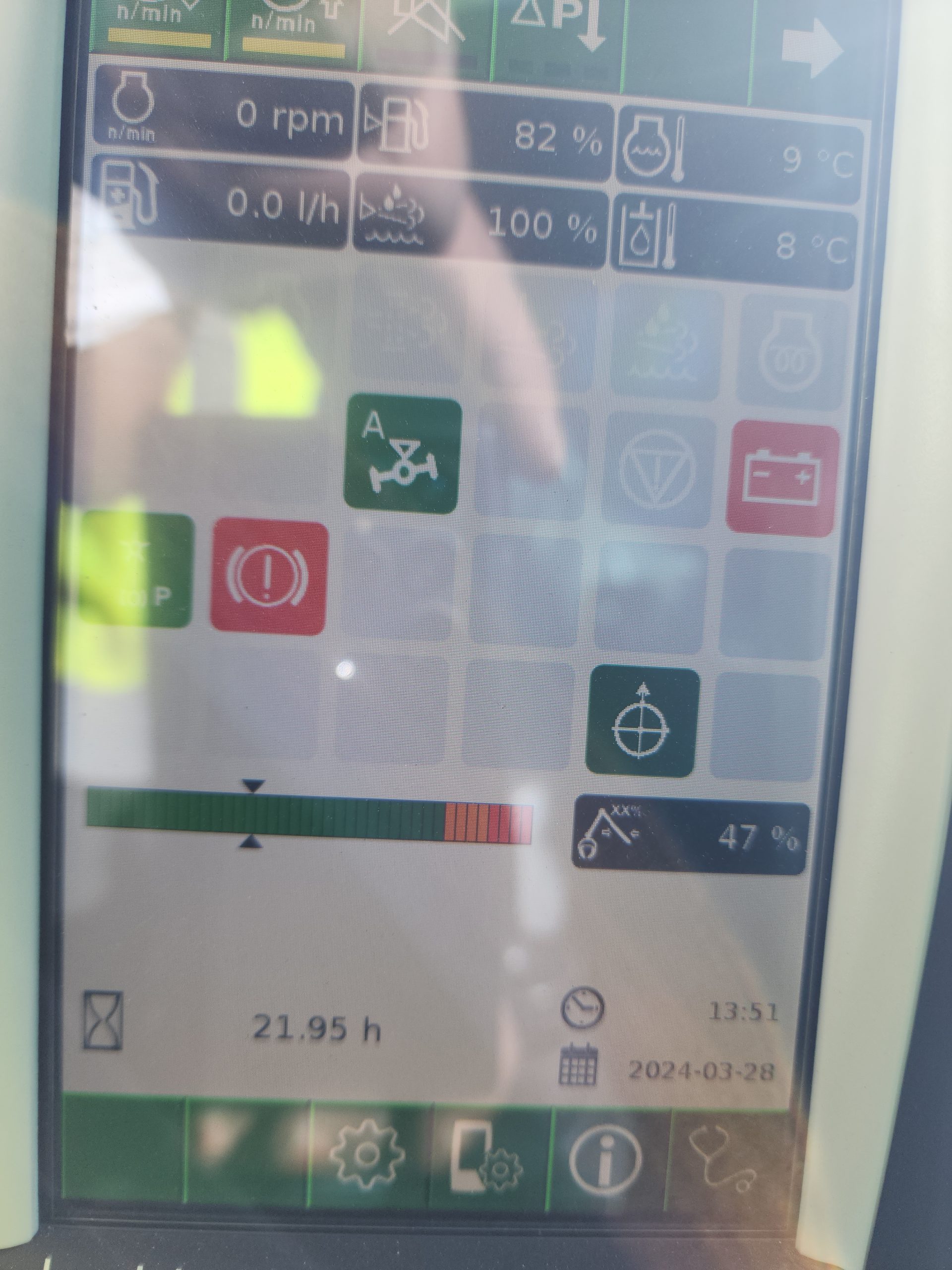

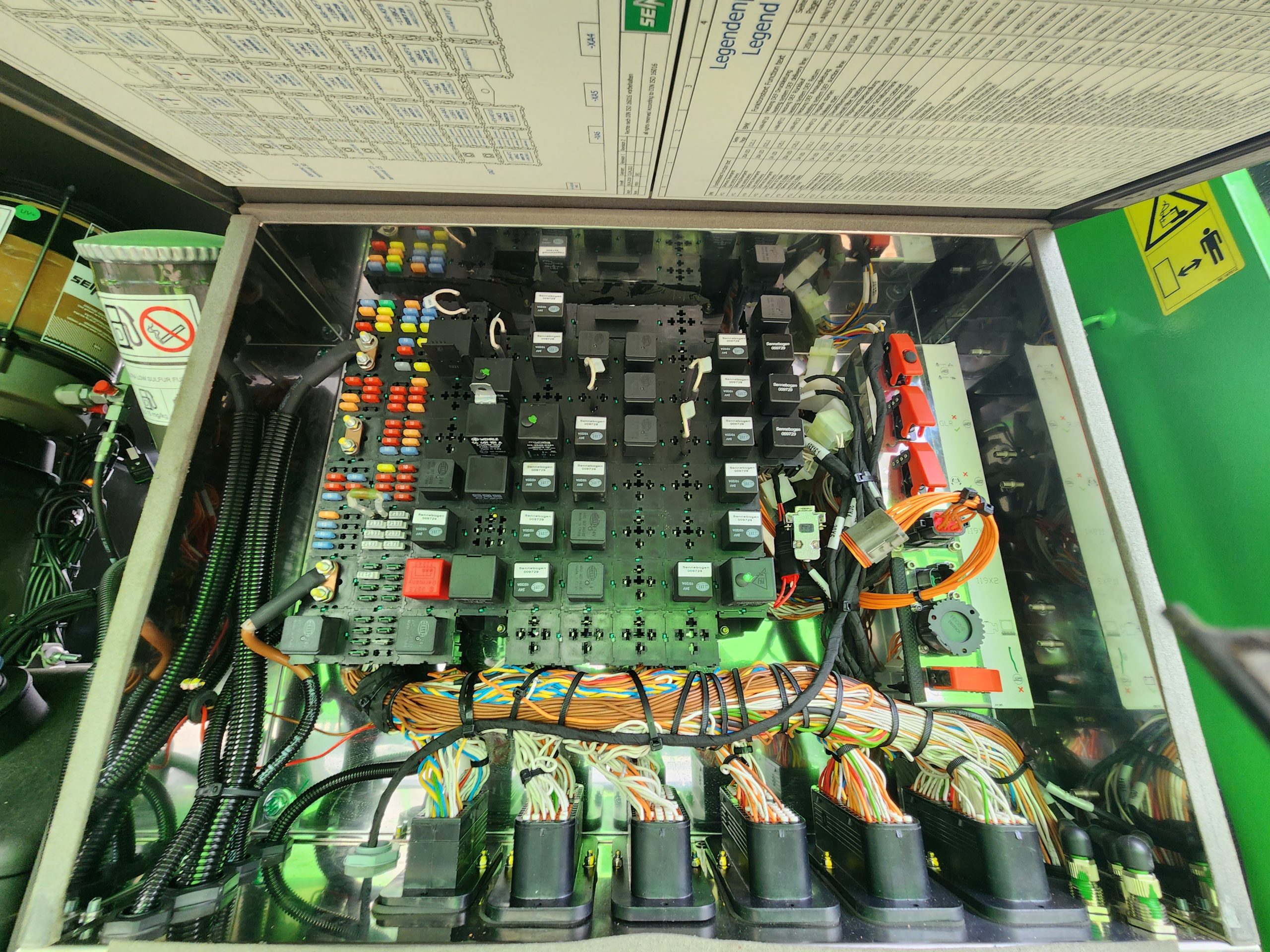

SENCON visual and acoustic diagnostic system for monitoring all essential machine functions

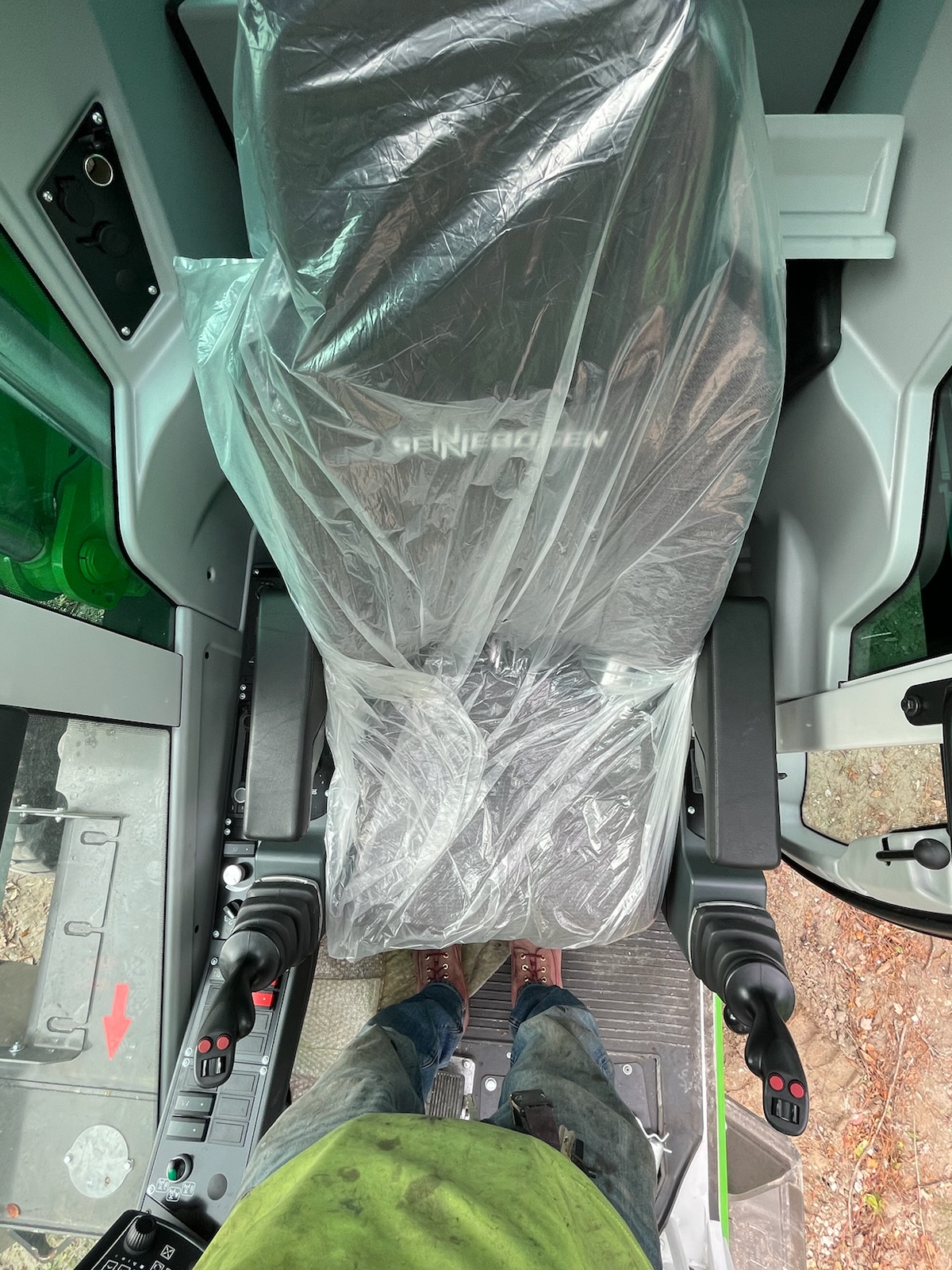

Air suspended and adjustable operator’s seat incl. armrests, seat heater, headrest, seat belt

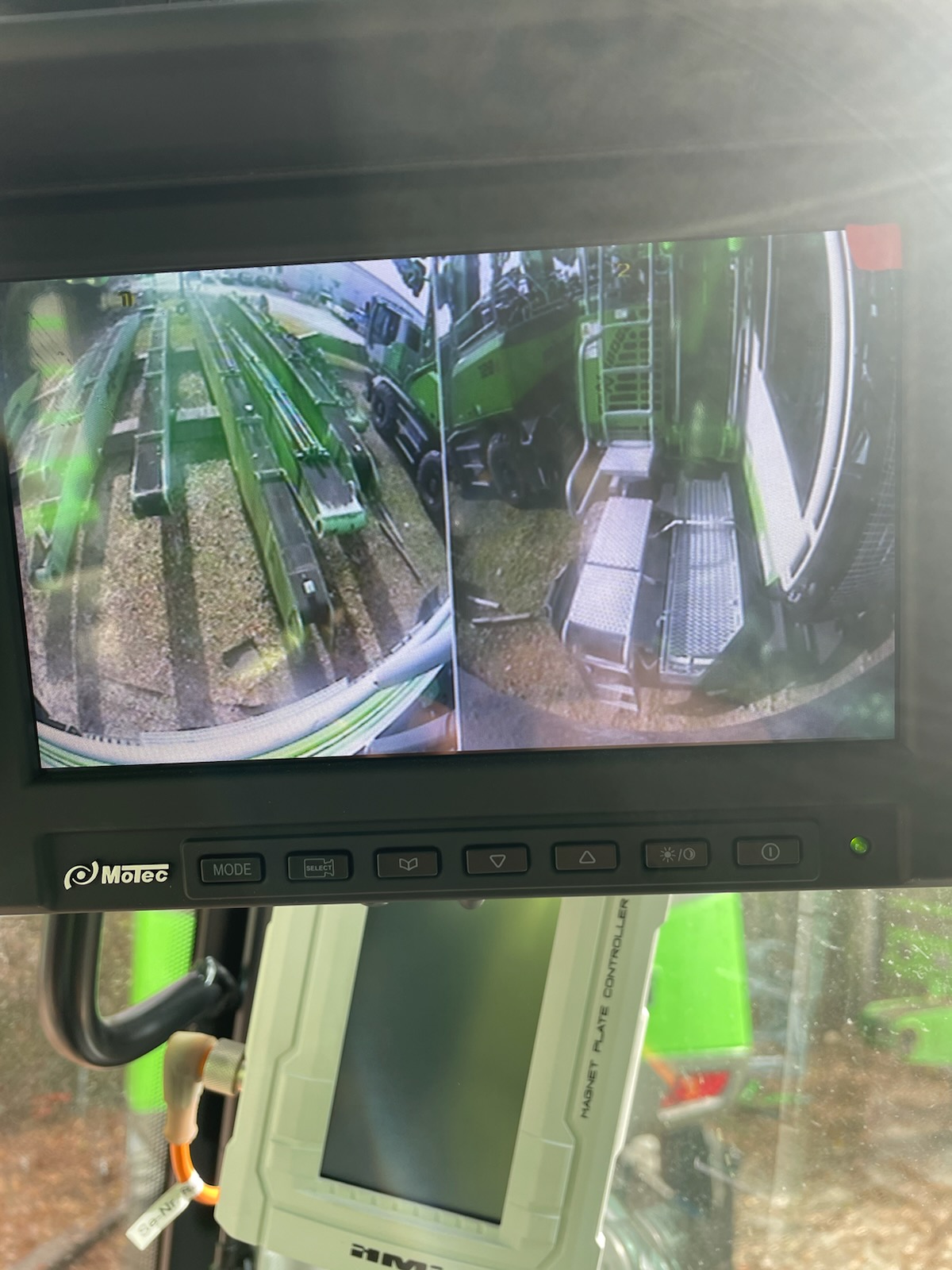

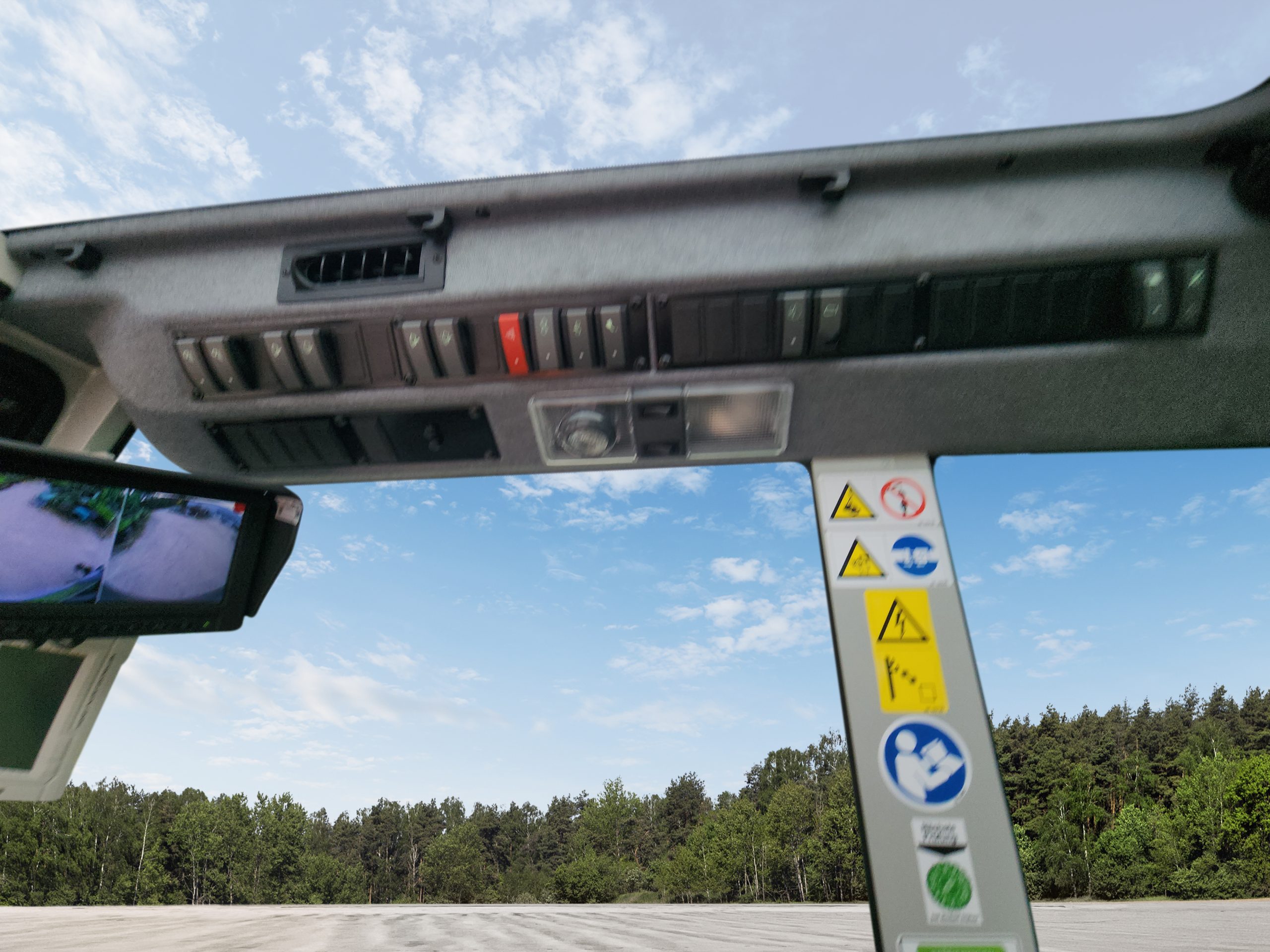

Camera system with display in cab
Operator’s & Maintenance manual incl. hydraulic & electric schematics (1x print / 1x digital)
Spare Parts catalogue (1x print / 1x digital)
Working Equipment
K17 – reach 56.7’/ purpose-built material handling working equipment
Straight material handling boom, with end stop monitoring system and limit switches
Straight material handling stick, with end stop monitoring system and limit switches
Boom & Stick cylinders equipped with safety check valves and end position dumping
Attachment open/close and rotate hydraulic circuits and lines installed up to the end of the stick (ball valves)
Under Carriage

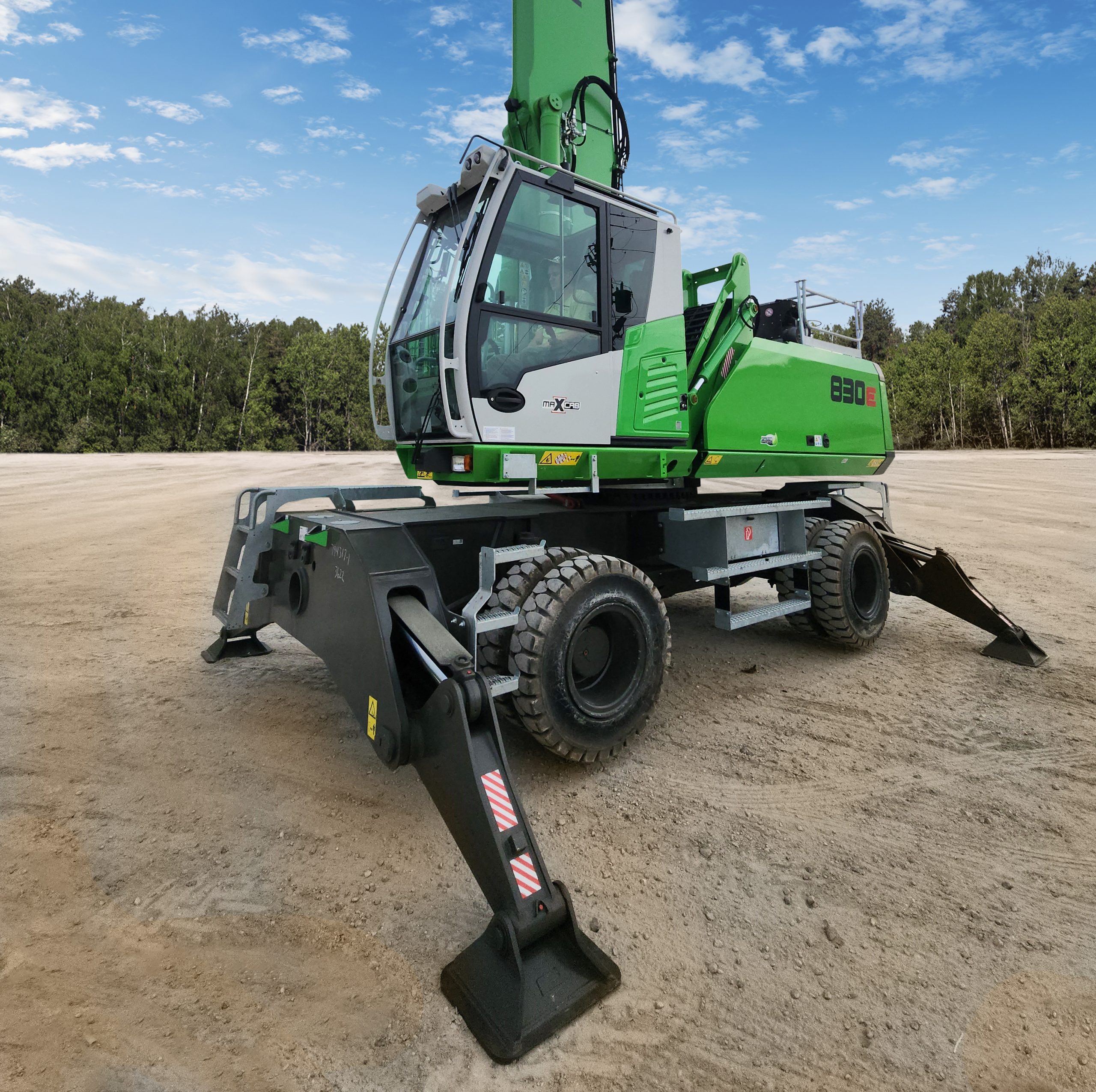

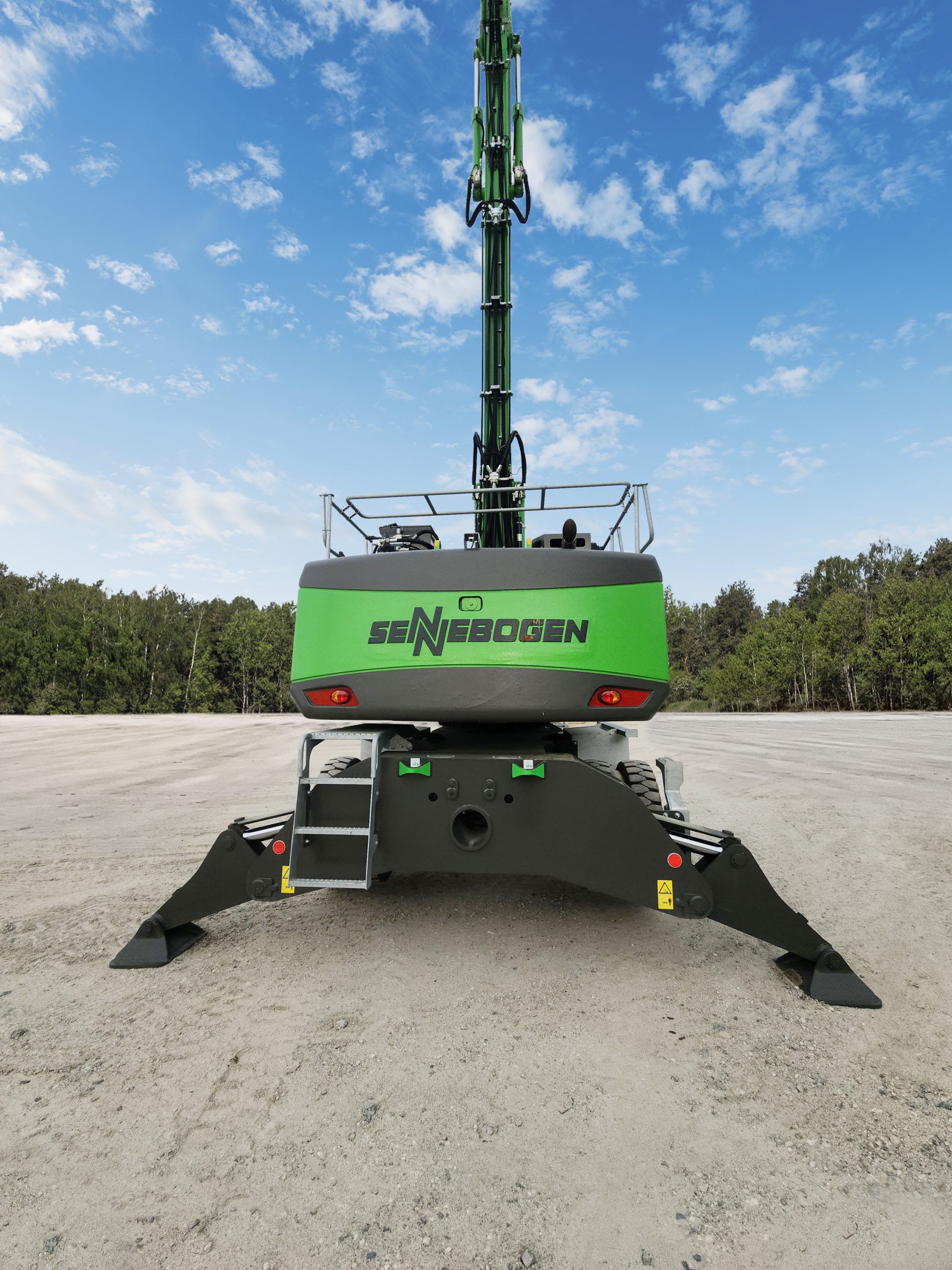

Rubber tired Heavy Duty under carriage MP41E with 4-point outriggers (width 9′)
Automatic unlock of oscillating axle if upper carriage in longitudinal direction to under carriage
Solid rubber tires 12.00-20 (8 units) inclusive intermediate protection ring
Steering via joystick, front wheel steering
All wheel drive via variable hydraulic motor with 2-stage shift transmission
Protection guard for under carriage (installed prior to shipping)
2-circuit servo brake system with additional safety brake
Centralized lubrication points (front & rear) for lubrication of under carriage components
Audible travel alarm while driving machine (forward & backward)
Toolbox w/ basic tools, stick pin, grease gun, wheel chock, green & gray touch up paint located in under carriage toolbox
Magnet System – Already installed
20 kW Sennebogen hydraulically driven generator
Plug in front of stick to hook up magnet, magnet connection cable in under carriage toolbox
