SENNEBOGEN
- Used
- 9810
- 57,000 lbs
- K13 - 43'4"
- CUMMINS Engine QSB 6.7 - C173, 129kW/2000 rpm, Tier 3
- 825.0.1654
- Eye level up to 19′
- Request a Price
DESCRIPTION

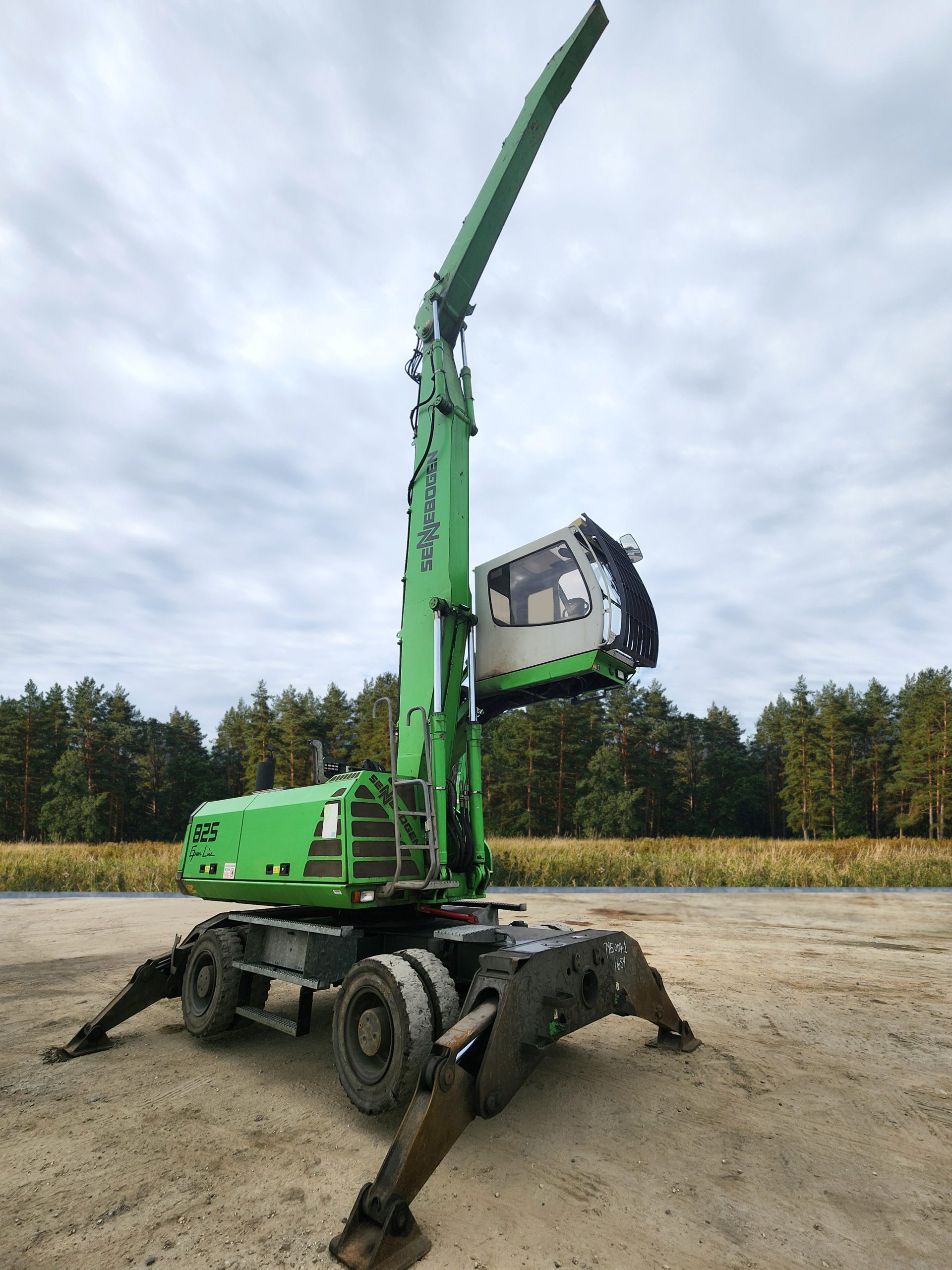

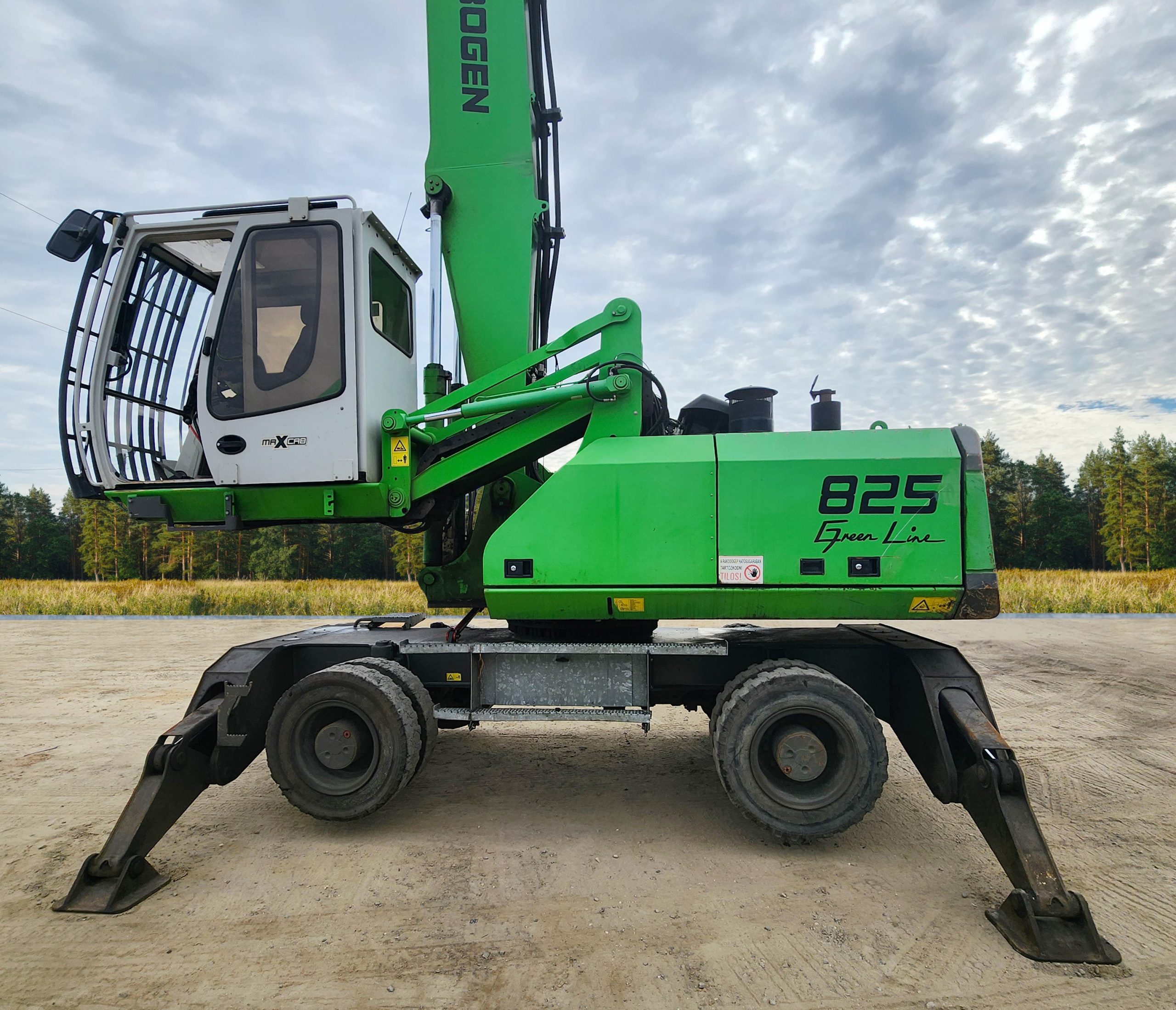

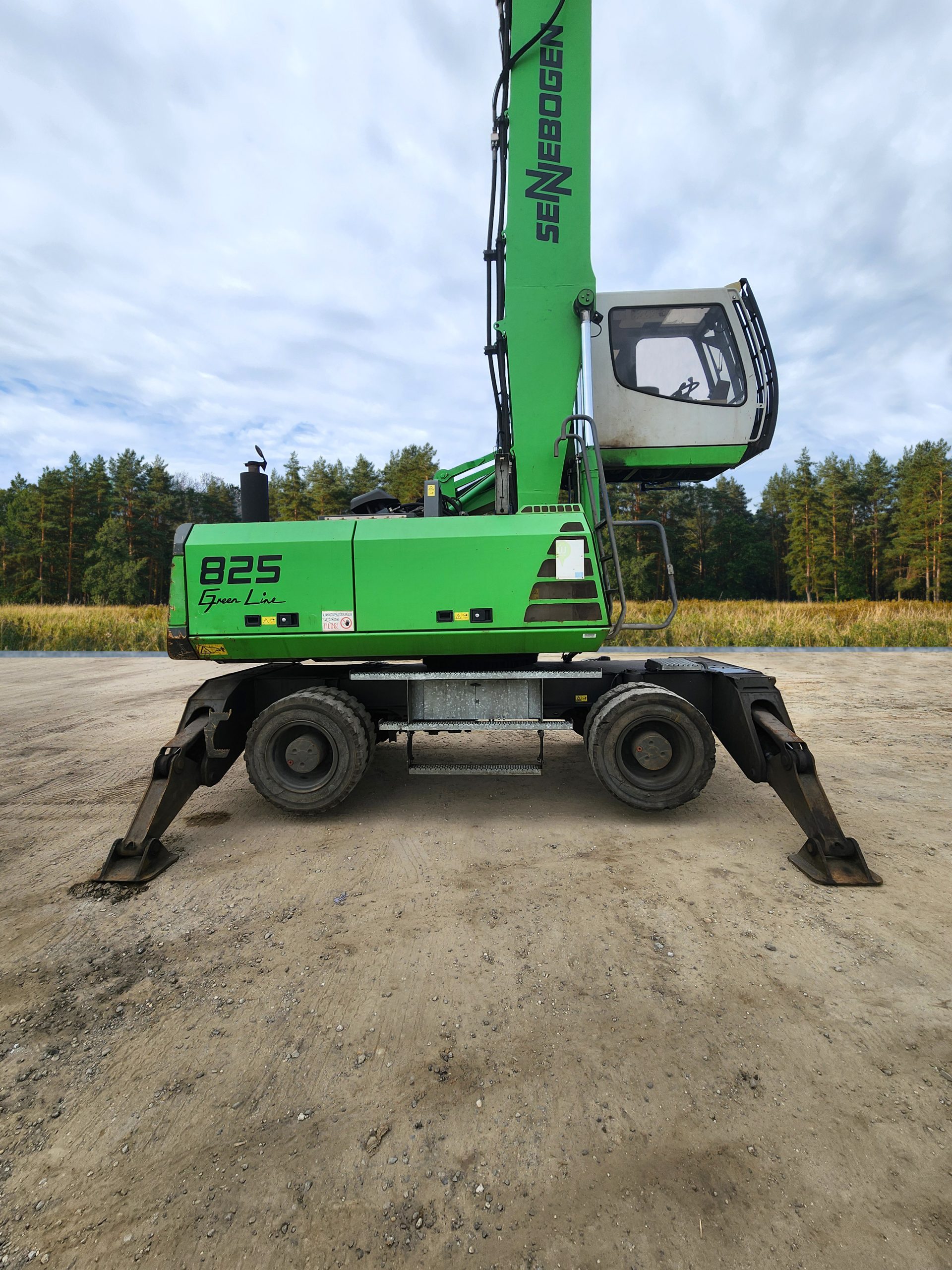

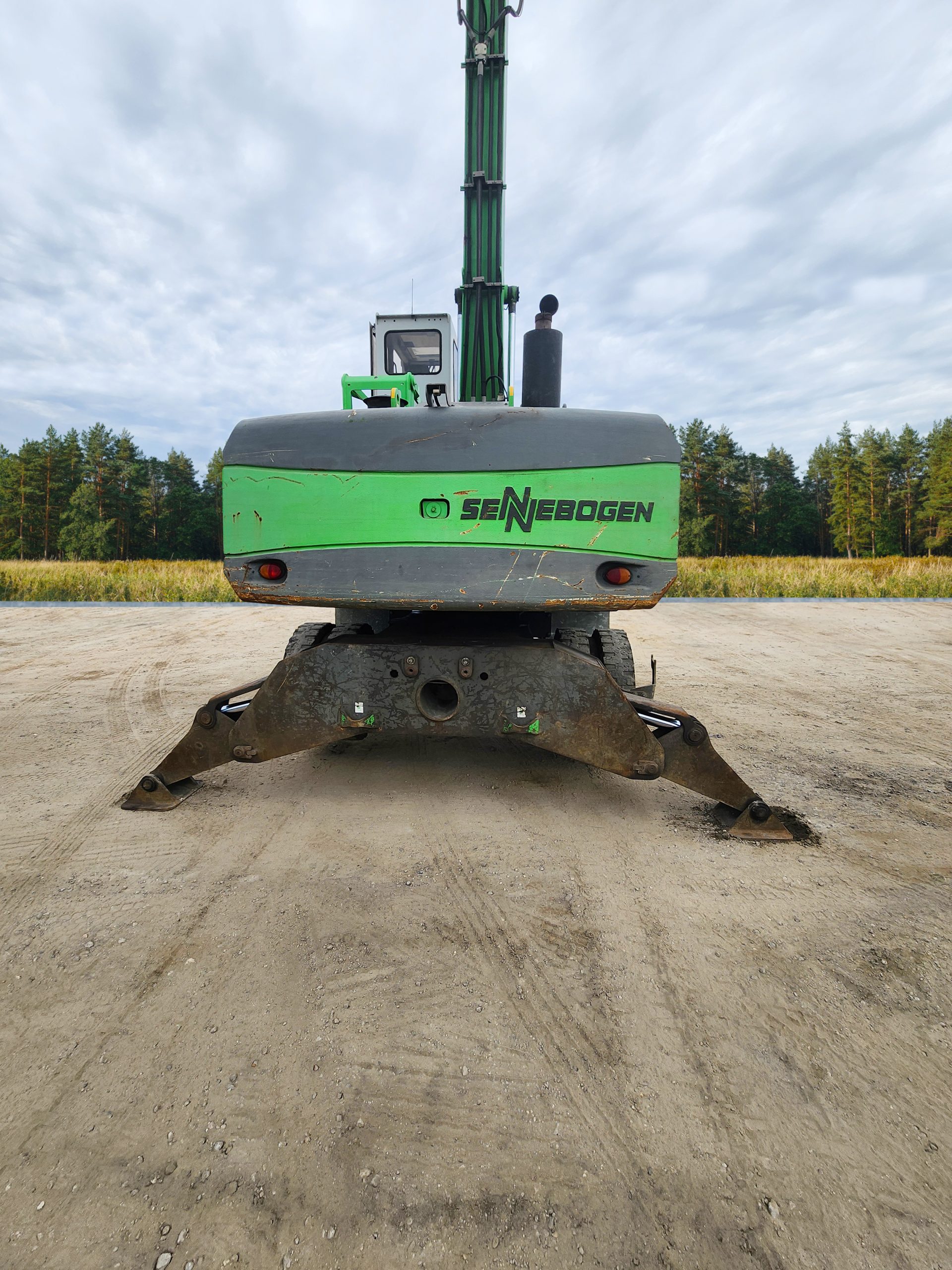

Sennebogen 825M K13 D-Series Material Handler – Tier 3 Engine
Boost your material handling efficiency with the Sennebogen 825M K13 D-Series. Powered by a reliable Tier 3 Cummins engine, this purpose-built machine delivers high performance for scrap yards, recycling facilities, and industrial operations. With its elevated cab for superior visibility and wheeled mobility for fast repositioning, the 825M K13 offers unmatched productivity in tight workspaces. Designed for durability and easy maintenance, it’s the ideal choice for operations requiring dependable uptime and versatile handling power.
Key Features:
-
Tier 3 engine – reliable power with lower emissions
-
Max reach approx. 44 ft with industrial stick
-
Elevated cab for 360° jobsite visibility
-
Wheeled undercarriage for fast, flexible movement
-
Ideal for scrap, recycling, and bulk handling

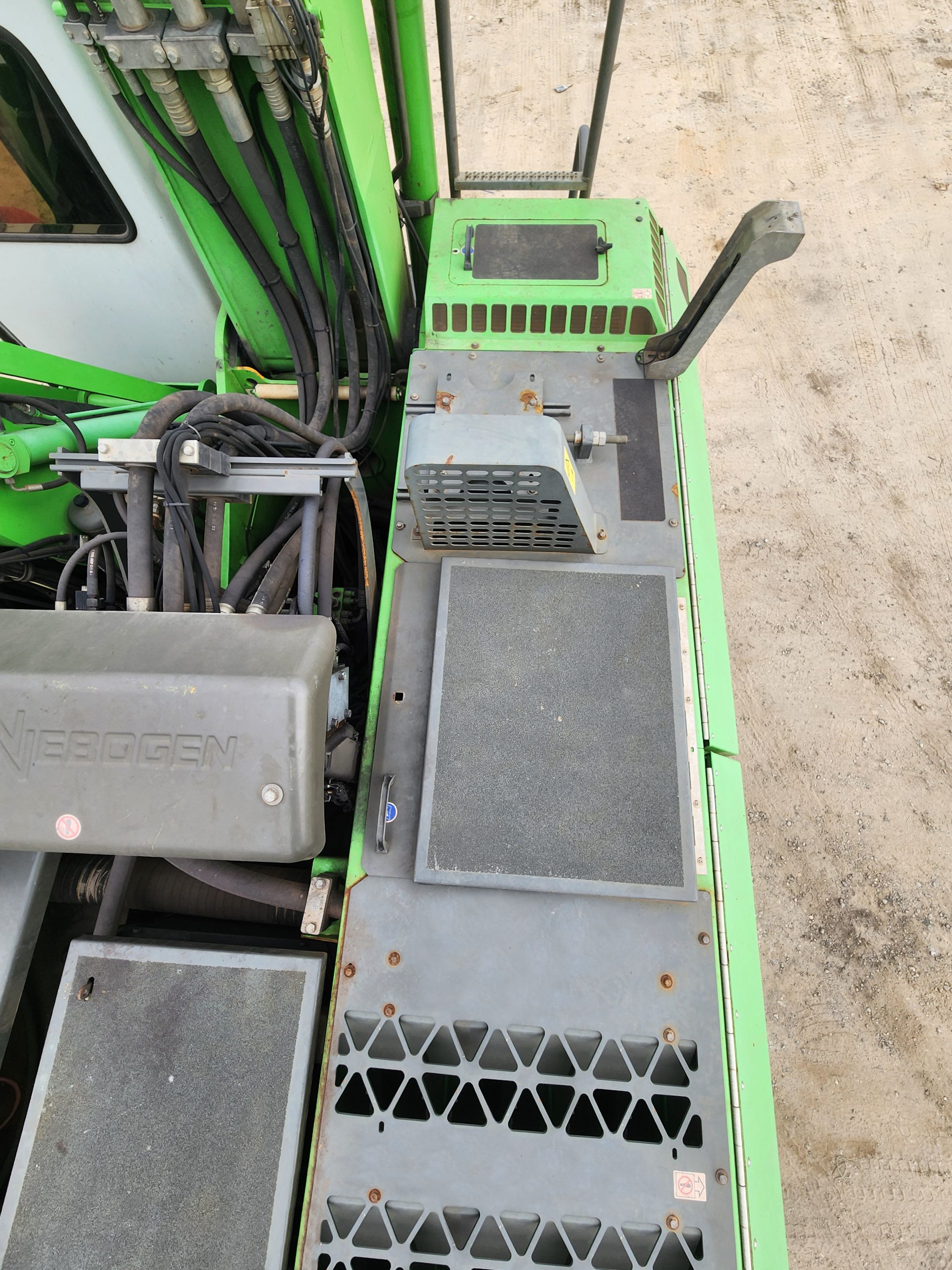

Upper carriage handrails, under carriage protection, Genset, Cab catwalk, and Top window guard have been installed.
The machine is located in Stanley, NC. Contact us for a machine and freight quote.
DETAILED SPECS

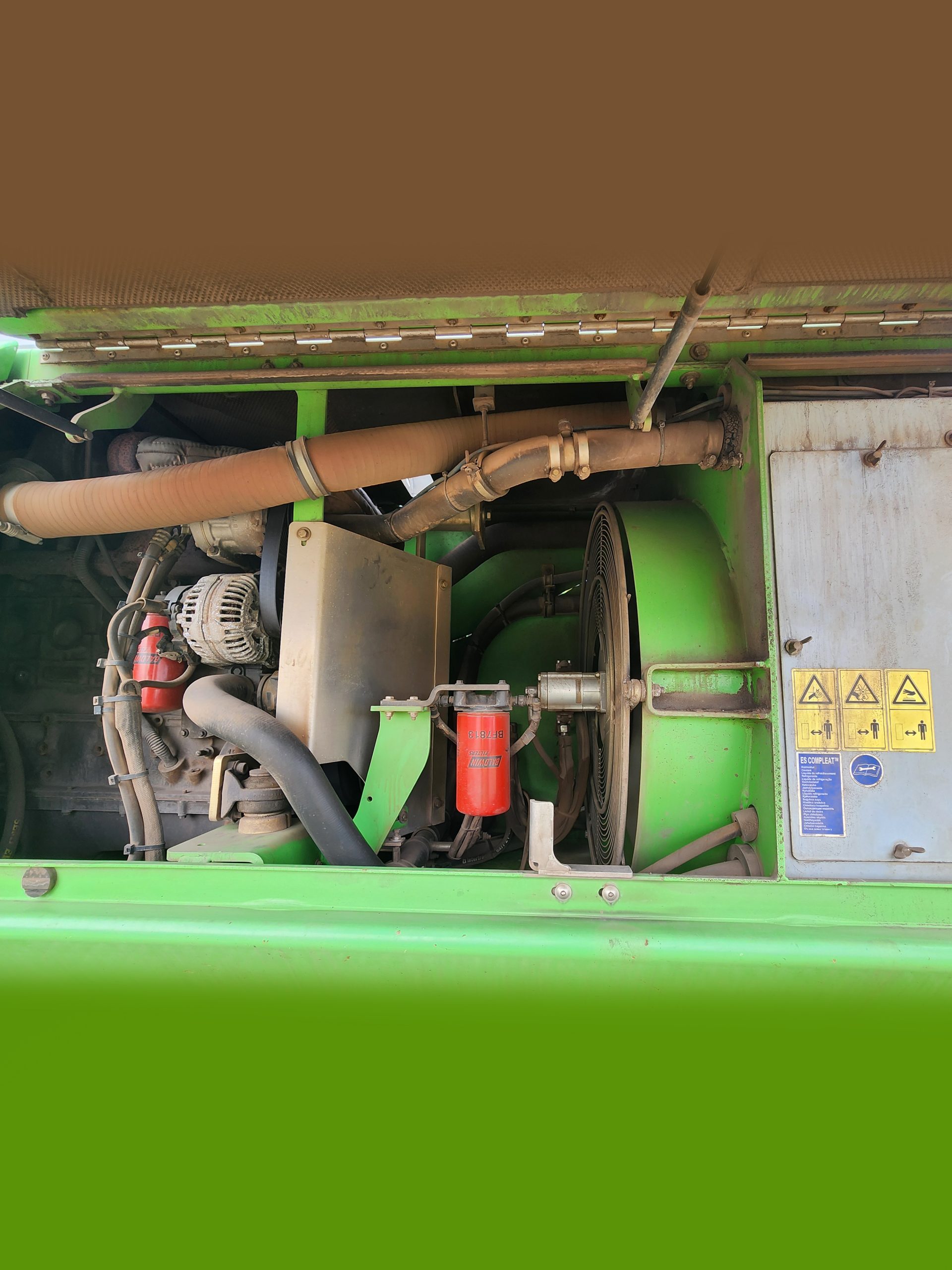

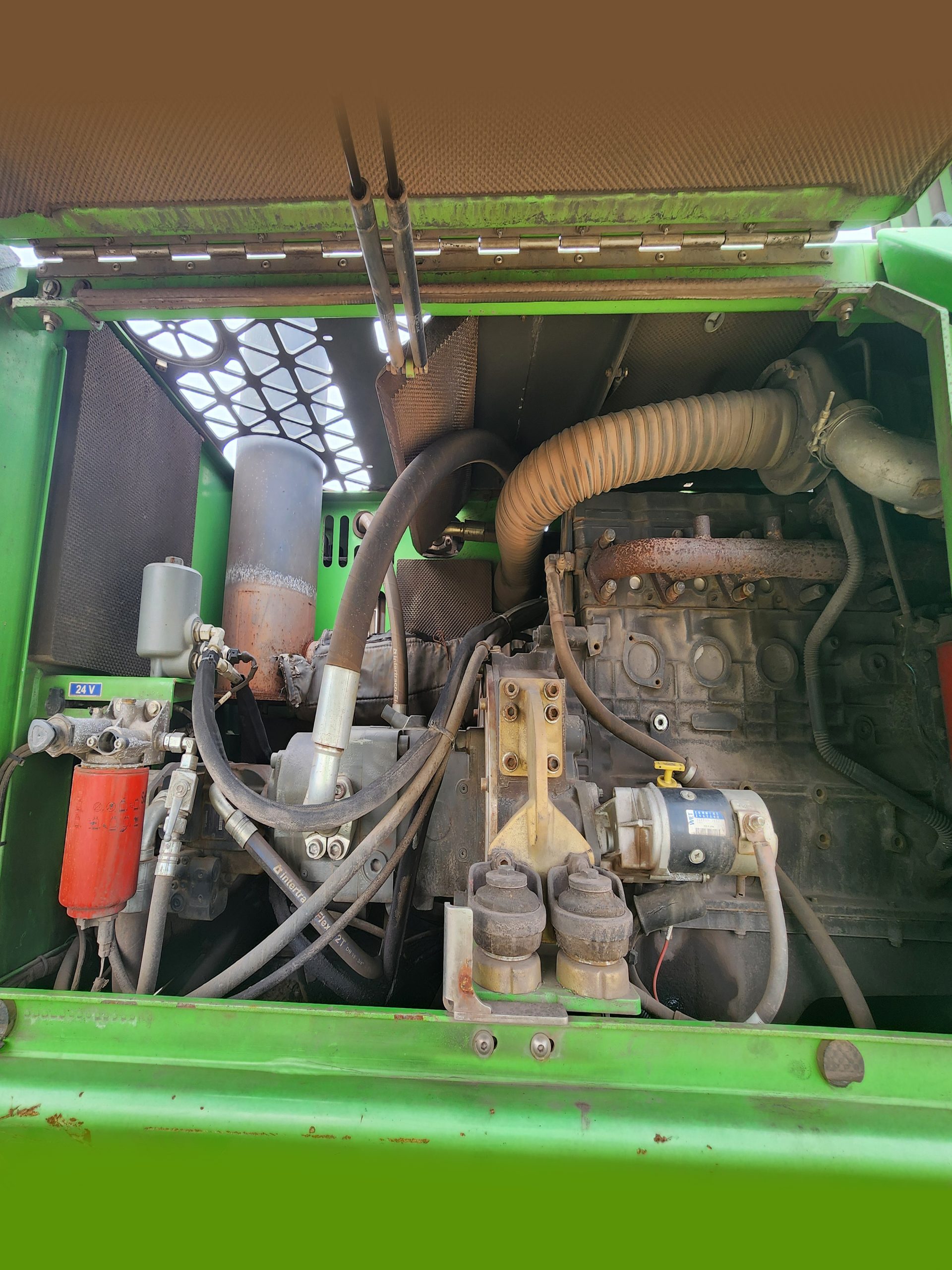

Engine
CUMMINS Engine QSB 6.7 – C173, 129kW/2000 rpm, Tier 3
Type: 6 cylinder, inline
Cooling: Water cooled
Rating: 173 HP (129 kW) at 2,200 rpm
Fuel Tank: 129 gal
Air Filter: Dual stage with prefilter

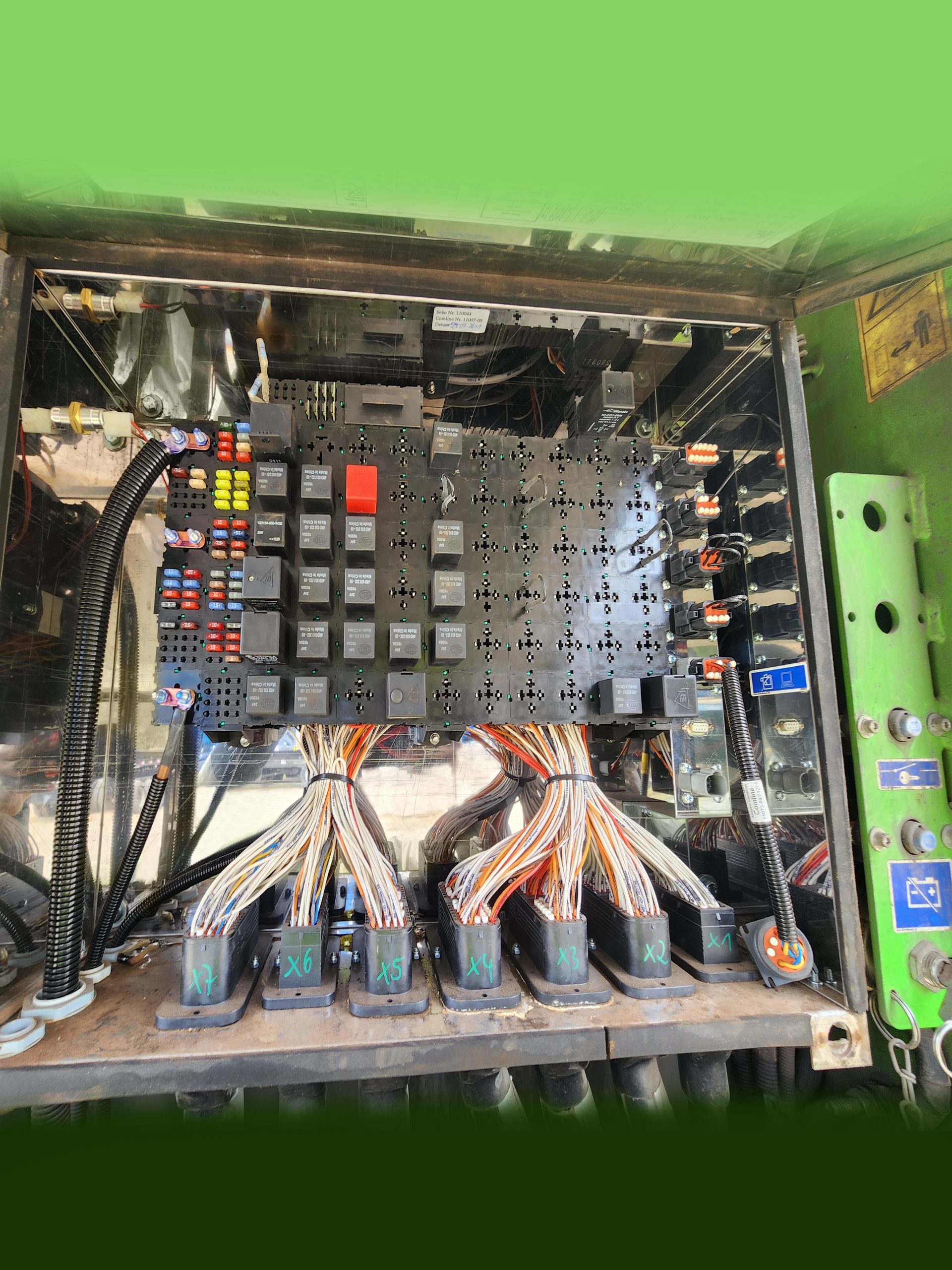

Electrical System
Operating Voltage: 24 V
Batteries: 2 x 12 V, 110 Ah
Light Package: 2 x upper carriage
2 x cab (front)
Hydraulic System
Flow Rate: 110 gpm
Working Pressure: 4,930 psi
Hydraulic Tank: 82 gal
Oil Filtration: Full flow return filters plus 2 micron
Sennebogen Hydroclean
Swing System
Drive: Axial piston motor, planetary gear,
multidisc brake
Swing Speed: 0-8 rpm
Swing Bearing: Sealed ball bearing with internal teeth

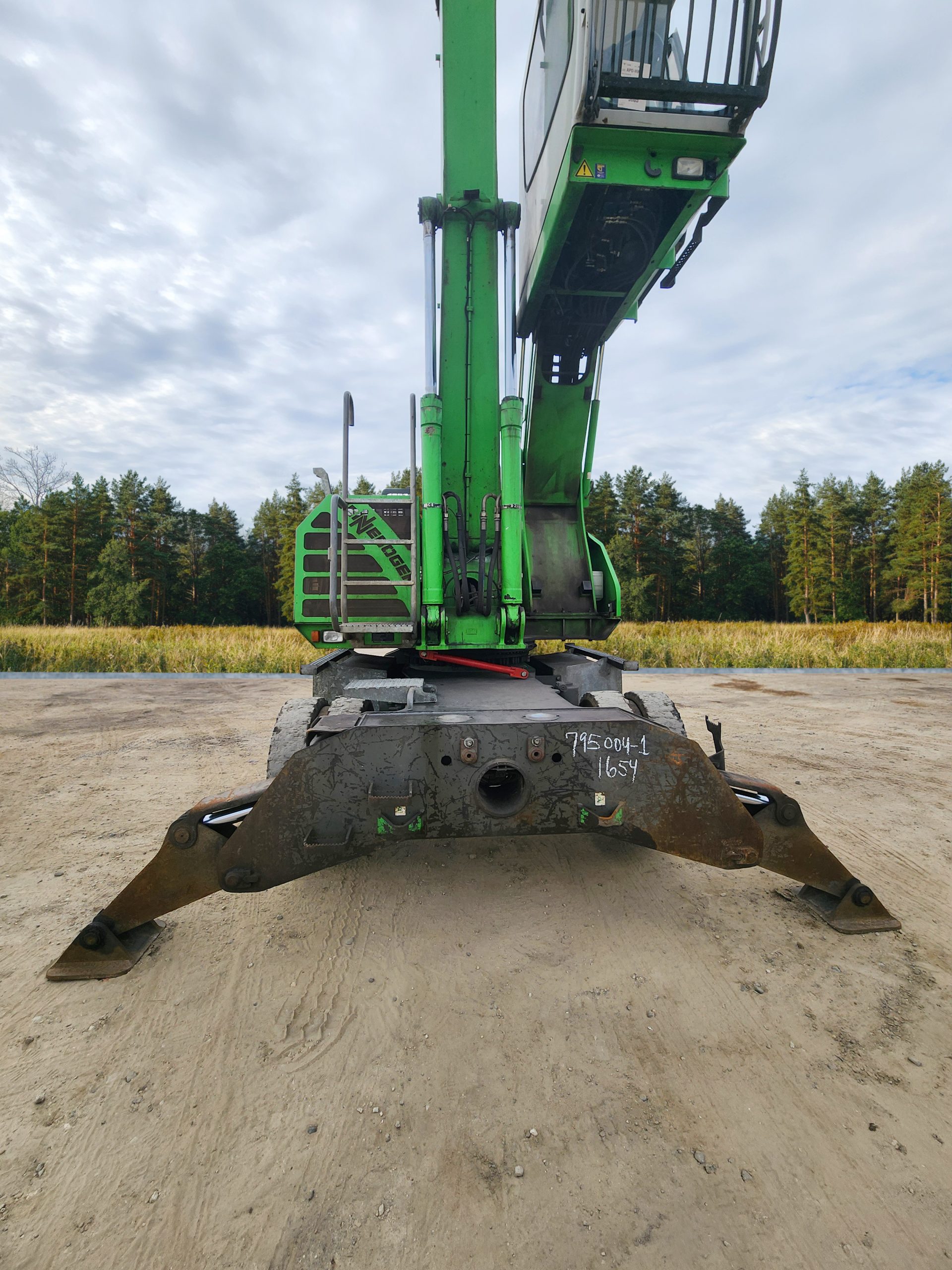

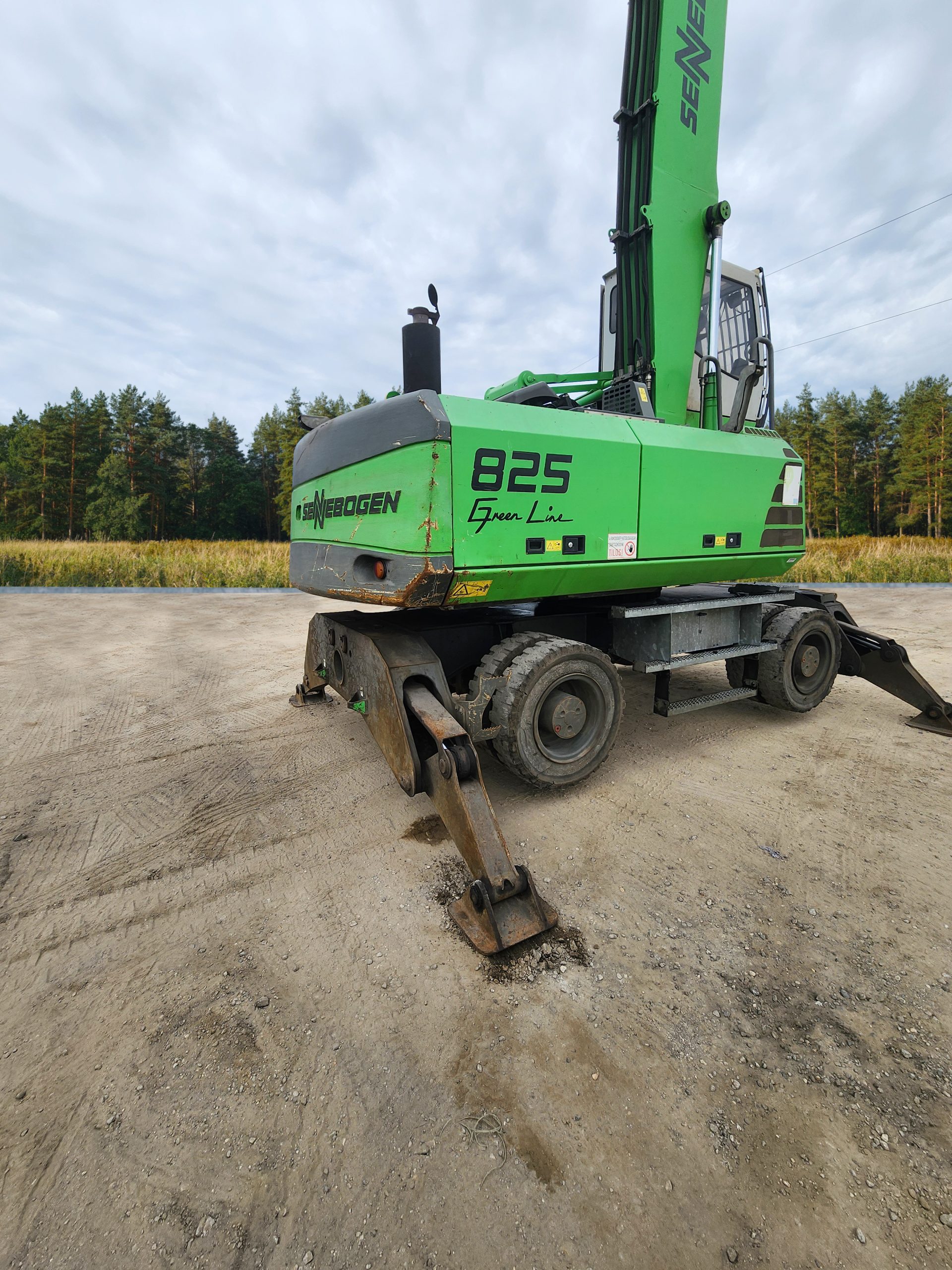

Undercarriage
Drive: Variable displacement hydraulic motor, dual stage power shift transmission, all wheel drive
Steering: Steering wheel
Axles: Front axle: oscillating with hydraulic lock
Rear axle: fixed
Brakes: Multidisc in both axles
Tires: 8 x 10.00-20 solid rubber
Safety: Travel alarm

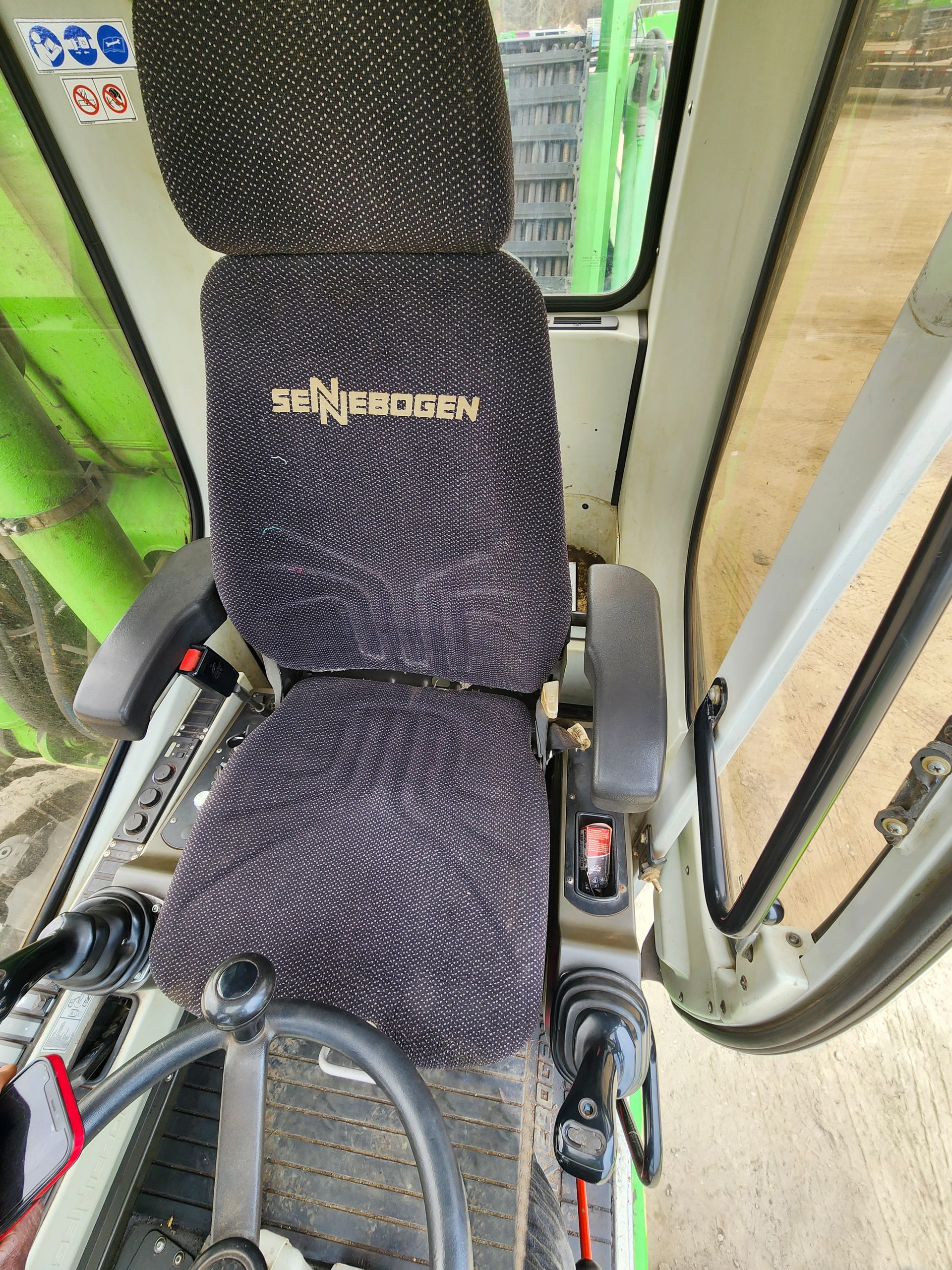

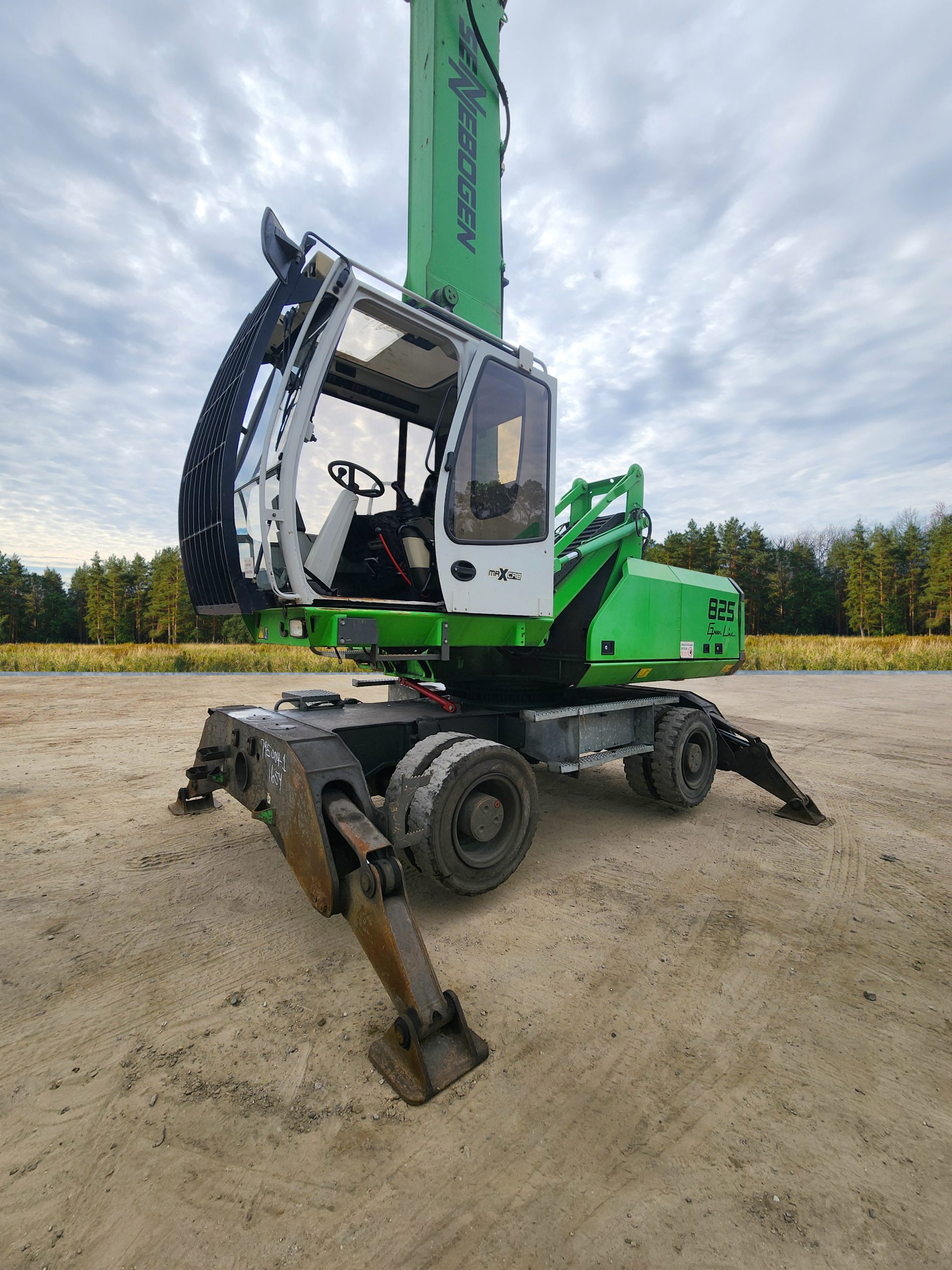

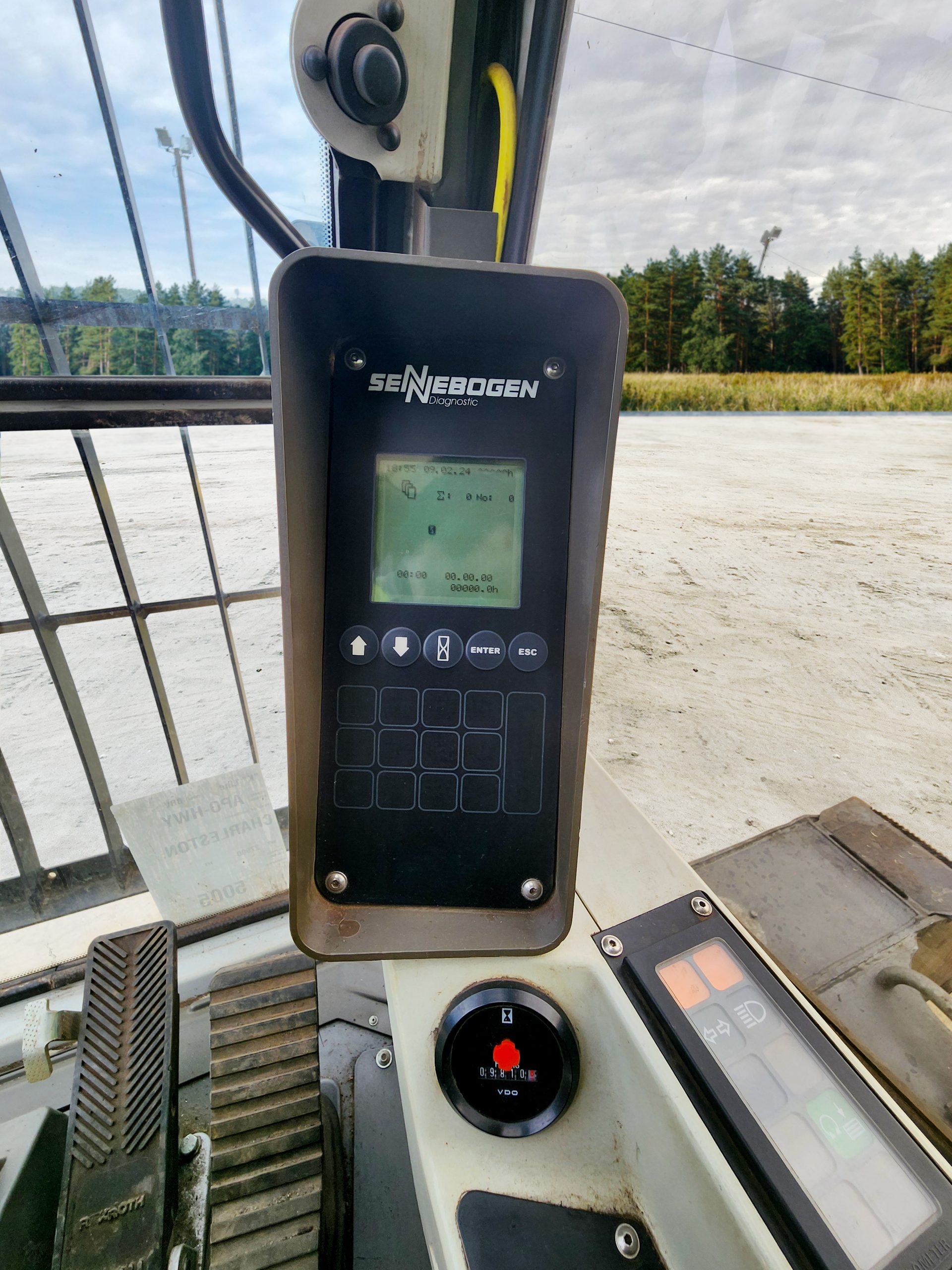

Cab System
Standard: D270 maXCab
Hydraulic elevating 8’10” with two
cylinders
Working Equipment

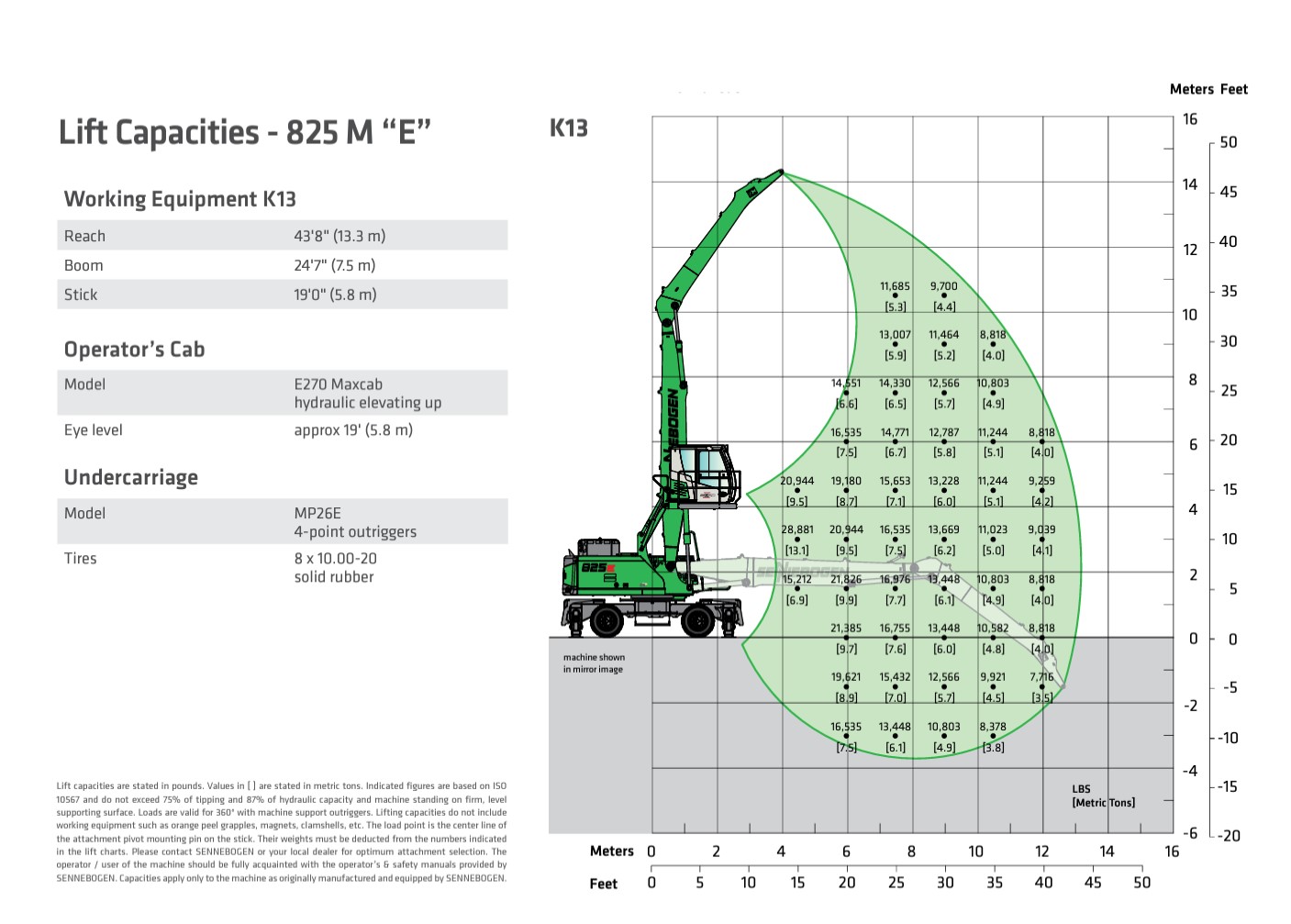

K13 – reach 43’ 4” / purpose-built material handling working equipment
Straight boom, with end stop monitoring system and limit switches
Straight stick, with end stop monitoring system and limit switches
Boom & Stick cylinders equipped with safety check valves and end position damping
Attachment open/close and rotate hydraulic circuits installed up to the end of the stick (ball valves)
Magnet System
Drive: Belt driven
Rating: 15 kW
Controller: Hubbell
Generator: Baldor
