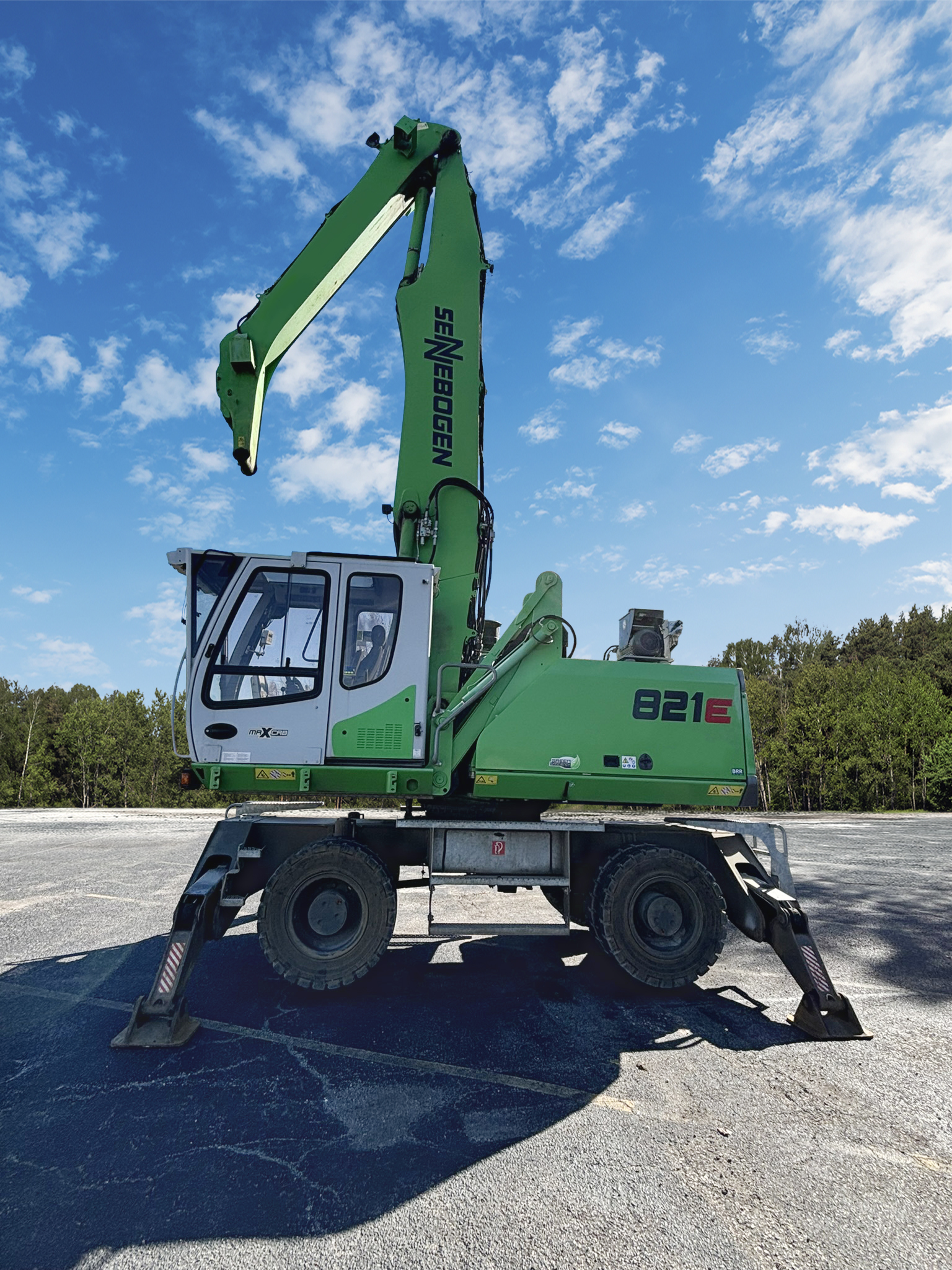

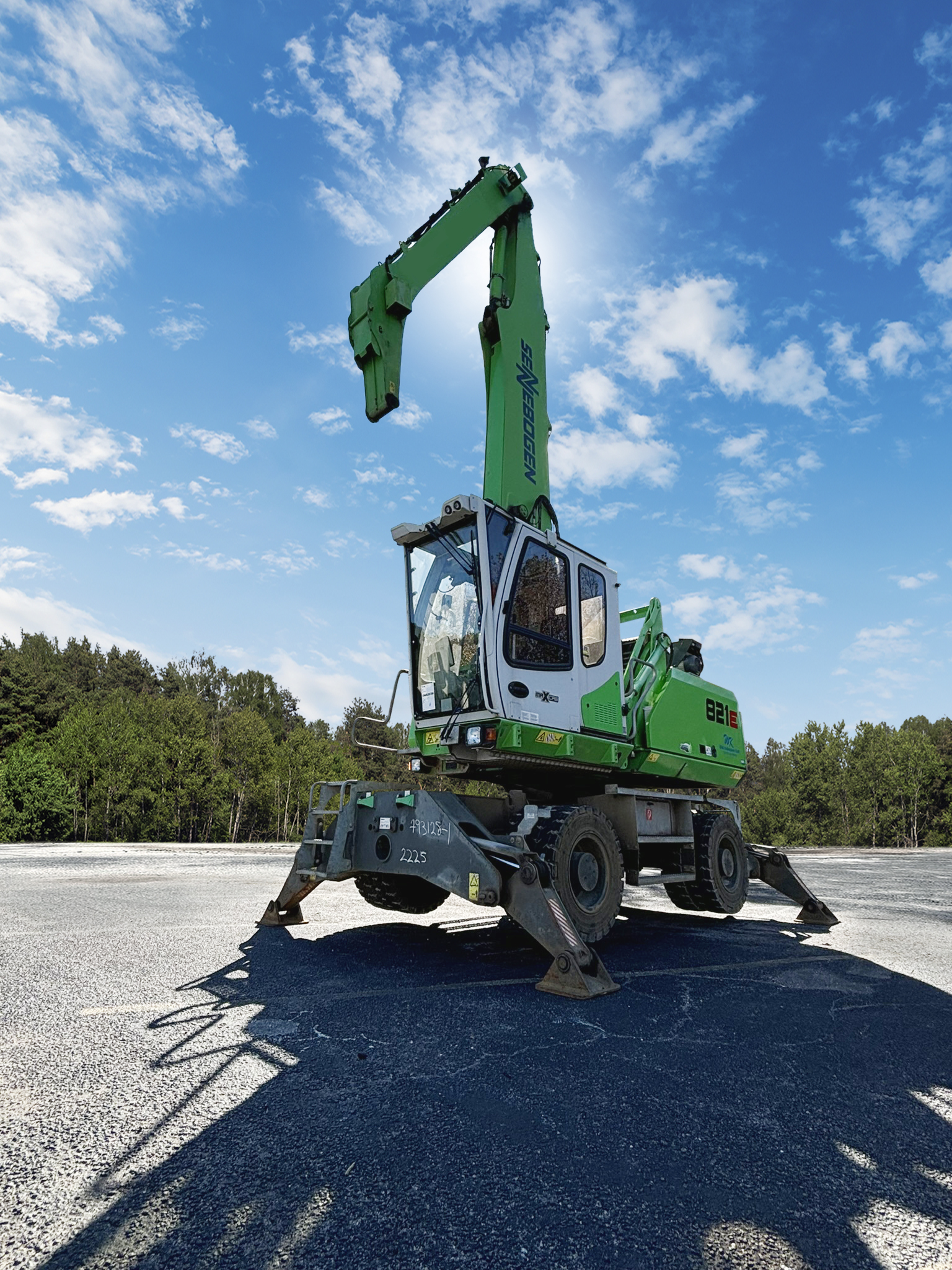

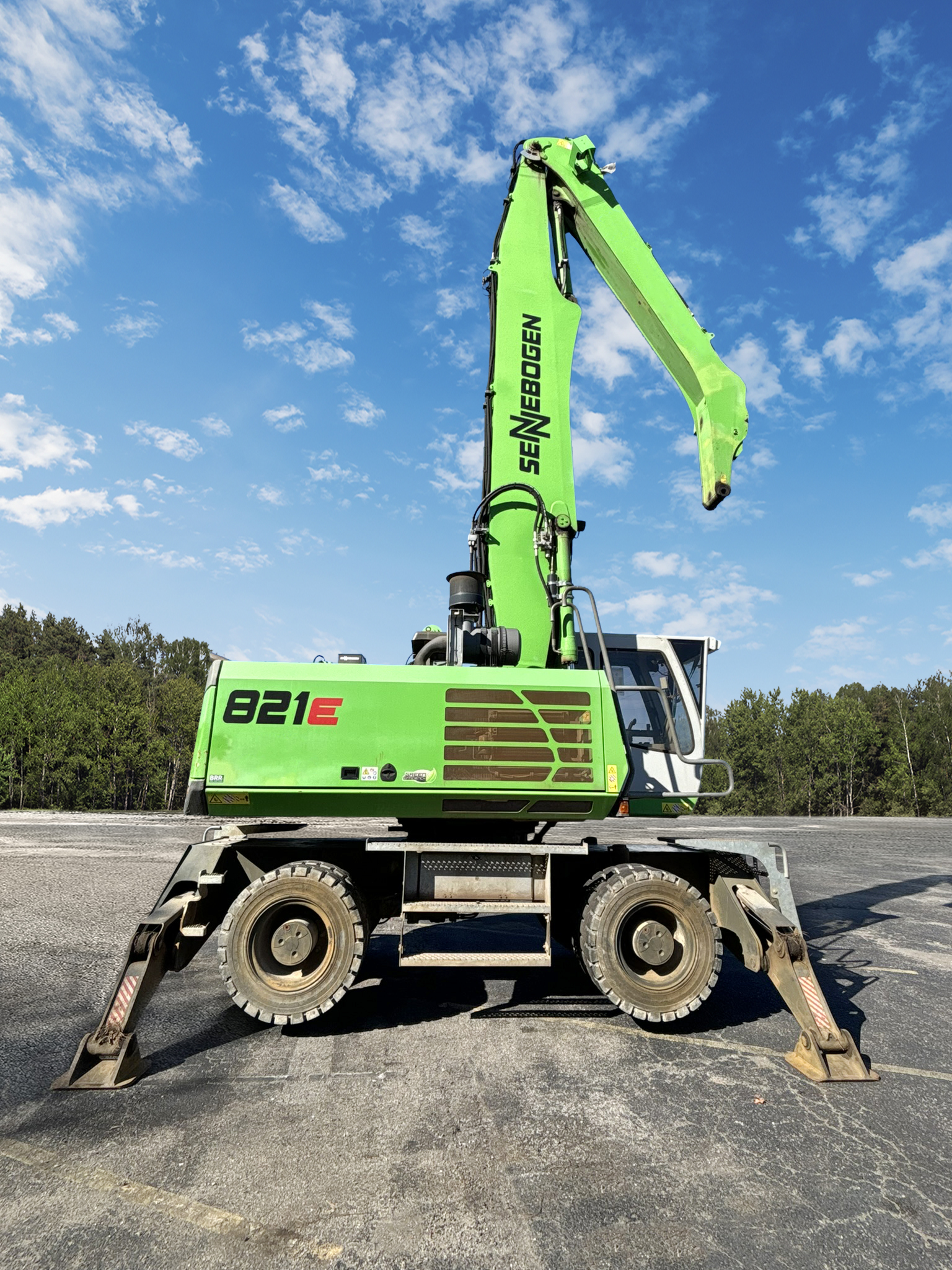

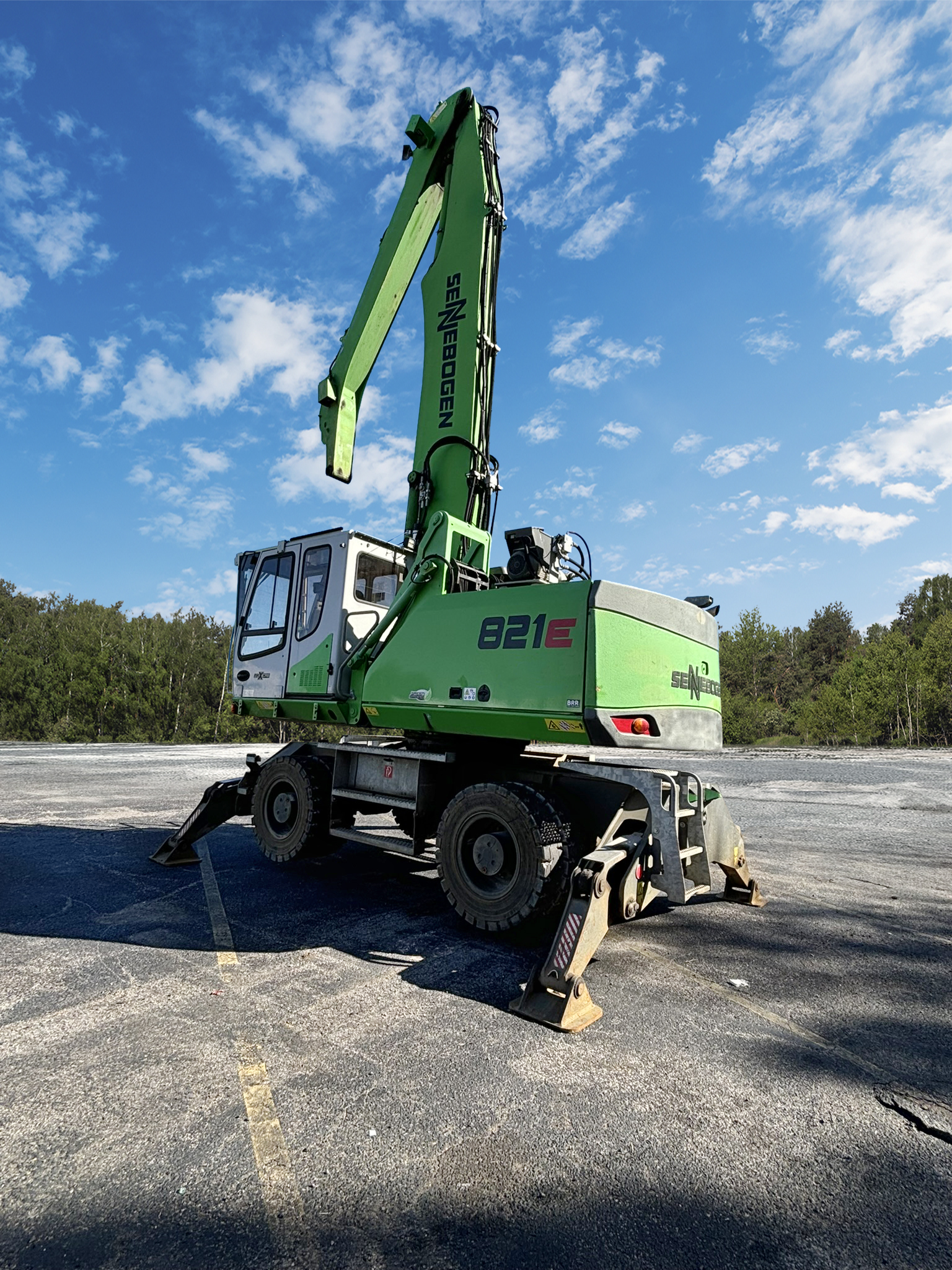

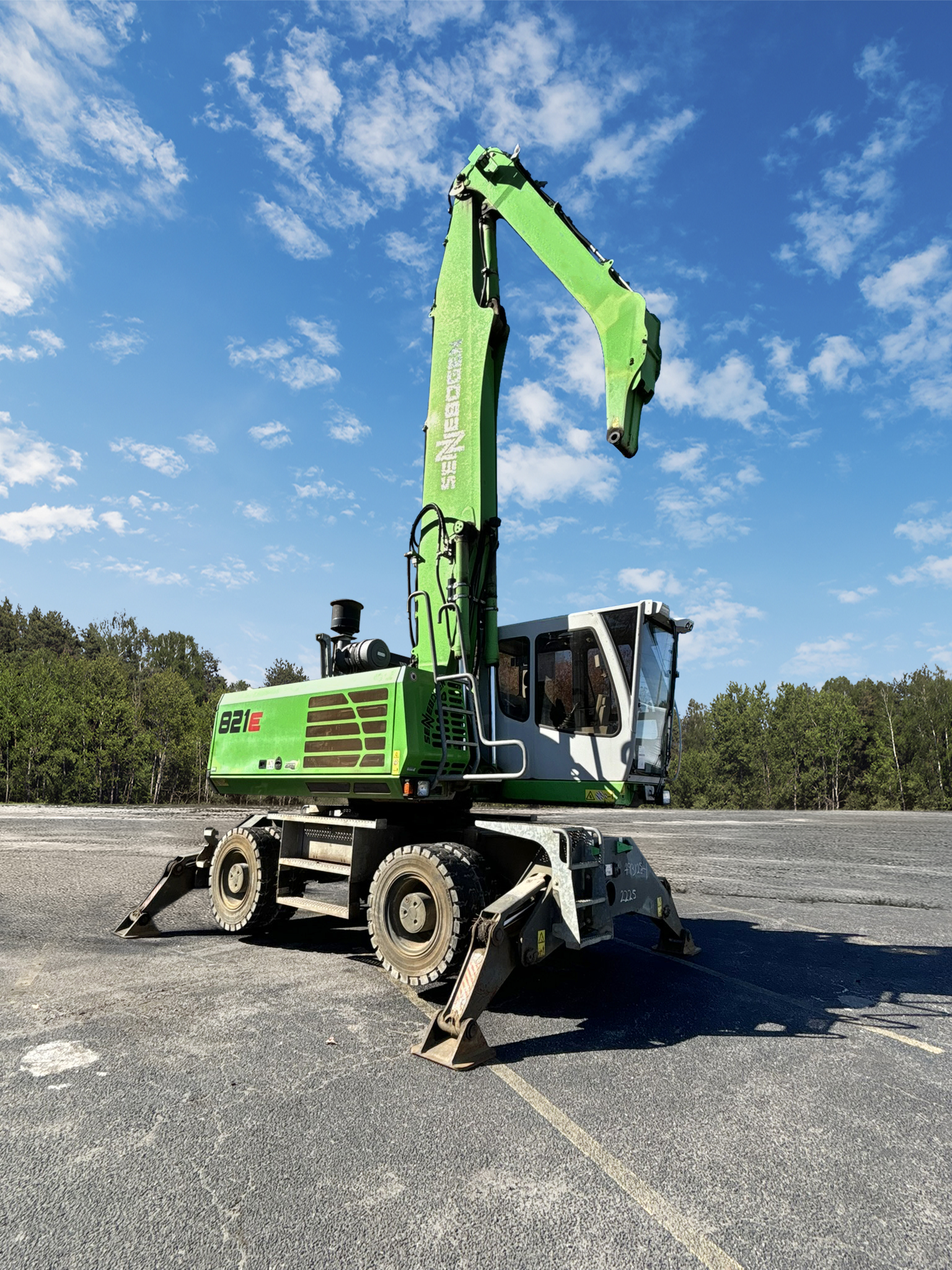

This used 821M wheeled material handler is configured w/ a 15kW generator & K12 boom/stick combination.

The Sennebogen 821 weighs in at 52,800 pounds has a reach of 36′ and lift capacity up to 16,000 pounds to efficiently move and sort scrap materials with ease. From ferrous to non-ferrous metals, this used Sennebogen material handler excels in handling a diverse range of scrap recycling materials. It’s Tier 3 Cummins engine is a great option for Latin American.

When you purchase a used material handler from Sennebogen North America you are fully supported by the Factory with $55 million in parts inventory in North Carolina, 24/7 on-call Parts ordering, and even Free Training for your Service Techs at the Factory. You are also supported by the industries largest Dealer and Authorized Service Provider Network. You can check out all the Service options in your area HERE

The machine is located in SC. Contact us for a machine and freight quote.

Engine

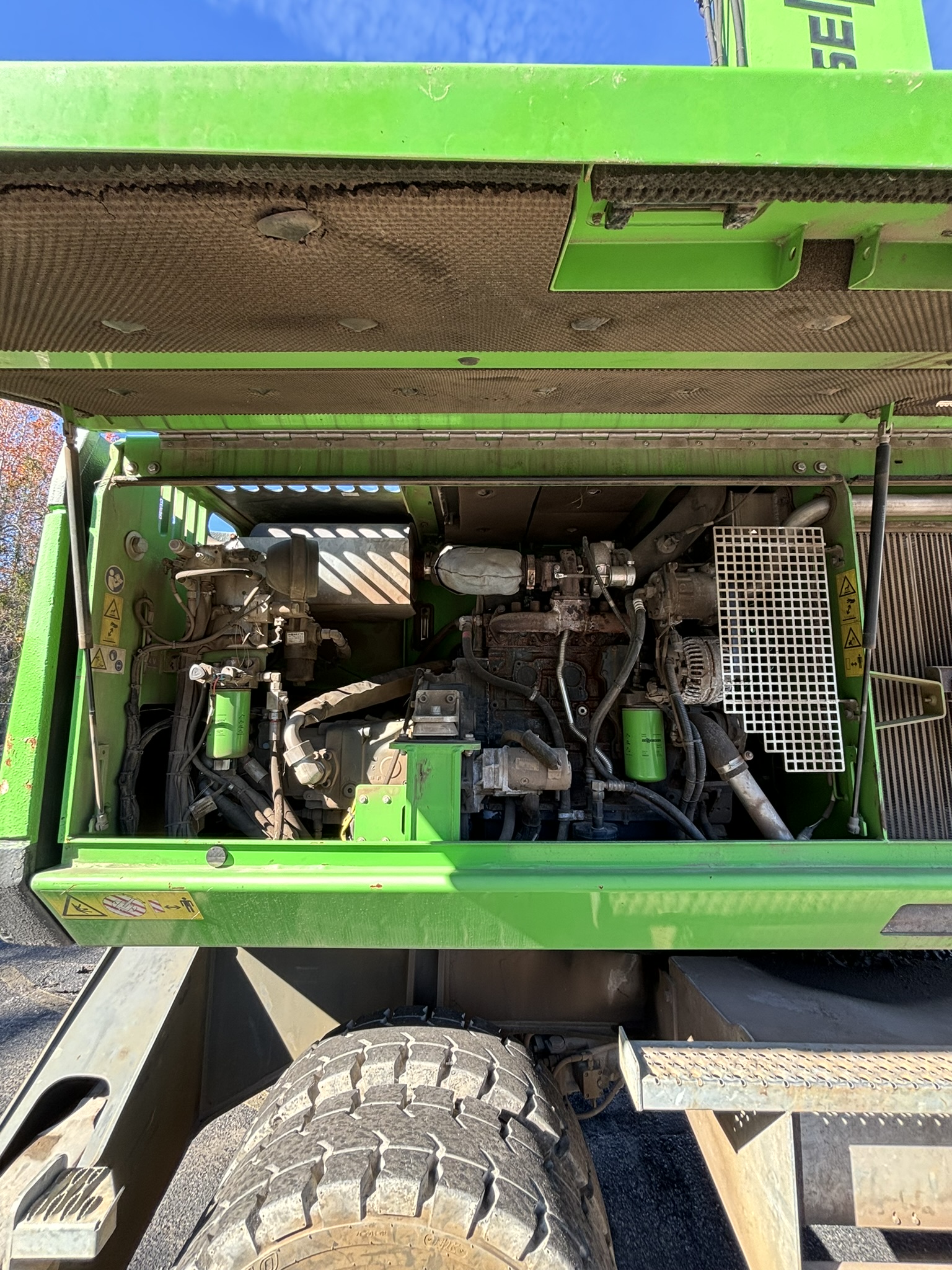

CUMMINS QSB 4.5 C160, 97kW/2200 rpm, Tier 3 water separator with fuel prefilter 24V

Automatic idle speed stop for diesel engine

Eco-mode for diesel engine

Magnet System

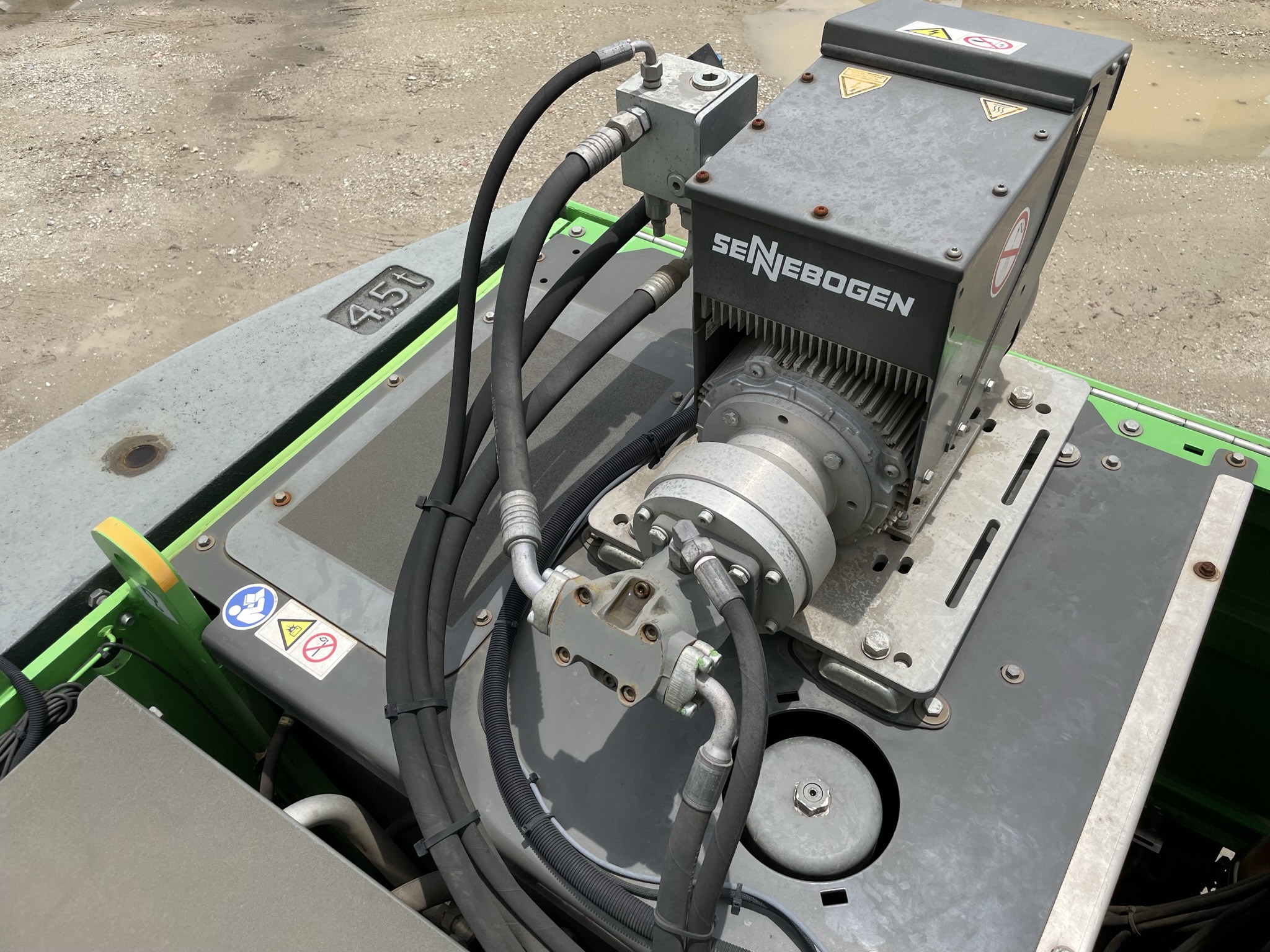

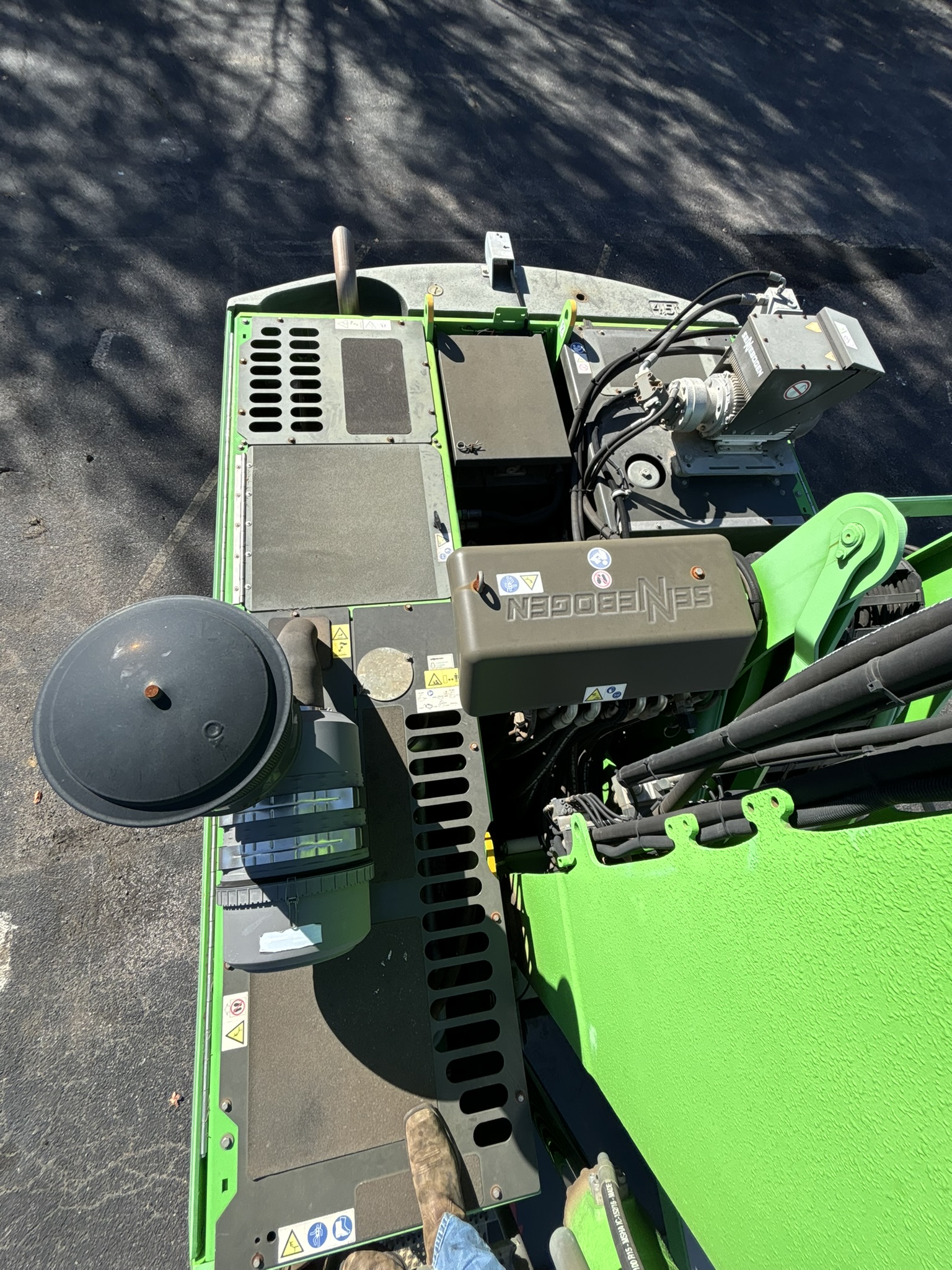

15kW Sennebogen

Working Equipment

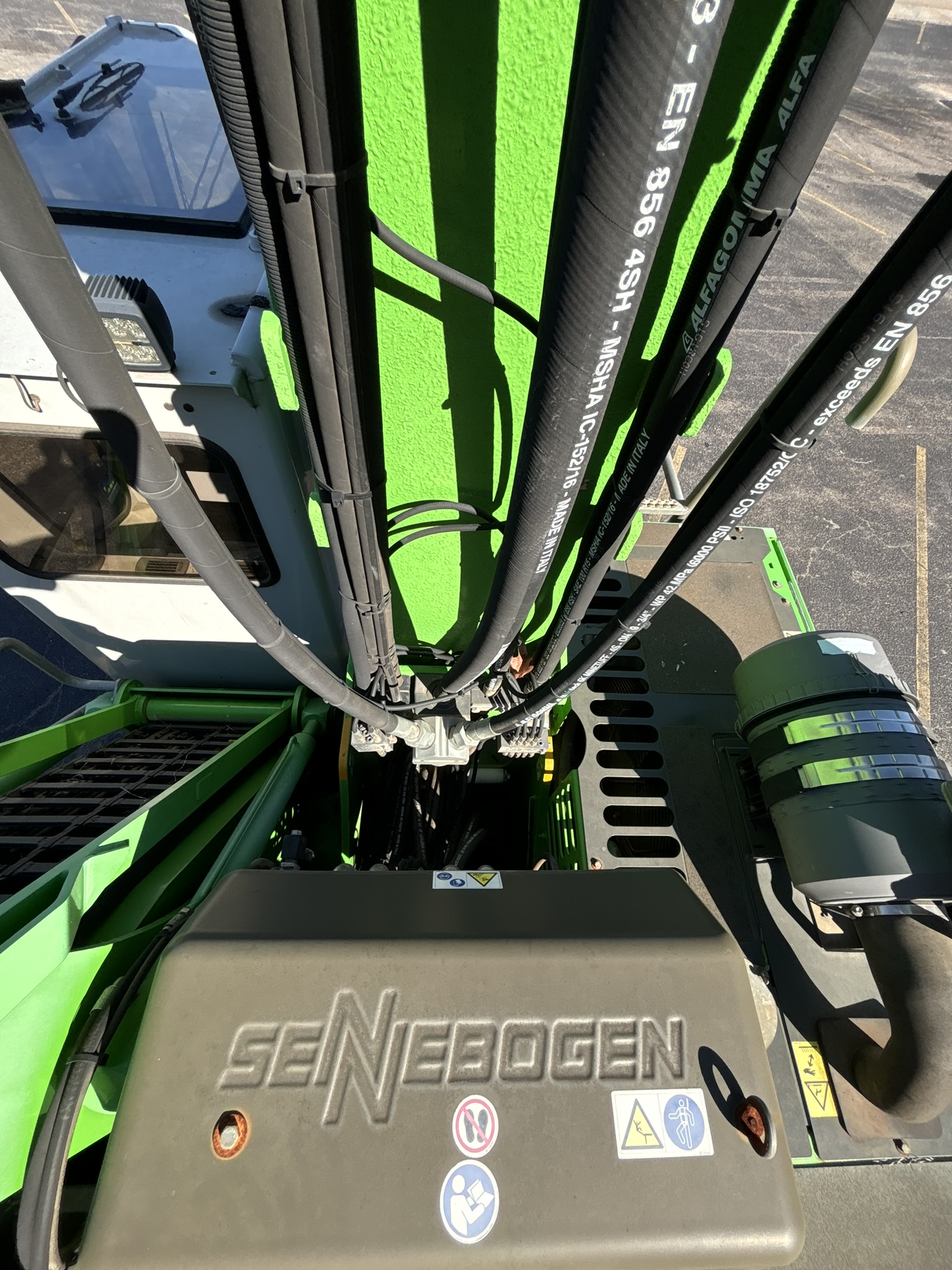

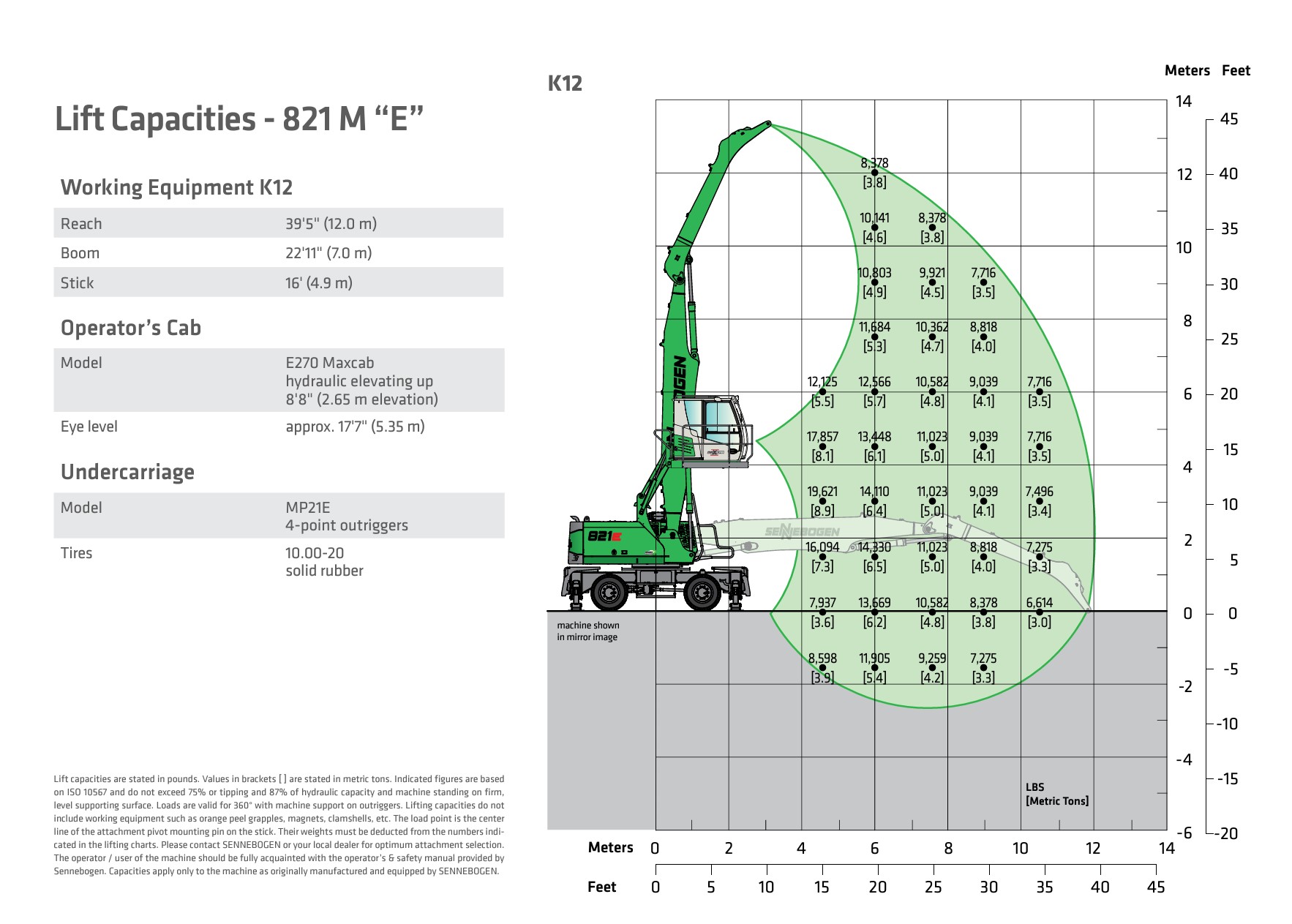

K12 – Reach: 38.9′ / Straight Boom 22.9′ / Curved Stick 16′. Boom and Stick cylinders featuring end position damping. End position shut off function, safety check valves for boom and stick cylinders

Boom damping system 818/821 ULM – reduces boom swinging and absorbs energy especially at sorting operations

Quick change couplers (bolted type) with counter pieces for grab open/close and grab rotating.

Ball Valves at end of stick

Operator’s Cab

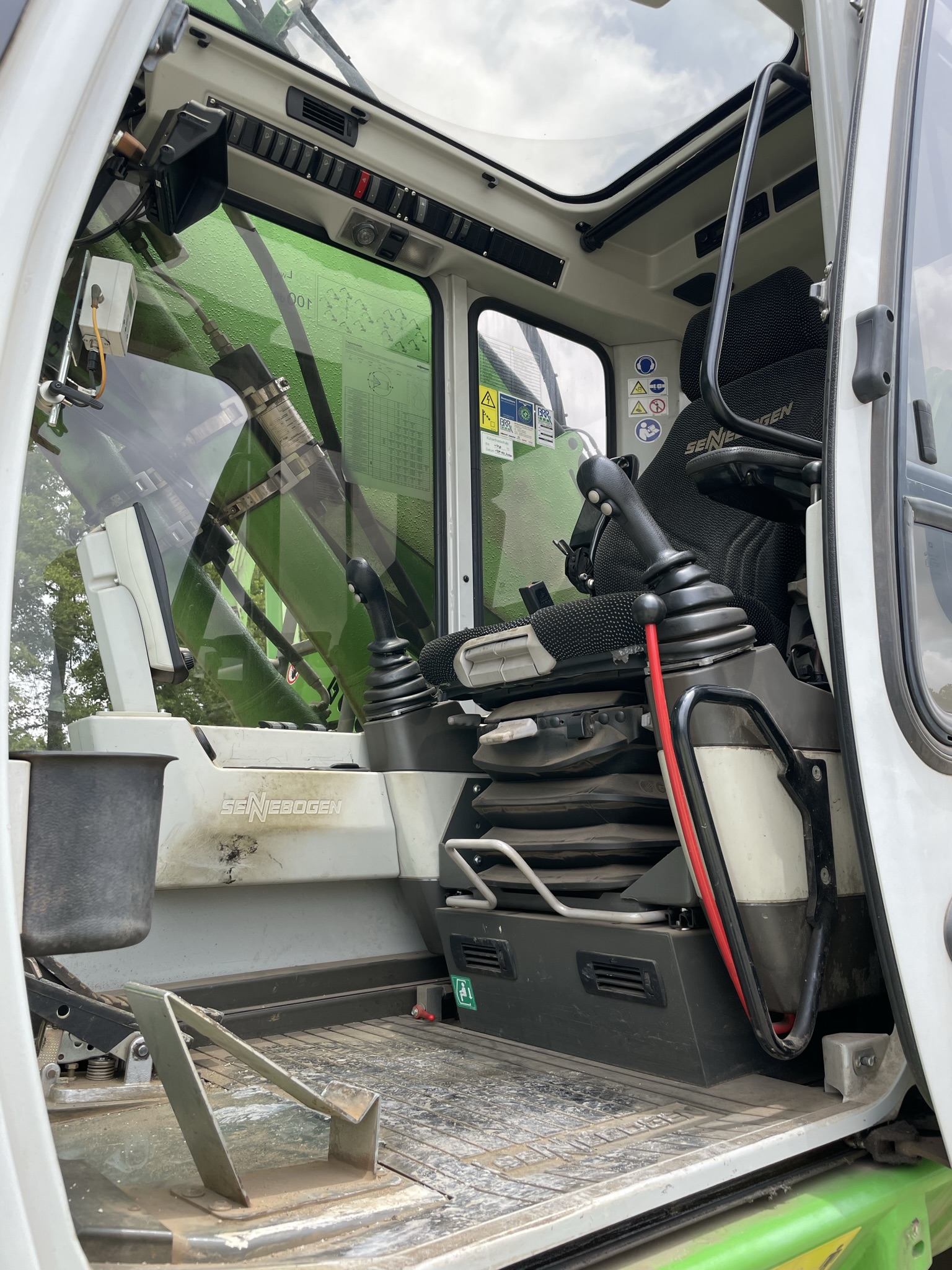

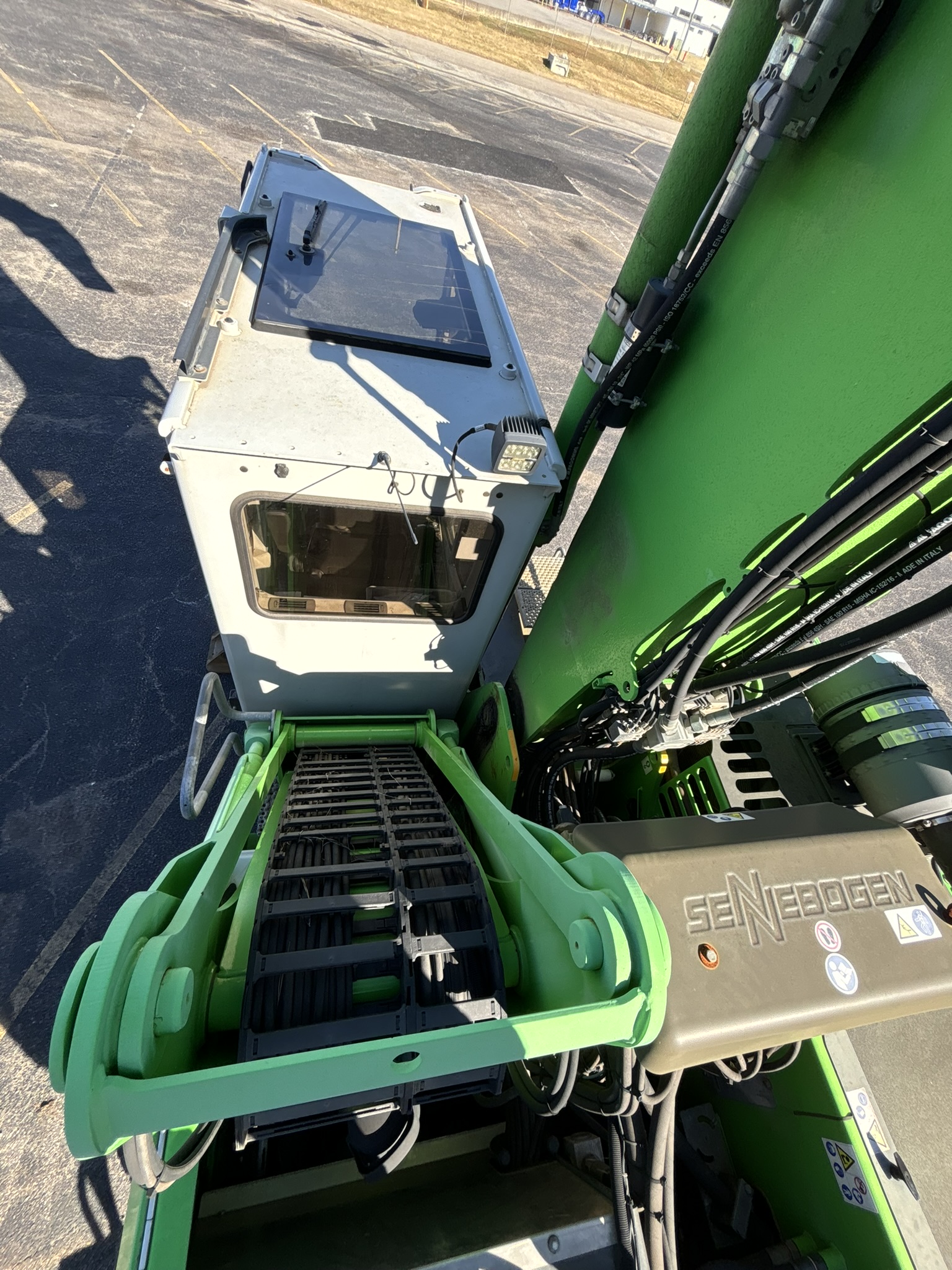

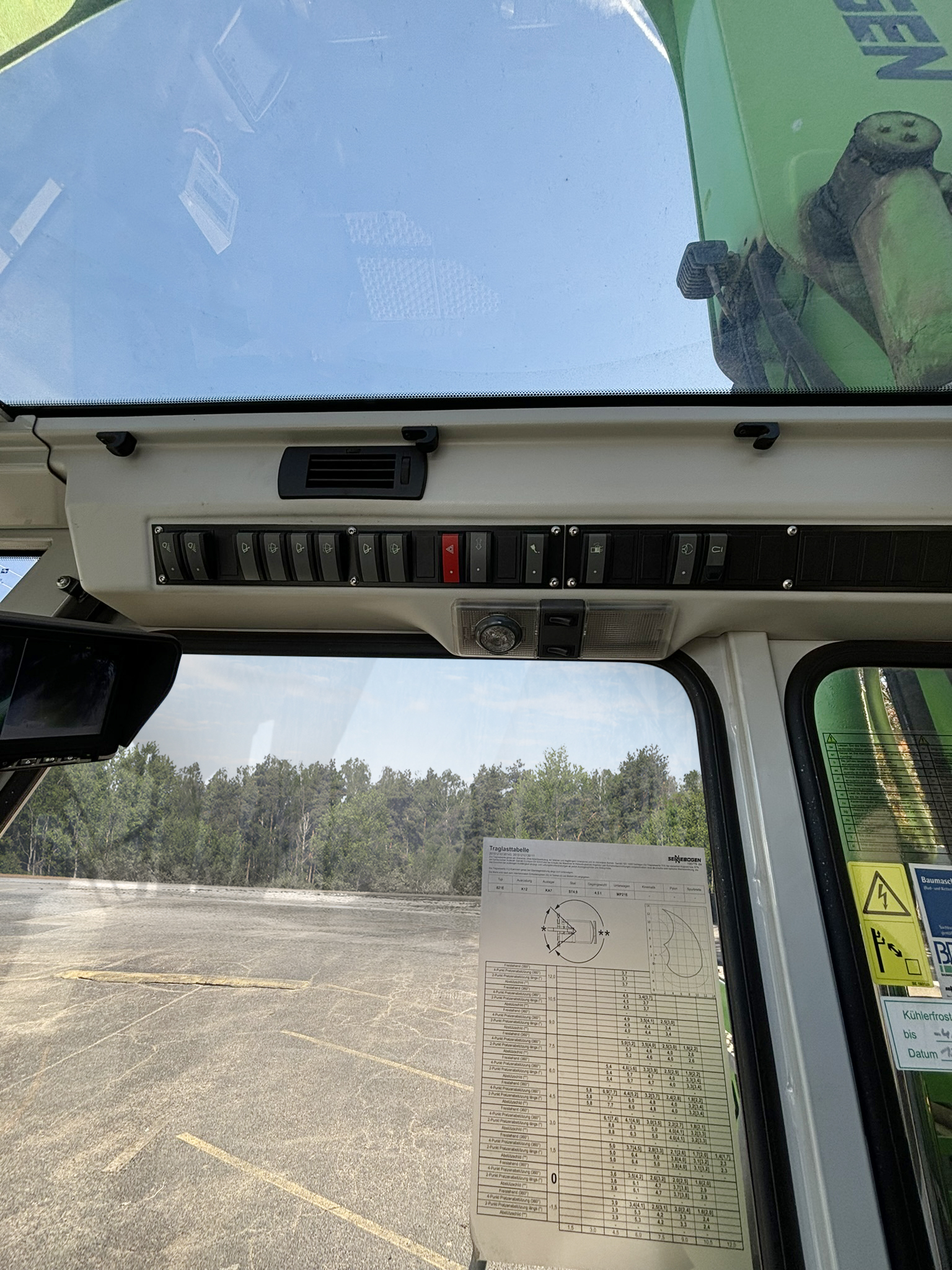

SENNEBOGEN MAXCAB Industry Cab – infinitely adjustable up to 2.7m via hydraulics. Safety glazing polycarbonate for cab window left and right, door and rear windows. Radio w/ speakers. Cab with sliding door, tinted safety glass, front tilting window, skylight, wiper/washer system for front window, 2 halogen lights integrated

Roof window in bullet proof glass, 20mm thickness, lower front window with wiper/washer system, wiper for skylight, door window as sliding window.

Front window (approx. 320 x 270mm) of bullet proof glass (only in combination with Joystick-steering for mobile machine and respectively

Air suspended operator´s seat with support for intervertebral disc, seat
heating, safety belt and headrest for driver´s seat.

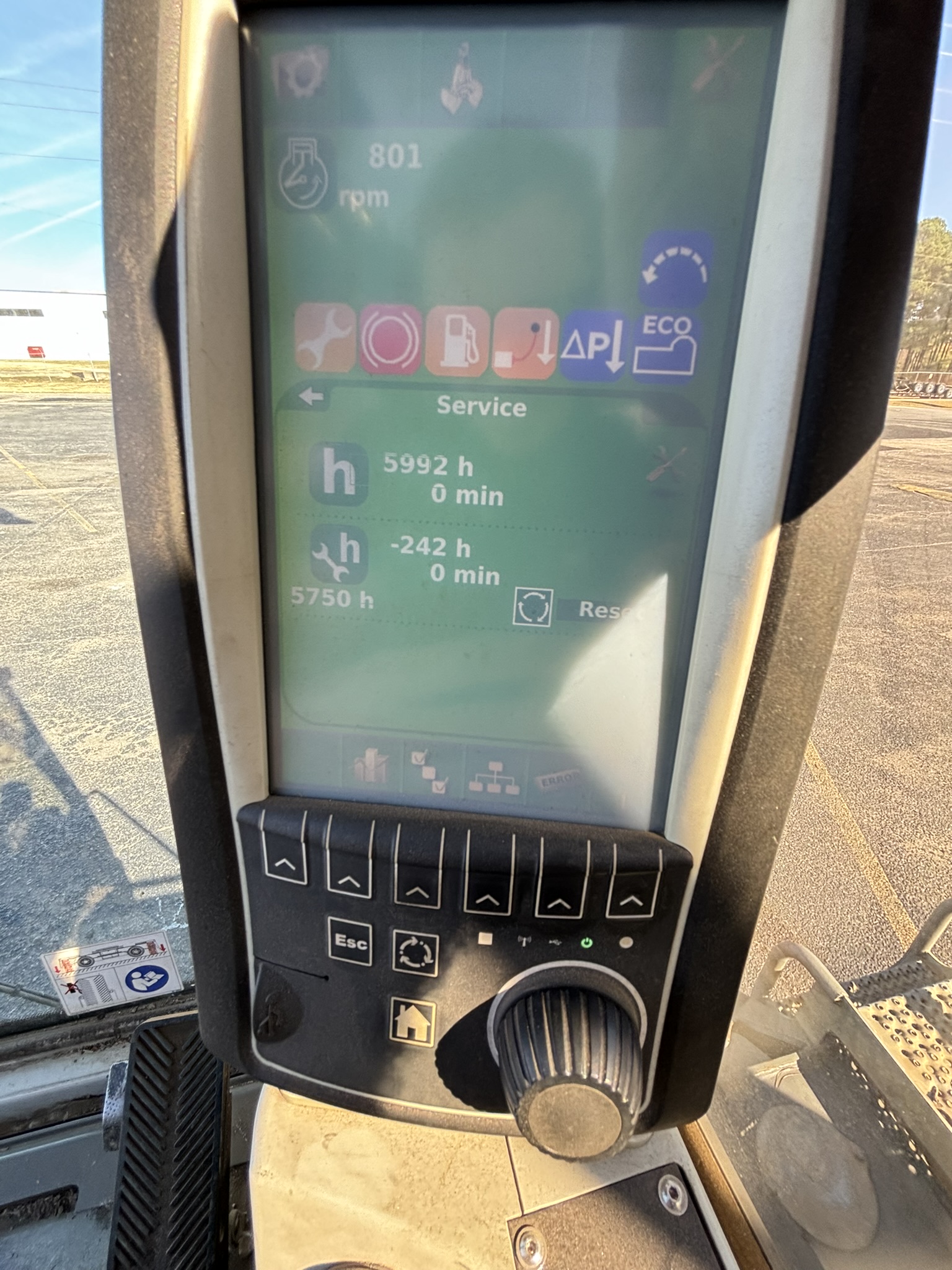

SENNEBOGEN control & diagnostic system SENCON

Front and skylight guards

Lighting system 4 LED cab:1 pc. LED headlight mounted on the cab roof on the right side heading backwards. Windscreen wiper for lower cabin front window with washer system. Windscreen guard for front window. Windscreen wiper for skylight with washer system

Emergency control function to ensure machine availability for limited operations by bridging the main functions.

Joystick-steering

Heating- Climate automatic (air condition) with central control elements, outside air and circulating air stages, with particle filter, defrost circuit, adjustable air vents for optimum work environment.

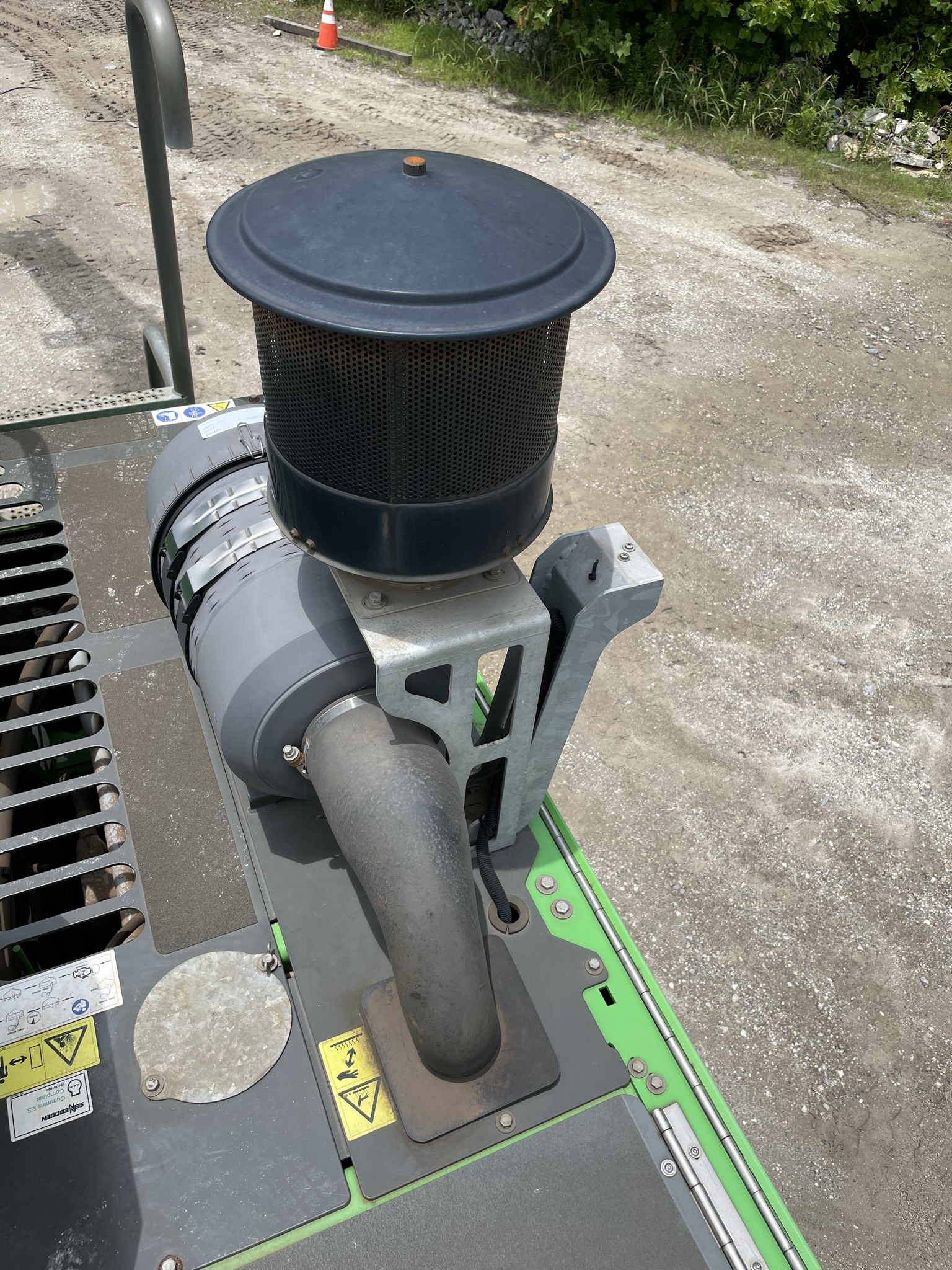

Air filter pre-cleaner, precleans approx. 98% of abrasive smut to increased life span of air filter

Cab Catwalk

Grated step on side of cab with handrail (bolted)

Upper Carriage

HD counterweight ca. 0.6t integrated into counterweight.

Upper carriage handrails

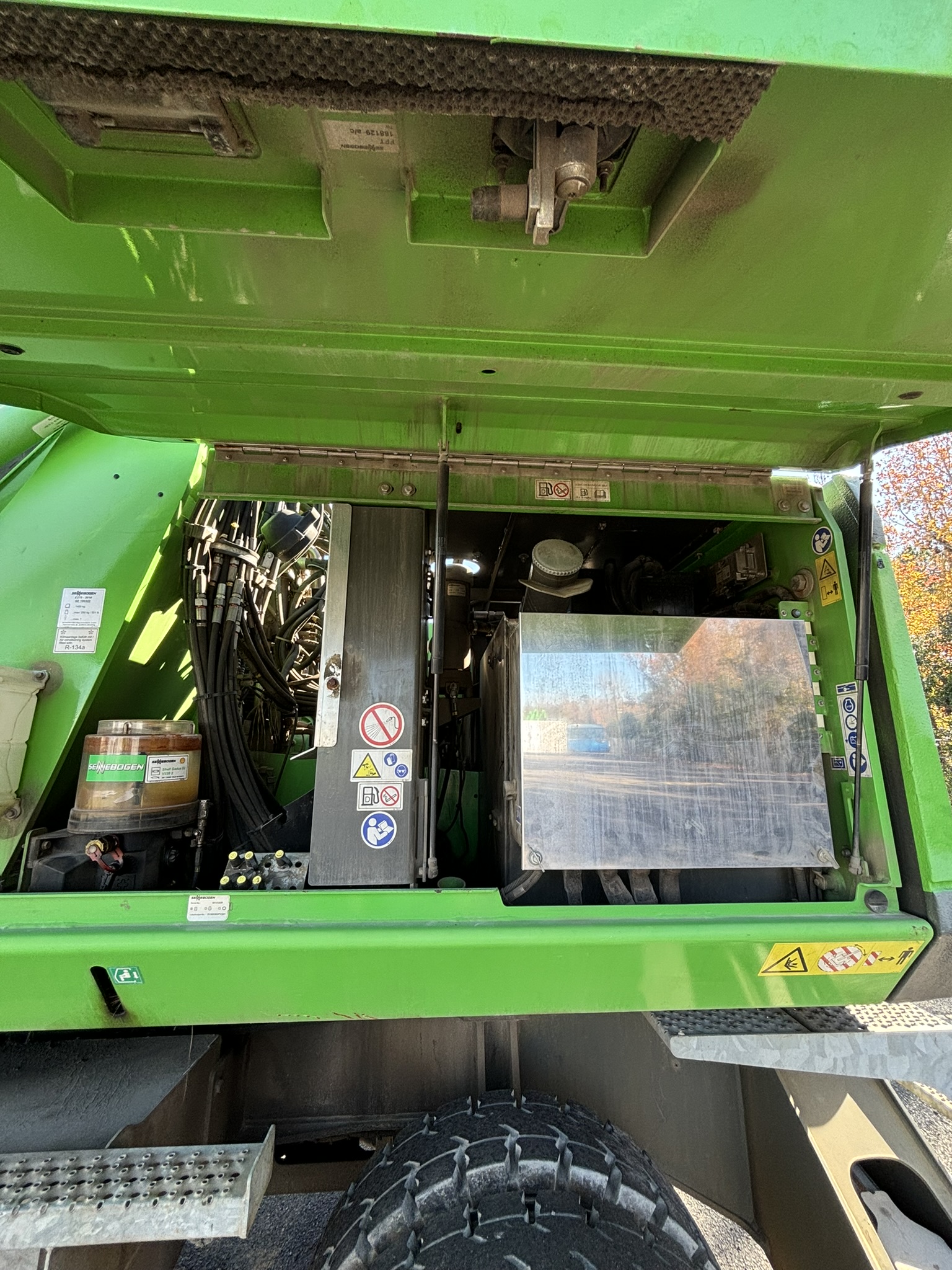

SENNEBOGEN Hydro-Clean: Hydraulic micro filter system with water absorption contamination indicator (higher oil purity and extended oil service life)

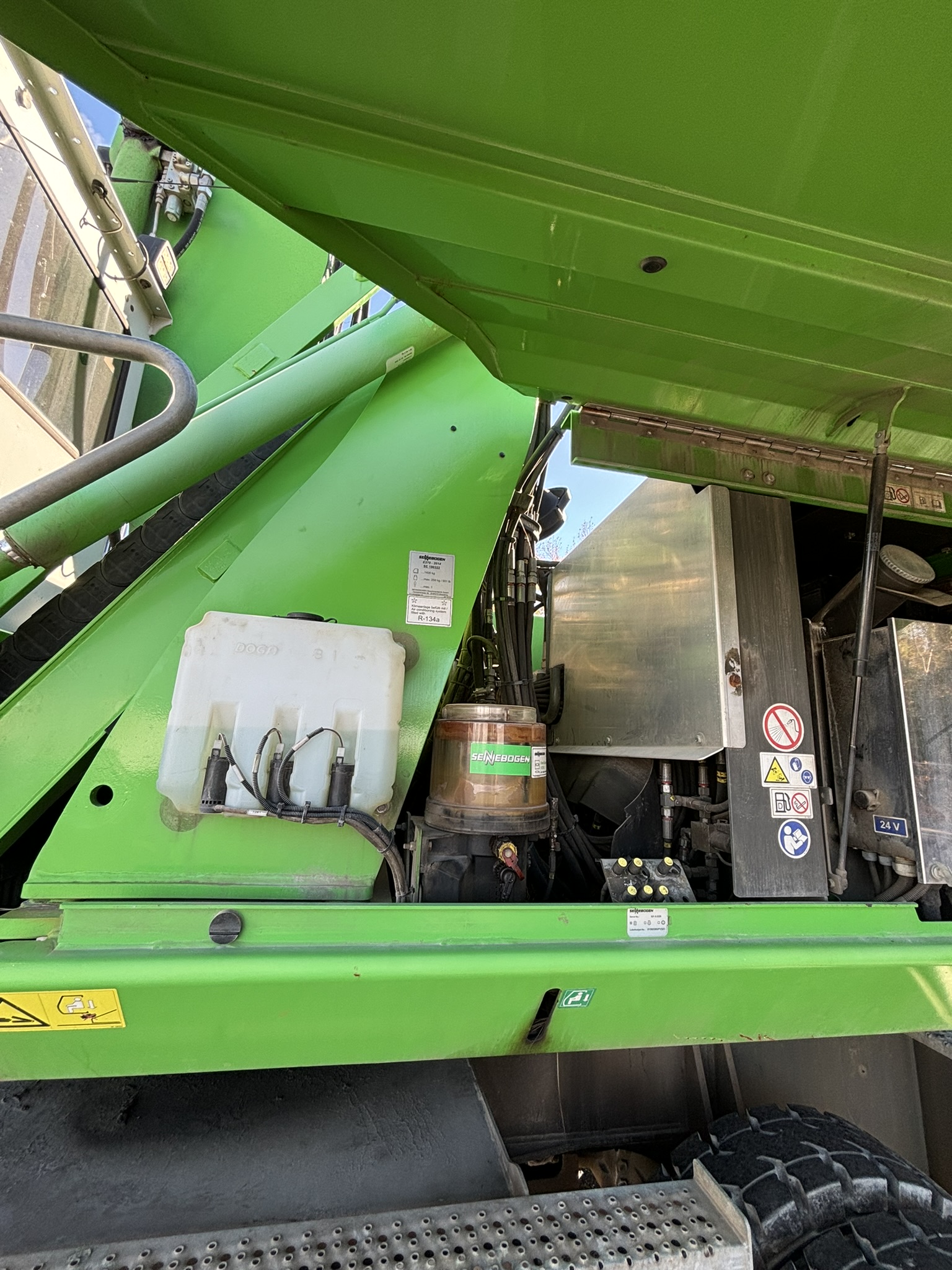

Automatic central lubrication for equipment and slewing ring raceway

Powerful slew drive with large, dimensioned slewing ring

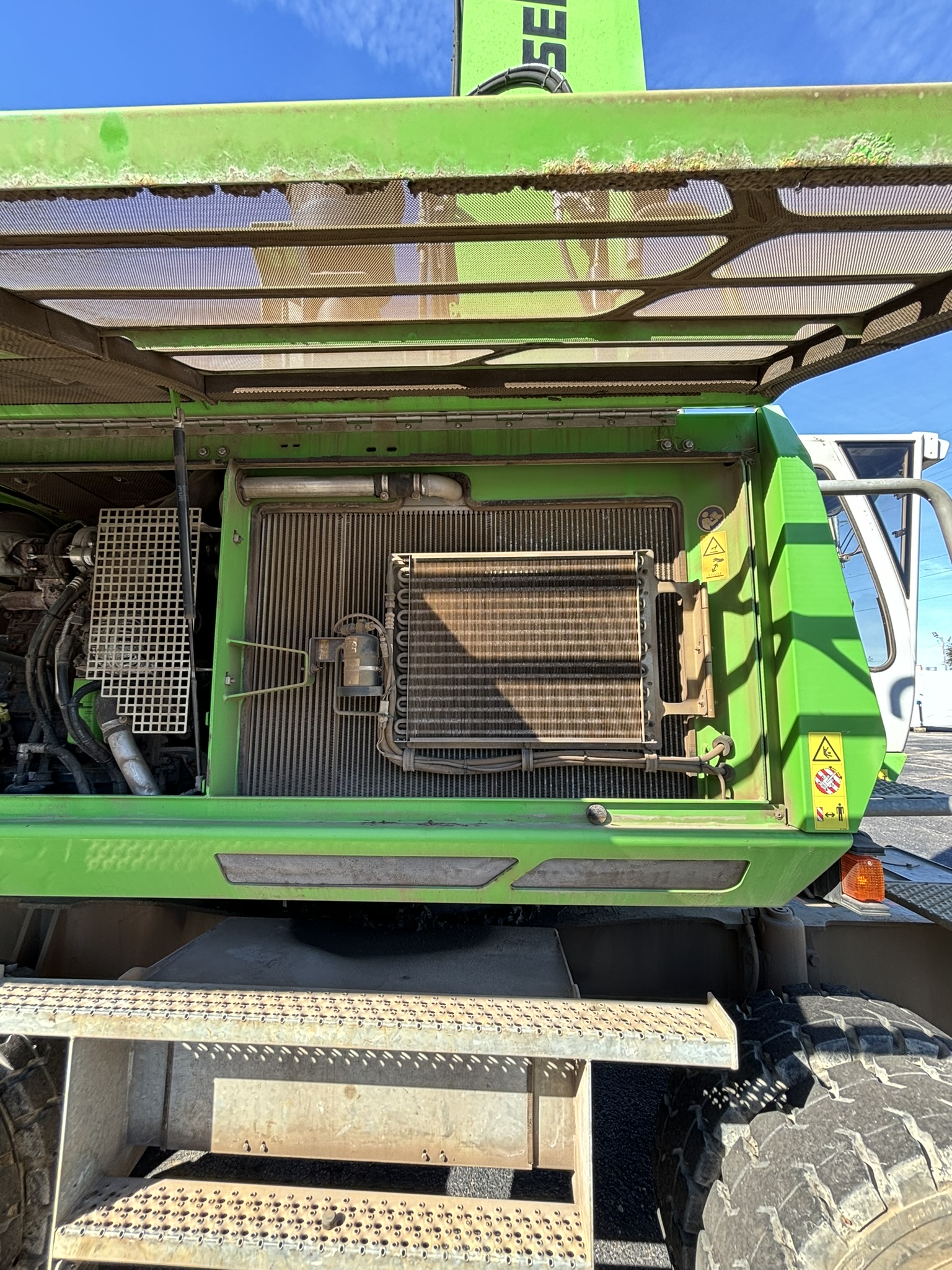

Counter rotation of cooler ventilator to blow out cooler.

Air filter pre-cleaner, precleans approx. 98% of abrasive smut to increased life span of air filter.

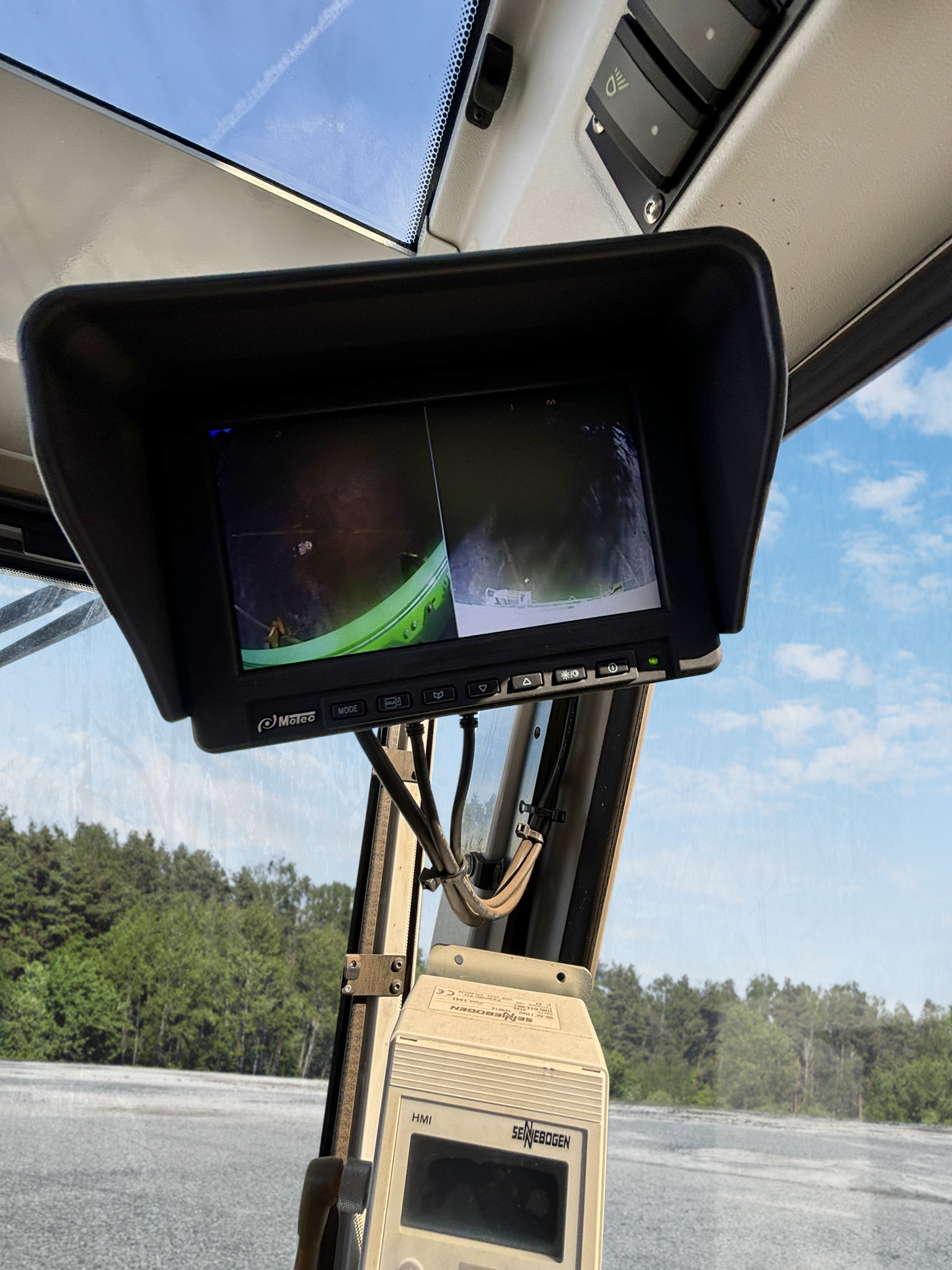

Camera system – base package with 2 cameras includes 1 color monitor 7´´, monitor with 4-way split, up to 4 cameras expandable, 2 cameras with 115° field viewing angle for rear view camera right side of the machine.

2 pcs. H4 headlights mounted in the upper carriage-frame on the front side left and right, 2 rear lights and 2 halogen lights integrated in the left front side of the cab roof. H3 service headlights 70W 1 pc. at motor side and 1 pc. at cab side mounted.

1 pc. LED headlight mounted on the compact boom downside and 2 pcs. LED headlights mounted on both sides of the stick in upper position (in addition to system 1 or 2)

Travel Alarm

Under Carriage

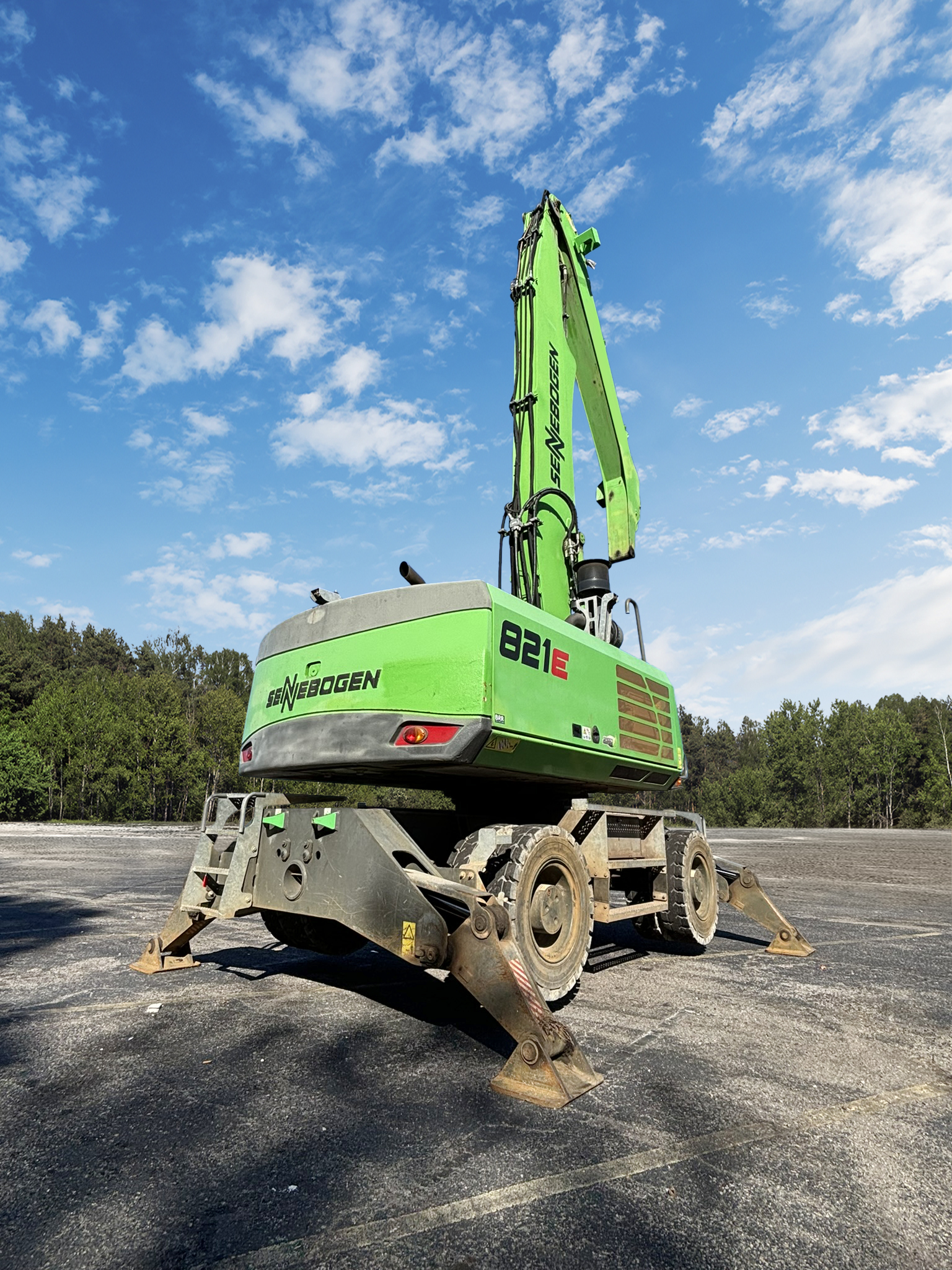

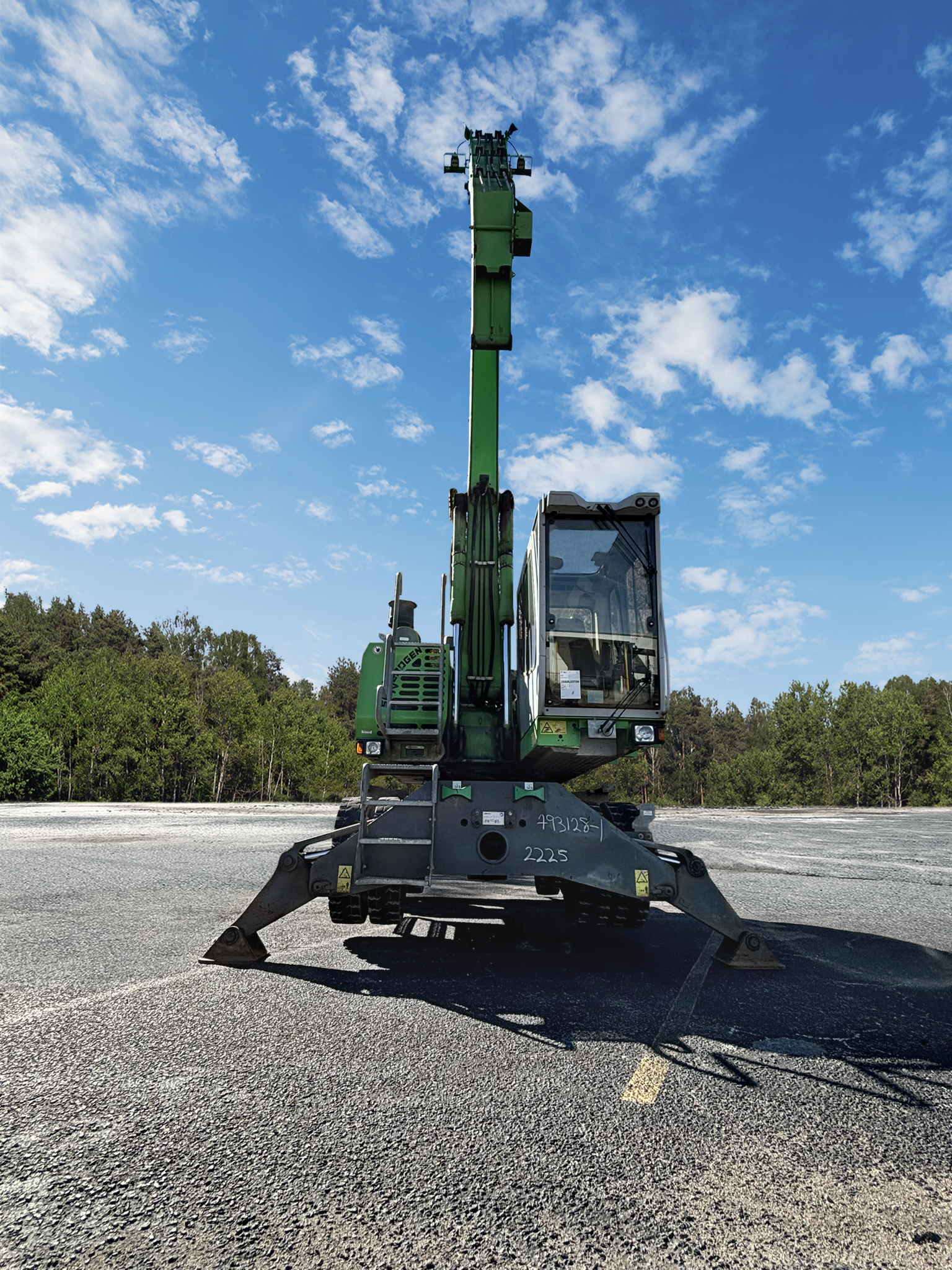

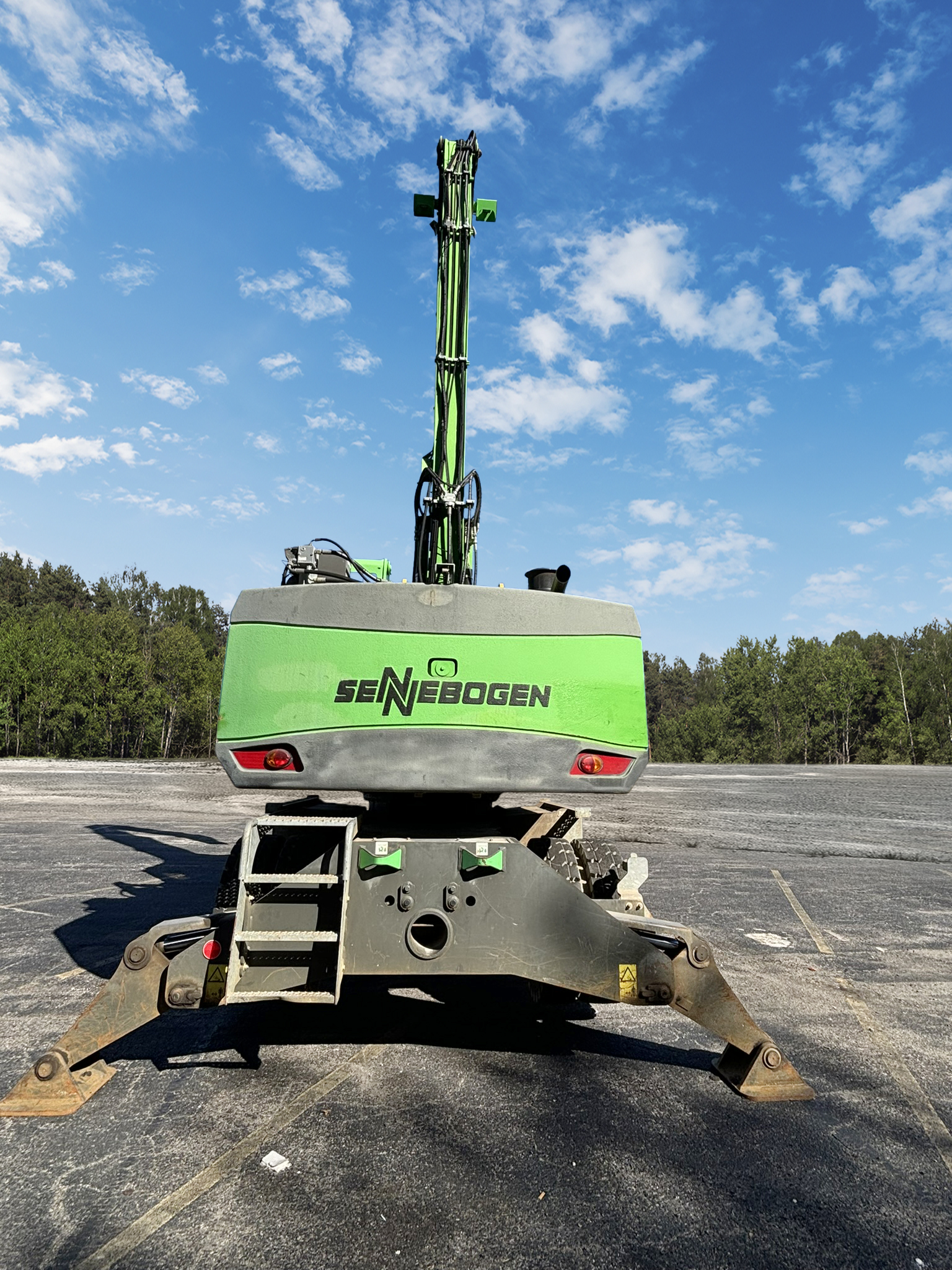

Wheeled undercarriage MP21E with 4-point stabilizers Attention: Position individual control of the stabilizers is required.

Under carriage protection

Solid rubber tires, 10.00-20 (8 units) with intermediate ring
