12-Month / 2,000 Hour Warranty available, contact us for details.

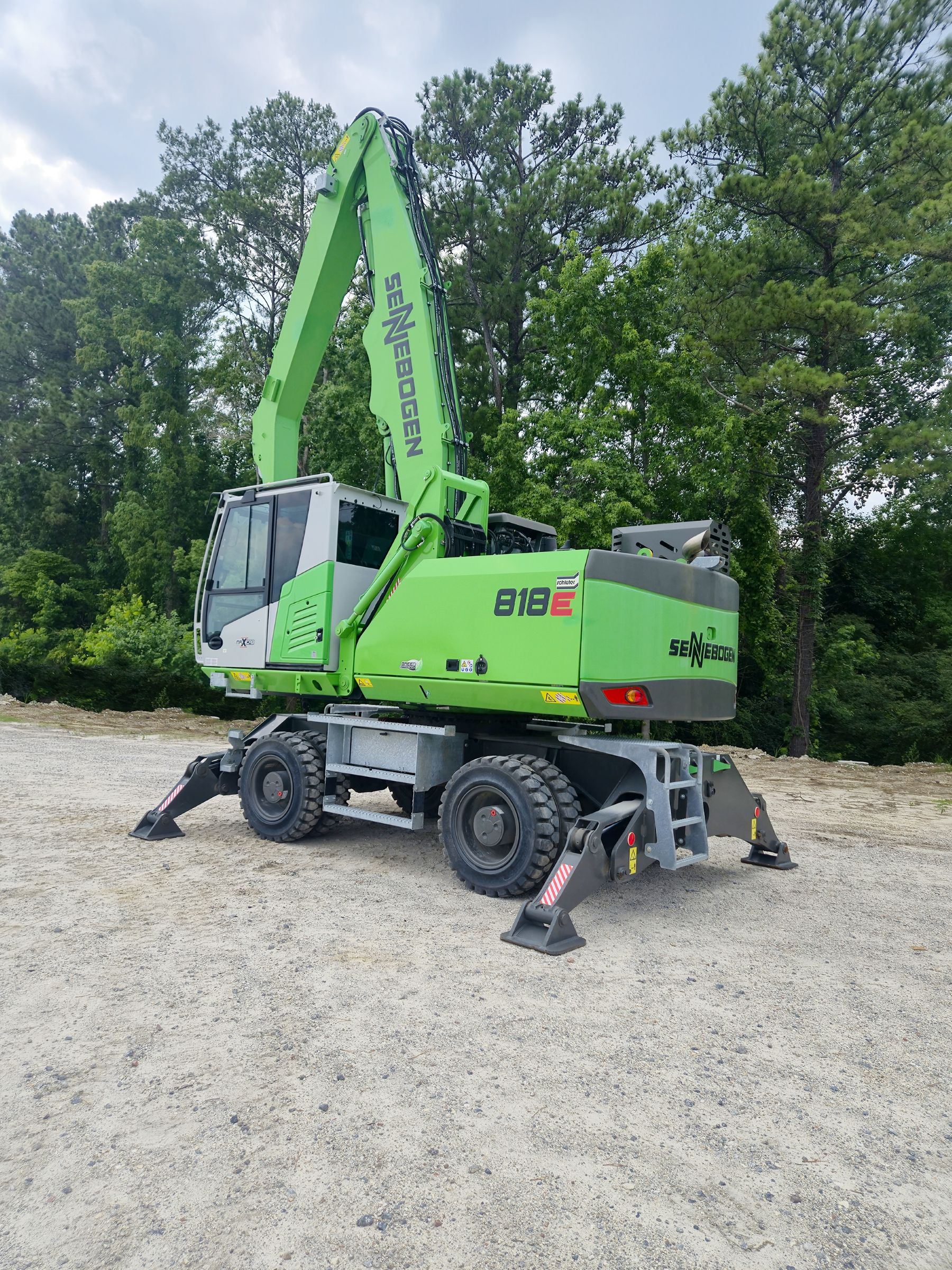

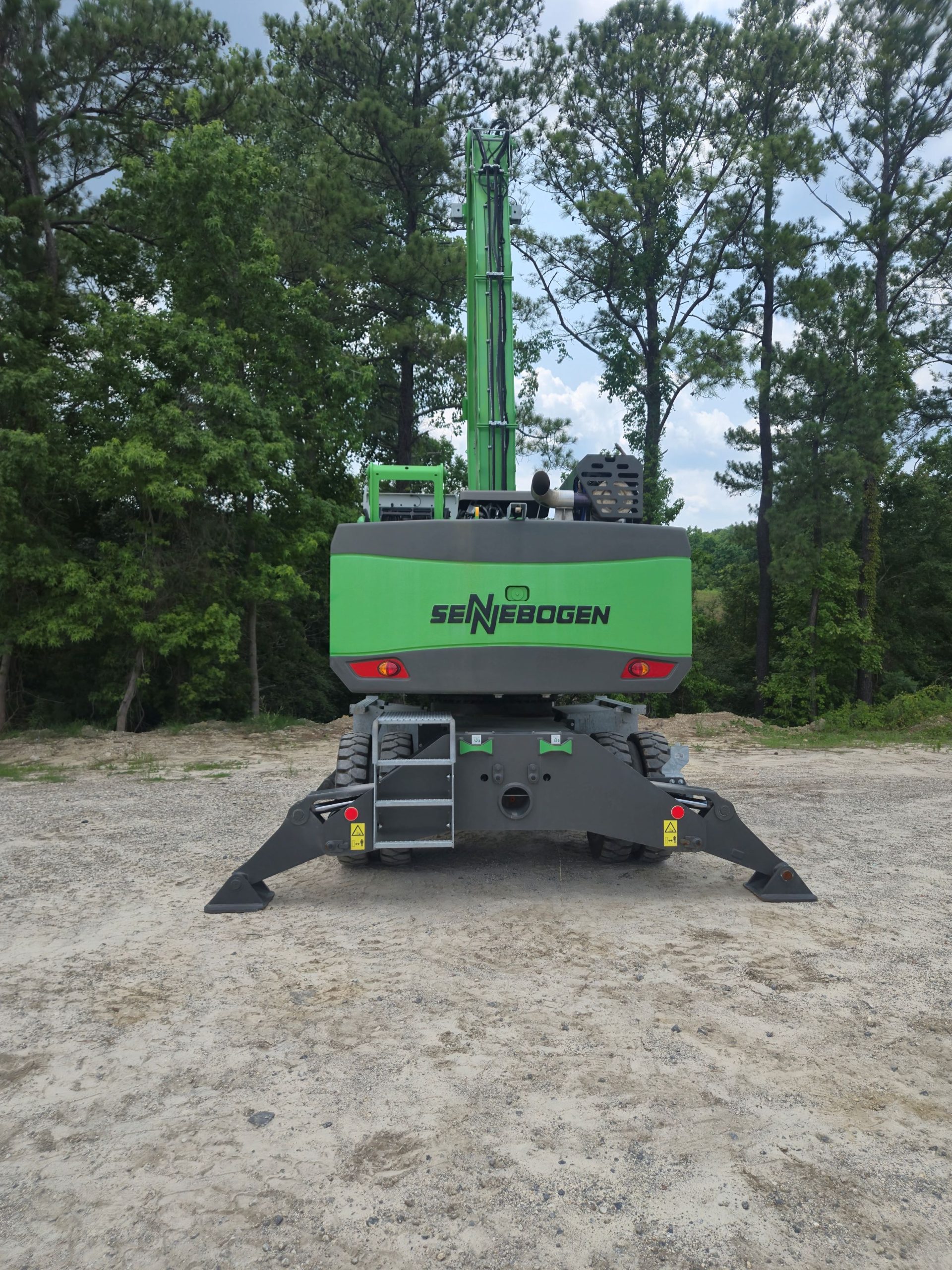

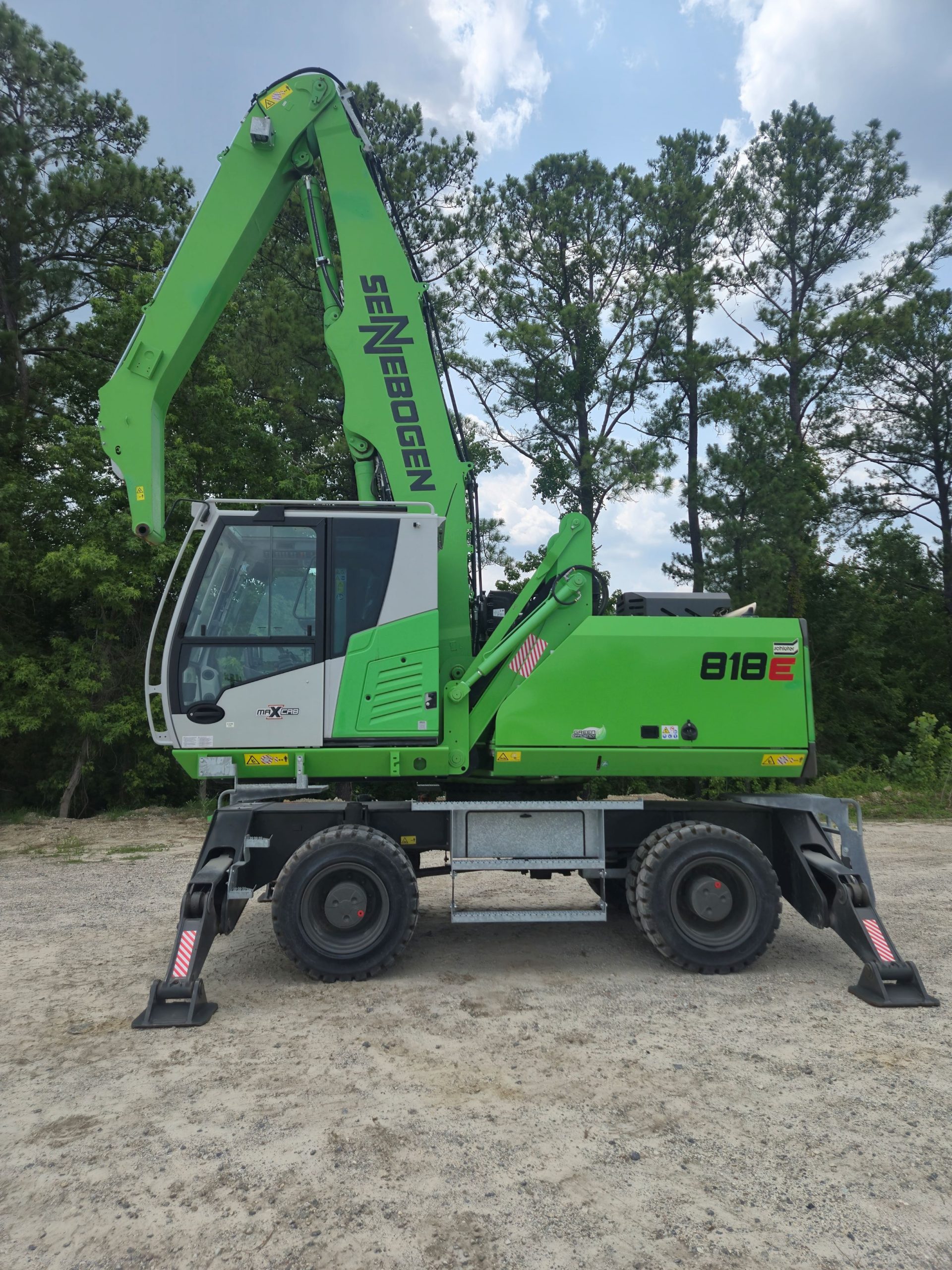

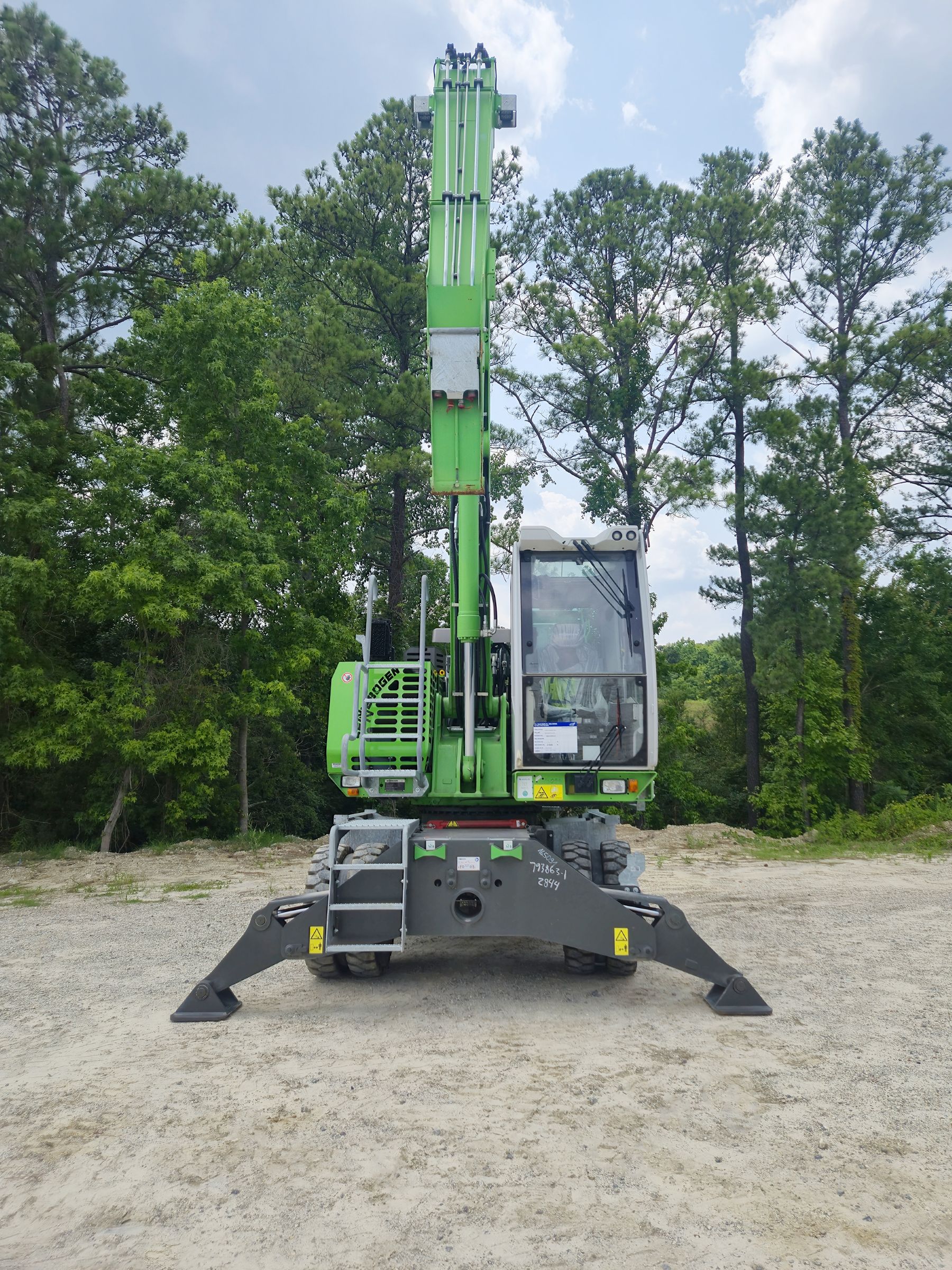

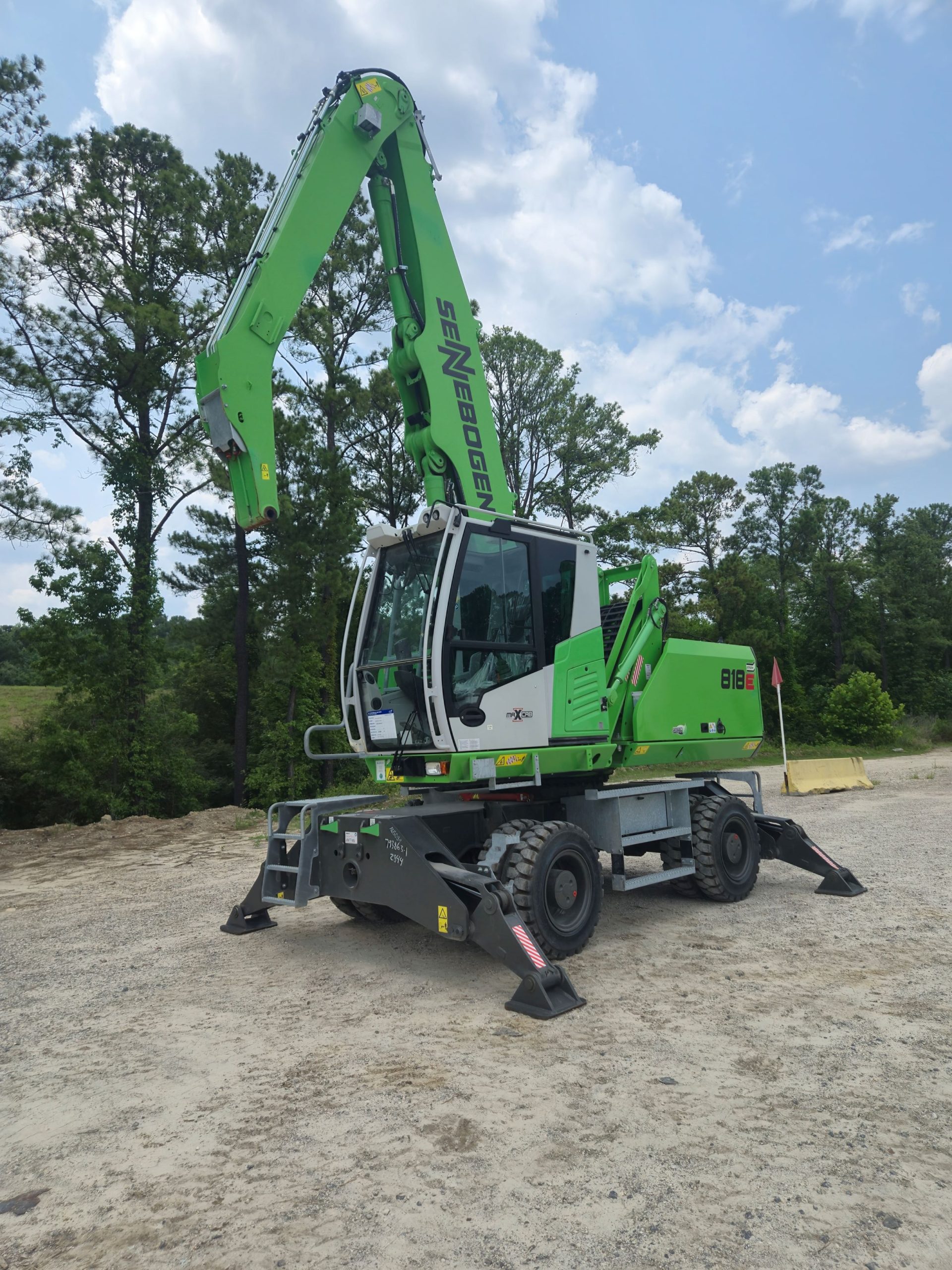

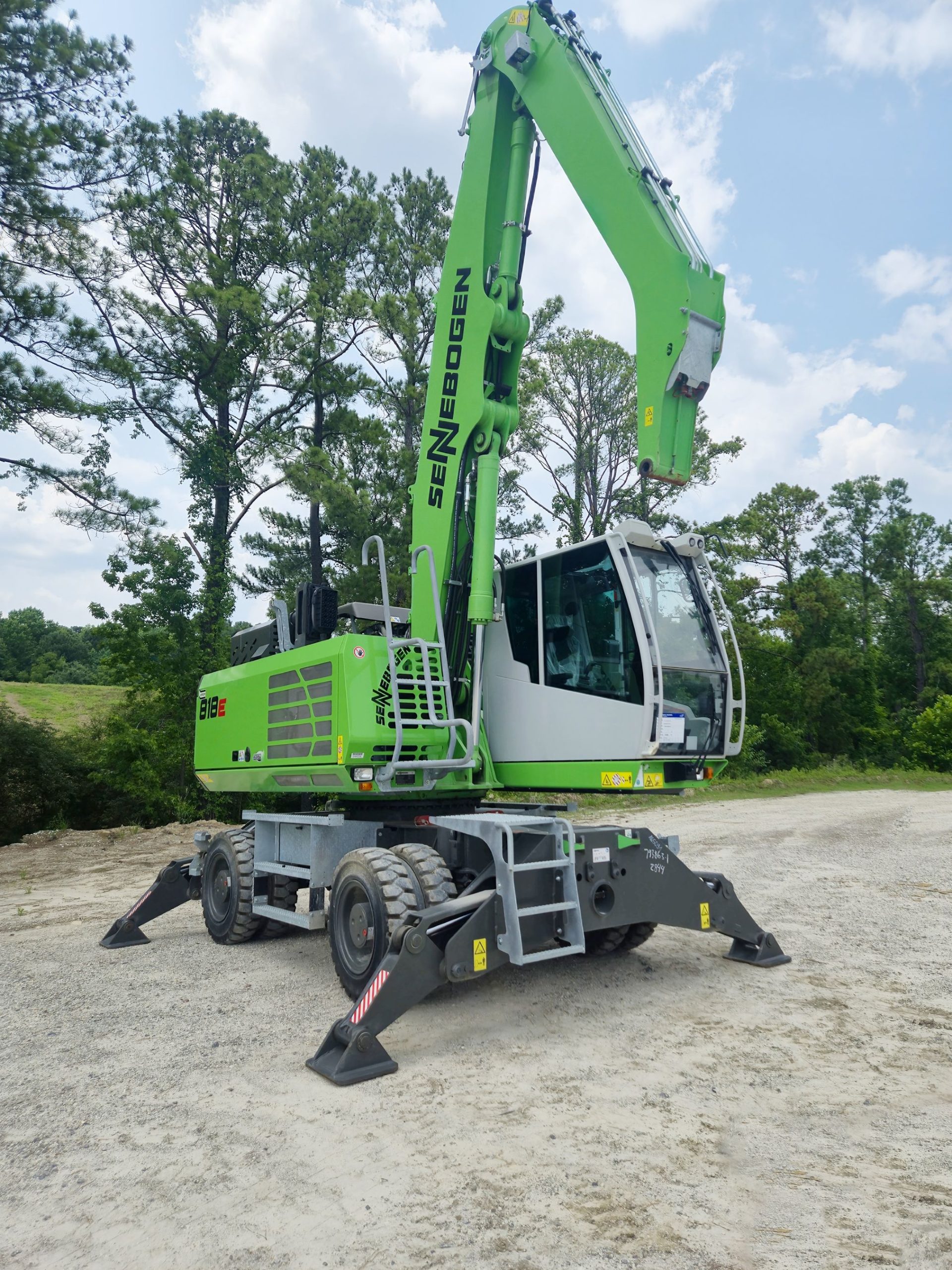

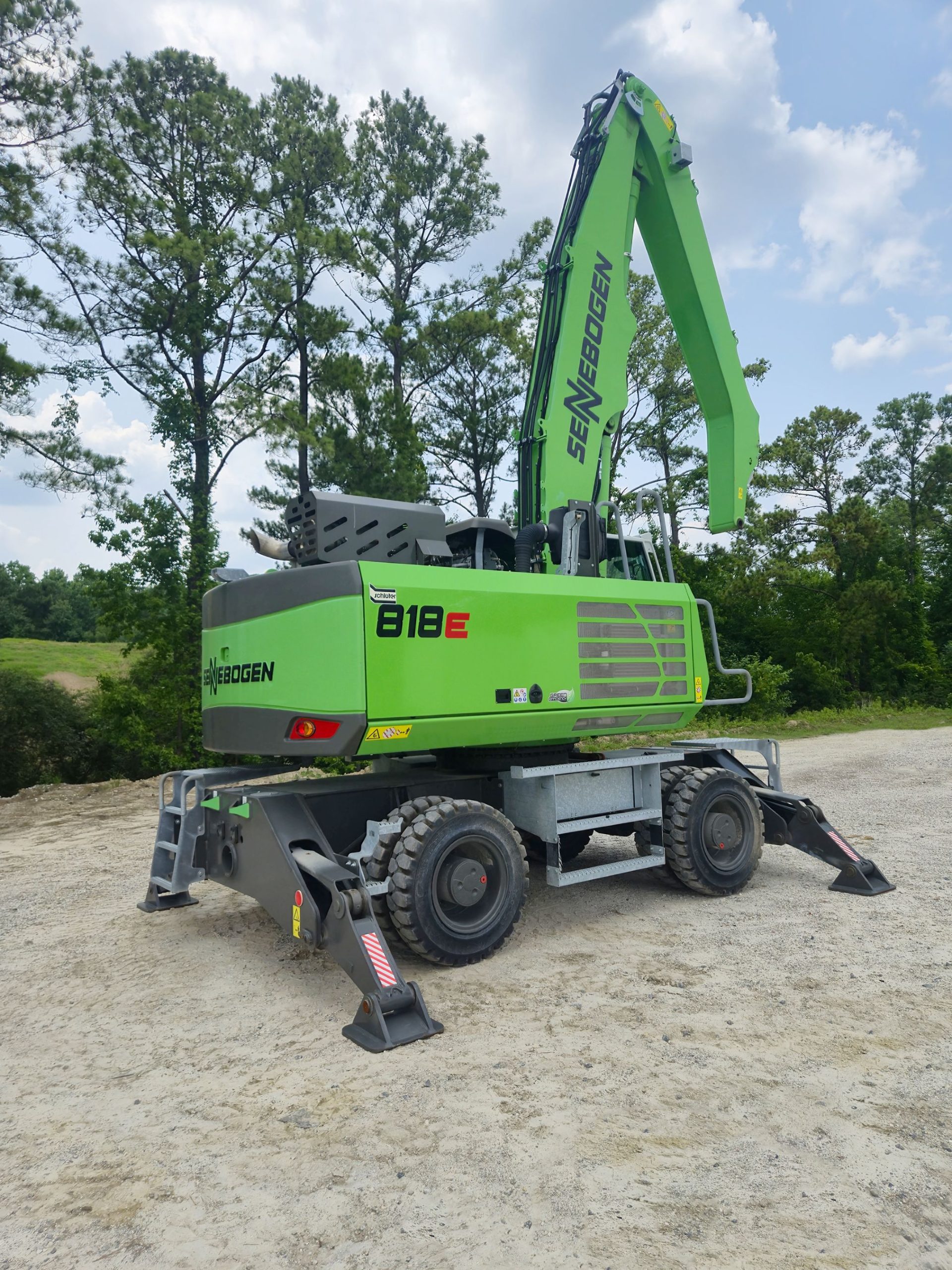

This used 818M wheeled material handler is configured w/ a K9 stick/boom combination, it has a reach of 30′ and weighs 48,000 lbs. It’s compact size allows operators to maneuver efficiently in tight spaces to navigate efficiently around your yar

When you purchase a used material handler from Sennebogen North America you are fully supported by the Factory with $55 million in parts inventory in North Carolina, 24/7 on-call Parts ordering, and even Free Training for your Service Techs at the Factory. You are also supported by the industries largest Dealer and Authorized Service Provider Network. You can check out all the Service options in your area HERE

The machine is located in South Carolina. Contact us for a machine and freight quote.

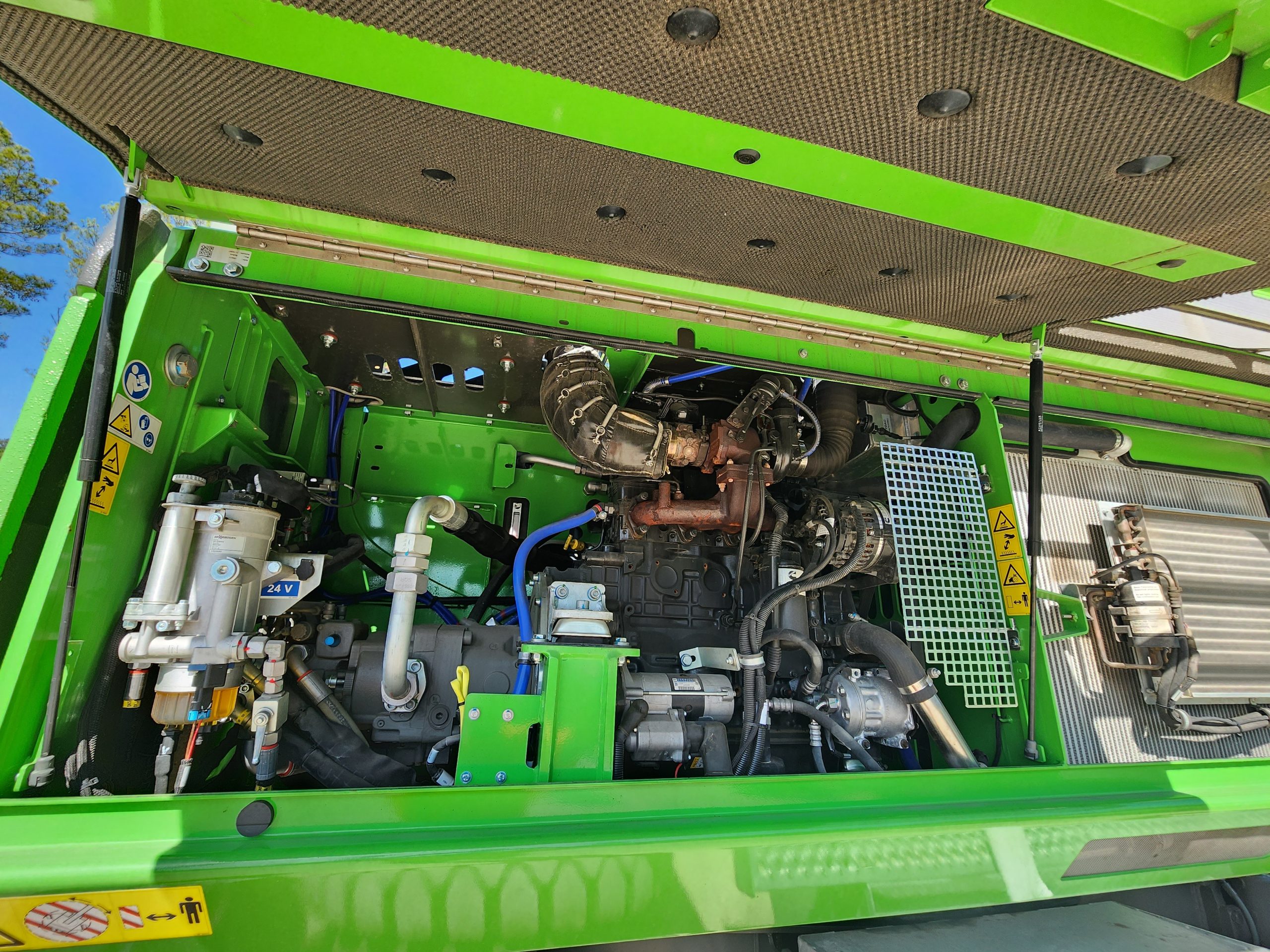

Engine
Cummins B4.5 (4 cylinder) with direct injection, water cooled, Tier 4 final
Engine output 154 HP (115 kW) @ 2,200 rpm
Turbo Intercooler & water cooler hydraulically driven, reversible
Automatic idle-stop control and eco-mode for diesel engine

Hydraulic System
Computer free, state-of-the-art load-sensing with flow-on-demand control
Hydraulic cooler hydraulically driven, reversible
Hydro-Clean filtration system with water absorption and contamination indicator

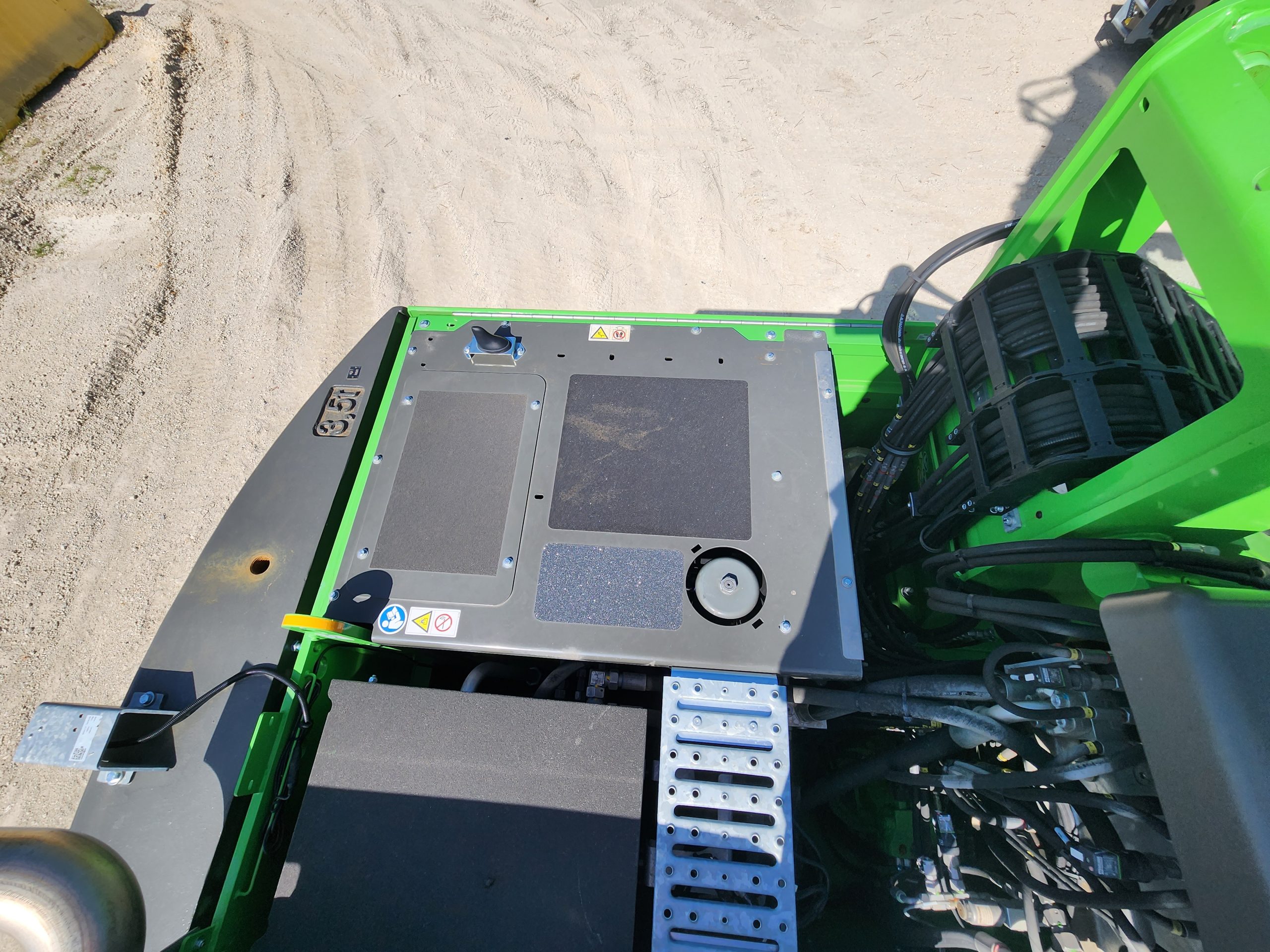

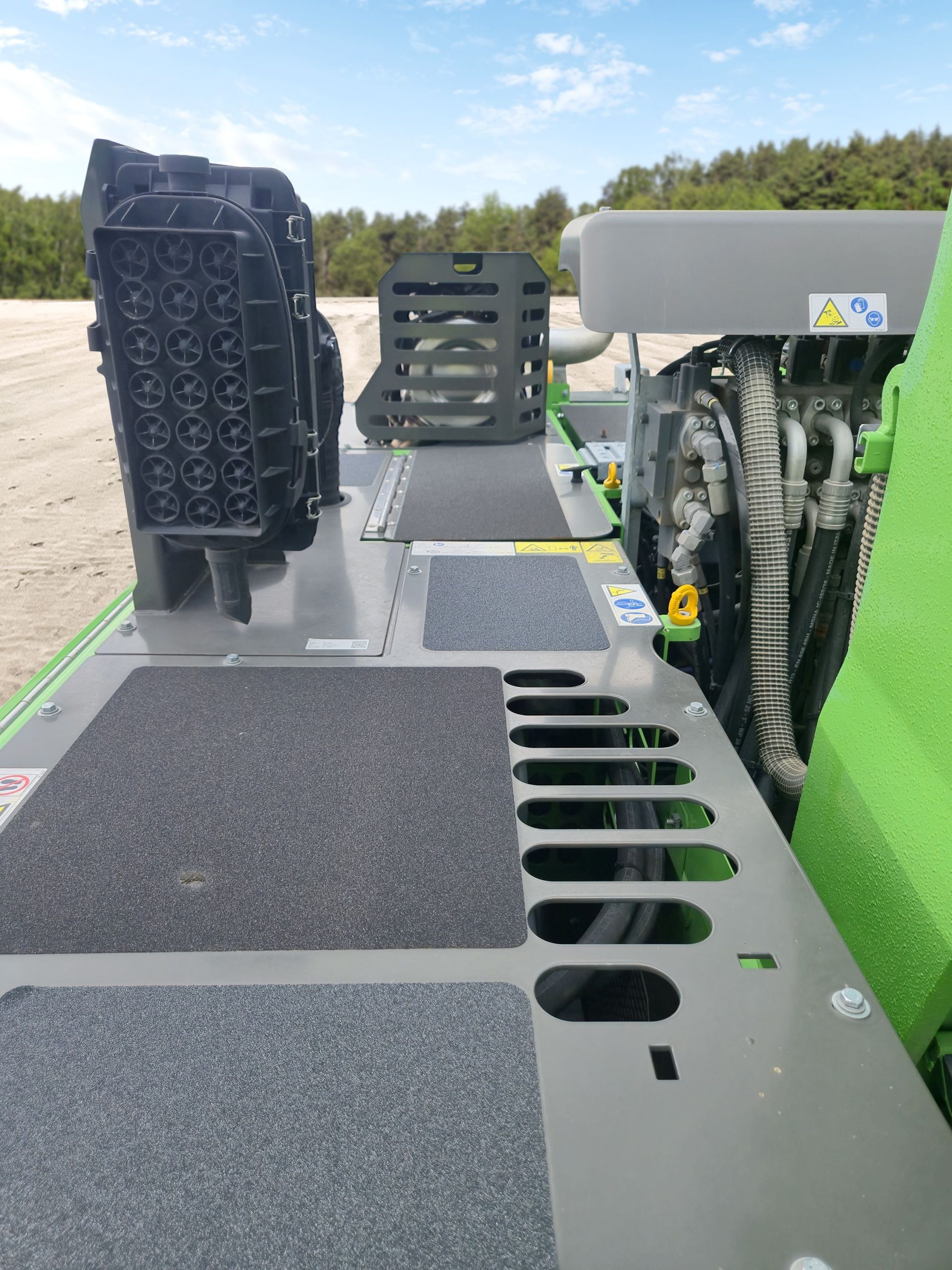

Upper Carriage & Swing System
Torsion free, precisely machined upper carriage frame
High torque axial piston swing motor
Large dimensioned, internal teeth swing bearing

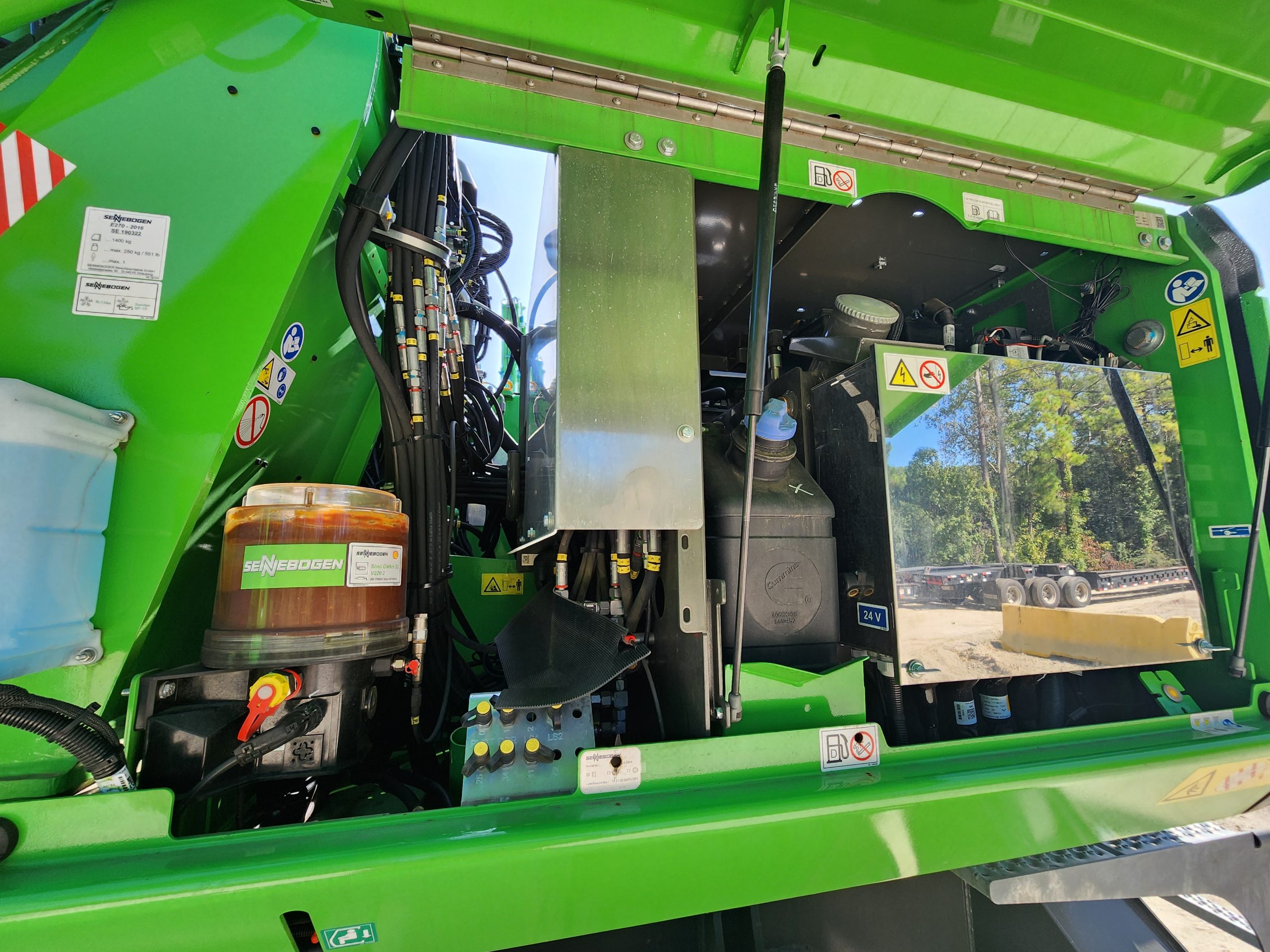

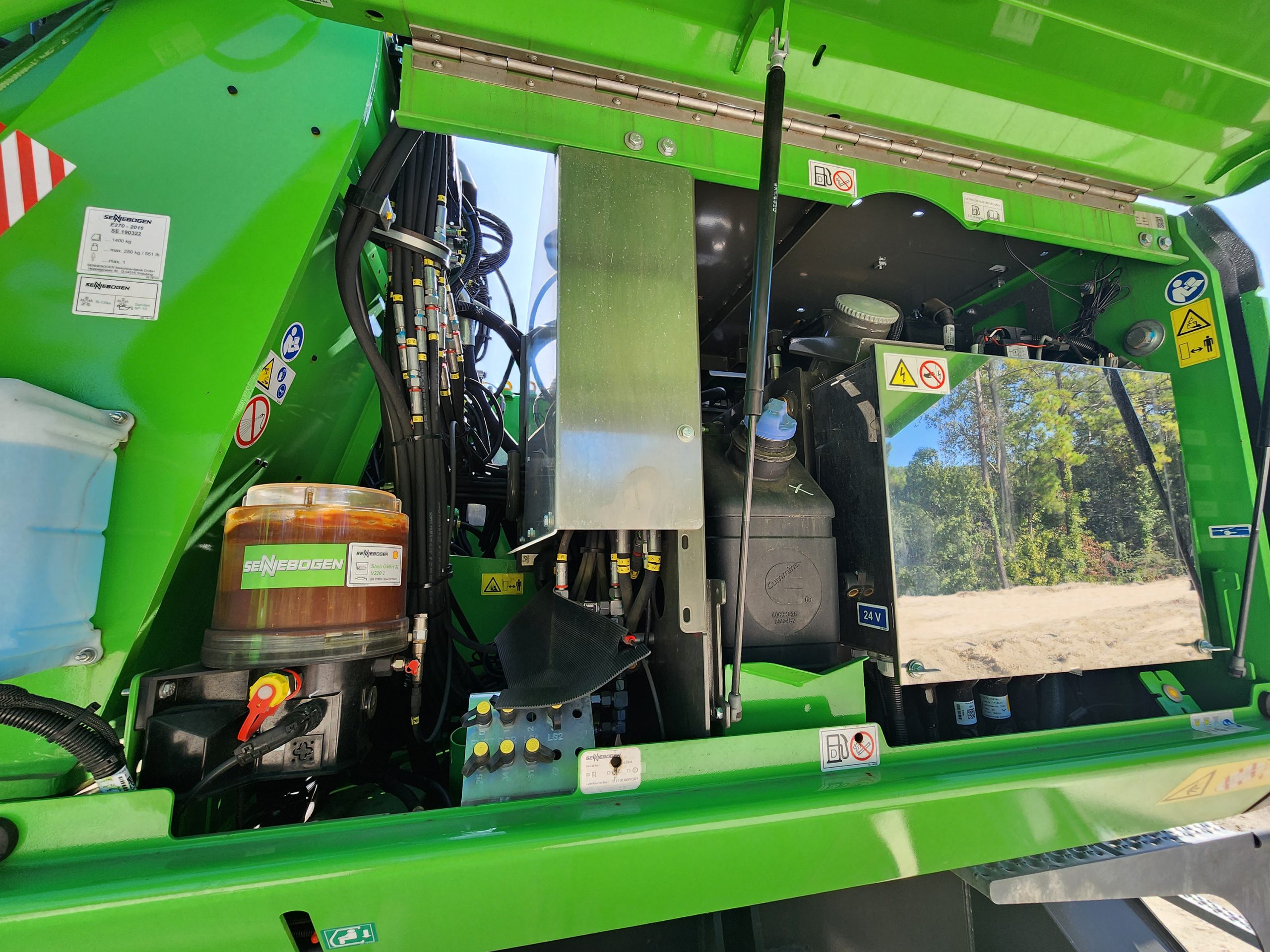

Automatic central lubrication system for upper carriage and swing bearing
Handrail on top of upper carriage (installed prior to shipping)
Fire extinguisher set (1x cab, 1x storage compartment) – brackets installed, extinguisher shipped separate to dealer
Light Package consisting of: 2x halogen in cab roof, 2x in frame

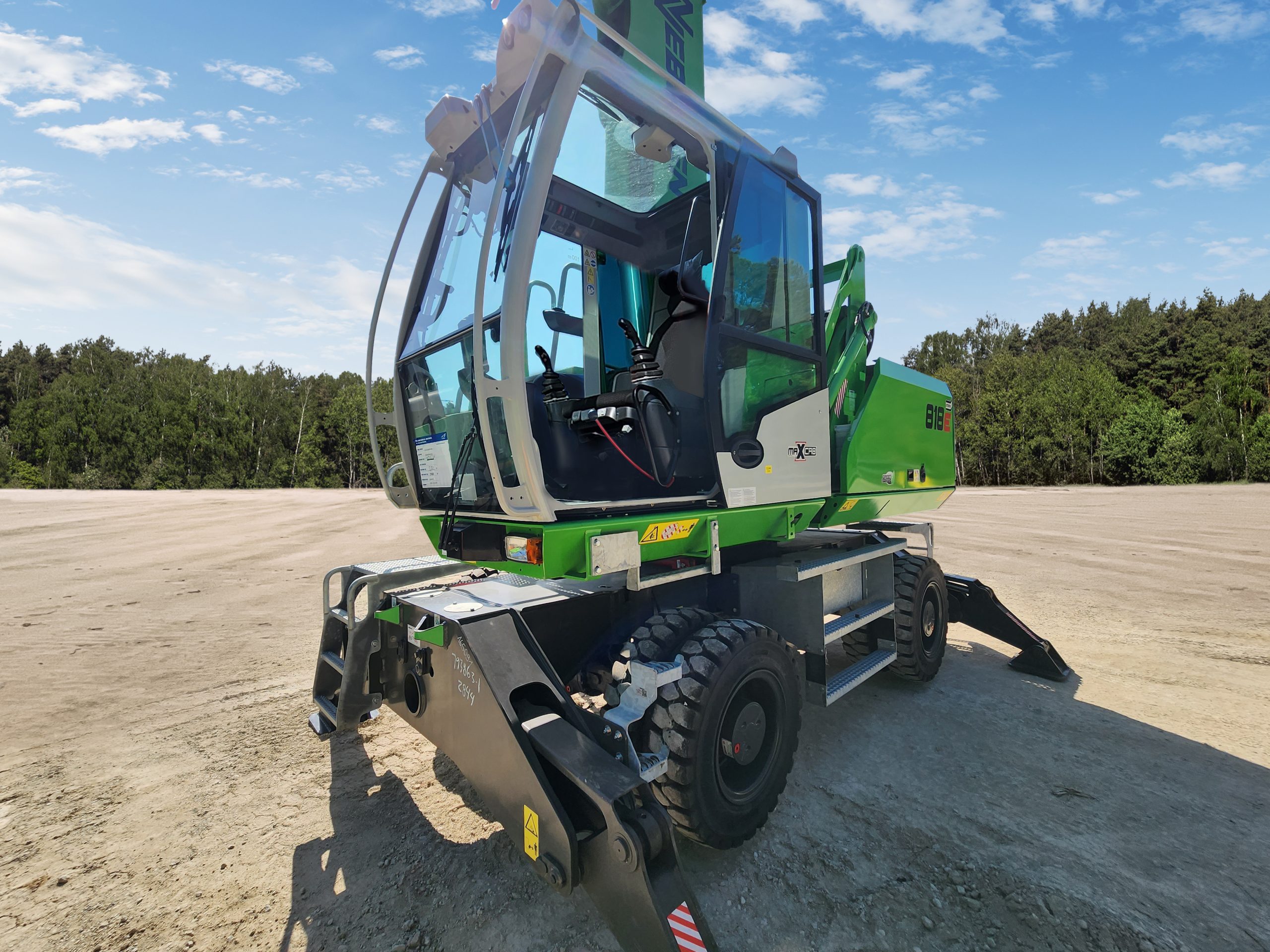

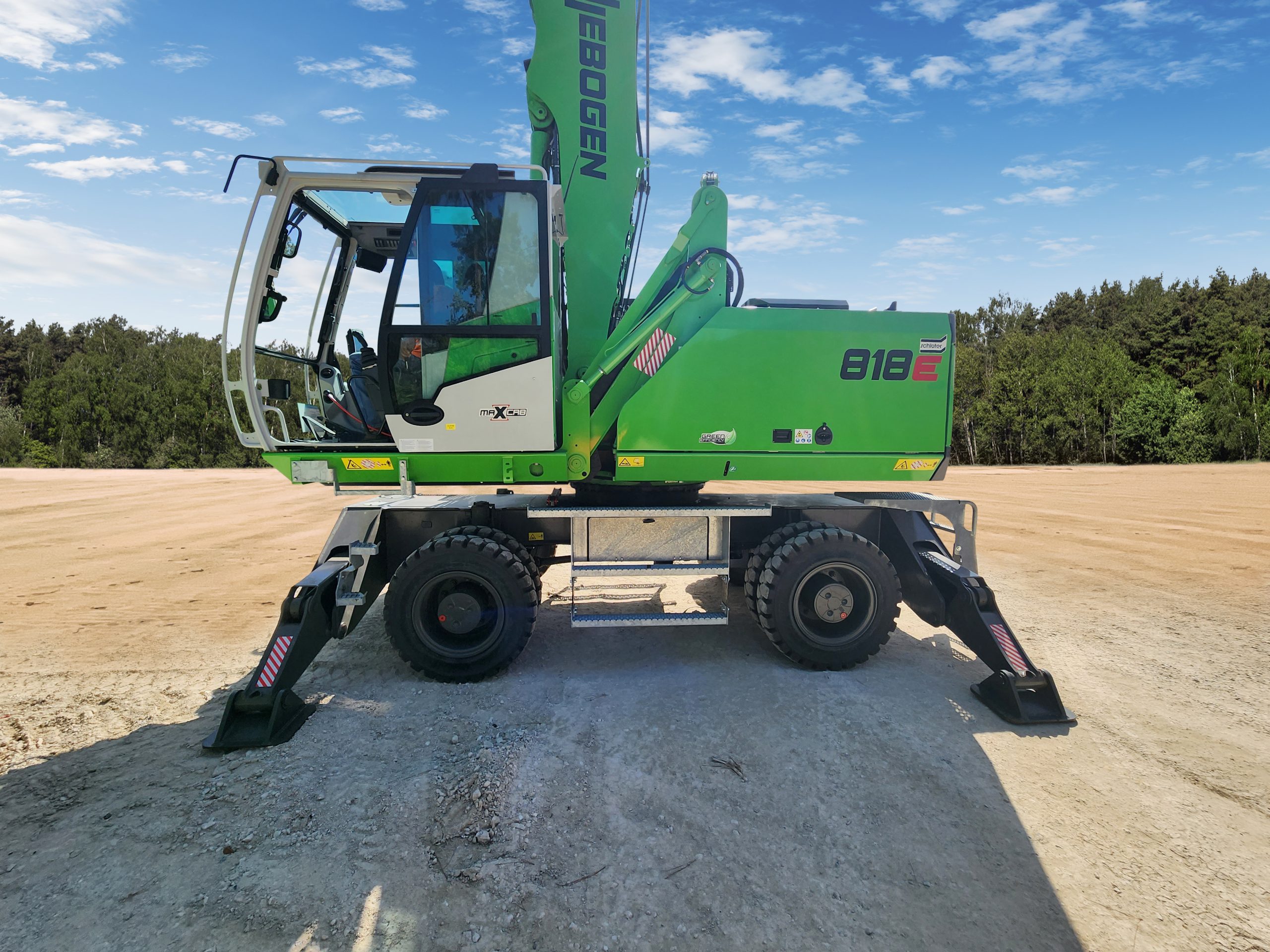

Operator’s Cab “maXCab”
Hydraulic elevating cab system “E270″ (elevation: 8’8”)
Catwalk with handrail beside cab (installed on site)
maXCab with sliding door and door window as sliding window, sunshade, floor mat
Skylight protection guard (installed prior to shipping)
Windshield protection guard (installed prior to shipping)
Automatic climate control with AC, heater and defroster
AM/FM radio with MP3/Bluetooth

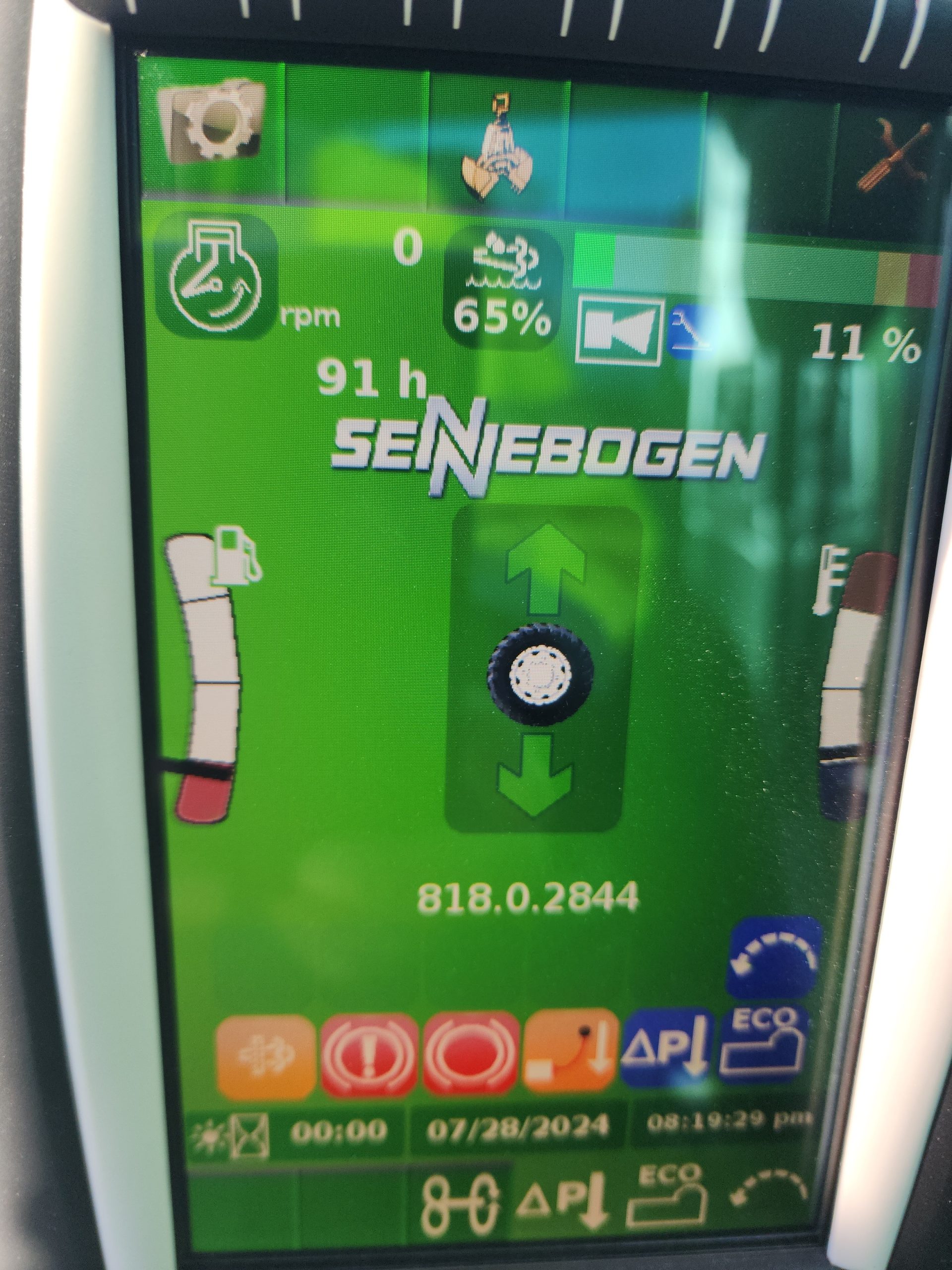

SENCON visual and acoustic diagnostic system for monitoring all essential machine functions

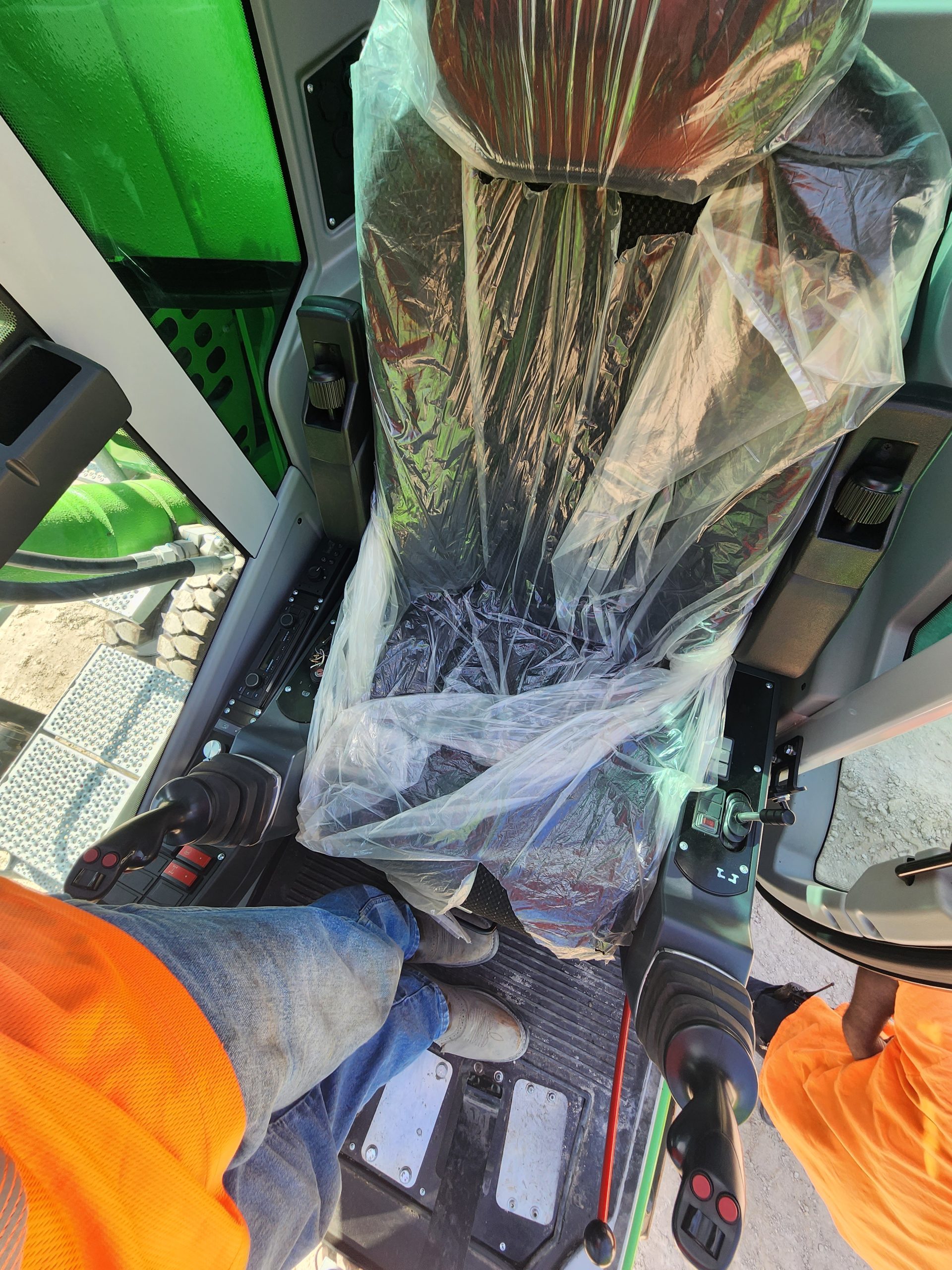

Air suspended and adjustable operator’s seat incl. armrests, seat heater, headrest, seat belt
Camera system with display in cab
LED light package on cab, rear
Strobe light mounted on cab

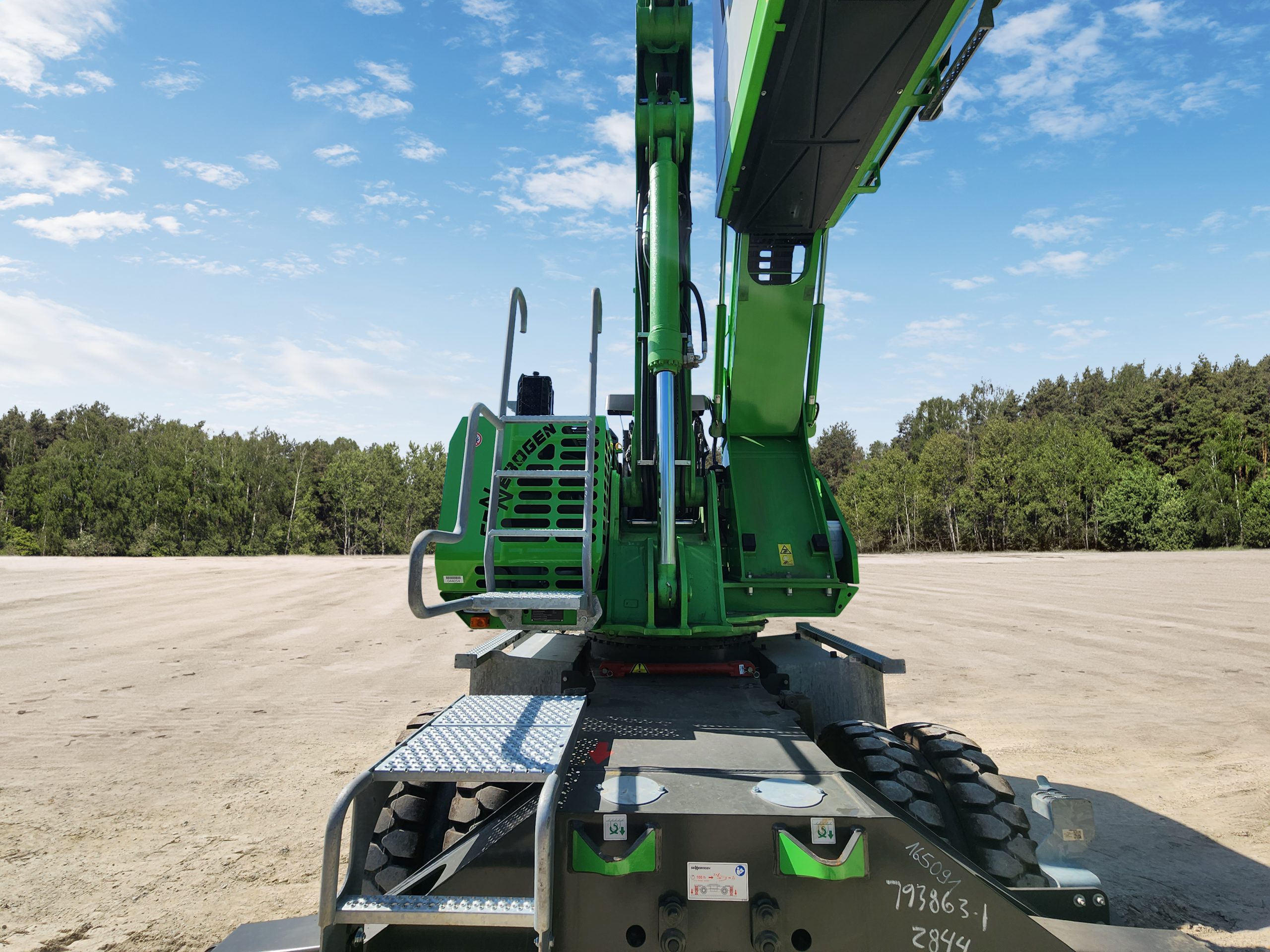

Working Equipment

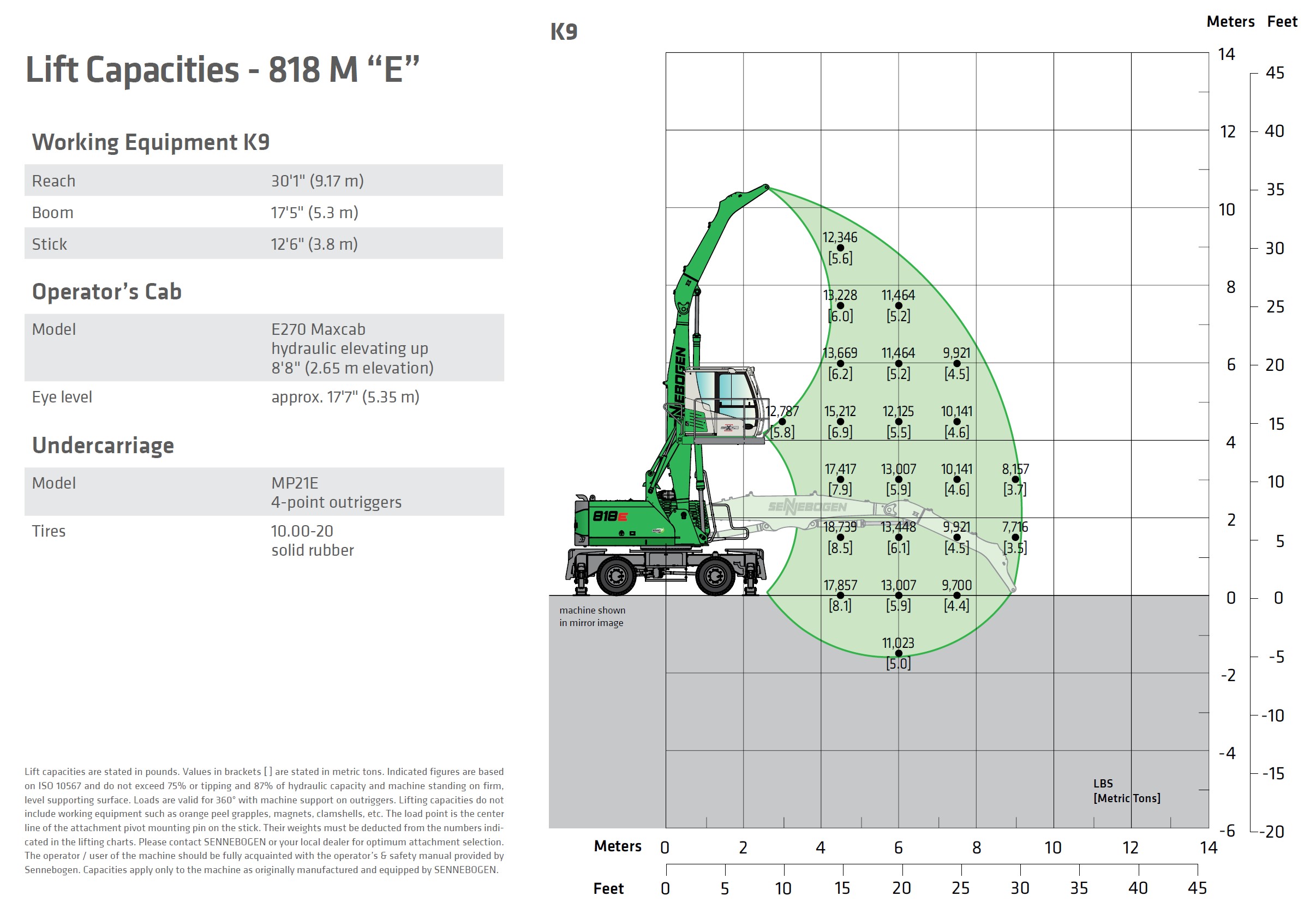

K9 – reach 29.7’/ purpose-built material handling working equipment
Straight material handling boom, with end stop monitoring system and limit switches
Straight material handling stick, with end stop monitoring system and limit switches
Boom & Stick cylinders equipped with safety check valves and end position dumping
Additional Light Package consisting of: 1x at boom, 2x at stick
Attachment open/close and rotate hydraulic circuits and lines installed up to the end of the stick (ball valves)

Under Carriage

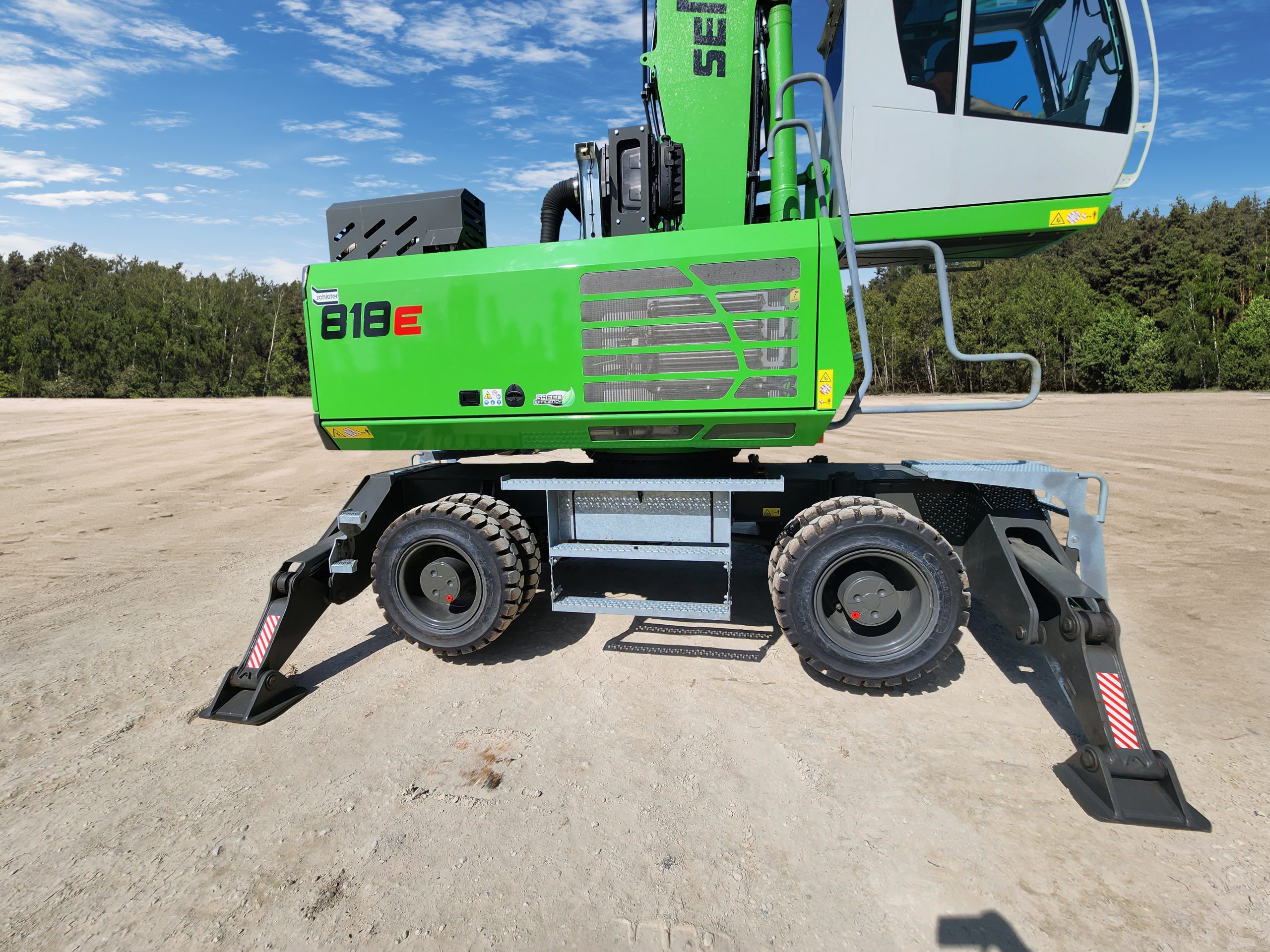

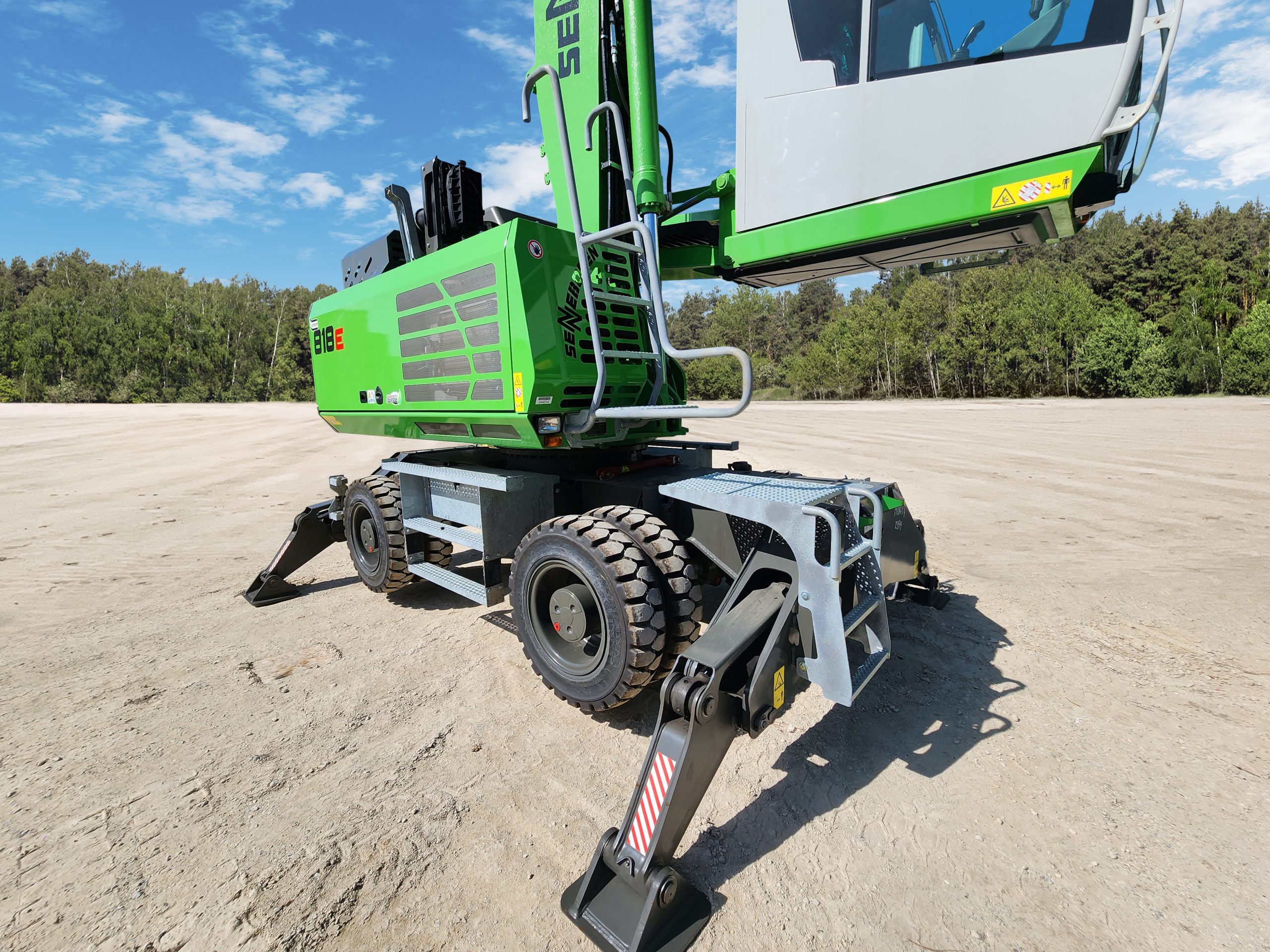

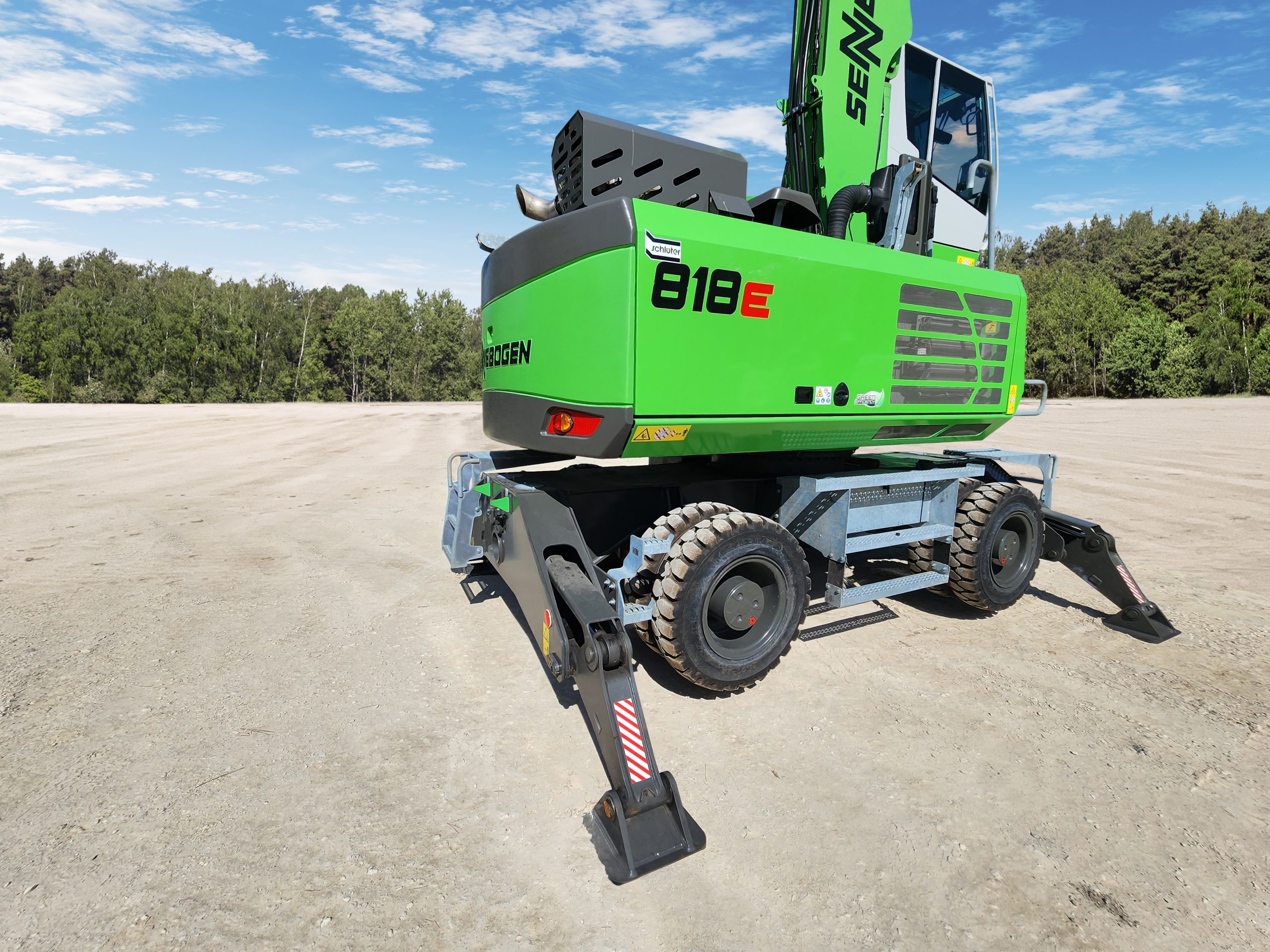

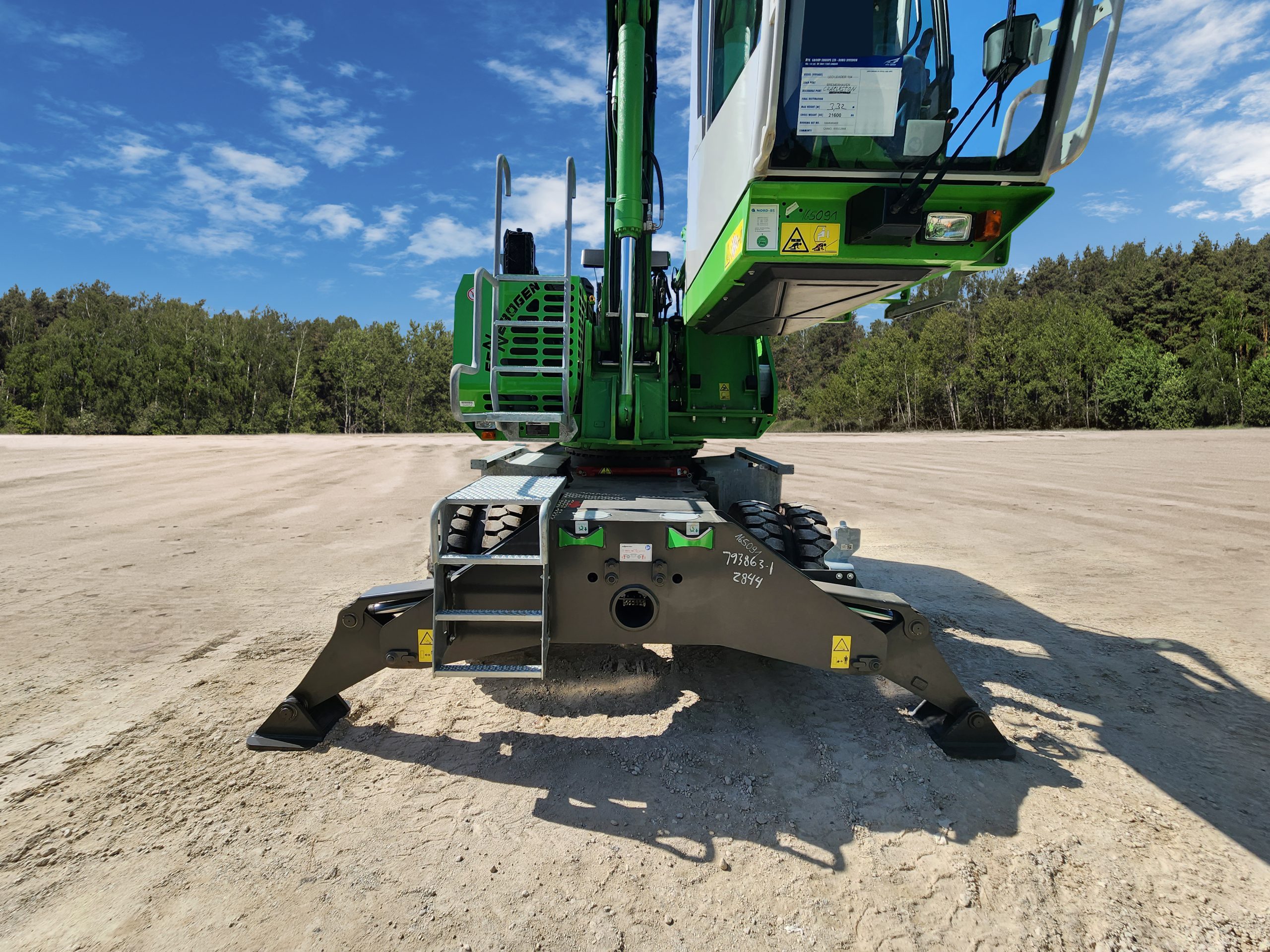

Rubber tired under carriage MP21E with 4-point outriggers
Automatic unlock of oscillating axle if upper carriage in longitudinal direction to under carriage
Solid rubber tires 10.00-20 (8 units) inclusive intermediate protection ring
Steering via joy stick, front wheel steering
All wheel drive via variable hydraulic motor with 2-stage shift transmission
Protection guard for under carriage to protect transmission, hydraulic motor and drive shafts (installed prior to shipping)
2-circuit servo brake system with additional safety brake
Centralized lubrication points (front & rear) for lubrication of under carriage components
Audible travel alarm while driving machine (forward & backward)
Tool box w/ basic tools, stick pin, grease gun, wheel chock, green & gray touch up paint located in under carriage tool box

Magnet System
10 kW magnet system, hydraulic driven (installed prior to shipping)
Plug in front of stick to hook up magnet, magnet connection cable in under carriage tool box
