SENNEBOGEN
- Used
- 6734
- 48000 lbs
- K9 - 30'
- CUMMINS QSB 4.5 C130, 97kW/2200 rpm, Tier 4i
- 818.0.2242
- Eye level up to 17'7"
- Request a Price
DESCRIPTION

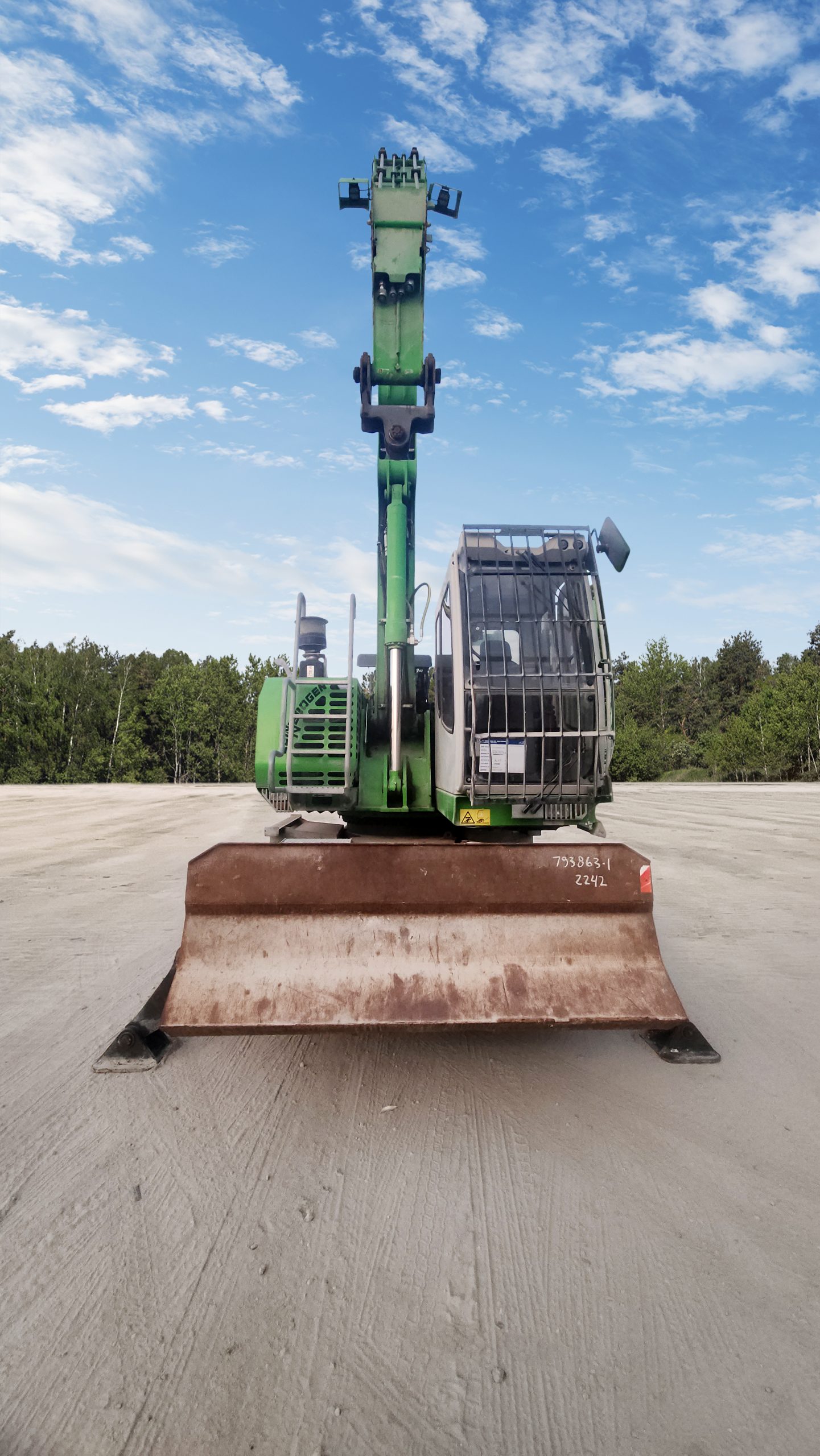

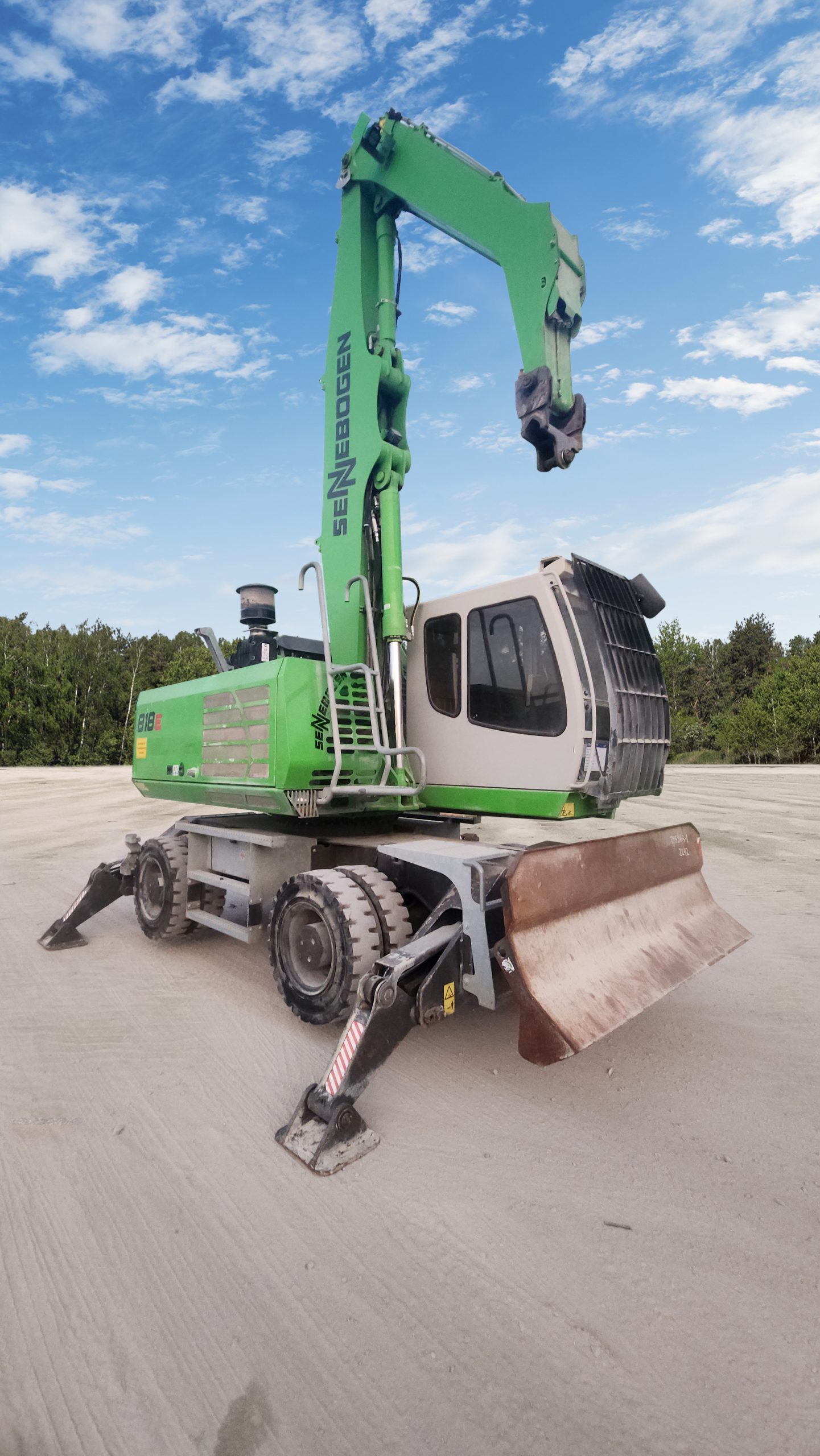

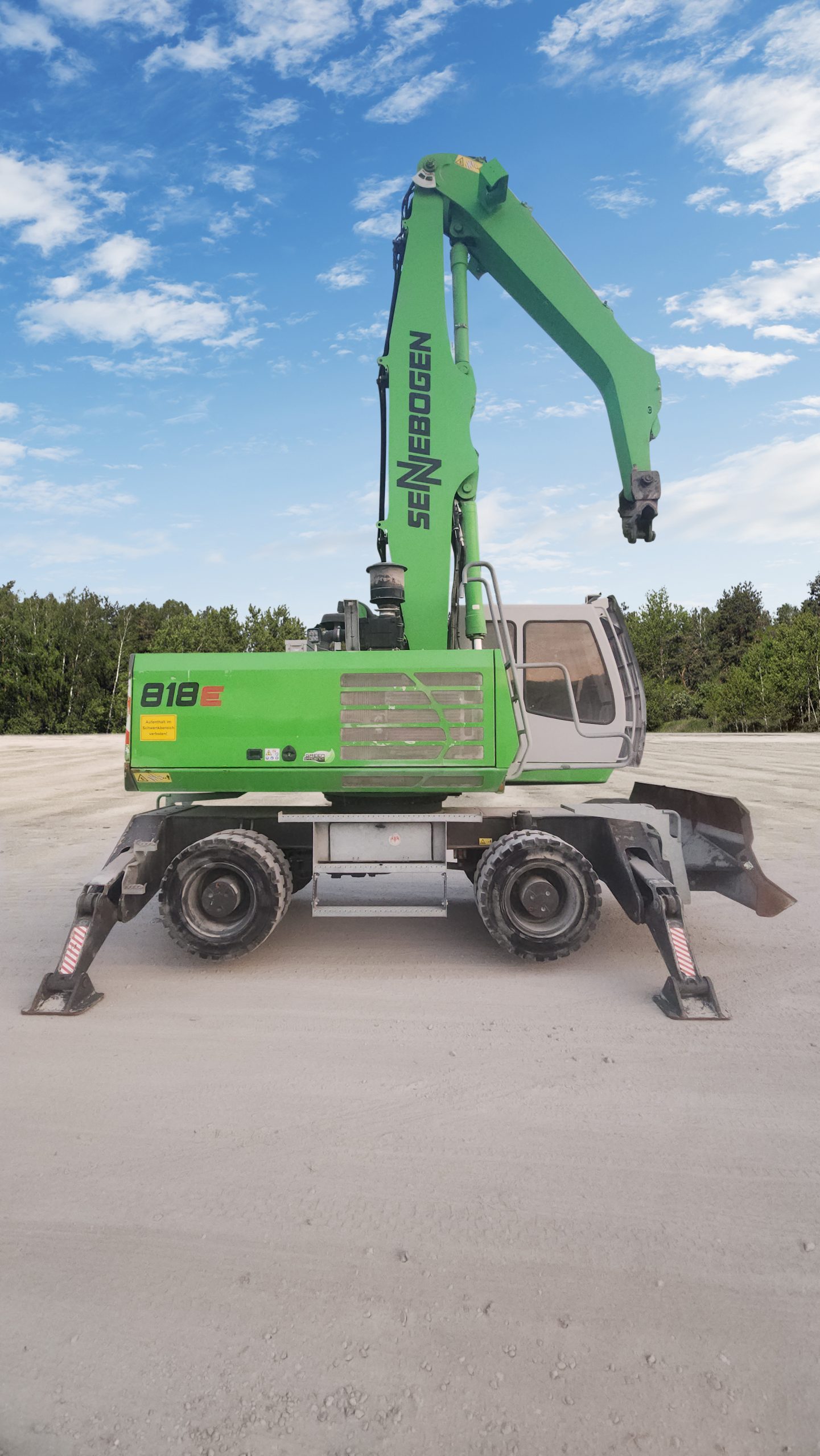

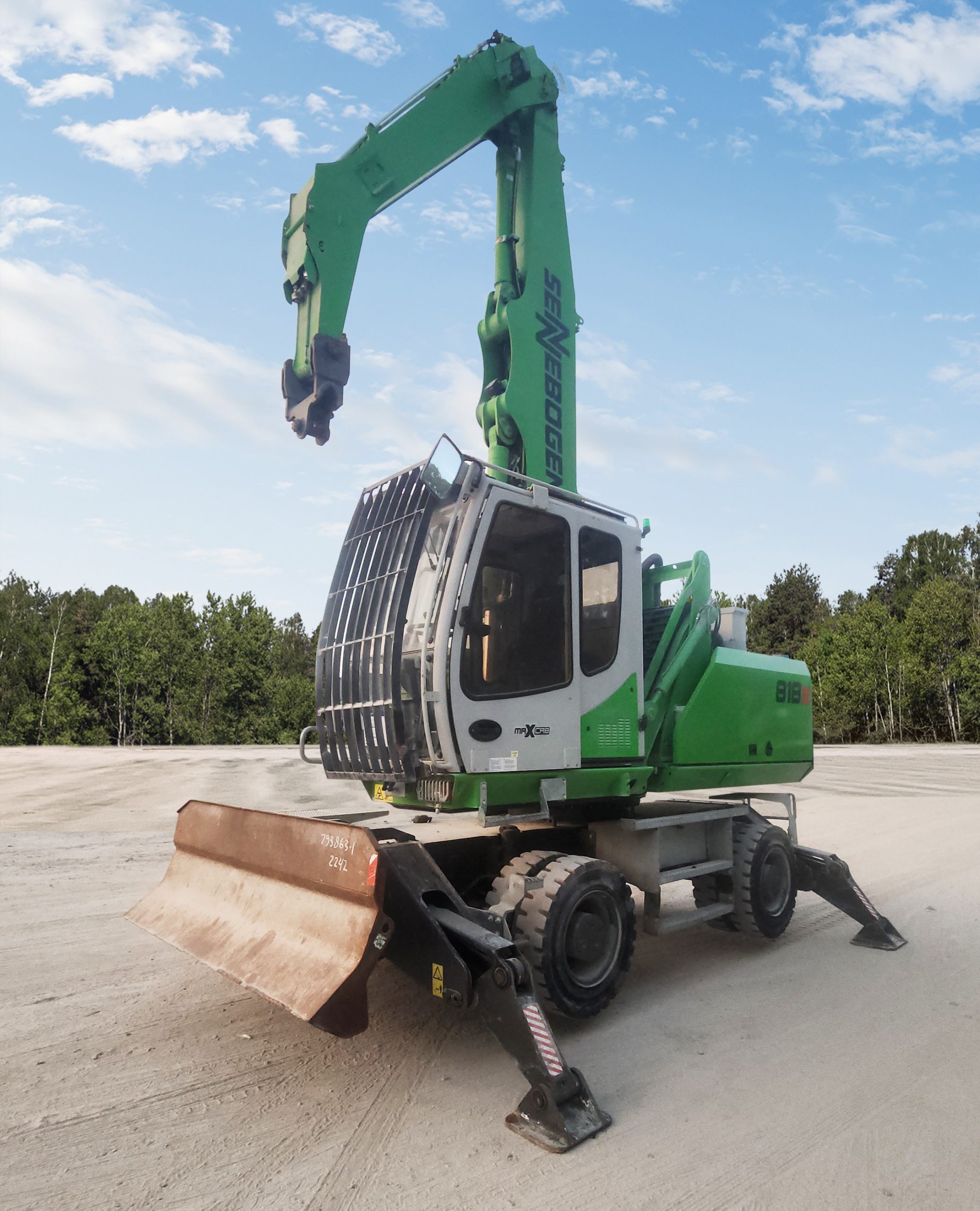

This used 818M wheeled material handler is configured w/ a K9 stick/boom combination, it has a reach of 30′ and weighs 48,000 lbs. It’s compact size allows operators to maneuver efficiently in tight spaces to navigate efficiently around your yard. It is also equipped w/ a blade to provide an easy way to clear the working area and push materials commonly encountered in waste applications.
When you purchase a used material handler from Sennebogen North America you are fully supported by the Factory with $55 million in parts inventory in North Carolina, 24/7 on-call Parts ordering, and even Free Training for your Service Techs at the Factory. You are also supported by the industry’s largest Dealer and Authorized Service Provider Network. You can check out all the Service options in your area HERE
The machine is located in South Carolina. Contact us for a machine and freight quote.
DETAILED SPECS
Engine

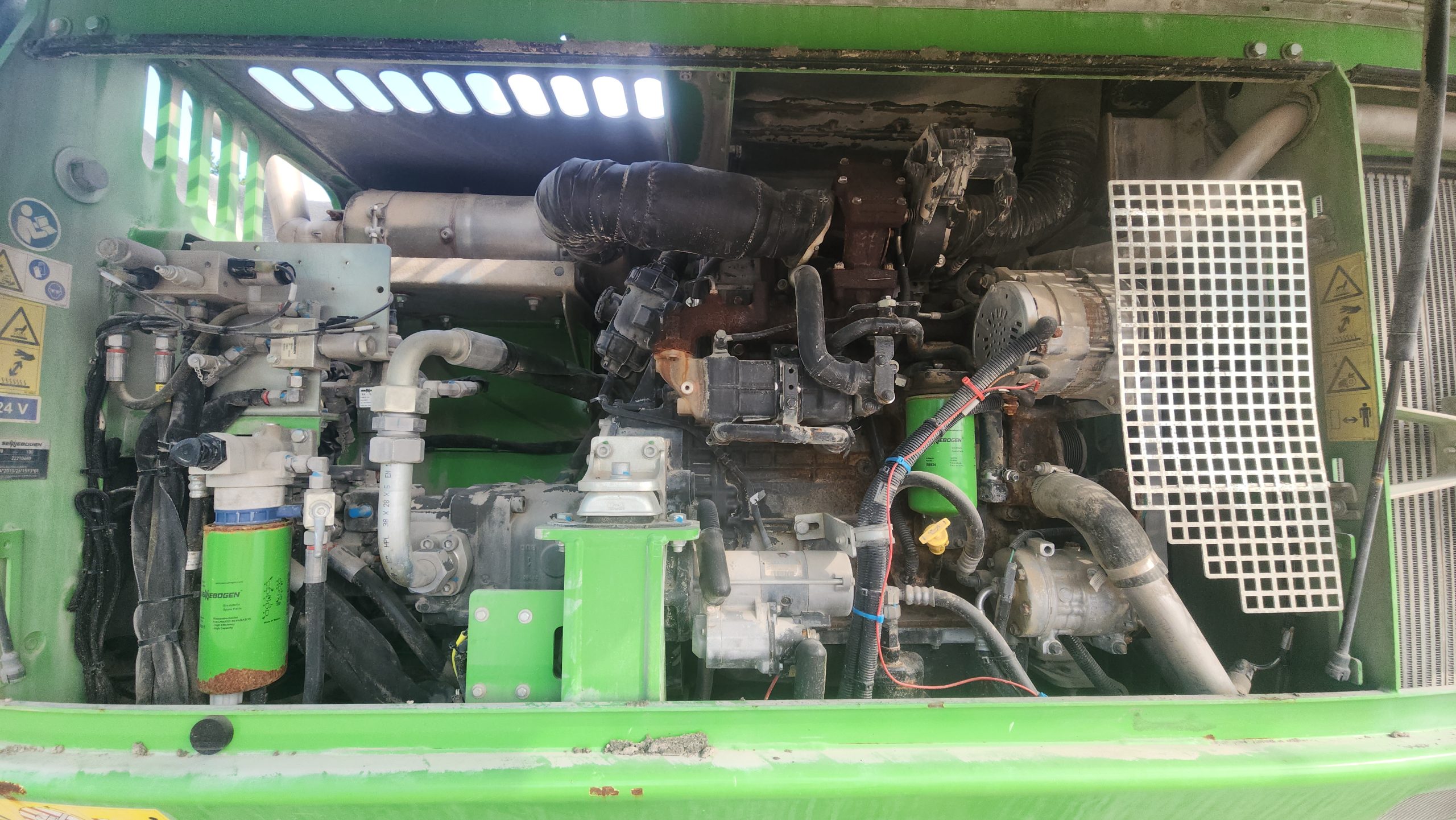

CUMMINS QSB 4.5 – C130, 97kW/2200 rpm, emissions according to US EPA Tier 4i/EU stage IIIb, water cooled including electrically heated water separator with fuel prefilter 24V. Eco-mode for diesel engine.
Automatic idle speed stop for diesel engine
Magnet System
10kW Baldor Hubble
Working Equipment

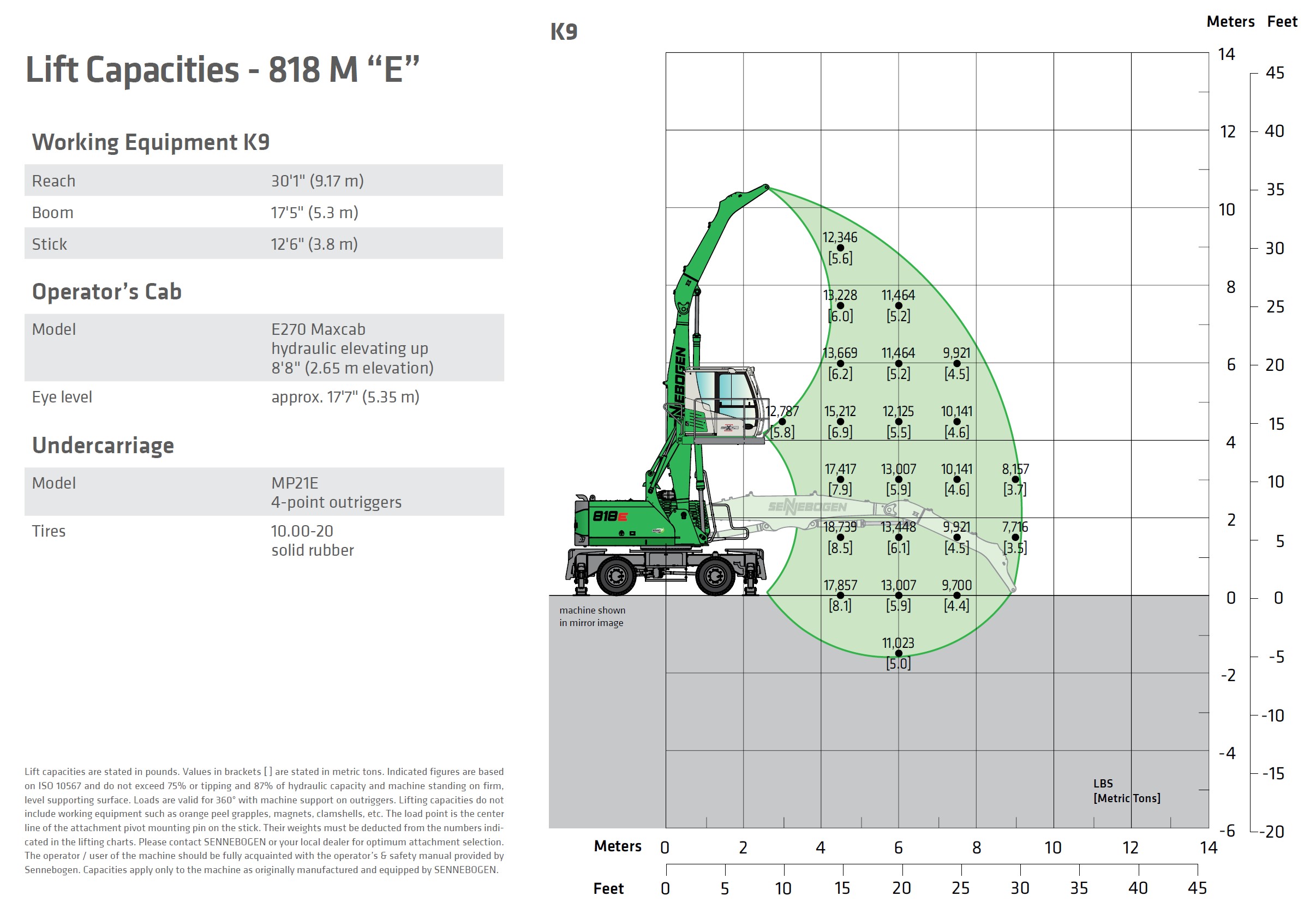

K9 – Reach: 29.7′ / Straight Boom 17.3′ / Curved Stick 12.4′. Boom and Stick cylinders featuring end position damping. End position shut off function, safety check valves for boom and stick cylinders
Quick change couplers (bolted type) with counter pieces for grab open/close and grab rotating.
Ball Valves at end of stick
Operator’s Cab
SENNEBOGEN MAXCAB – Cab elevation type E270 for SENNEBOGEN MAXCAB, infinitely adjustable up to 2.7m via hydraulics. Safety glazing polycarbonate for cab window left and right, door and rear windows. Radio w/ speakers. Cab with sliding door, tinted safety glass, front tilting window, skylight, wiper/washer system for front window, 2 halogen lights integrated
Air suspended operator´s seat with support for intervertebral disc, seat
heating, safety belt and headrest for driver´s seat.

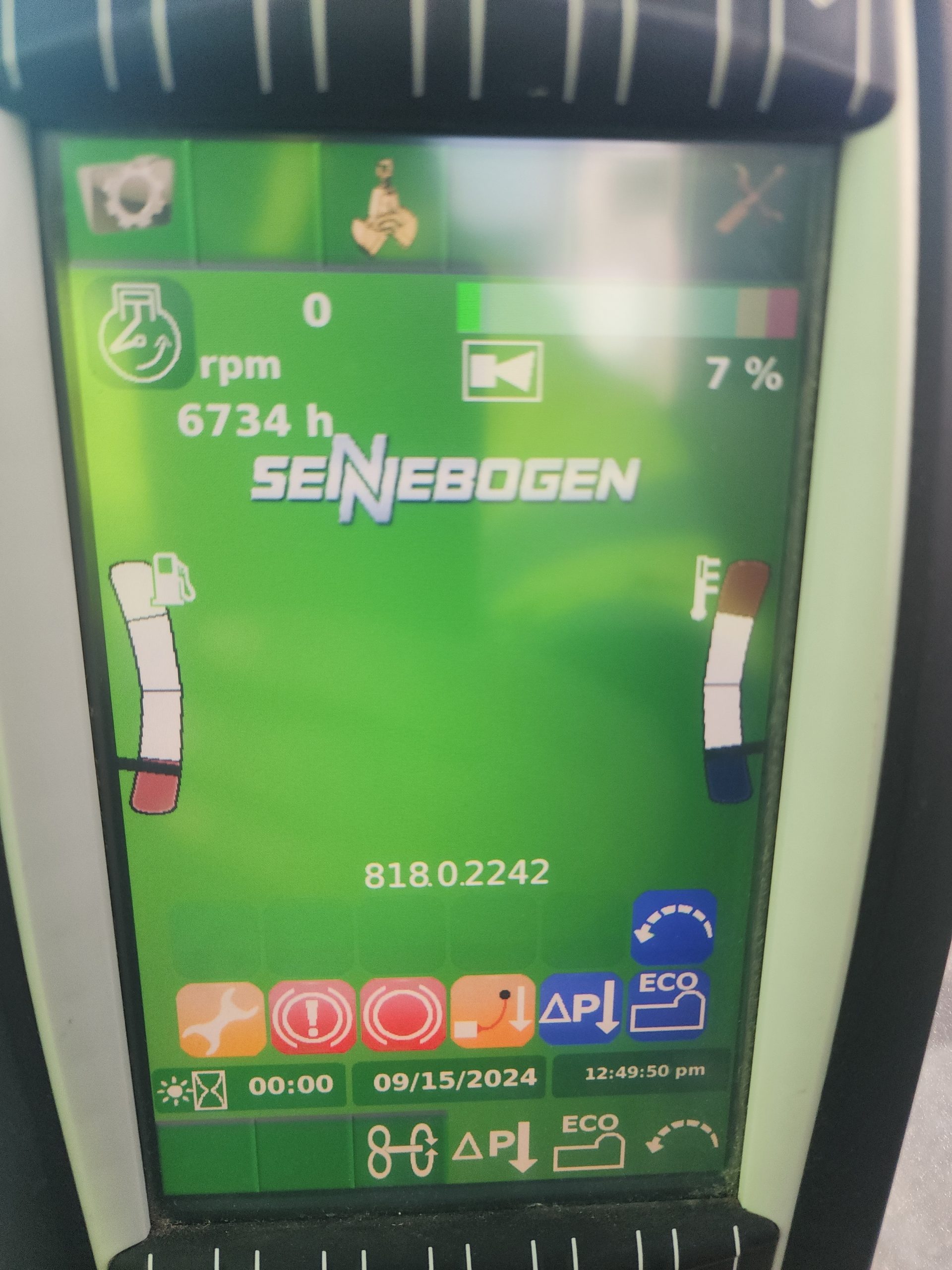

SENNEBOGEN control & diagnostic system SENCON
Front and skylight guards
Lighting system 4 LED cab:1 pc. LED headlight mounted on the cab roof on the right side heading backwards. Windscreen wiper for lower cabin front window with washer system. Windscreen guard for front window. Windscreen wiper for skylight with washer system
Emergency control function to ensure machine availability for limited operations by bridging the main functions.
Wheel steering with adjustable steering column instead of joystick-steering for mobile machine
Heating- Climate automatic (air condition) with central control elements, outside air and circulating air stages, with particle filter, defrost circuit, adjustable air vents for optimum work environment.
Upper Carriage
HD counterweight ca. 0.6t integrated into counterweight.
Upper carriage handrails
Cab Catwalk
SENNEBOGEN Hydro-Clean: Hydraulic micro filter system with water absorption contamination indicator (higher oil purity and extended oil service life)

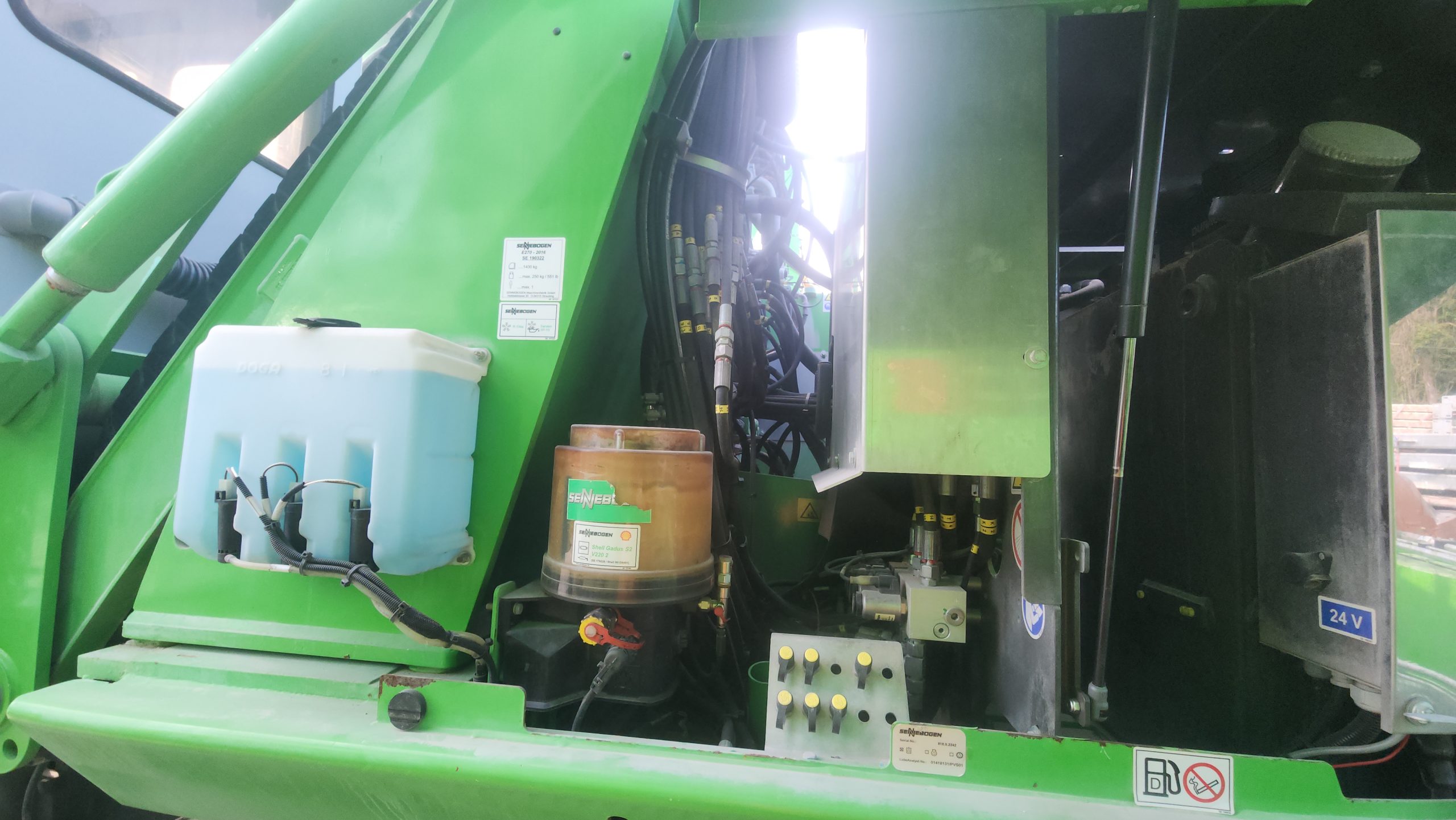

Automatic central lubrication for equipment and slewing ring raceway
Powerful slew drive with large, dimensioned slewing ring

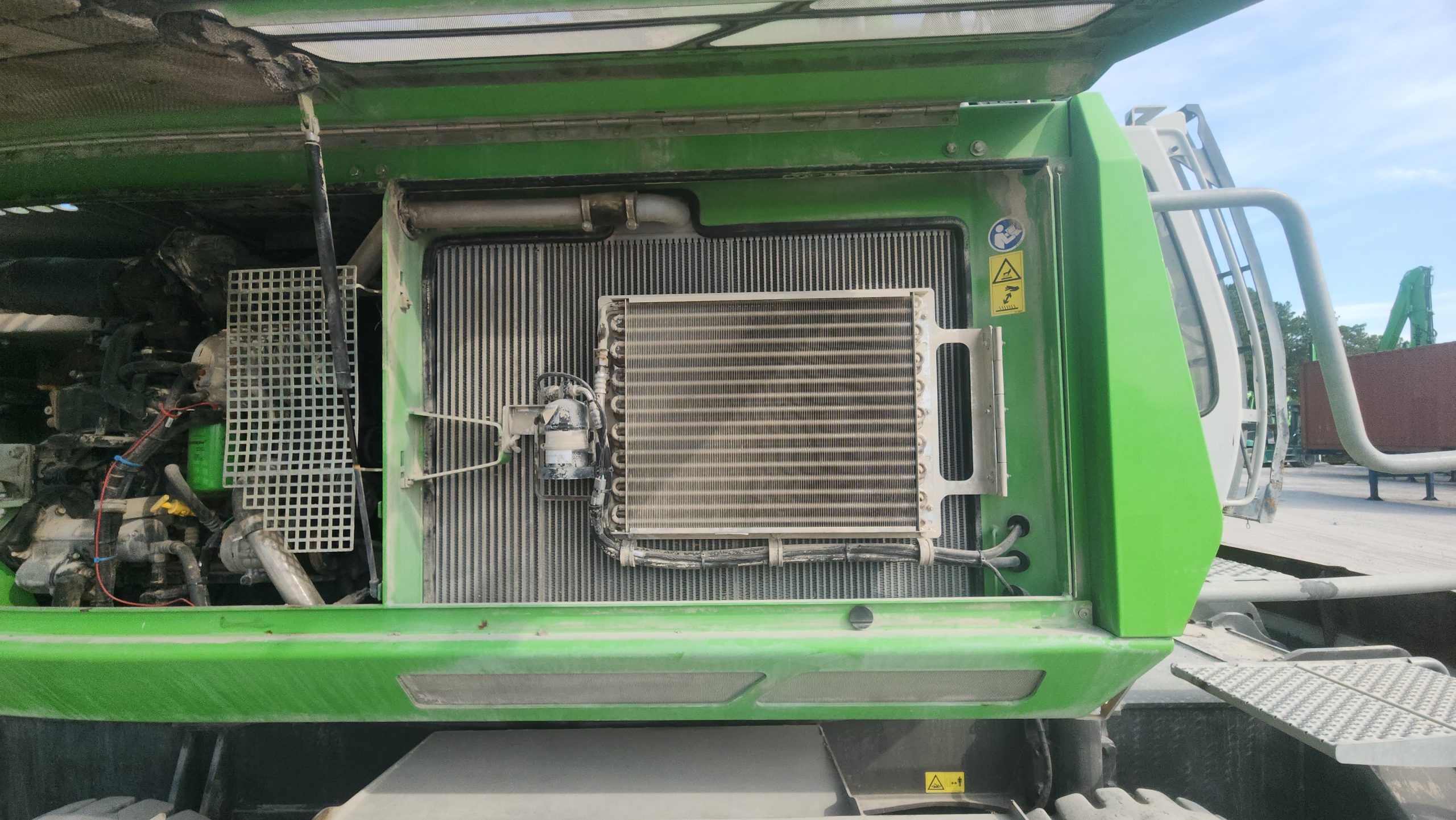

Counter rotation of cooler ventilator to blow out cooler.
Air filter pre-cleaner, precleans approx. 98% of abrasive smut to increased life span of air filter.
Camera system – base package with 2 cameras includes 1 color monitor 7´´, monitor with 4-way split, up to 4 cameras expandable, 2 cameras with 115° field viewing angle for rear view camera right side of the machine.
Lighting system 1: 2 pcs. H4 headlights mounted in the upper carriage-frame on the front side left and right, 2 rear lights and 2 halogen lights integrated in the left front side of the cab roof. H3 service headlights 70W 1 pc. at motor side and 1 pc. at cab side mounted. Single LED headlight position on demand of the customer.
Lighting system 3 LED equipment: 1 pc. LED headlight mounted on the compact boom downside and 2 pcs. LED headlights mounted on both sides of the stick in upper position (in addition to system 1 or 2).
Under Carriage

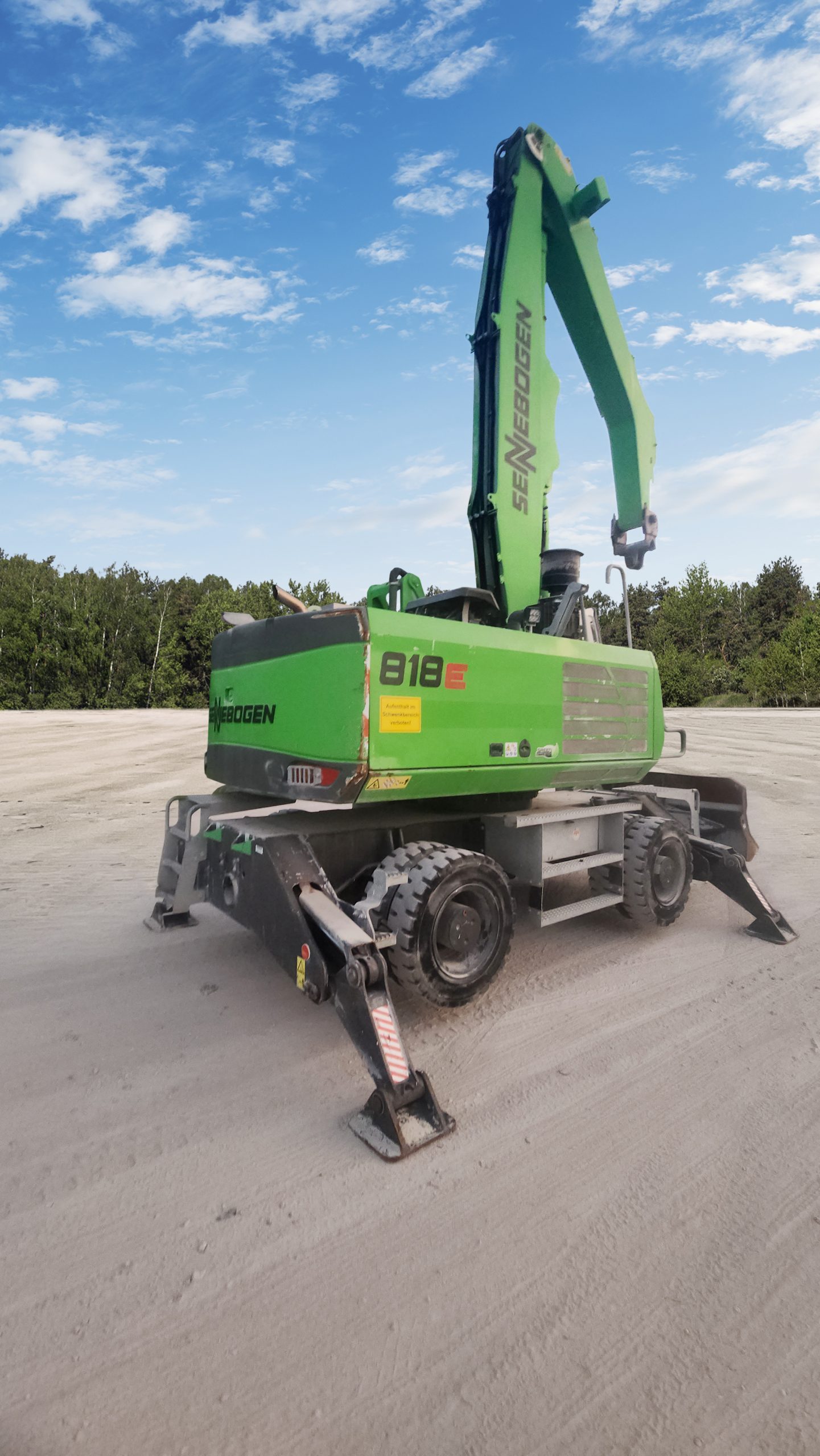

Wheeled undercarriage MP21E with 4-point stabilizers PAH4 and blade (front mounted) additionally to the 4-point stabilizers Attention: Position individual control of the stabilizers is required.
Under carriage protection
Travel Alarm
Solid rubber tires, 10.00-20 (8 units) with intermediate ring
Individual control of the stabilizers ATTENTION: Necessary in case of combination 2-point-stabilizers with blade front or rear.
