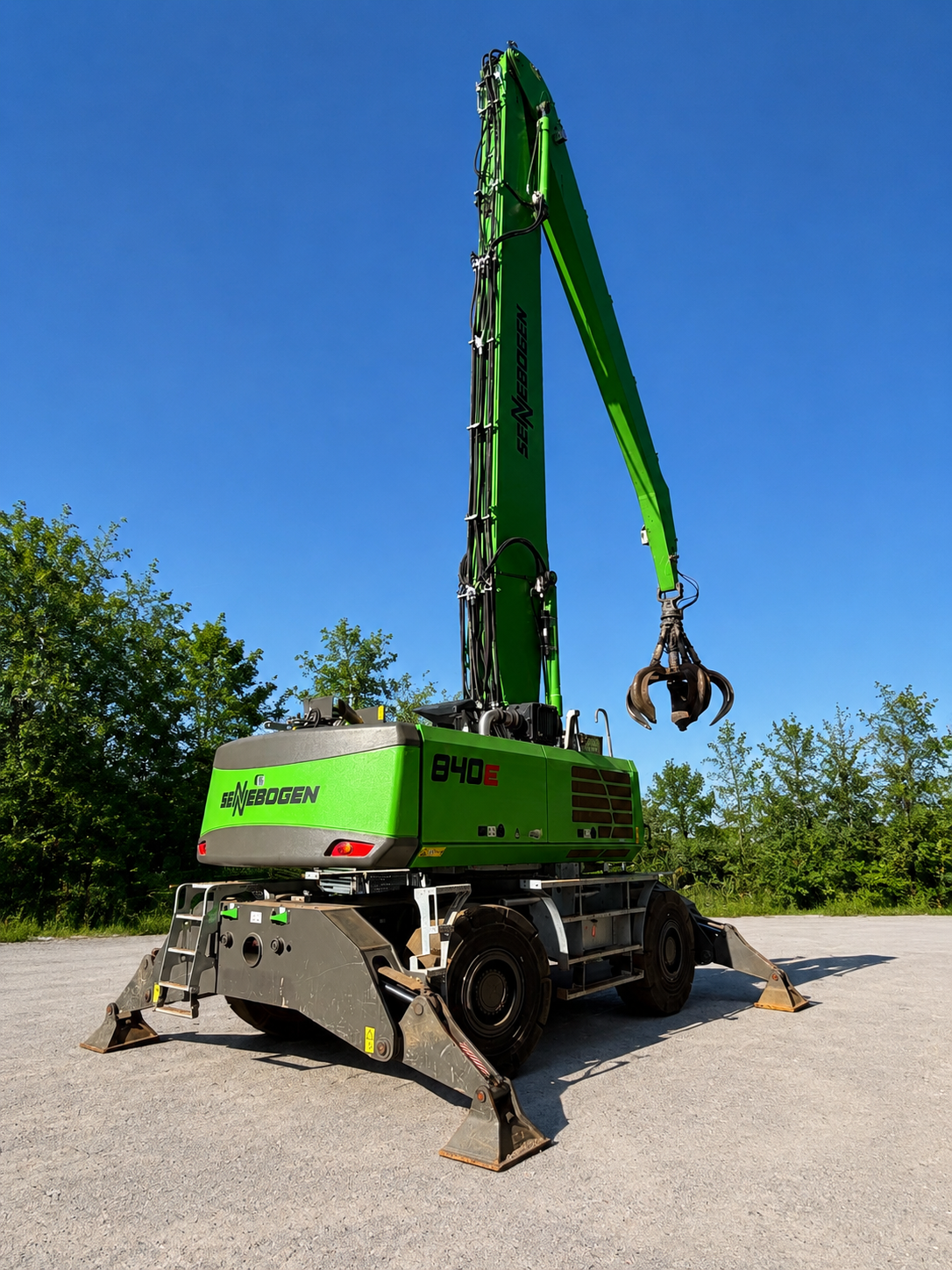

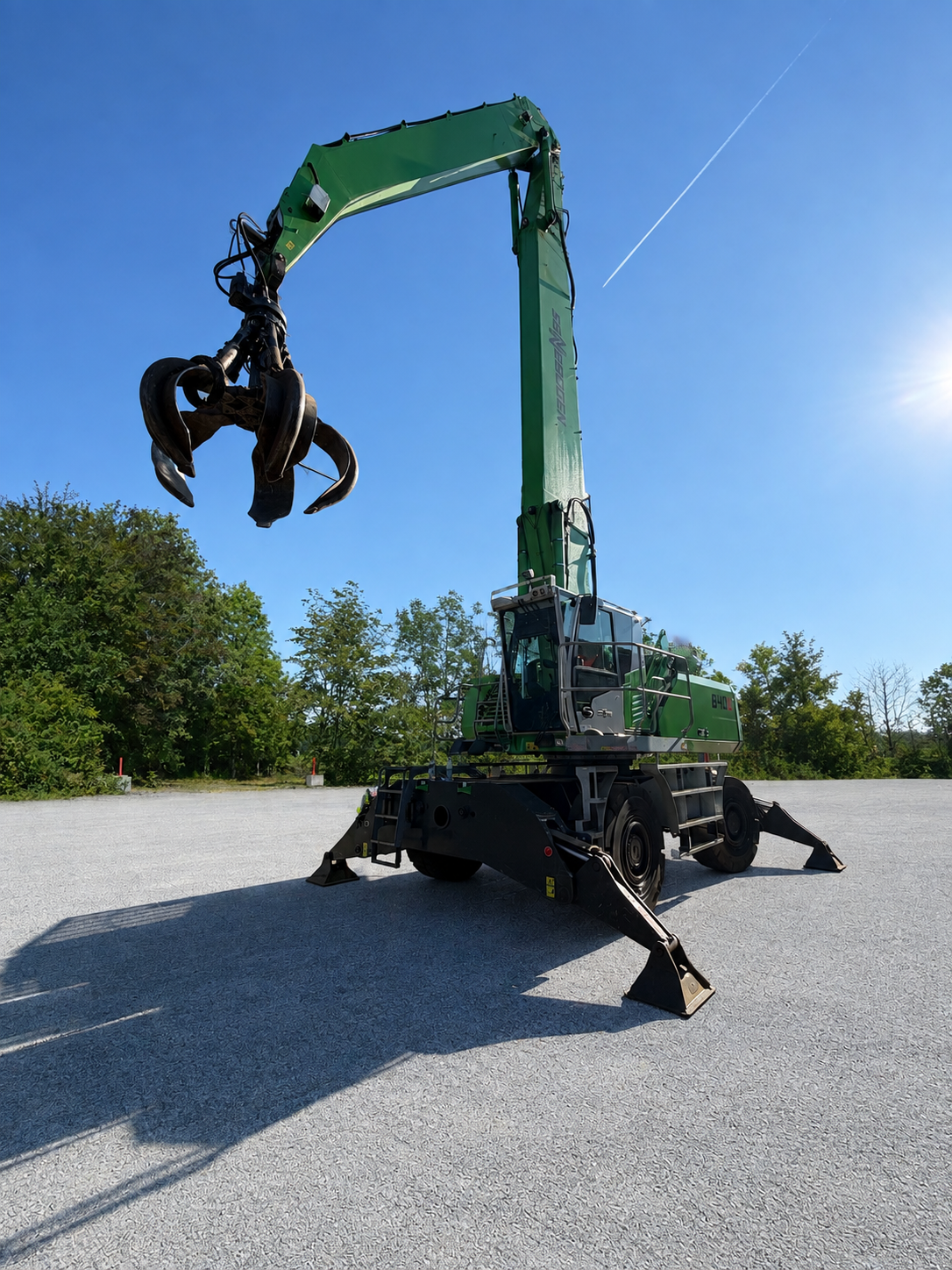

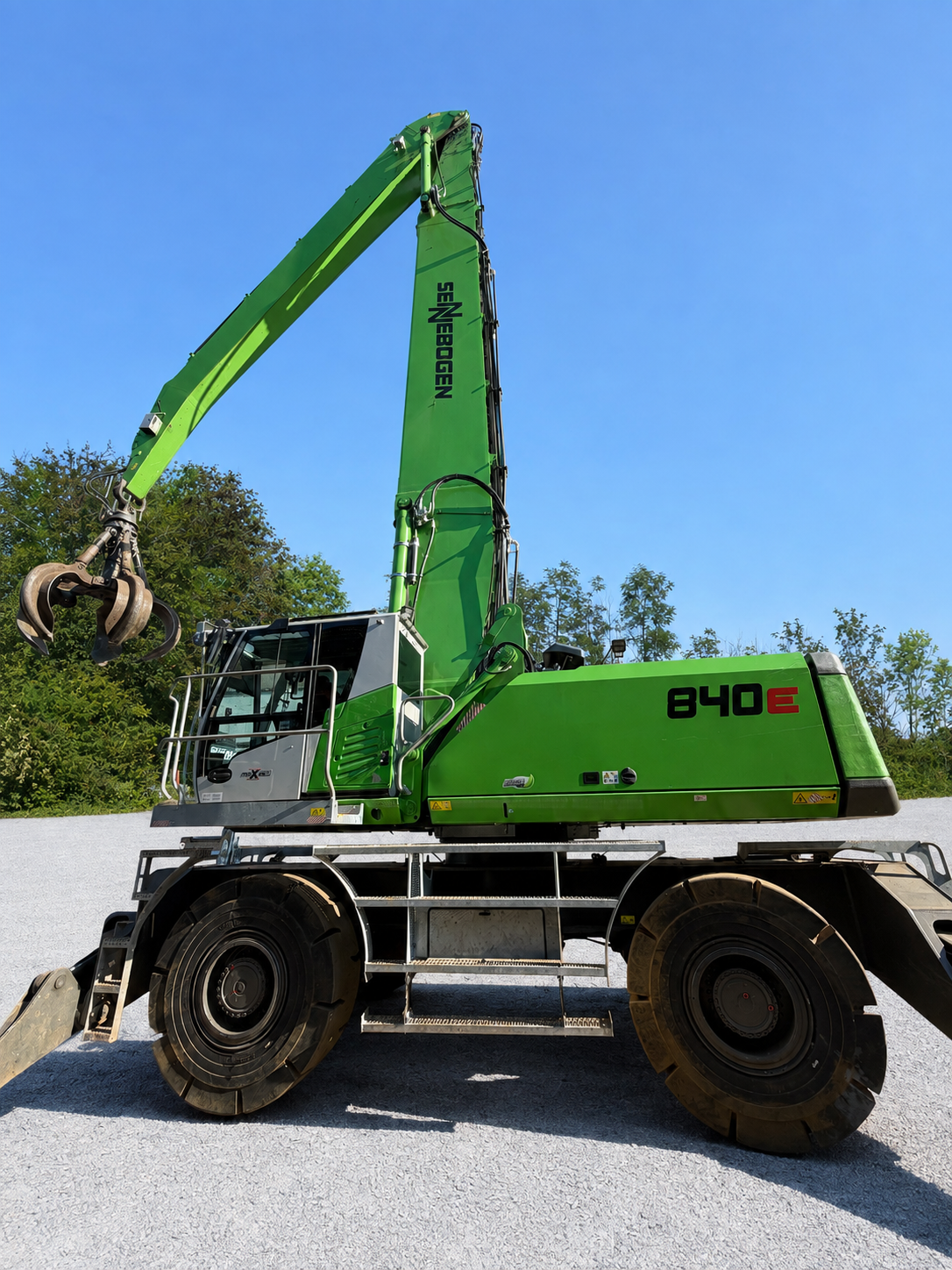

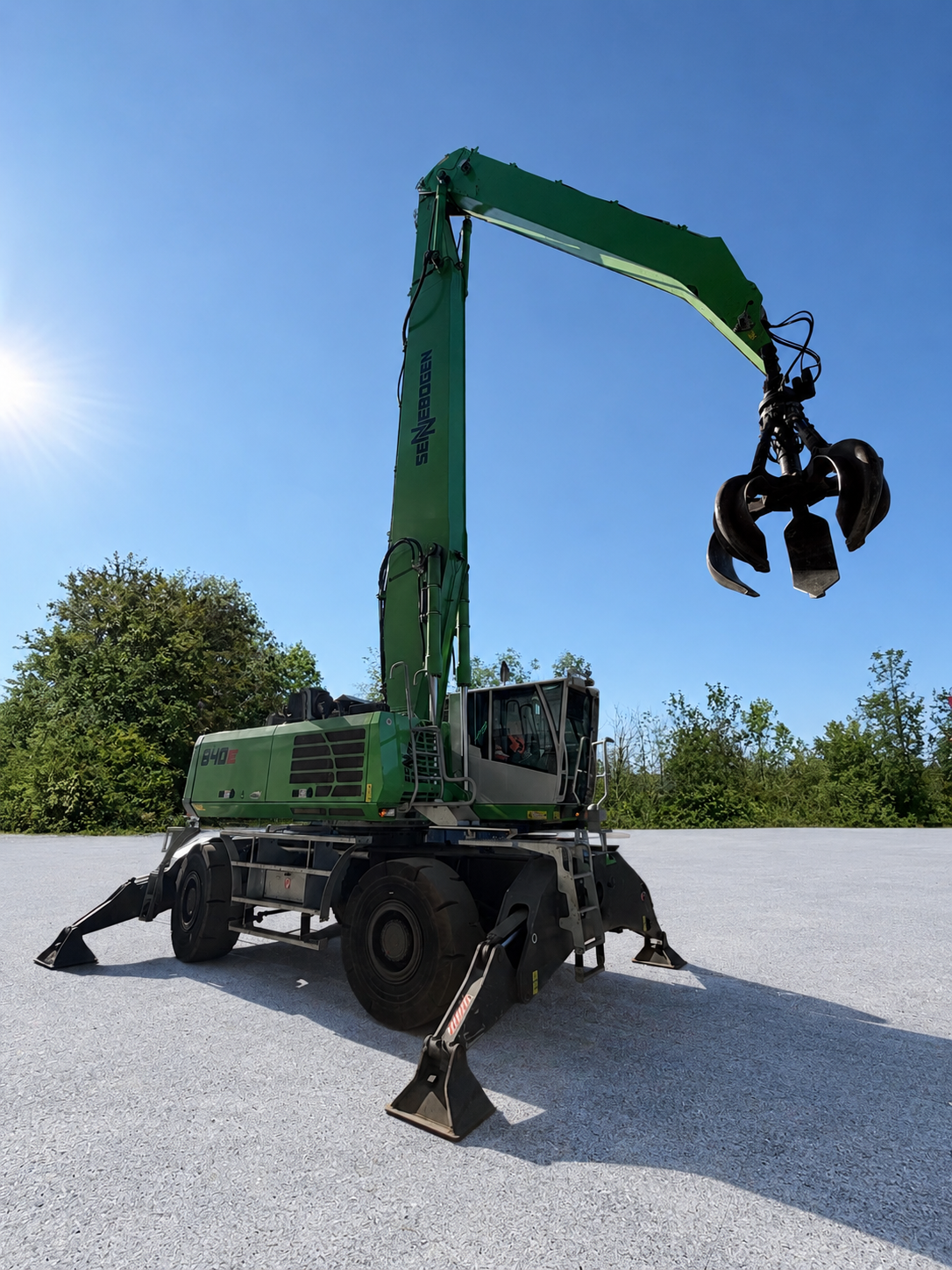

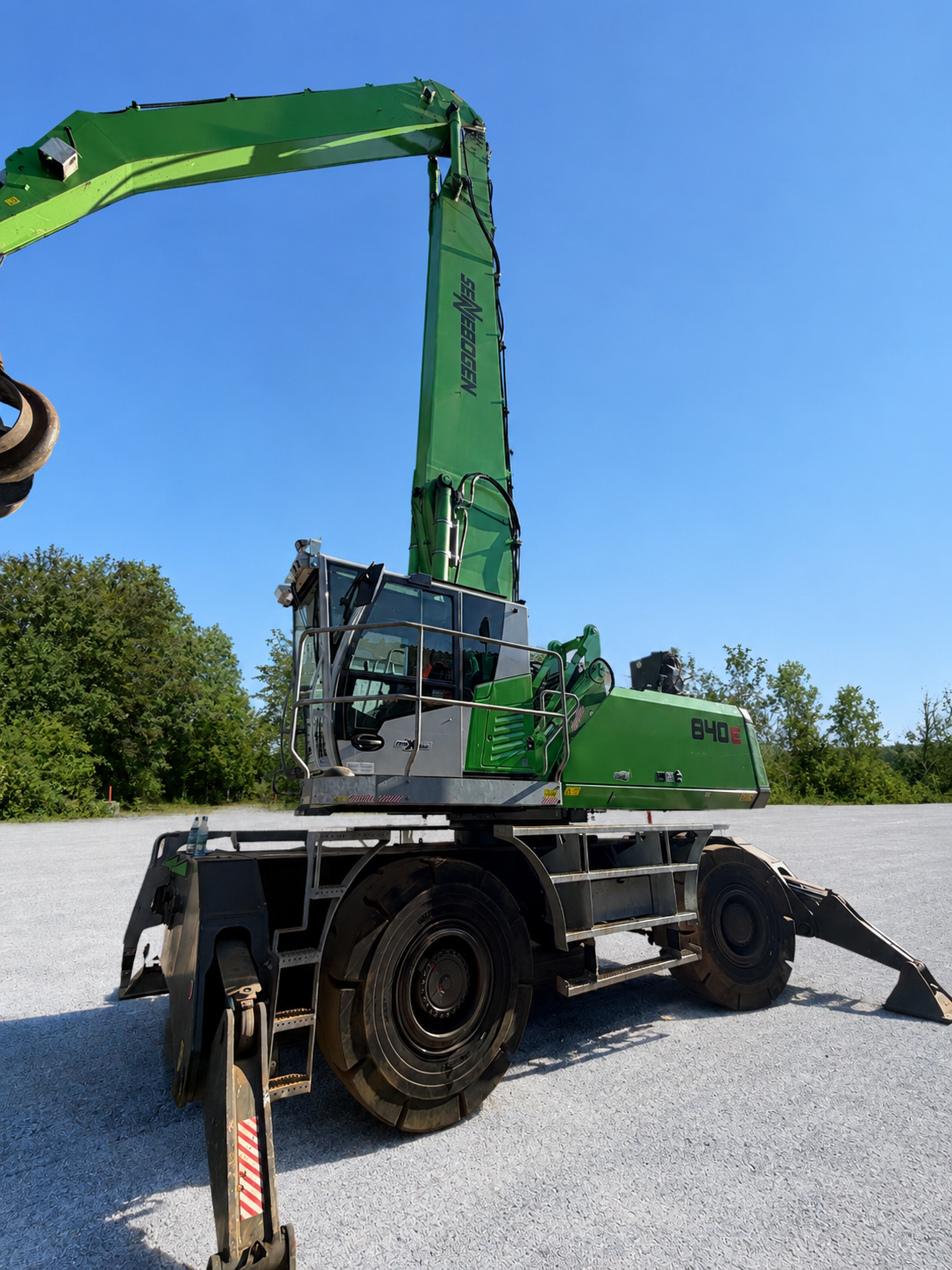

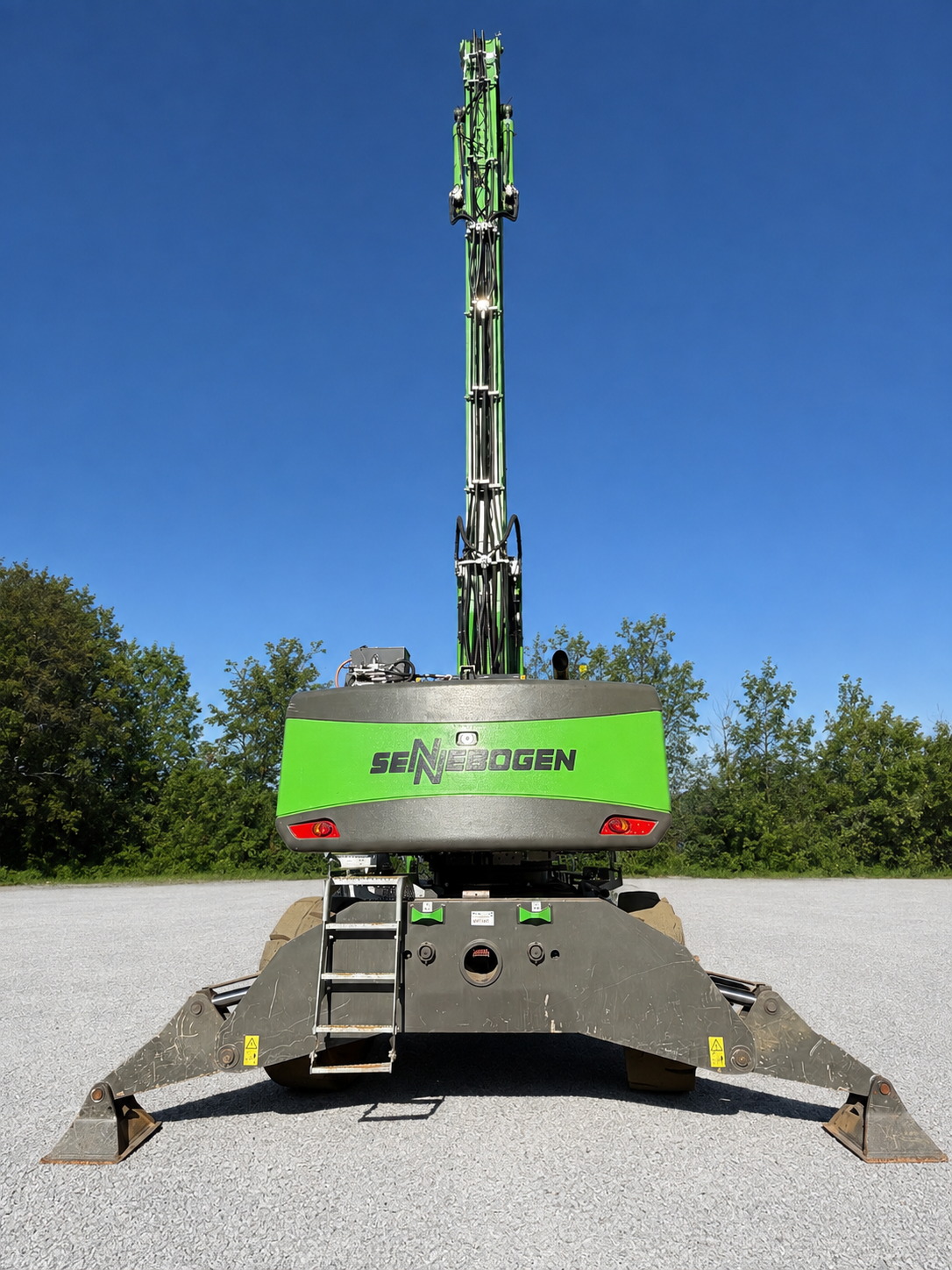

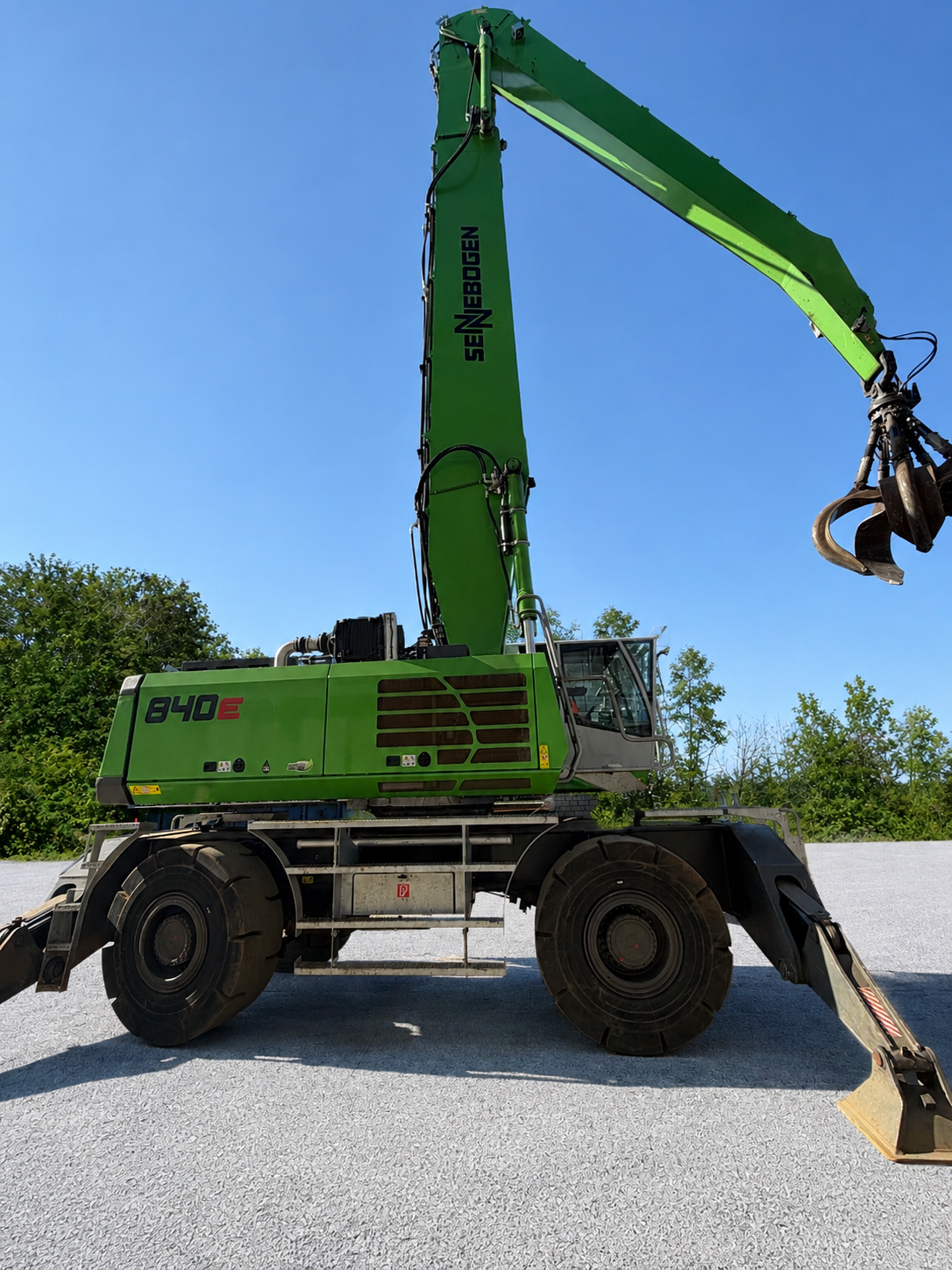

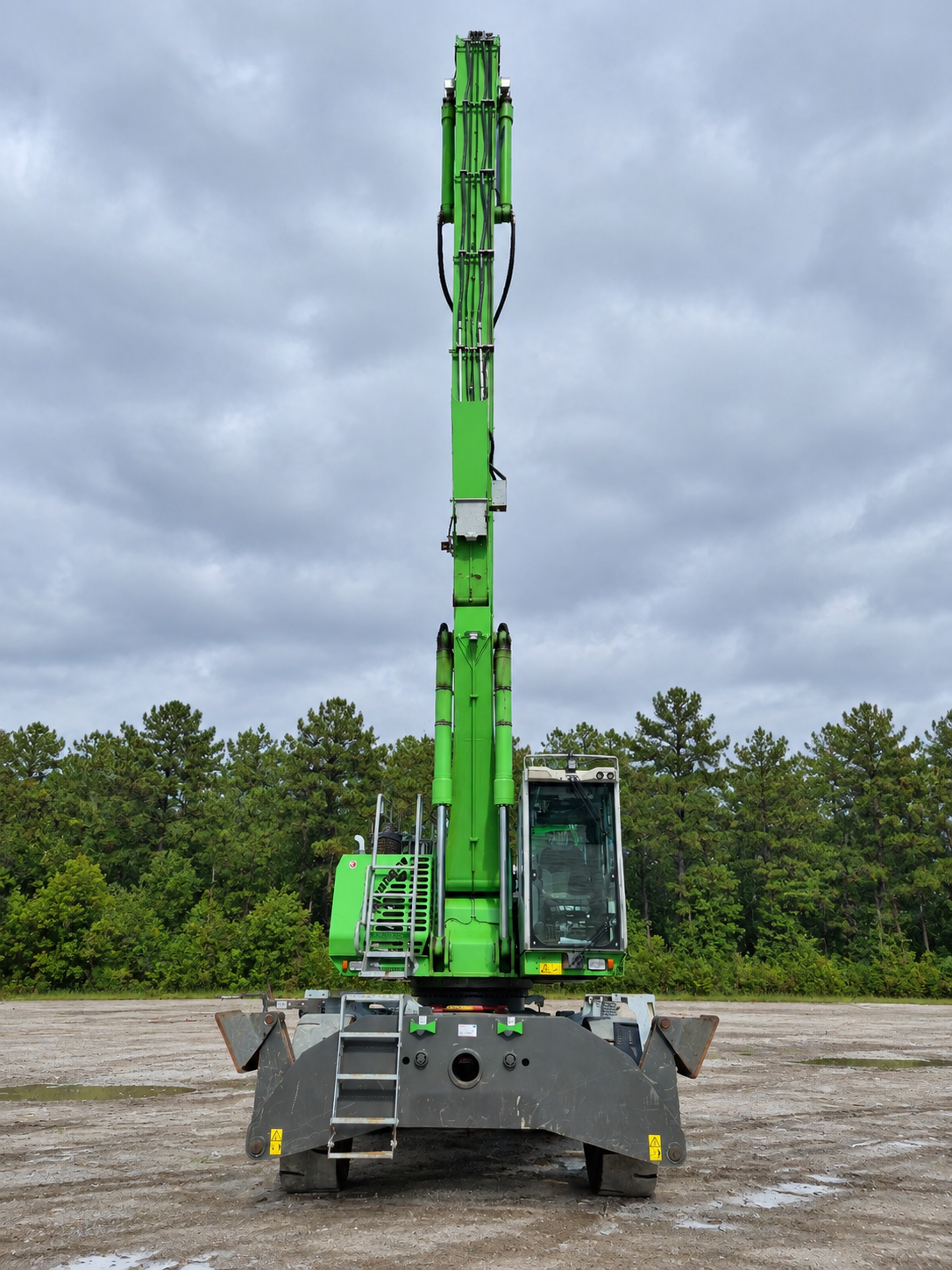

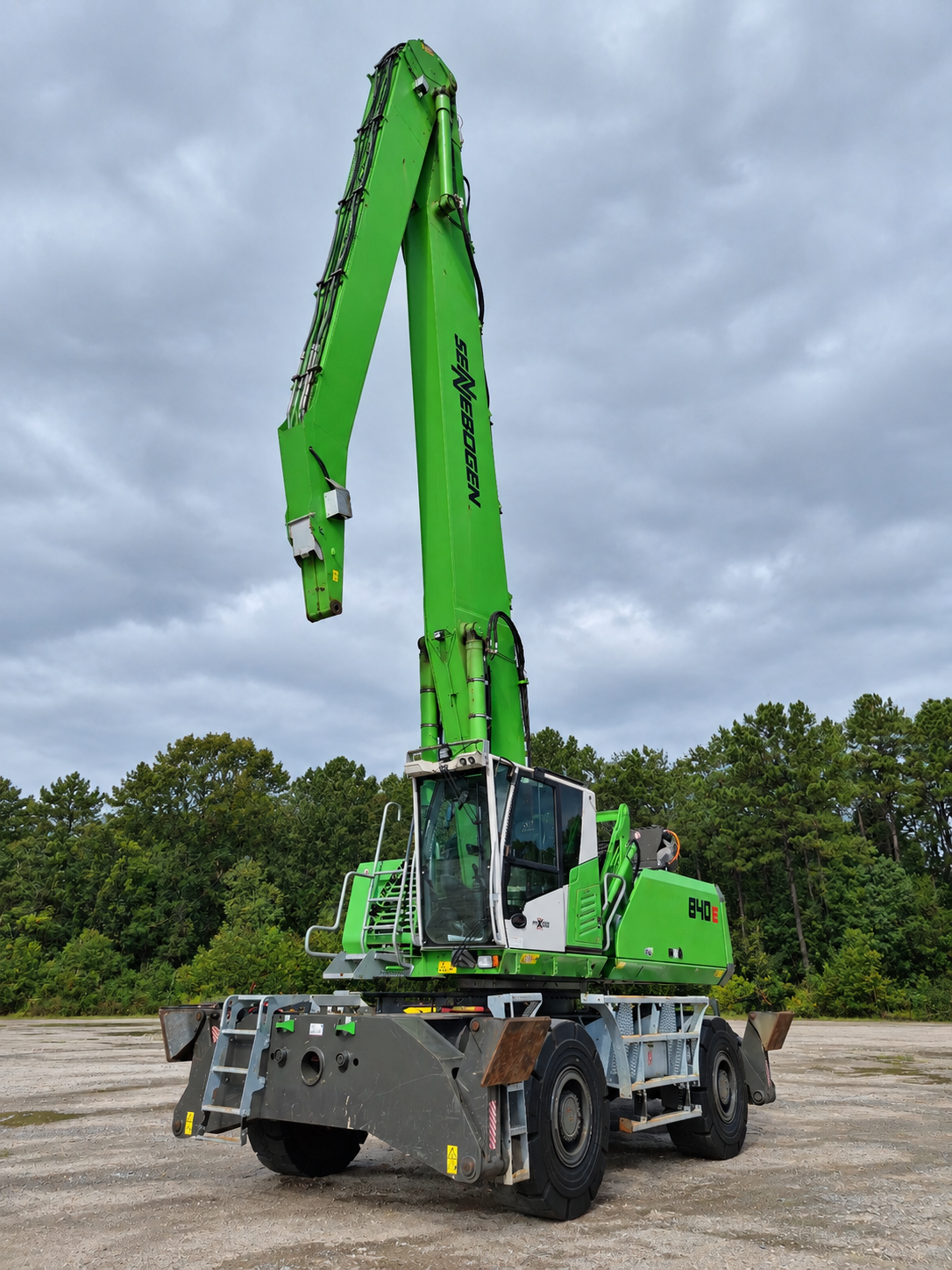

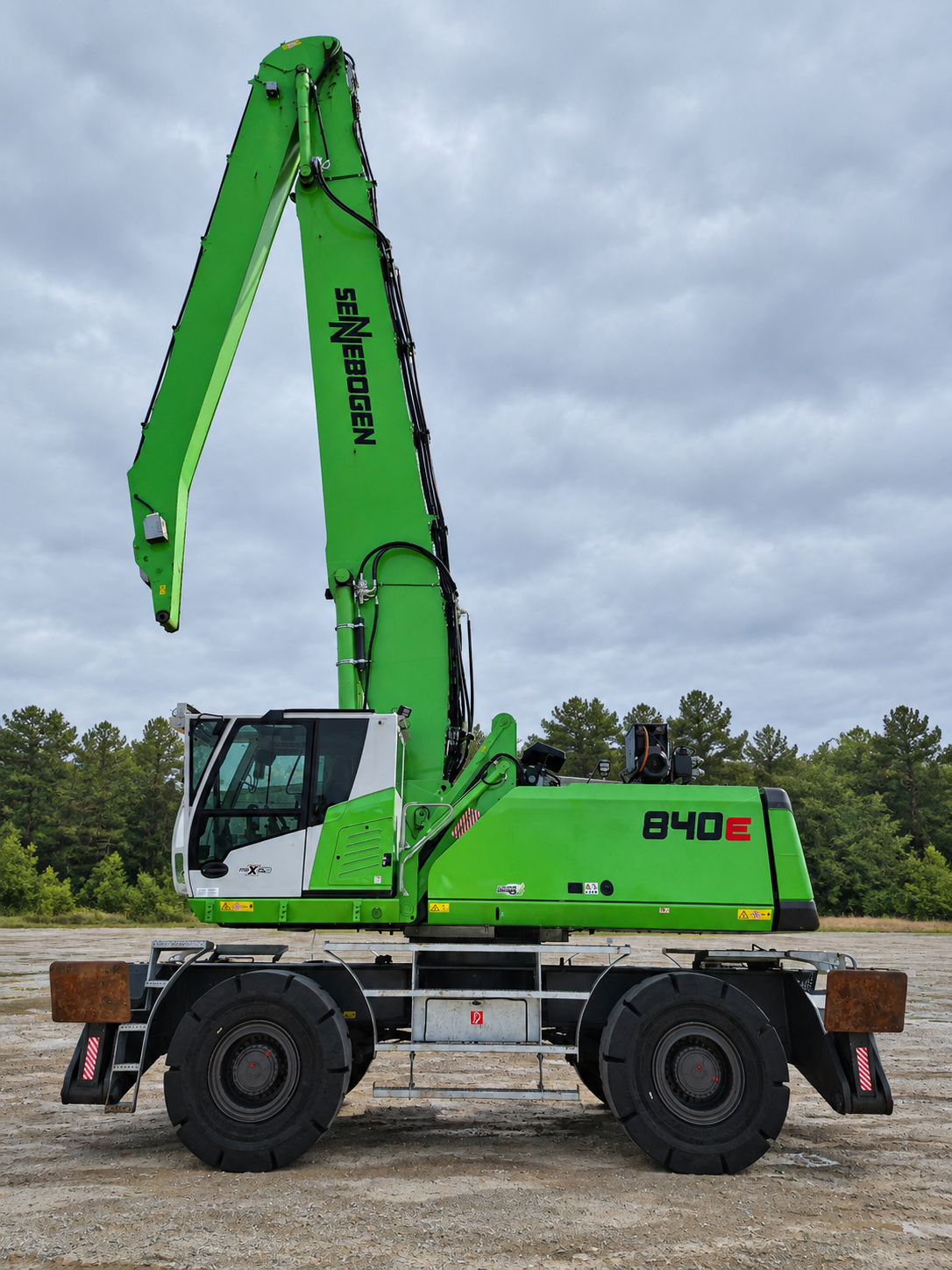

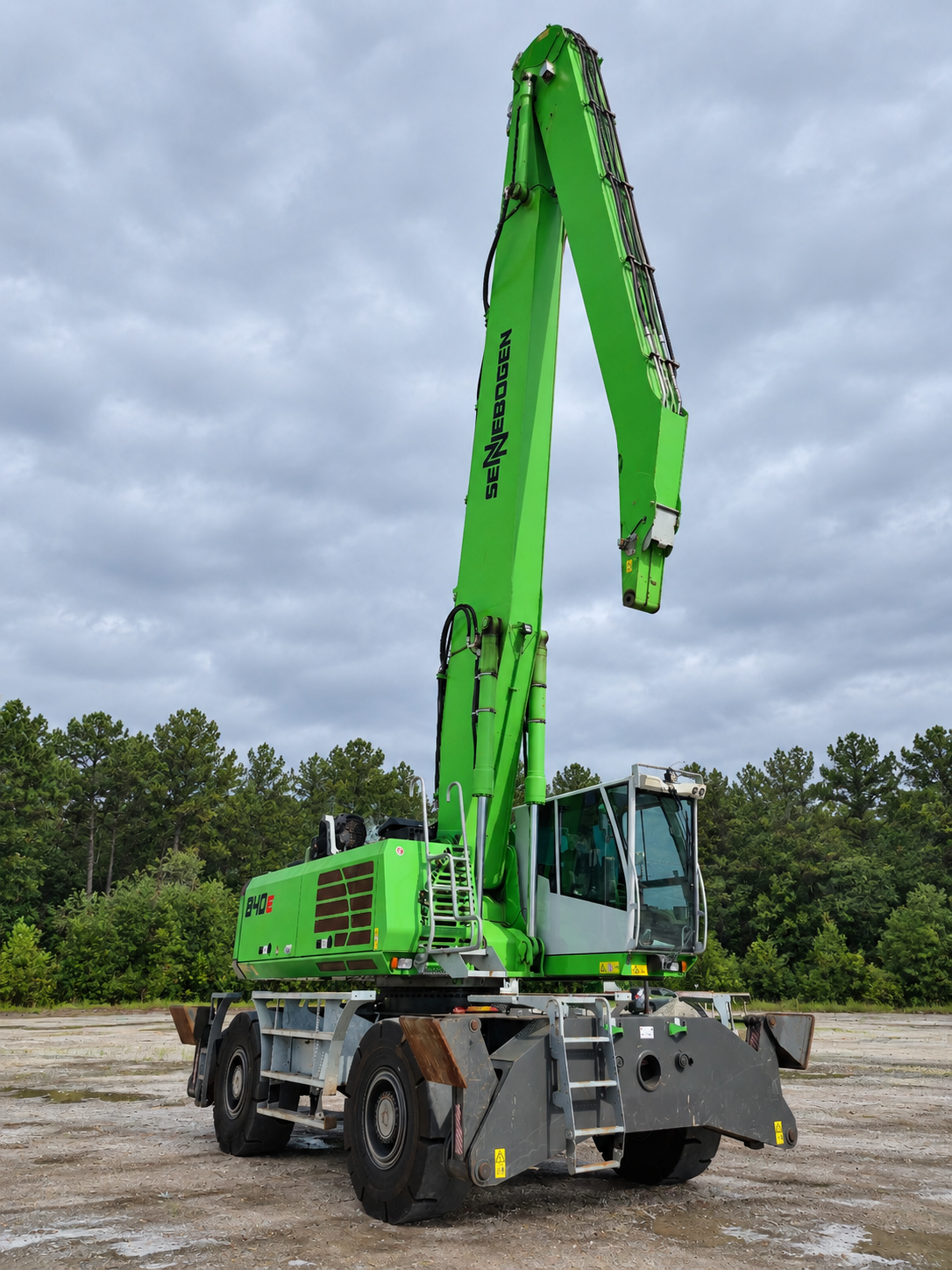

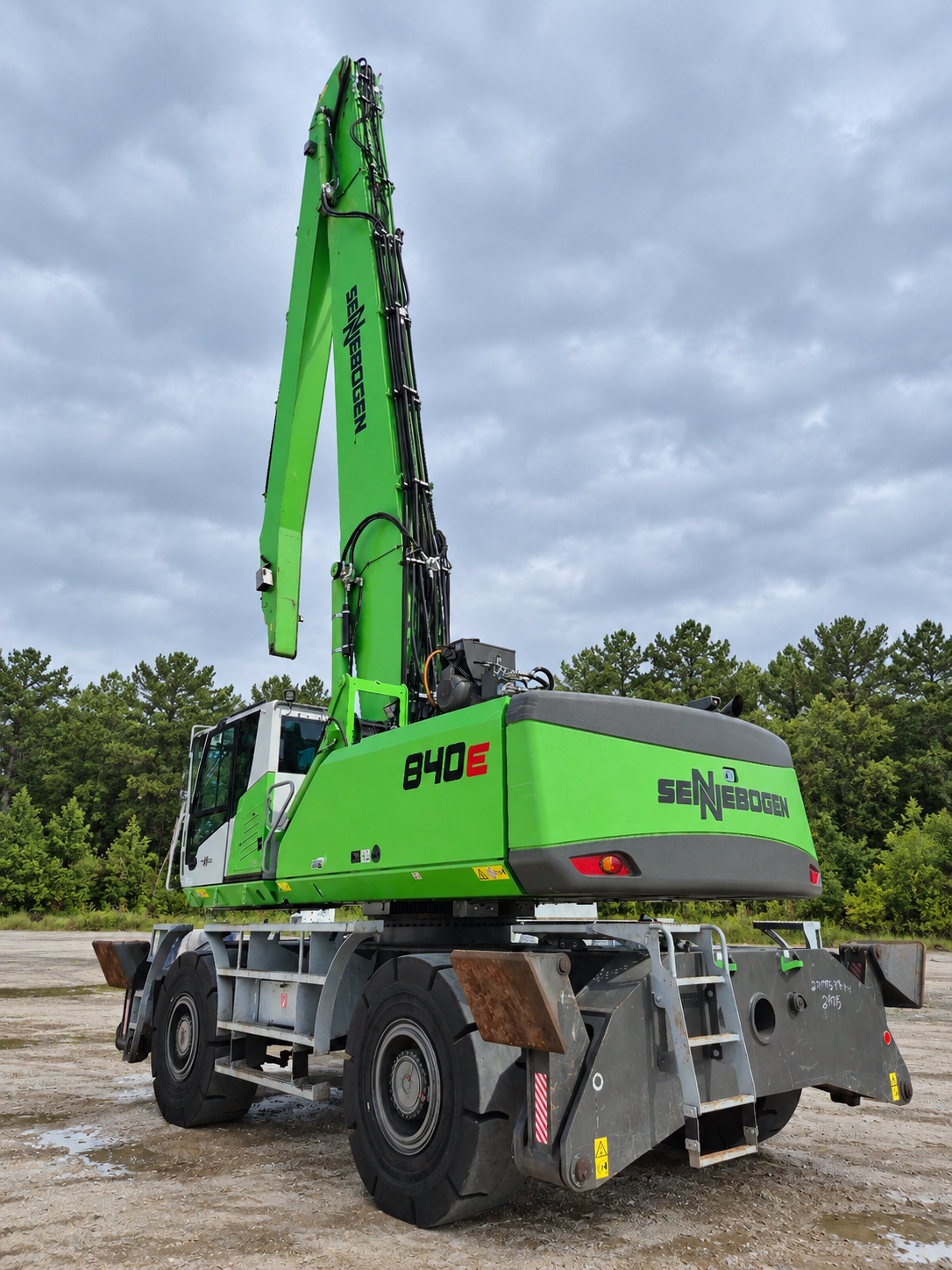

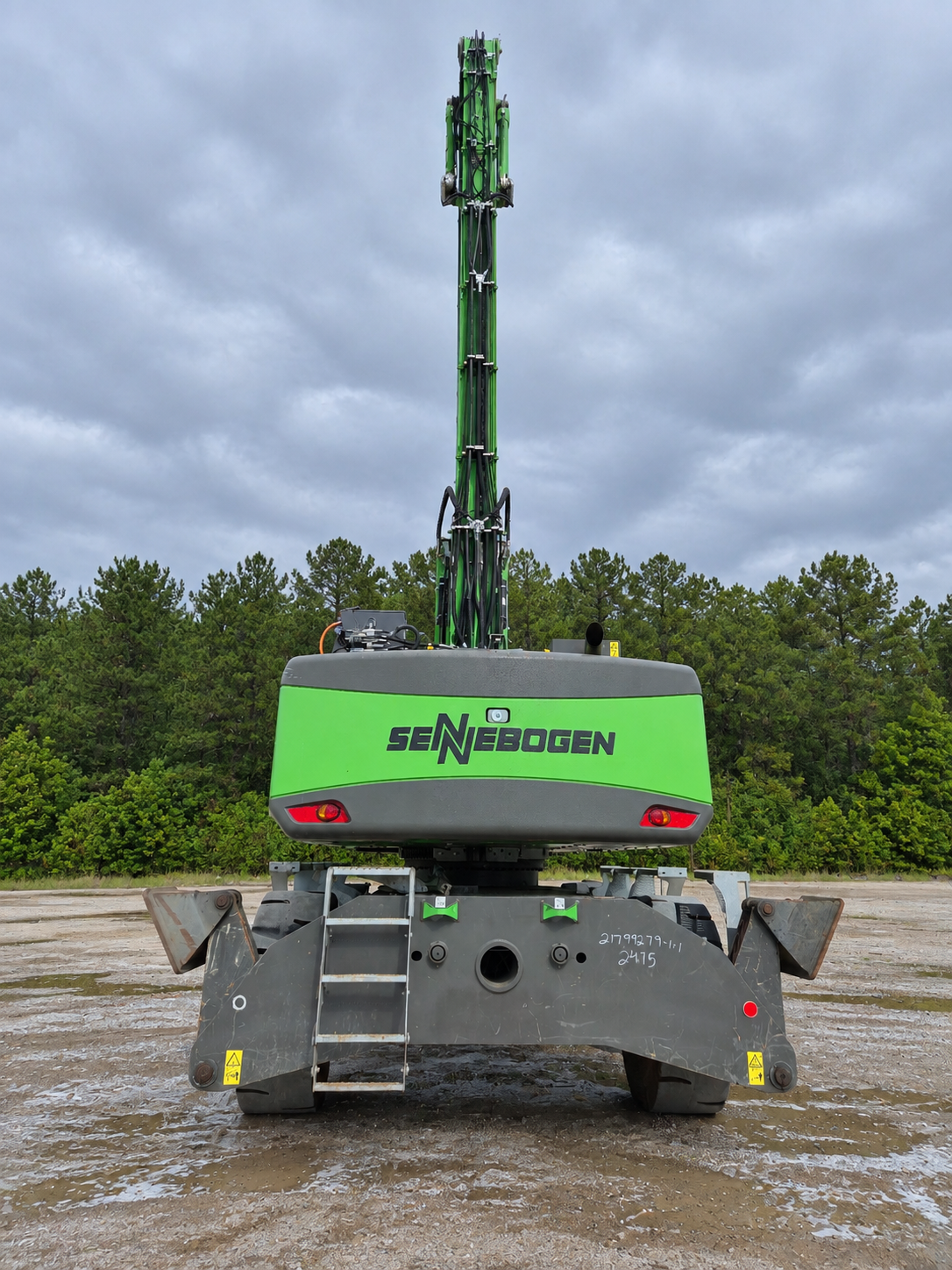

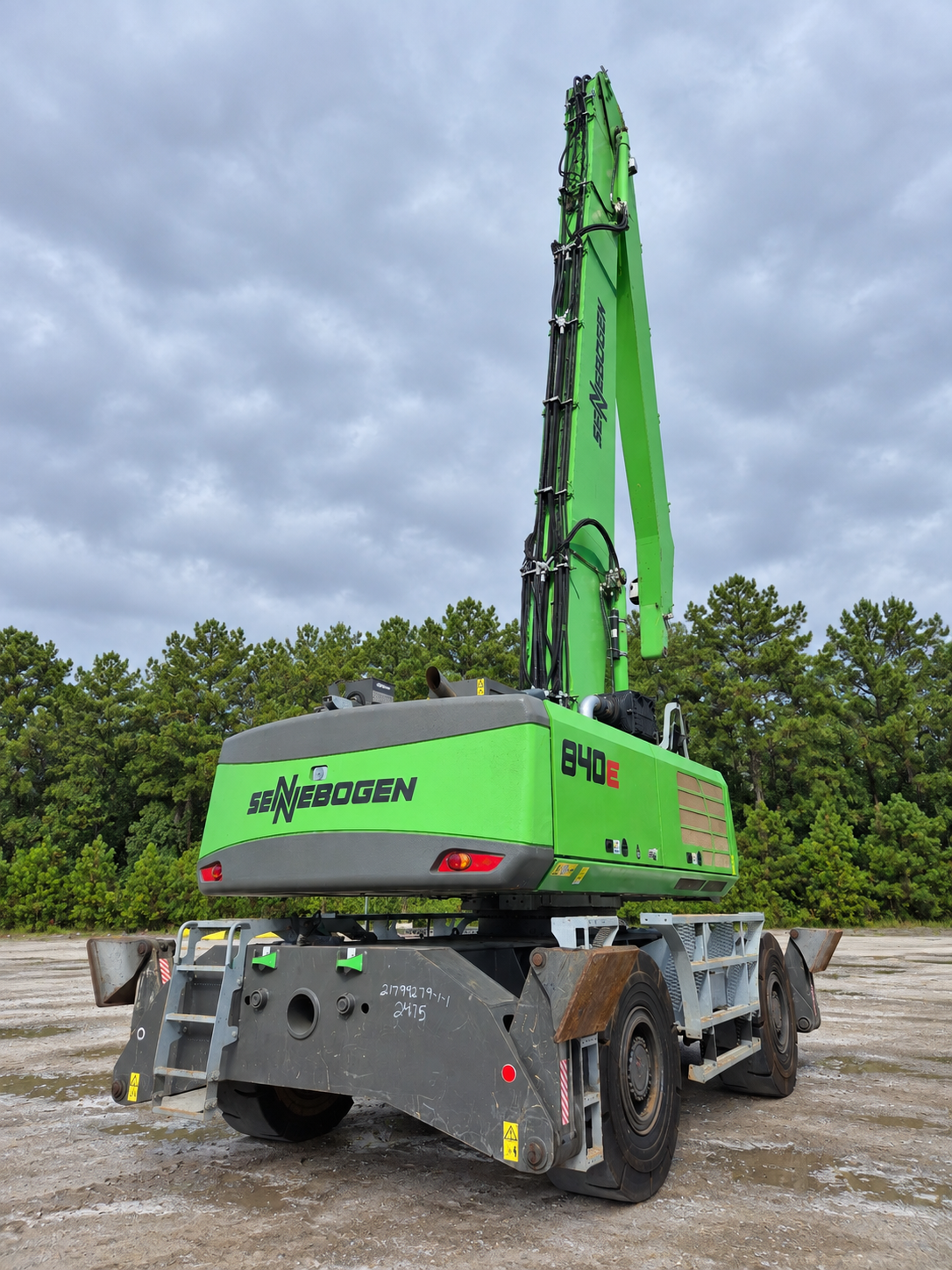

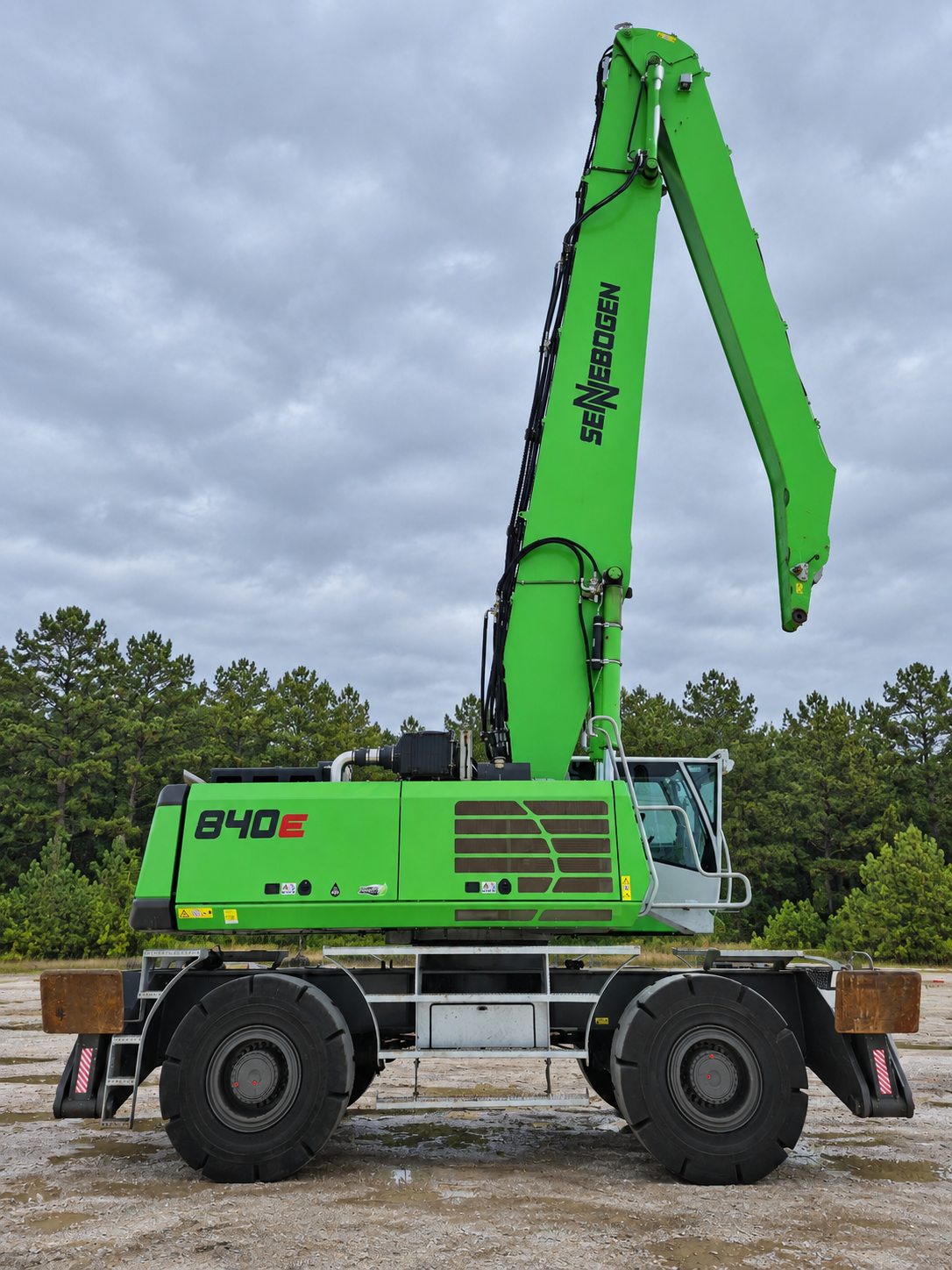

This 2025 Sennebogen 840M E-Series with K20 boom configuration is a Certified Used wheeled material handler with approximately 919 hours — a low-hour, current-generation machine offered at pre-tariff pricing that is no longer available on incoming equipment. It comes protected by a 12-month / remainder of 3,000-hour hydraulic and structural warranty and is ready to work from day one.

The K20 configuration delivers 65.6′ of total reach via an 11.7m compact boom and 9.4m grab stick, paired with an 11.8t counterweight for stability — giving operators the range and lifting performance to work large material piles, feed shredders and shears, and maintain high-cycle production throughput across expansive scrap yard and recycling operations. This unit ships with a 25 kW Sennebogen generator magnet system with magnet suspension link included in the machine price (grapple not included).

Powered by a Cummins L9 engine producing 310 HP (231 kW) at 2,000 RPM with Tier 4 Final emissions compliance, automatic idle-stop control, and Eco-mode, the 840M delivers the sustained power output required for demanding production shifts. The non-proprietary, computer-free, load-sensing hydraulic system with flow-on-demand control keeps response crisp and fuel consumption controlled throughout the day.

The maXCab E270 elevates hydraulically to 8’8″, giving operators excellent sightlines over material piles with front window and skylight protection guards, automatic climate control, SENCON diagnostics, SENtrack telematics, a base camera system with dual cameras and 7″ split monitor, and an air-suspended heated seat — a workstation built for safe, sustained, productive shifts.

The rubber-tired MP42E undercarriage with individually controlled 4-point outriggers, all-wheel drive via two variable hydraulic motors, joystick steering, and solid rubber Magna Supersolid 20.5-25 tires provides the mobility and stability needed for high-cycle scrap and recycling work, with fast repositioning across large yard footprints without requiring a lowboy.

Sennebogen backs every 840M with $65 million in parts inventory in Stanley, NC, 24/7 on-call parts service, and factory-direct technical support — keeping machines running efficiently with minimal downtime.

Original Factory Specs

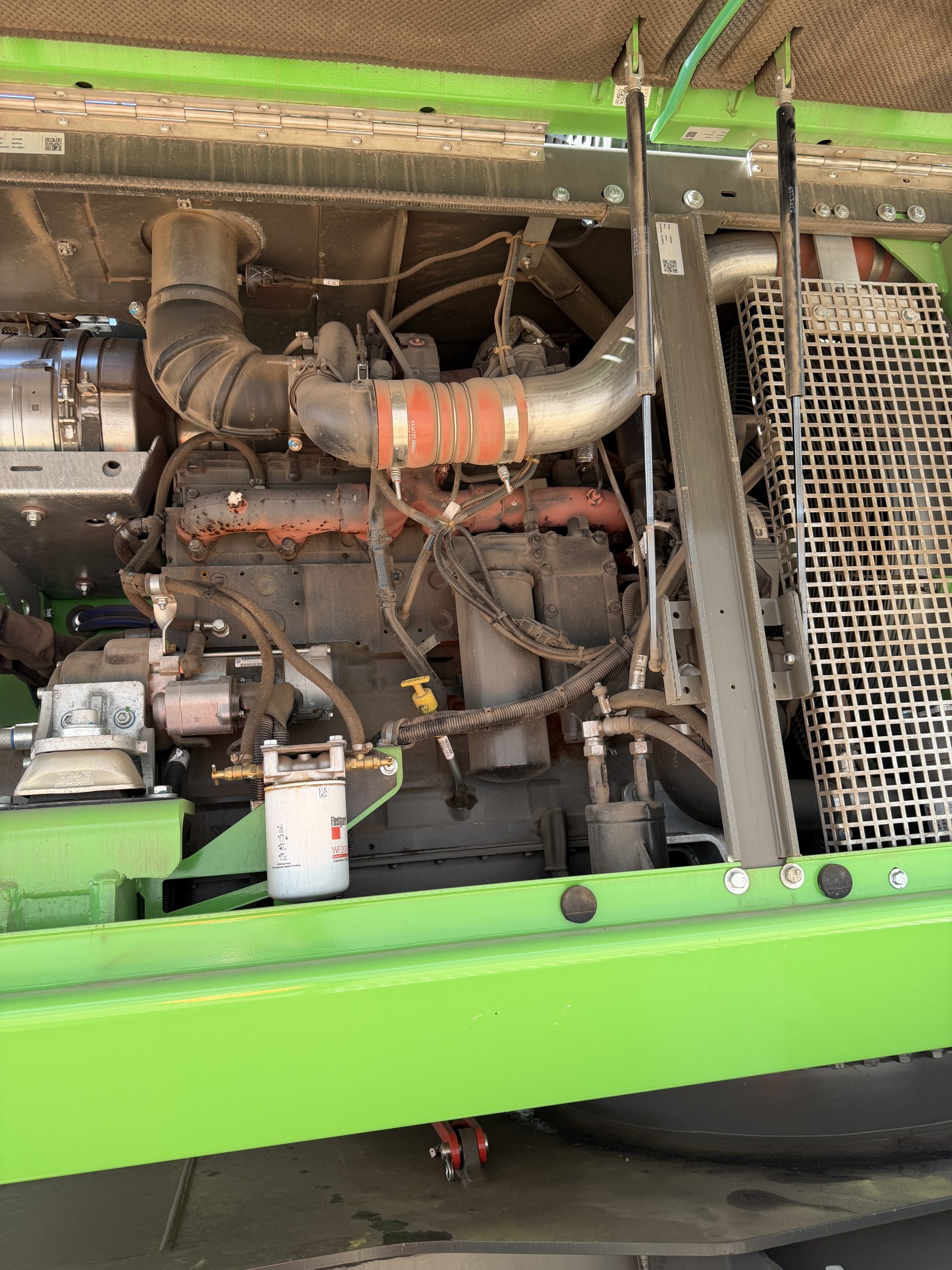

Engine
Cummins L9 diesel engine (6 cylinder) with direct injection, water cooled (TIER 4f emission)
Engine output 310 HP (231 kW) @ 2,000 rpm
Turbo intercooler direct driven
Water cooler hydraulically driven, reversible
Automatic idle-stop control and eco-mode for diesel engine

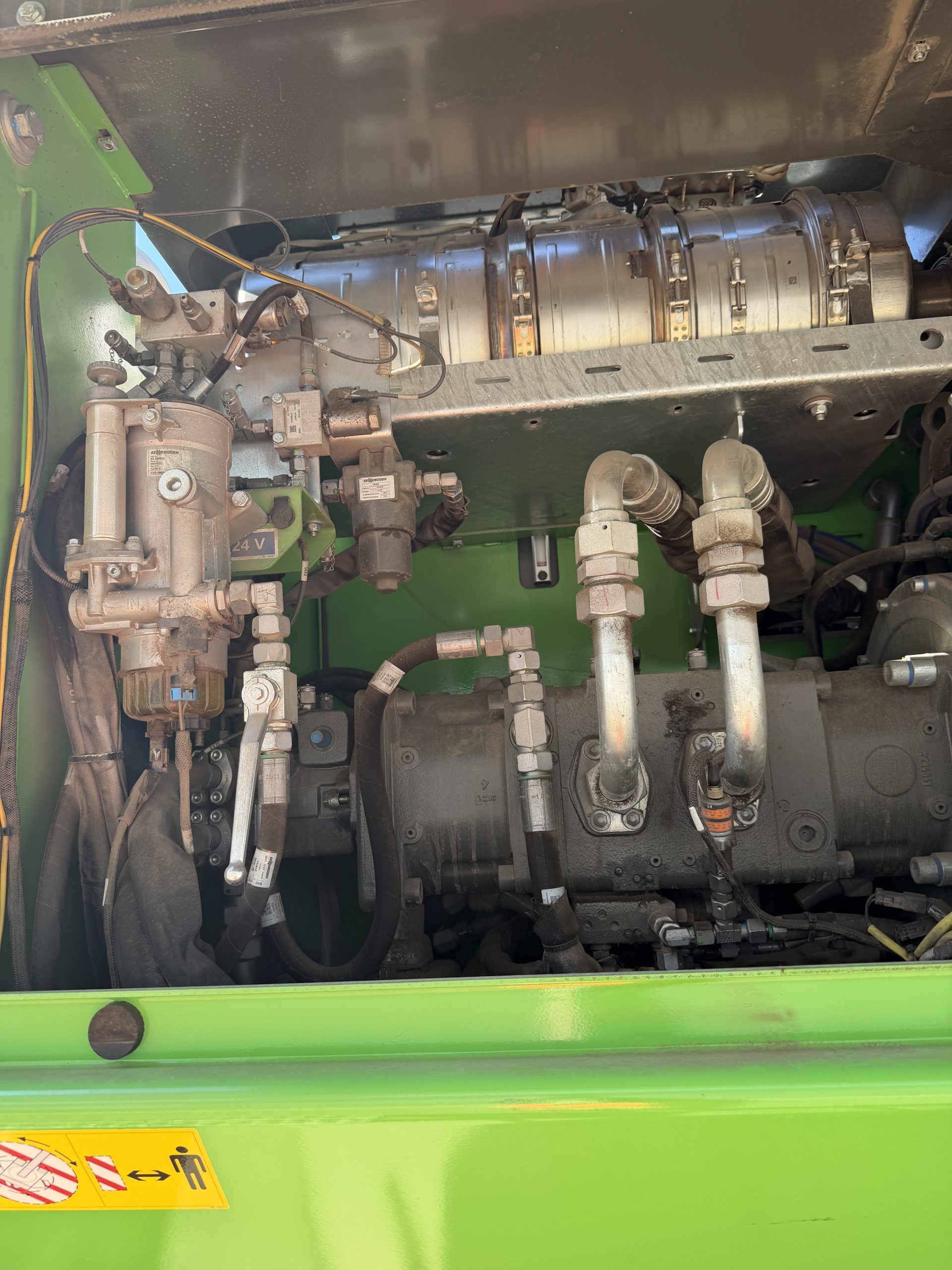

Hydraulic System
Computer free, state-of-the-art load-sensing with flow-on-demand control

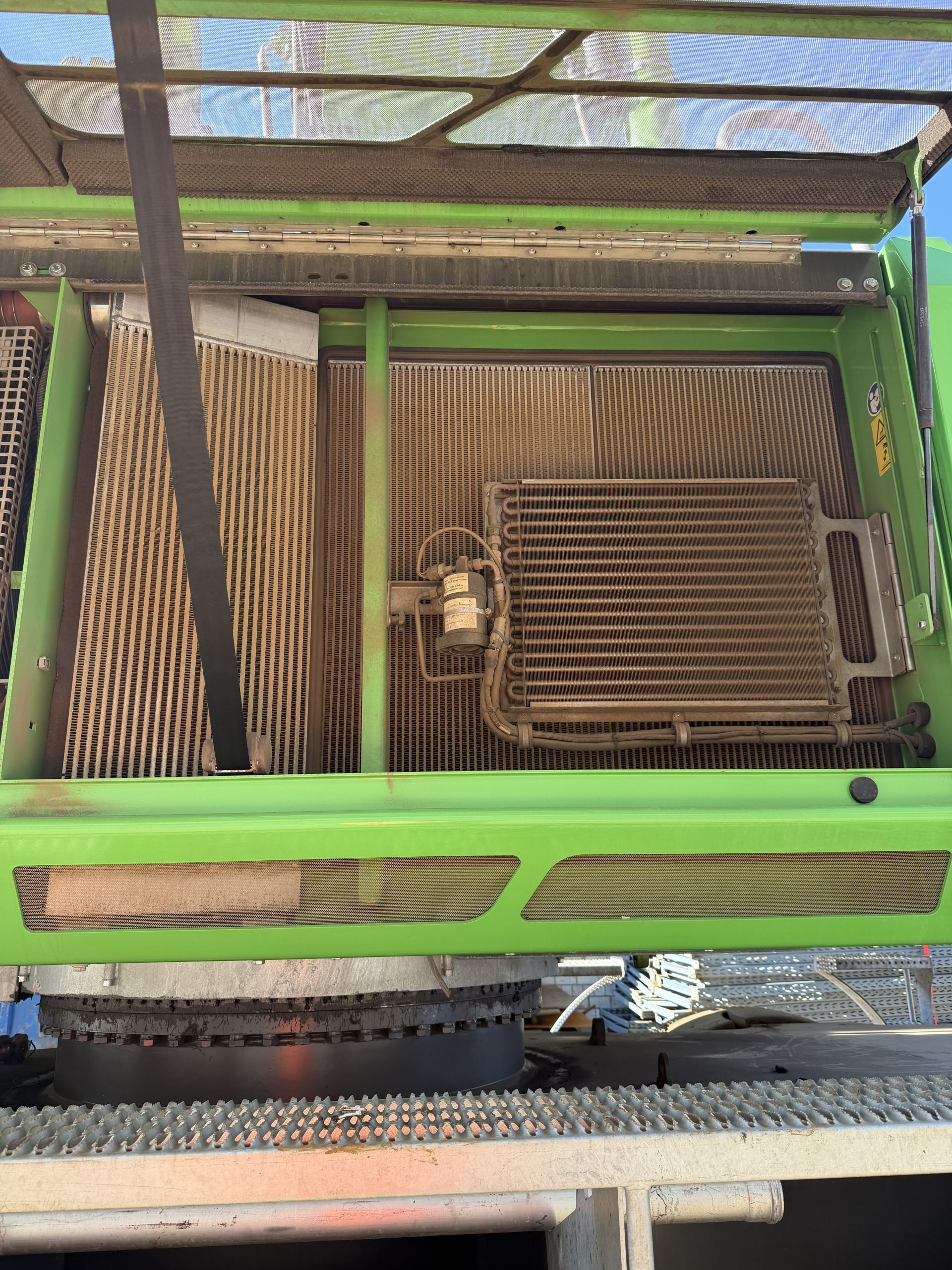

Hydraulic cooler hydraulically driven reversible

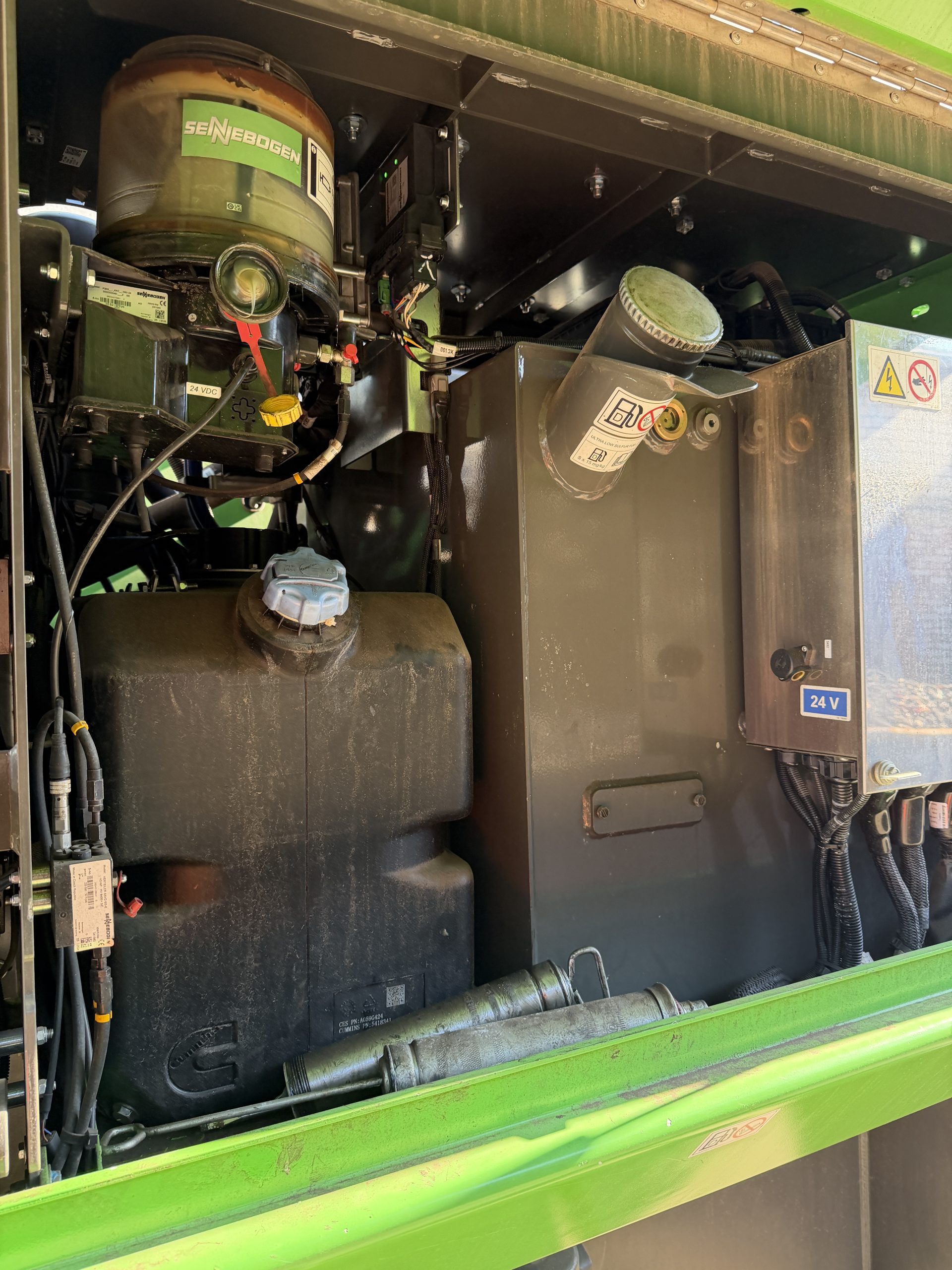

Hydro-Clean filtration system with water absorption and contamination indicator

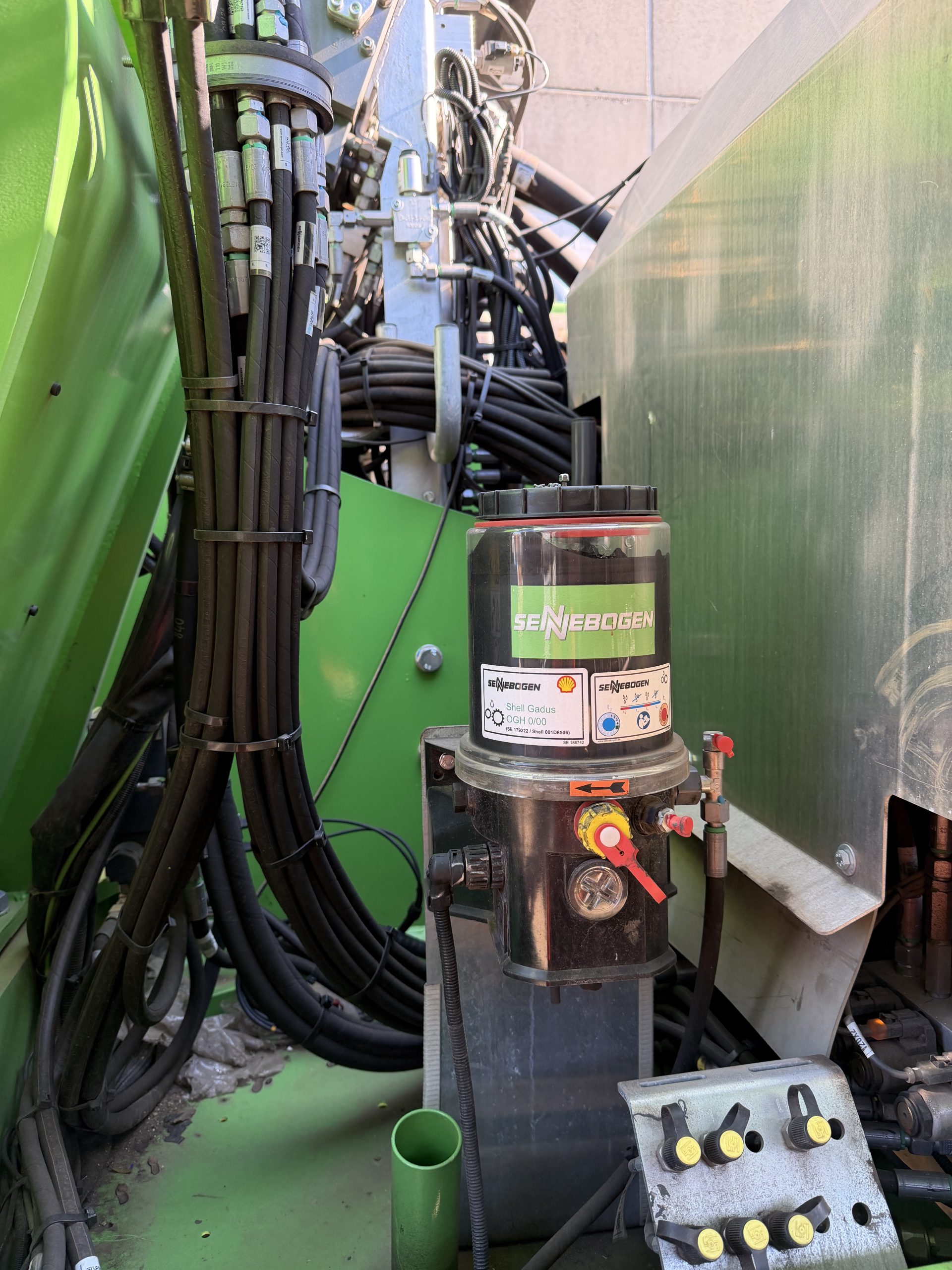

Automatic central lubrication for equipment, slewing ring raceway

Upper Carriage & Swing System
Torsion free, precisely machined upper carriage frame
High torque axial piston swing motor

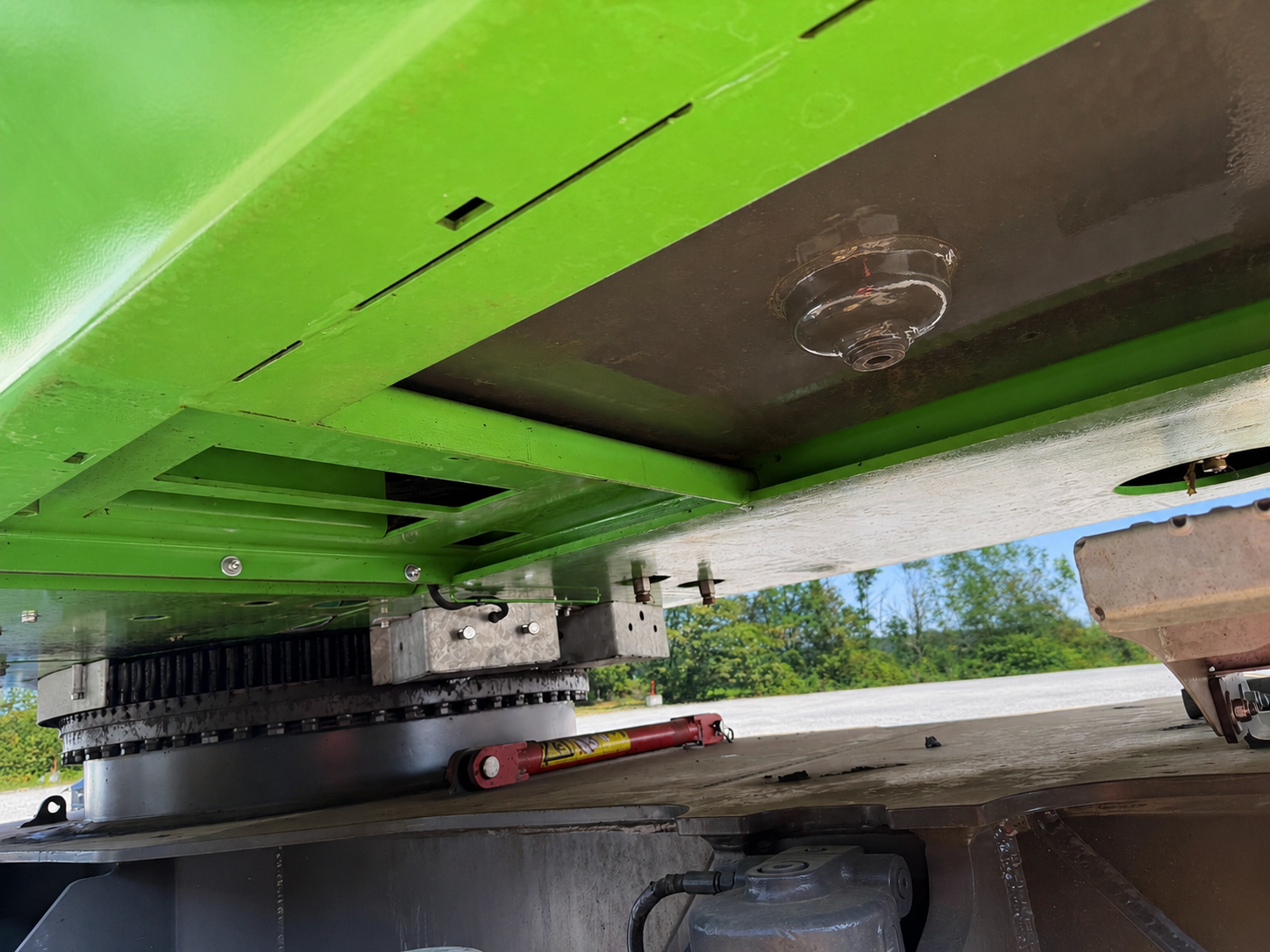

Large dimensioned, external teeth swing bearing with removable protection cover
Automatic central lubrication system for upper carriage
Counter rotation of cooler ventilator to blow out the cooler with automatic control
Manual pinion lubrication system for swing bearing
360° protection for gear rim.
Handrail on top of upper carriage (Installed prior to shipping)
Fire extinguisher set (1x cab, 1x storage compartment) – brackets installed, extinguisher shipped separate to dealer
Lighting system 1 (mobile machine):
2 pcs. H4 headlights mounted in the upper carriage-frame on the front side left and right, 2 rear lights and 2 lights integrated in the left front side of the cab roof. LED headlight with magnetic fixing support and 5m of cable for flexible connection in maintenance area.

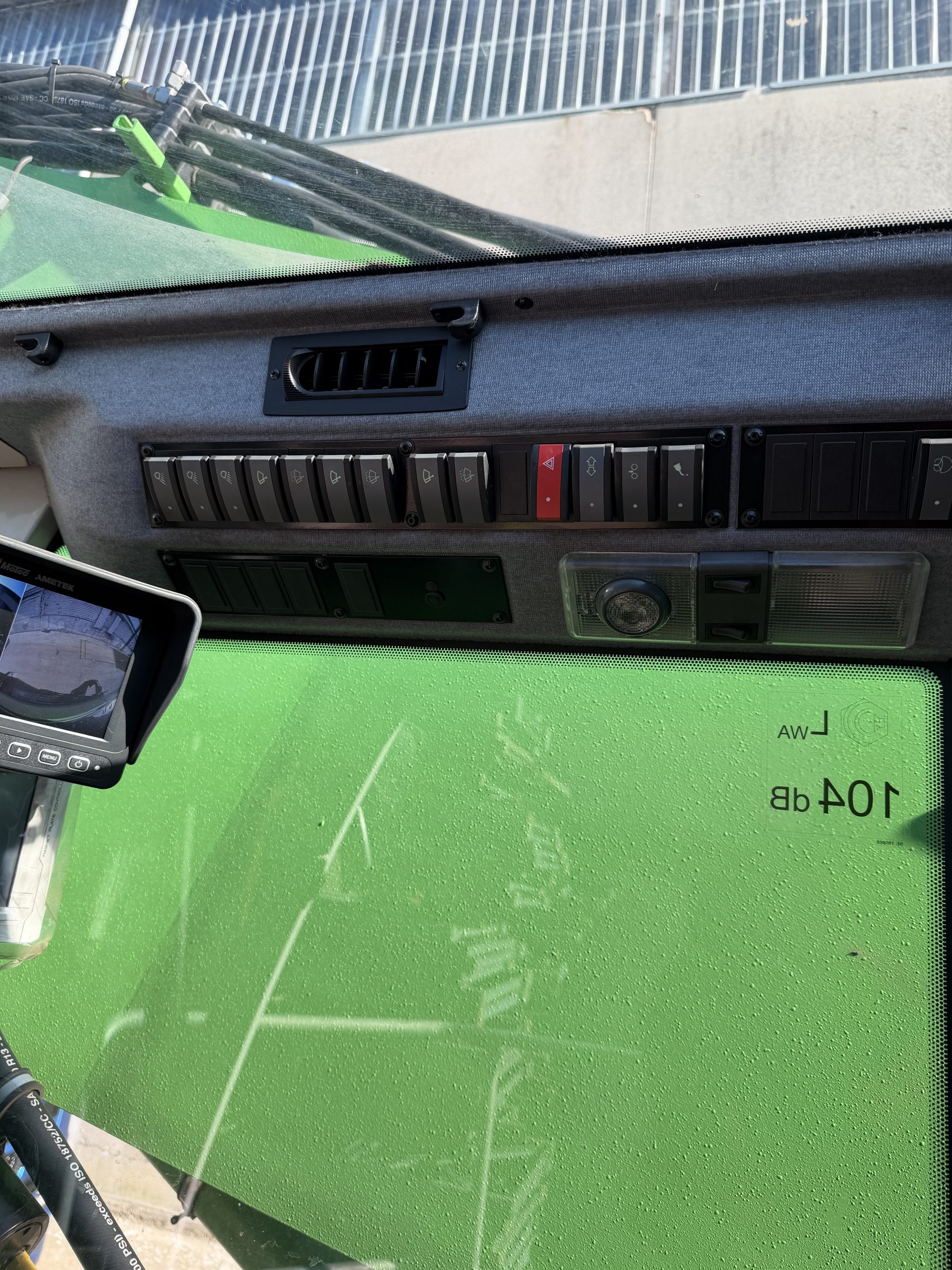

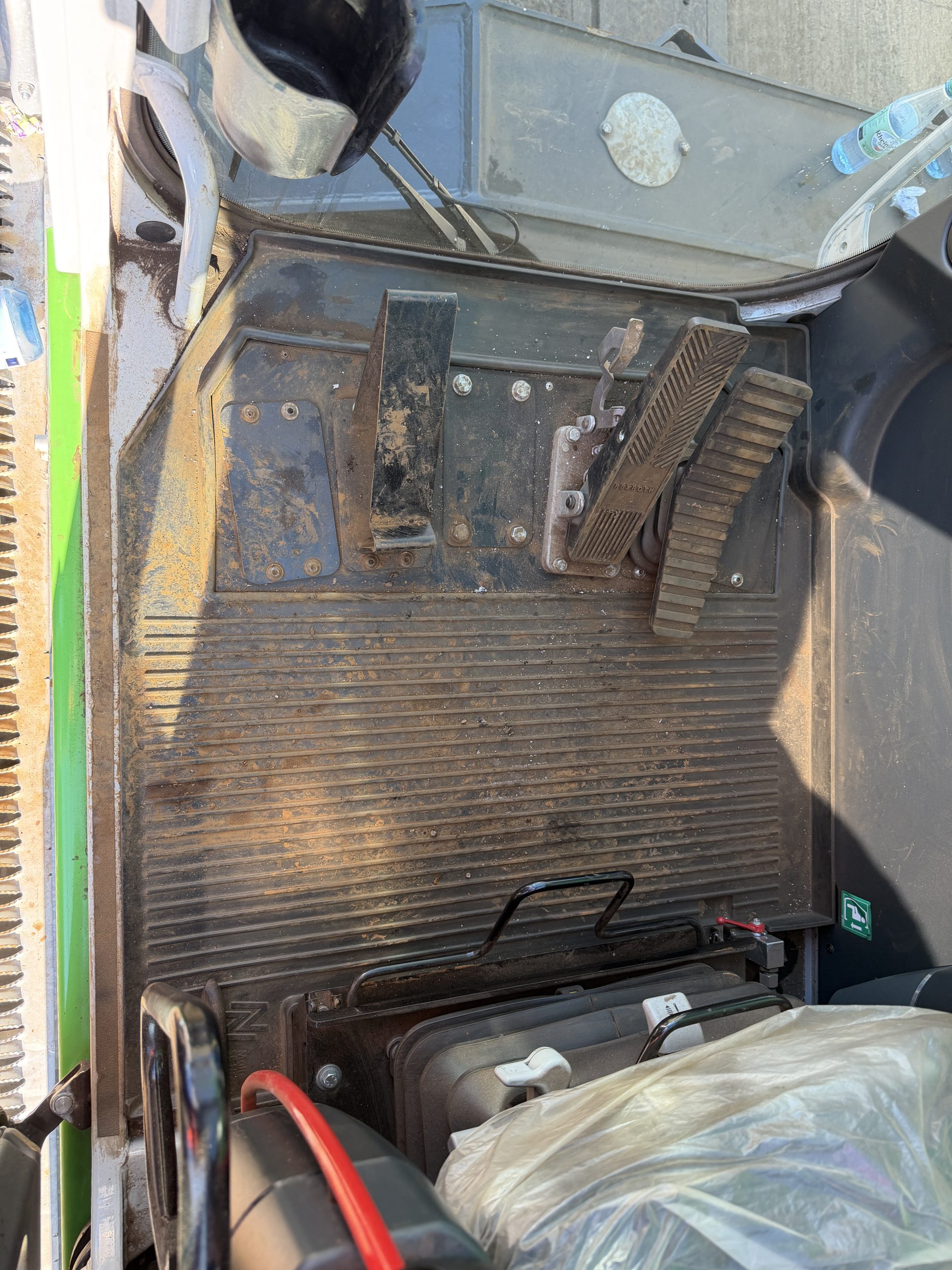

Operator’s Cab “maXCab”
Hydraulic elevating cab system “E270″ (elevation: 8’8″)
Catwalk with handrail beside cab (to be installed on site)
maXCab with sliding door and door window as sliding window, sunshade, floor mat
Front window to fold upwards
Wiper/ washer system for front window
Front window & Skylight protection guards (Installed prior to shipping)
Automatic climate control with AC, heater and defroster
AM/FM radio with MP3/Bluetooth

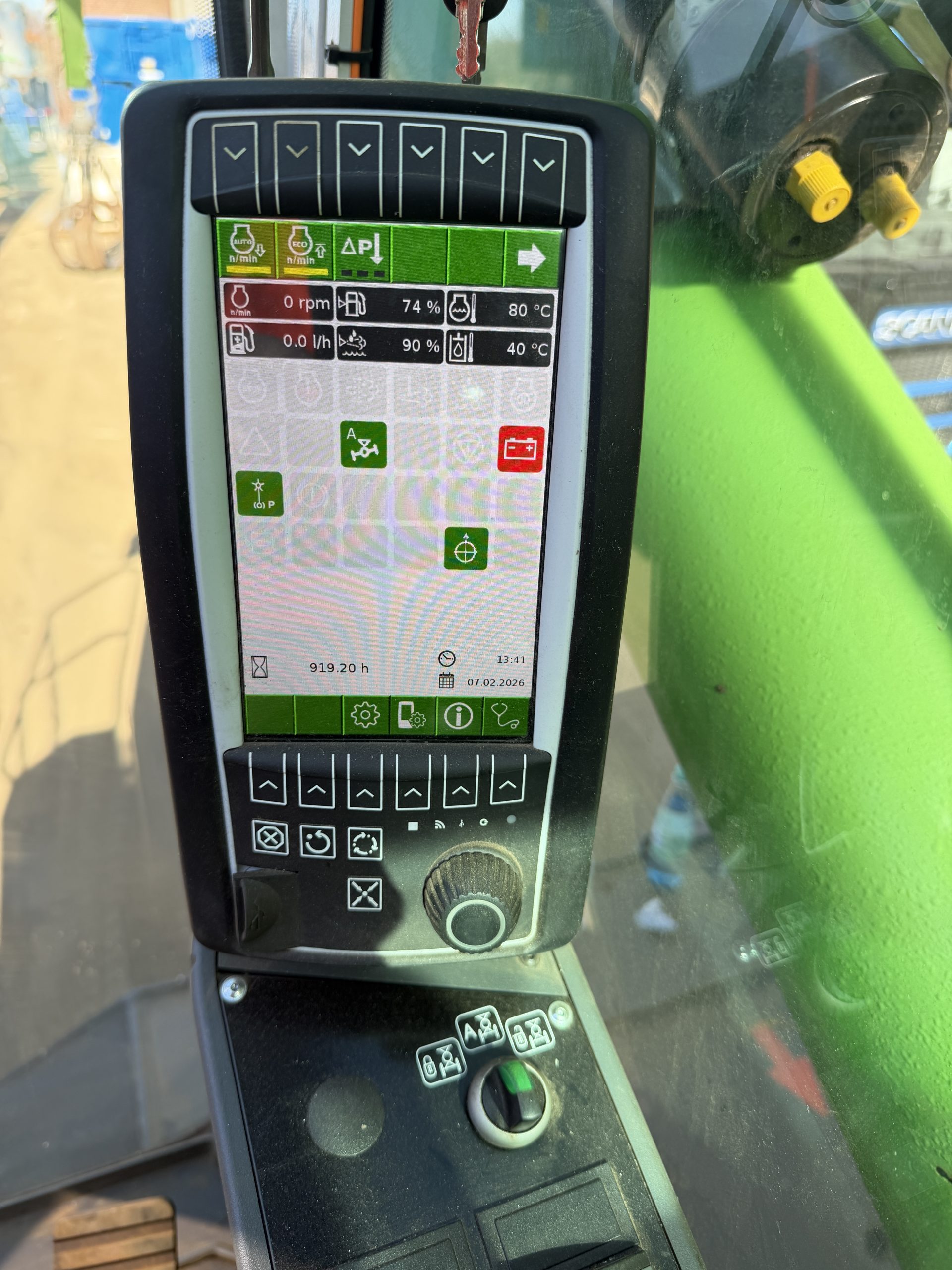

SENCON visual and acoustic diagnostic system for monitoring all essential machine functions

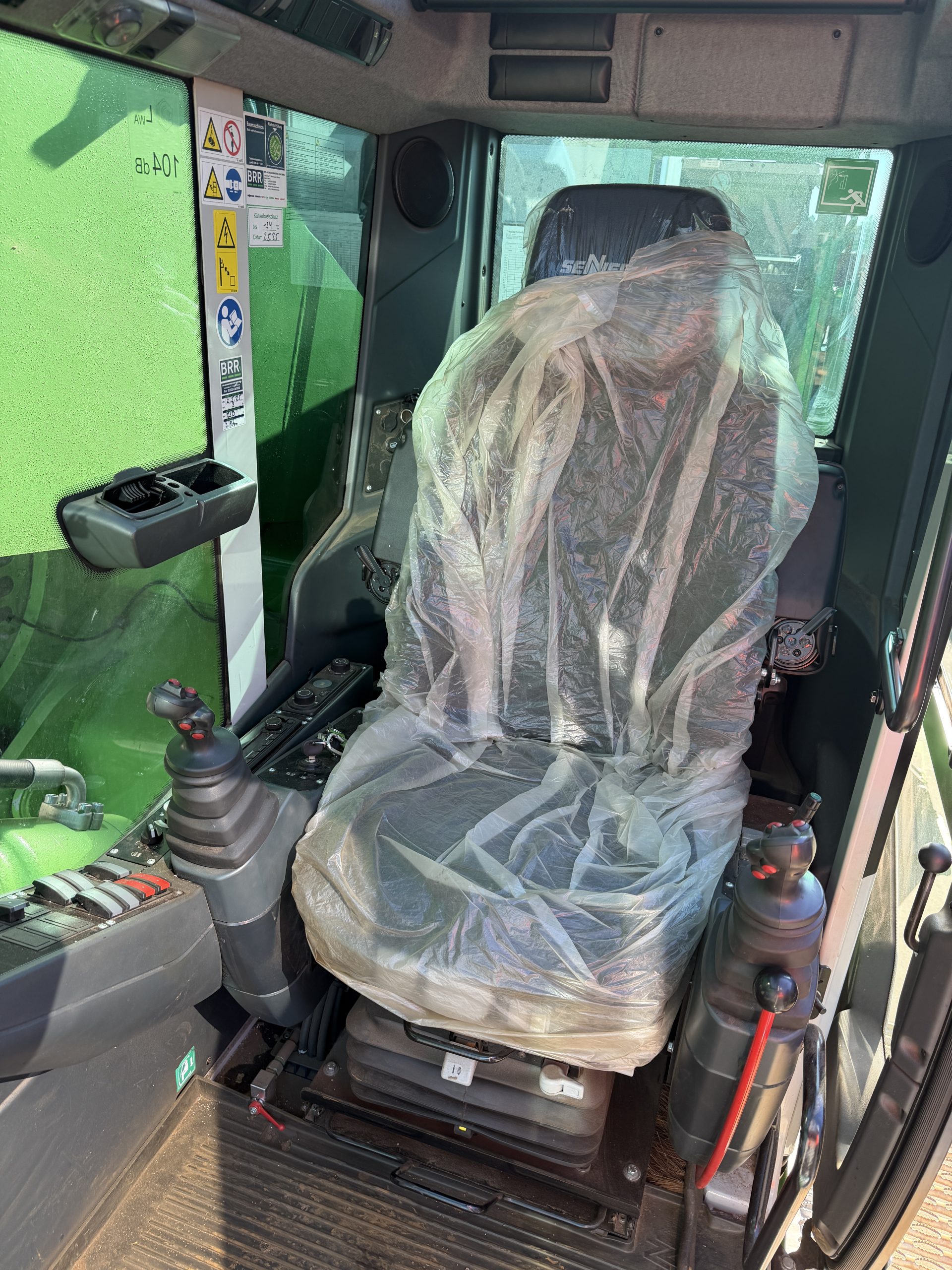

Air suspended and adjustable operator’s seat incl. armrests, seat heater, headrest, seat belt

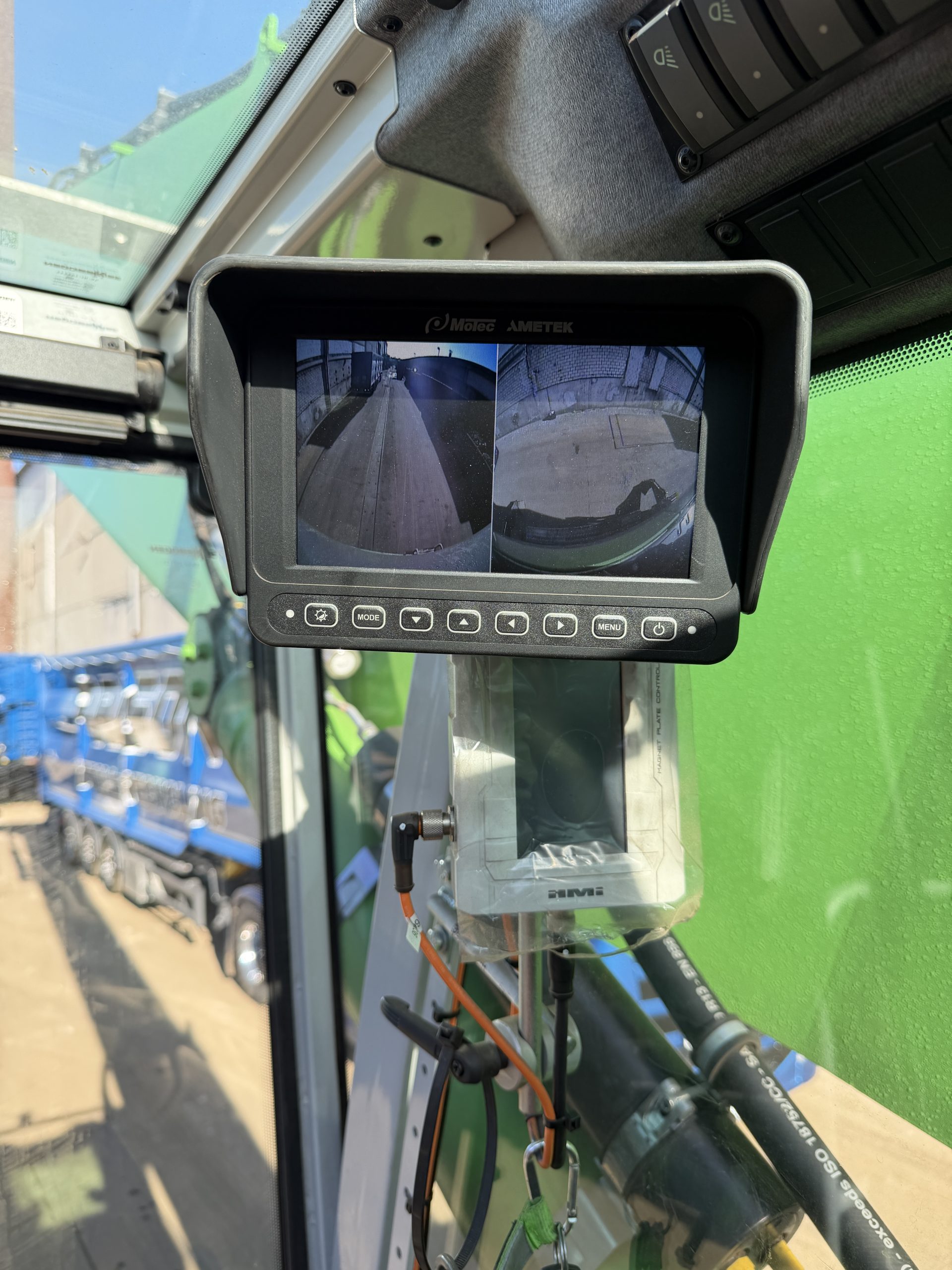

Camera system – base package with 2 cameras
– Includes 1 color monitor 7”, monitor with 4-way split, up to 4 cameras expandable, 2 cameras with 115° field viewing angle
– rear view camera
– right side of the machine
2 lights integrated in the front of the roof
1 pc. LED headlight mounted on the cab roof right side heading backwards
Joystick steering

Working Equipment

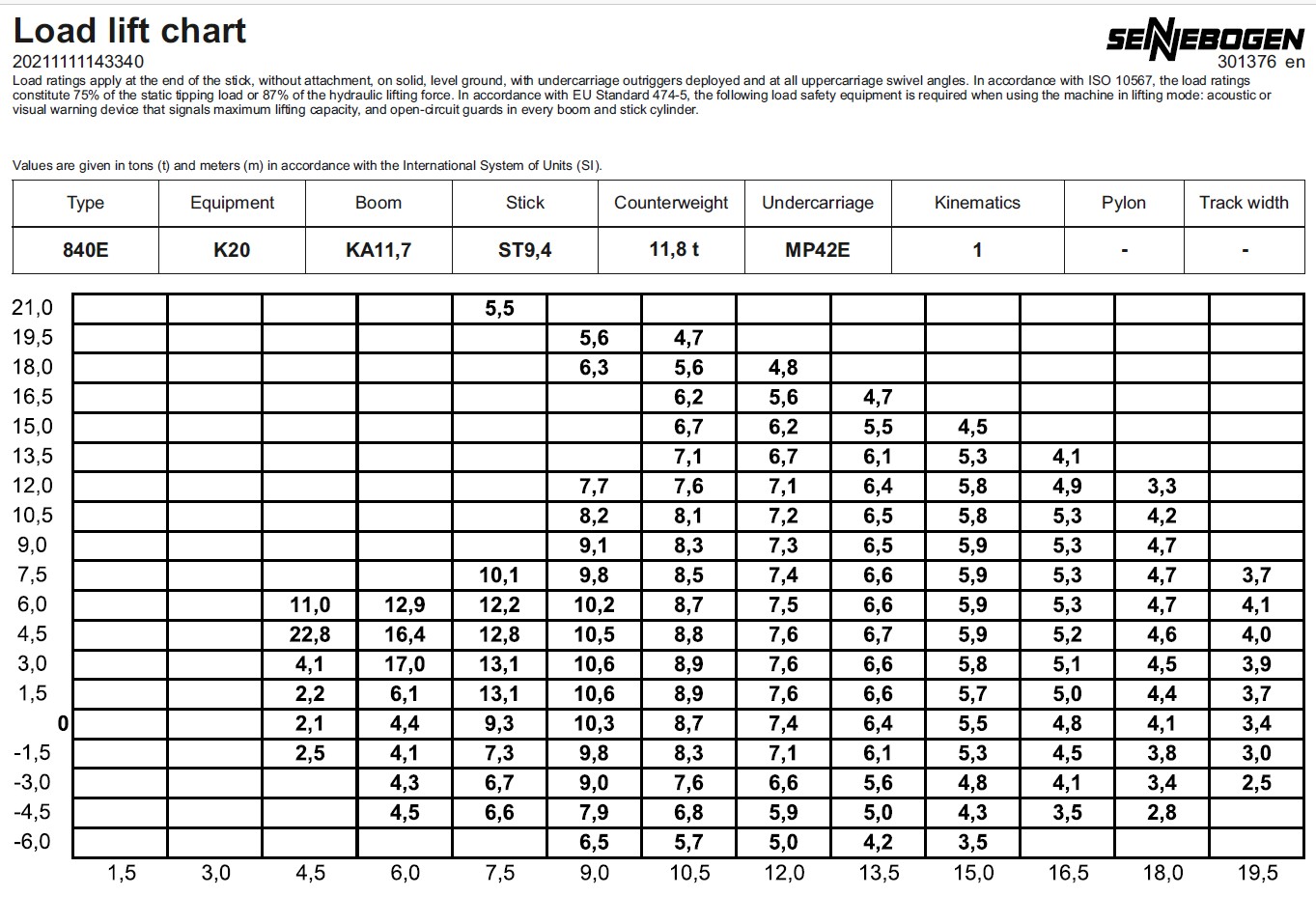

K20 – reach 65.6′ / purpose-built material handling working equipment

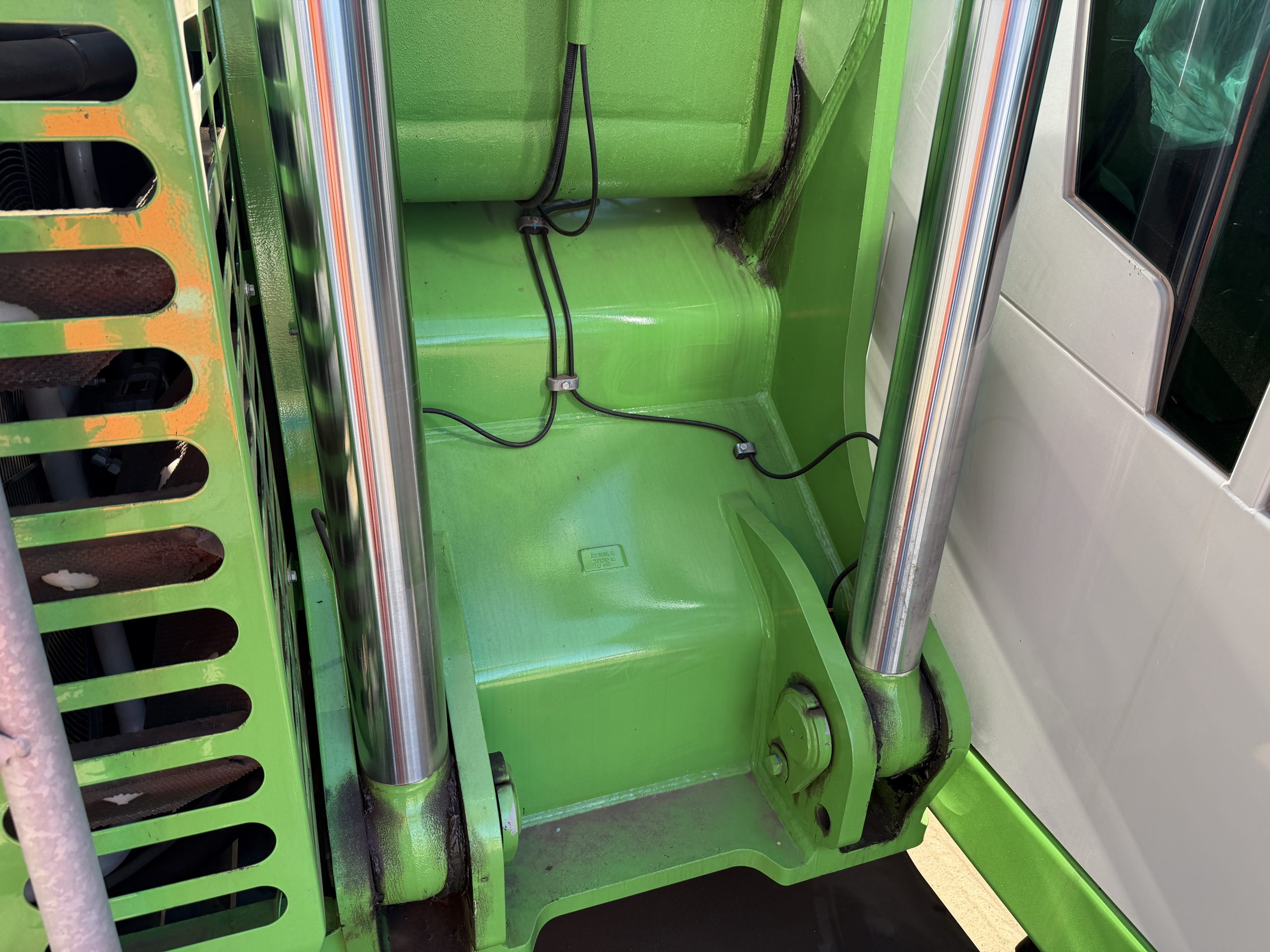

Boom & Stick cylinders equipped with safety check valves and end position damping
End position shut off for boom up/down and stick in/out function.

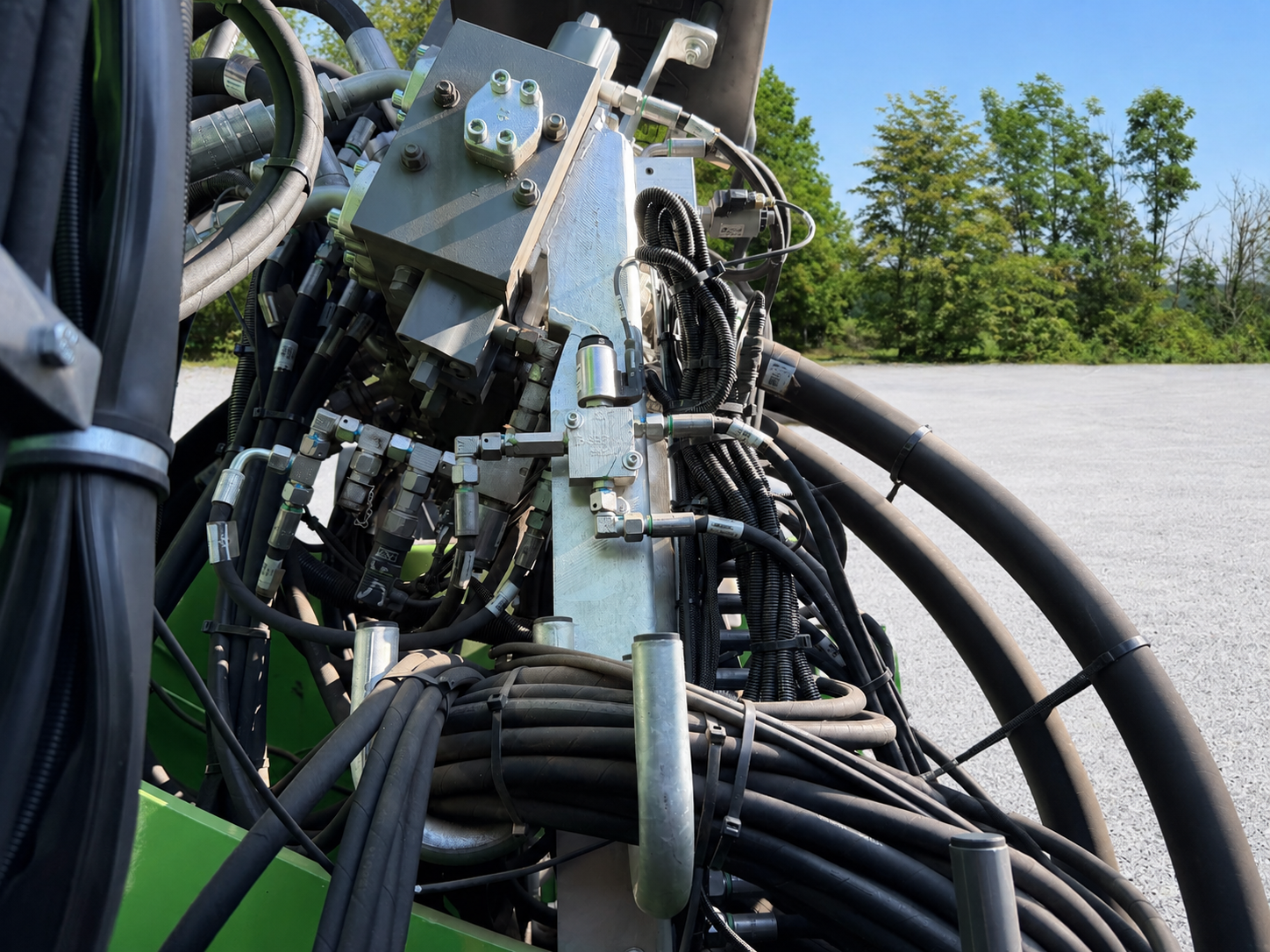

Attachment open/close and rotate hydraulic circuits and lines installed up to the end of the stick (ball valves)

Under Carriage

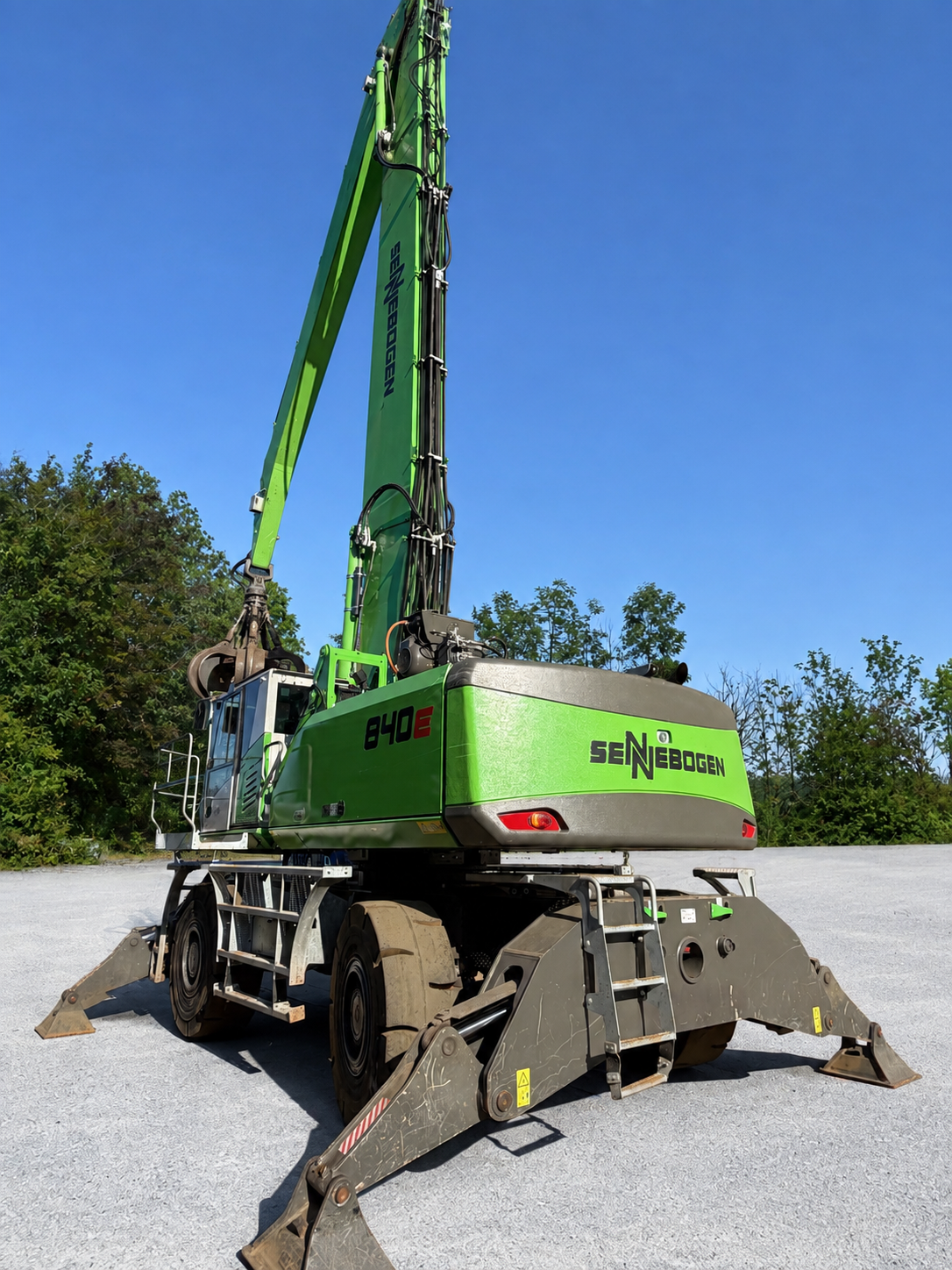

Rubber tired under carriage MP42E with 4-point outriggers
Individual control of 4-point outriggers
Automatic unlock of oscillating axle if upper carriage in longitudinal direction to under carriage
Solid rubber Magna Supersolid single tires 20.5 – 25 (4 units)
Outrigger pads 625×525, increased height, for MP42
Steering via joy stick, front wheel steering
All wheel drive via two variable hydraulic motors direct mounted on each axle
Protection guard for hydraulic drive motors (Installed prior to shipping)
2-circuit servo brake system with additional safety brake
Centralized lubrication points (front & rear) for lubrication of under carriage components
Audible travel alarm while driving machine (forward & backward)
Toolbox w/ basic tools

Magnet System

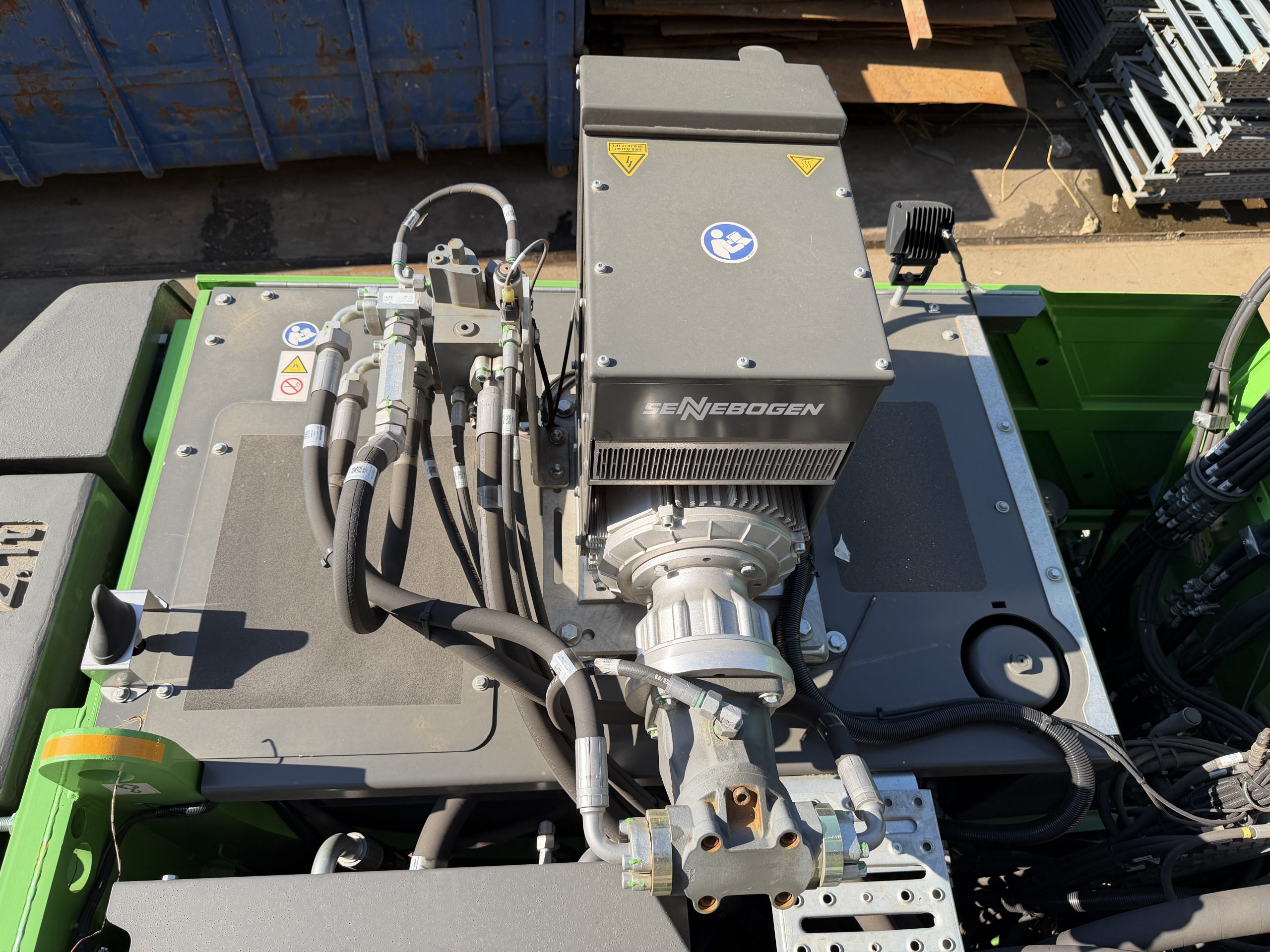

25kW Sennebogen Generator
Plug in front of stick to hook up magnet, magnet connection cable in under carriage tool box
Magnet suspension link (Will be shipped w/ the machine)
