SENNEBOGEN 875 Crawler Portal Keeps Coal Flowing At Historic Arctic Port

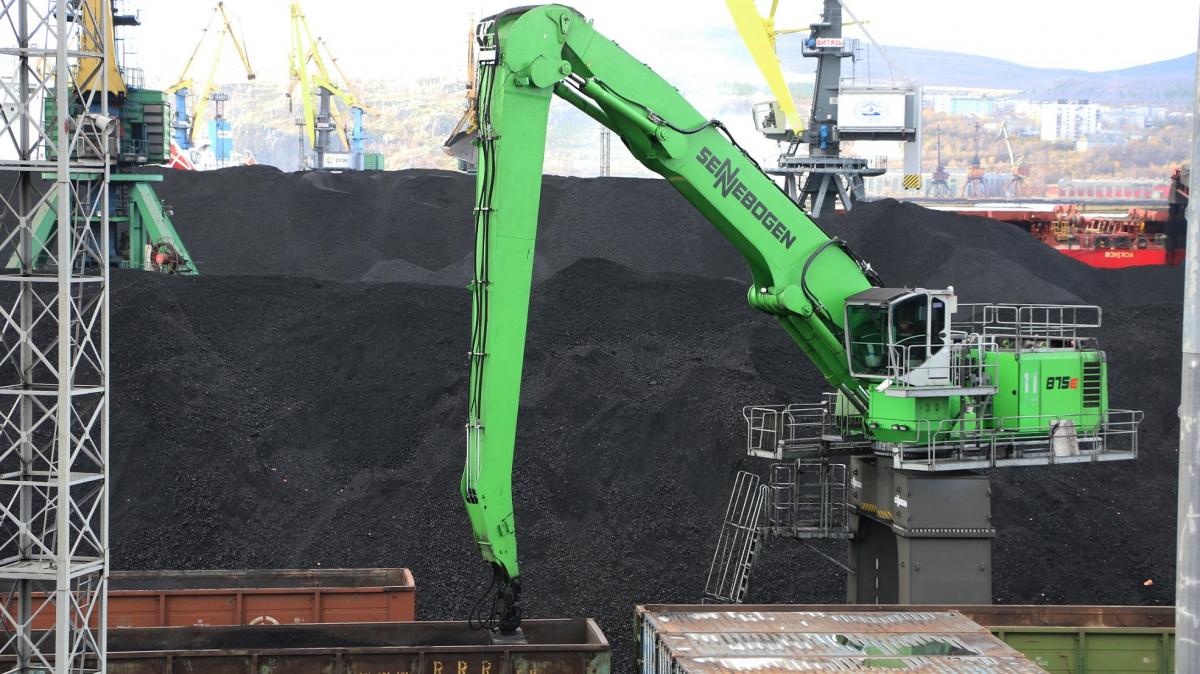

Around 4800 t of coal arrive at Murmansk port by railcar every day. They are unloaded by a SENNEBOGEN 875 with a Green Hybrid Energy Recovery System built on a crawler portal undercarriage and equipped with a 6.5 yd3 (5 m3) clamshell bucket.

Murmansk, Russia – Ports are the lynchpins of the economy, connecting countries and companies with each other. At a port in the largest city in the Arctic, an innovative SENNEBOGEN 875 material handler is the lynchpin connecting a rich Siberian resource heritage with today’s world markets.

About 4800 metric tons of Siberian coal arrive at the historic Murmansk port every day by rail and, in order to in turn to be stored for subsequent shipment, are unloaded by the SENNEBOGEN 875 equipped with a crawler portal undercarriage and 6.5 yd3 (5 m3) clamshell. Coal handling is a key business in Murmansk, which celebrated its 100th anniversary in 2016. Originally named Romanow-na-Murmana after the Russian czar, the “Cape Town of the North” is located along a bay of the Arctic Ocean. Shaped by its port, the origin of the region’s economic growth, the city is actually one year younger than the port of the same name.

Efficient material handling

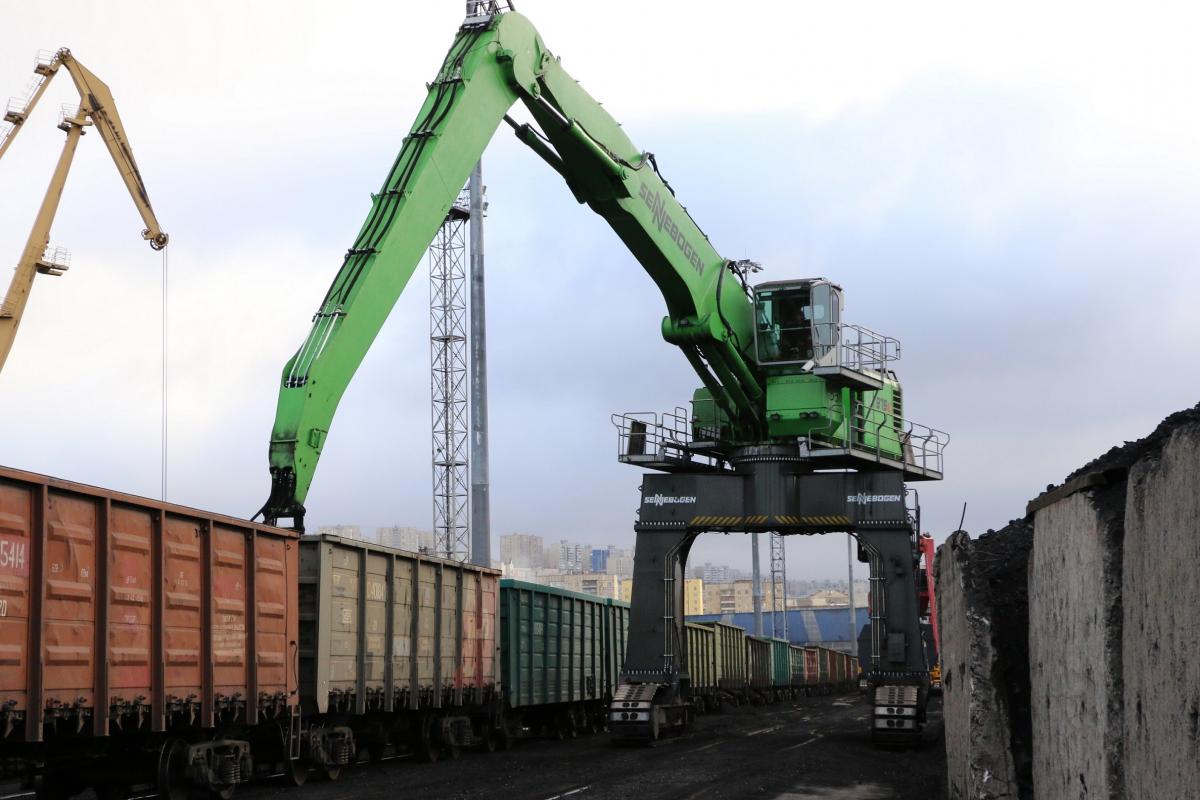

Equipped with a crawler portal undercarriage, the SENNEBOGEN 875 stands directly over the rails in order to remove the coal with the clamshell. Thanks to a track width of 19’ (5.8 m) and a passage height of 16’ 5” (5 m), the machine’s undercarriage spans one of the two railway lines on the site. However, the material handler’s reach allows it to comfortably serve both the railway line directly underneath and the one parallel to it at the same time. In addition, the diesel-driven SENNEBOGEN 875 has a range of 78’ 9” (24 m) and alternately unloads the railcars on the right and left in a continuous cycle.

Machine operators at Murmansk Commercial Seaport commend the “perfect” view from the elevated Mastercab comfort cab. In addition, cameras and LED headlights help provide optimum visibility, even in bad weather conditions. “Thanks to the powerful slewing drive with up to five revolutions per minute, we can manage an unloading cycle in under 30 seconds!”

Delivered in mid-2015 by SENNEBOGEN’s local sales and service partner JSC KWINTMADI, the 875 material handler is equipped with a 530 HP (395 kW) diesel engine and the Green Hybrid energy recovery system. For use at Arctic temperatures, the unit was optimized with a low temperature package, including numerous preheating mechanisms for the equipment and energy recovery system, as well as special lubricants for temperatures down to -31º F (-35º C).

In addition to the 875 with crawler portal, several SENNEBOGEN 830 and 835 material handlers are in use loading bulk goods at the Port of Murmansk.

Click here to see the SENNEBOGEN 875 E-Series in action at the Port of Murmansk on YouTube!

About SENNEBOGEN

SENNEBOGEN has been a leading name in the global material handling industry for over 65 years. Based in Stanley, North Carolina, within the greater Charlotte region, SENNEBOGEN LLC offers a complete range of purpose-built machines to suit virtually any material handling application. Established in America in the year 2000, SENNEBOGEN LLC has quickly become a leading provider of specialized equipment solutions for recycling and scrap metal yards, demolition, barge and port operations, log-handling, transfer stations and waste facilities from coast to coast. A growing network of distributors supports SENNEBOGEN LLC sales and service across the Americas, ensuring the highest standard of professional machine support and parts availability.

For more information on the full line of SENNEBOGEN green line material handlers, contact:

Constantino Lannes, President
SENNEBOGEN LLC
1957 Sennebogen Trail (formerly 7669 Old Plank Road)
Stanley, NC 28164
Tel: (704) 347-4910 or fax (704) 347-8894
E-mail: sales@sennebogenllc.com
Visit the web site at www.sennebogen-na.com
